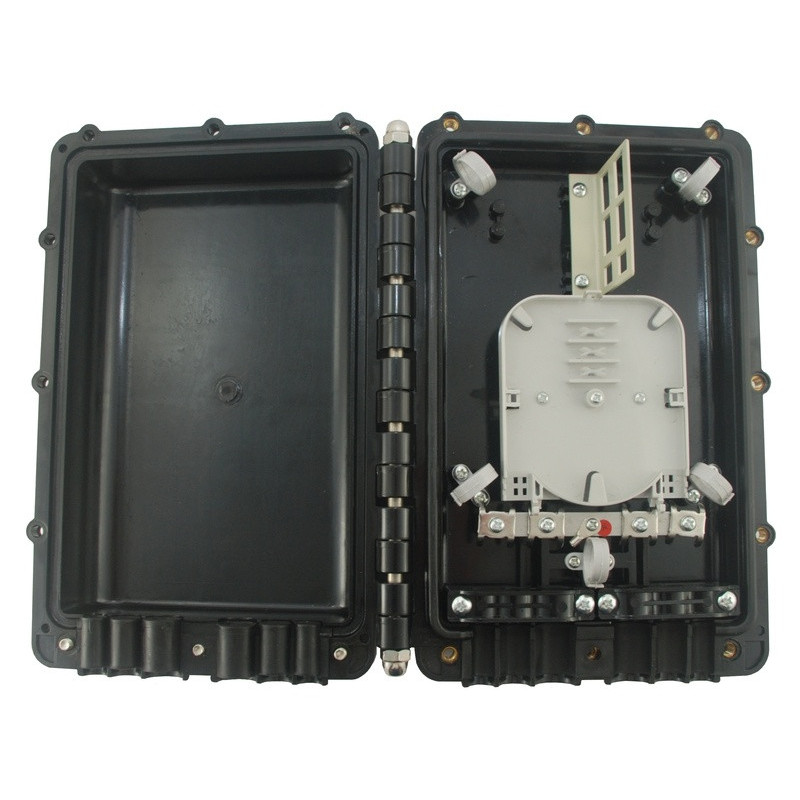

Small size Optical cable sleeve (coupling) for 48 optical fibers and SC / LC adapters
Product reference:
22-3100000989682
Small size Optical cable sleeve (coupling) for 48 optical fibers and SC/LC adapters
Small size Optical cable sleeve (coupling) for 48 optical fibers and SC / LC adapters
Product reference:
22-3100000989682
Small size Optical cable sleeve (coupling) for 48 optical fibers and SC/LC adapters
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
Not available
The coupling is designed to provide long-term protection of fibers and splices, it can be equipped with 4 cassettes, allowing the connection of up to 24 fibers. The connection allows easy management and organization of the connected fibers. The coupling has a built-in patch panel with places for 4 SC duplex adapters and 2 SC simplex adapters. It can be used for underground and aboveground installations. It has four cable entries 2x13mm, 2x16mm, 2x20mm. The connection is made of high-quality plastic that is resistant to UV radiation.
Dimensions: length 323mm, width 202mm, depth 86mm
Inputs/outputs: 6 (round inputs)
Maximum cable diameter: 22 mm
Number of cassettes: 4
Cassette capacity: 12 tubes
Maximum capacity 48 tubes
| Depth: | 90 mm |
| Height | 200mm |
| Weight: | 1.9 kg |
| Width: | 280mm |
