Digital Multimeter - UNI-T UT131B AC and DC Voltage, Current, Resistance Up to 20 MΩ, Diode, Continuity and Battery Test
Product reference: 14-6935750513262

UNI-T UT131B - digital multimeter for measuring AC and DC voltage and current, as well as resistance up to 20 MΩ. It features diode, circuit continuity, and 1.5 V and 9 V battery testing functions, data hold, and a 2,000-digit LCD display.

Digital Multimeter - UNI-T UT131B AC and DC Voltage, Current, Resistance Up to 20 MΩ, Diode, Continuity and Battery Test

Product reference: 14-6935750513262

UNI-T UT131B - digital multimeter for measuring AC and DC voltage and current, as well as resistance up to 20 MΩ. It features diode, circuit continuity, and 1.5 V and 9 V battery testing functions, data hold, and a 2,000-digit LCD display.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
29,39 €
30,62 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

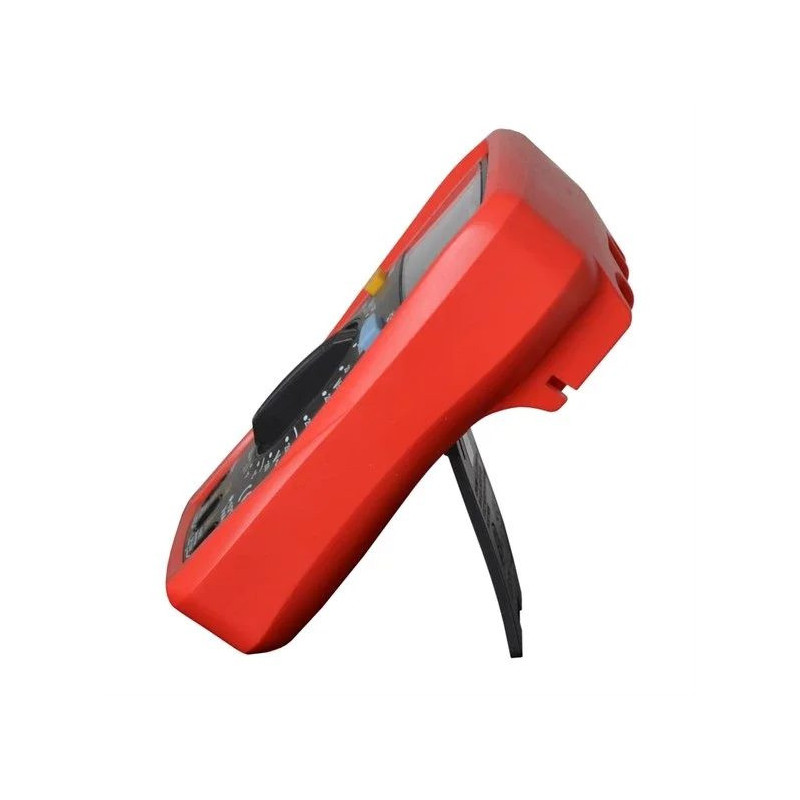

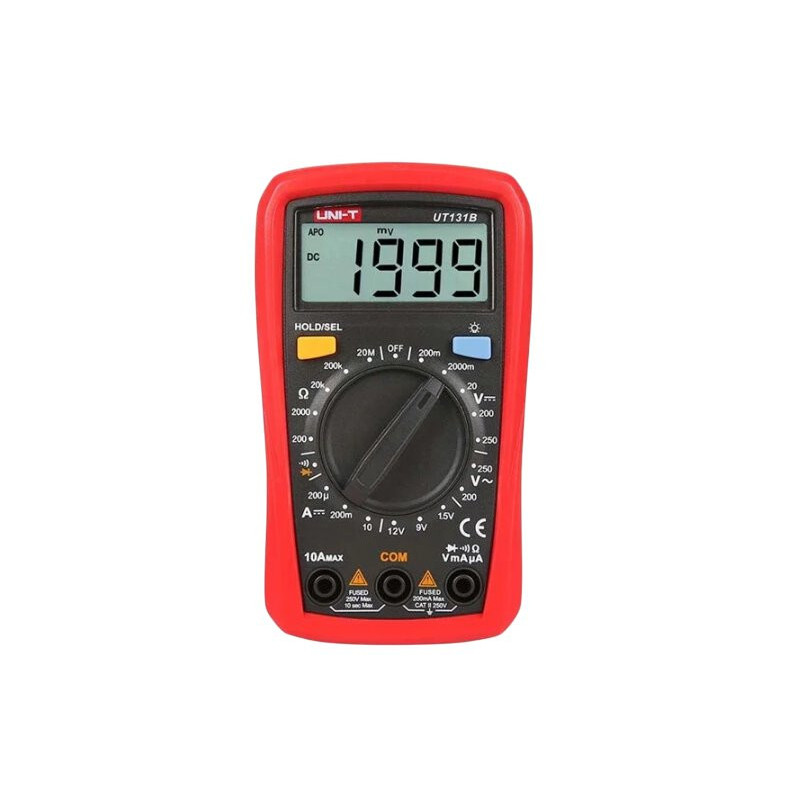

UNI-T UT131B multimeter


UNI-T UT131B - digital multimeter for measuring AC and DC voltage, AC and DC current, and resistance up to 20 MΩ. It can also be used to test diodes, circuit continuity, 1.5 V and 9 V batteries. The device has a data hold function and a 2,000-count LCD display.


  • Universal digital multimeter for measuring AC and DC voltage, current and resistance
  • Integrated 1.5V and 9V battery test function for convenient daily diagnostics
  • Diode and circuit continuity testing with audible signal and data hold function
  • Compact and durable ABS housing, clear 2,000-count LCD display, CAT II 250 V safety category

Product information

Product type Digital multimeter
Brand UNI-T
Model UT131B
Screen 2,000-digit LCD
Housing material ABS

Measurement functions

Constant voltage 200mV-600V
Alternating voltage 200V-600V
Direct current Up to 10A
Alternating current Up to 10A
Resistance Up to 20 MΩ
Diode testing Yes
Checking the integrity of the circuit Yes, with audible signal
Checking the batteries 1.5V and 9V

Additional technical data

Data retention Yes
Backlight No
Automatic shutdown Yes
Power supply 2 × AAA 1.5V batteries
Internal fuses 250V/0.5A and 250V/10A
Dimensions 130 × 73.5 × 35mm
Weight About 130g
Safety category CAT II 250V
Compliance CE, RoHS

Safety warning

Safe use Use only for specified electrical measurements and do not exceed the specified voltage and current limits. Follow the operating instructions, select the correct function and test leads. Never measure resistance, continuity, diodes or batteries on a live circuit. CAT II 250 V protection is for use with suitable low voltage equipment only. Keep the multimeter dry and check the test leads and fuses before use.

Height100mm
Length200mm
Weight200g
Width150mm
