Signal Generator - FNIRSI SG-002 ±12 V 0-24 mA 4 Digit LED 1100 mAh Battery
Product reference: 14-5905156102477

FNIRSI SG-002 - multifunctional signal generator for testing PLCs, sensors, valves and industrial control systems. It generates ±12 V voltage and 0-24 mA current signals in active or passive mode, has a 4-digit LED display and a built-in 1,100 mAh battery.

Signal Generator - FNIRSI SG-002 ±12 V 0-24 mA 4 Digit LED 1100 mAh Battery

Product reference: 14-5905156102477

FNIRSI SG-002 - multifunctional signal generator for testing PLCs, sensors, valves and industrial control systems. It generates ±12 V voltage and 0-24 mA current signals in active or passive mode, has a 4-digit LED display and a built-in 1,100 mAh battery.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
35,84 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

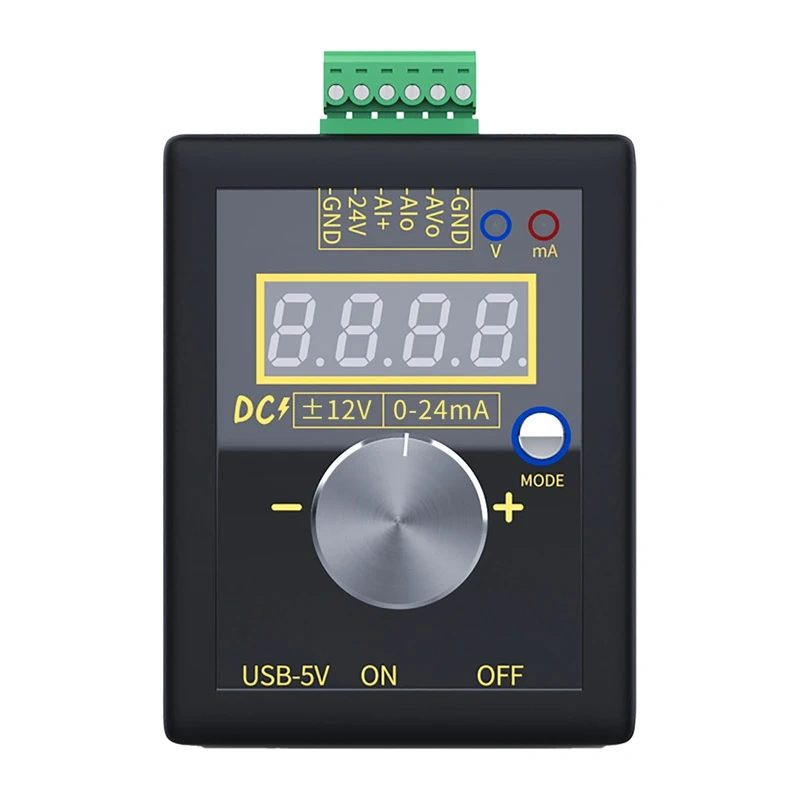

FNIRSI SG-002


FNIRSI SG-002 - universal signal generator for testing PLCs, sensors, valves and industrial control systems. It generates ±12 V voltage and 0-24 mA current signals in active or passive mode. The device has a 4-digit LED display and a built-in 1100 mAh battery.


  • Professional universal signal generator for testing PLCs, sensors, inverters, proportional valves and industrial automation systems
  • Generates a variety of ±12 V voltage and 0-24 mA current signals, including 0-20 mA and 4-20 mA standards
  • Supports active and passive current output, 2, 3 and 4-wire connections, and loads up to 500 Ω
  • Compact and portable design with rotary encoder, 4-digit LED display, programmable quick start values and built-in 1100 mAh battery

Product information

Product type Universal voltage and current signal generator
Brand FNIRSI
Model SG-002
Main purpose Testing and calibration of PLCs, sensors, valves, inverters, converters and industrial automation systems

Output specifications

Voltage output Maximum ±12 V
Selectable voltage modes ±12 V, ±5 V, 0-10 V, 2-10 V, 0-5 V, 1-5 V, 0-3.3 V, 0-2.5 V, 0-1 V and −10-0 V
Voltage accuracy after calibration ±0.05V
Current output 0-24mA
Supported current standards 0-20 mA, 4-20 mA and 0-24 mA
Current accuracy after calibration ±0.05mA
Current output mode Active or passive
Maximum current load 500 Ω
Supported connections 2, 3 and 4 wire connections

Control and display

Regulation Coarse and fine adjustment with rotary encoder
Encoder resolution 30 pulses per revolution
Regulation resolution Coarse: 0.1-5 V/mA; Fine: 0.01-0.5 V/mA
Screen 4-digit high-brightness LED display
Display modes Current value, percentages, and special modes
Brightness settings 8 levels
Memory Automatic restoration of saved settings upon restart
Quick launch values Programmable

Power supply and construction

External power input 15-30V DC
USB power input 5 V via micro USB connector
Built-in battery 3.7V, 1100mAh lithium battery
Use while charging Supported

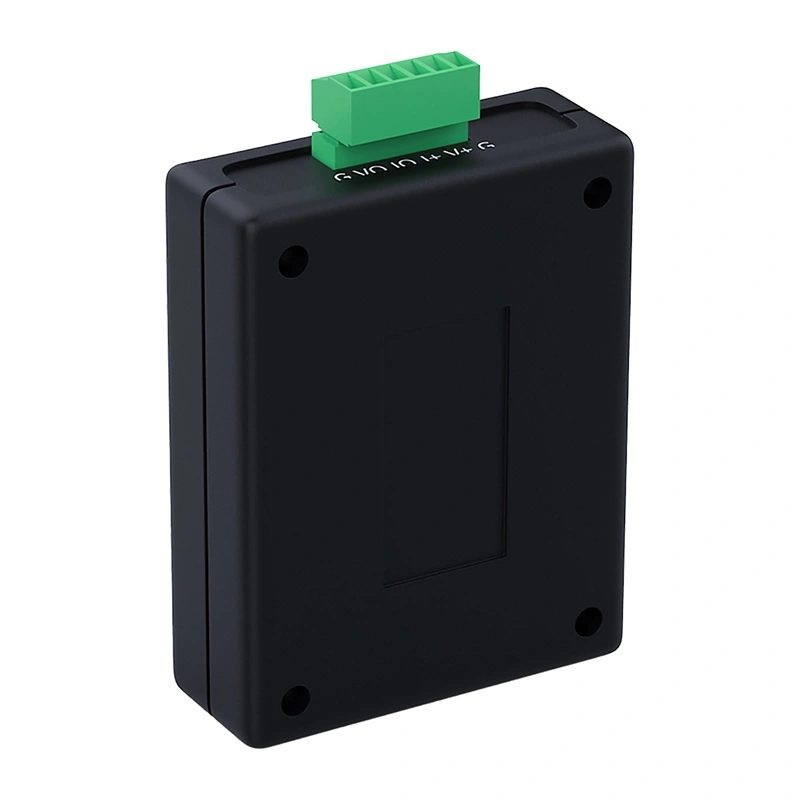

Signal connectors Removable terminal blocks
Dimensions 89 × 69 × 28mm

Complete set

Contents
  • FNIRSI SG-002 signal generator
  • Removable terminal block
  • Micro USB cable
  • User manual

Safety warning

Important Use only for generating and testing specified voltage and current signals. Before connecting, check connections, polarity, operating mode and permissible load limits. Disconnect power before changing terminal connections. Use the device only within the specified input, output and load parameters.

Height60mm
Length130mm
Weight450 g
Width160mm
