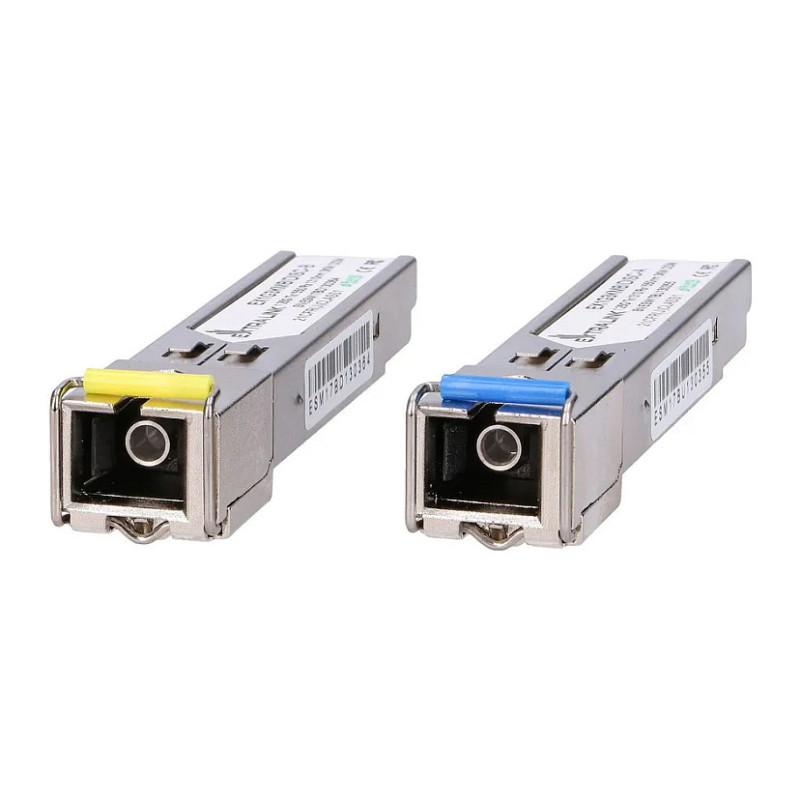

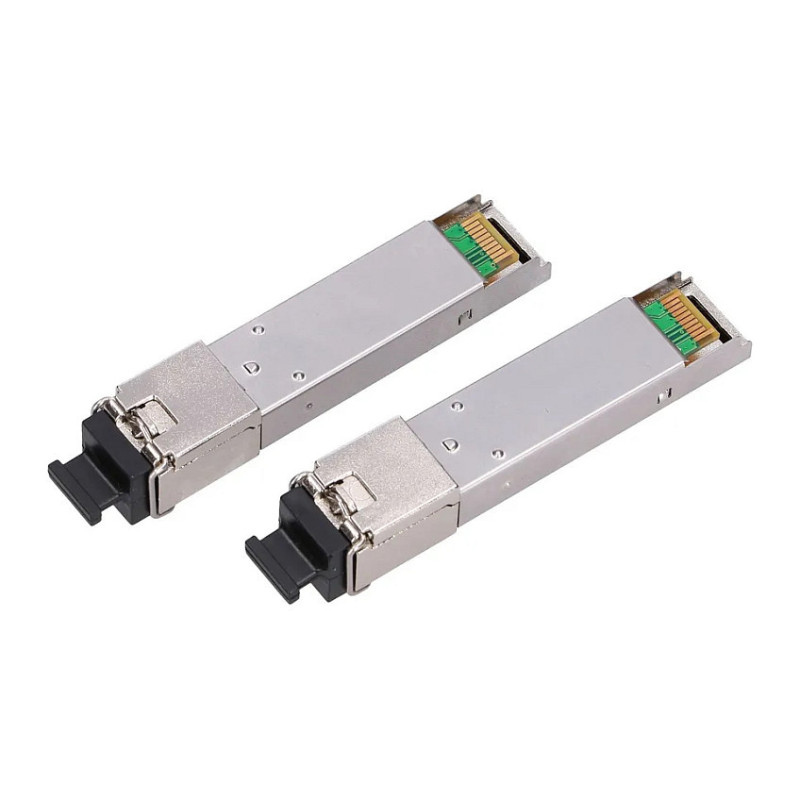

Extralink EX.2220 network transceiver module
Product reference: 29-5902560362220

Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 3km, SC, DOM, pair, Fiber optic, 1250 Mbit/s, SFP, SC, 3000 m, 1550 nm

SFP 1.25G WDM Module 1310 / 1550 Nm Single-Mode 3 Km SC DOM - Transceiver - Fibre Optic
SFP 1.25G WDM Module 1310 / 1550 Nm Single-Mode 3 Km SC DOM - Transceiver - Fibre Optic
SFP 1.25G WDM Module 1310 / 1550 Nm Single-Mode 3 Km SC DOM - Transceiver - Fibre Optic
SFP 1.25G WDM Module 1310 / 1550 Nm Single-Mode 3 Km SC DOM - Transceiver - Fibre Optic
SFP 1.25G WDM Module 1310 / 1550 Nm Single-Mode 3 Km SC DOM - Transceiver - Fibre Optic

Extralink EX.2220 network transceiver module

Product reference: 29-5902560362220

Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 3km, SC, DOM, pair, Fiber optic, 1250 Mbit/s, SFP, SC, 3000 m, 1550 nm

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
50,85 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

Extralink SFP WDM Module SFP 1.25G 1,25Gbps, 1310/1550nm, single mode, 3km, SC, DOM, pair. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Compliance certificates: CE, RoHS, Certification: FCC. Quantity per pack: 2 pc(s)

Transmitter - Transceiver Extralink SFP, set
Transceivers (transmitter-receivers) SFP are high-performance, economical modules supporting 1.25 Gbps/1.0625 Gbps and 3 km transmission range from the SMF. The transmitter consists of three sections: FP laser transmitter, PIN photodiode integrated with transimpedance preamplifier (TIA) and MCU control unit. All modules meet Class I laser safety requirements.

Extralink WDM - compatibility and attractive price!
Extralink transmitters are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. Please refer to SFP MSA for further details.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: SC
Maximum transfer distance: 3000 m
Wavelength: 1550 nm
Feature: Wavelength-division multiplexing (WDM)

Certificates

Compliance certificates: CE, RoHS
Certification: FCC

Packaging content

Quantity per pack: 2 pc(s)


Gamintojo kodas EX.2220
Weight 0.06 kg
