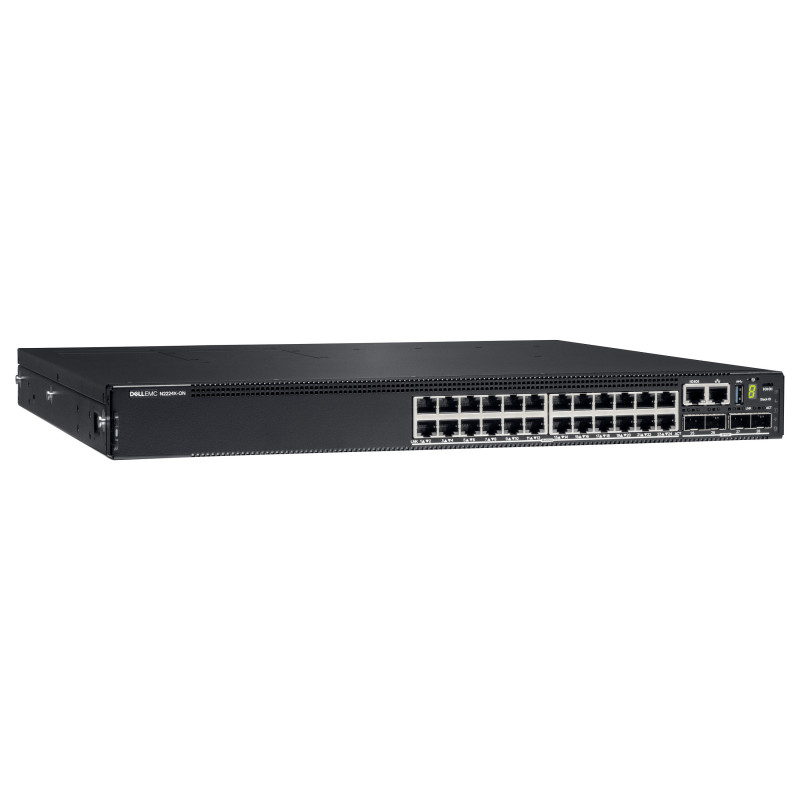

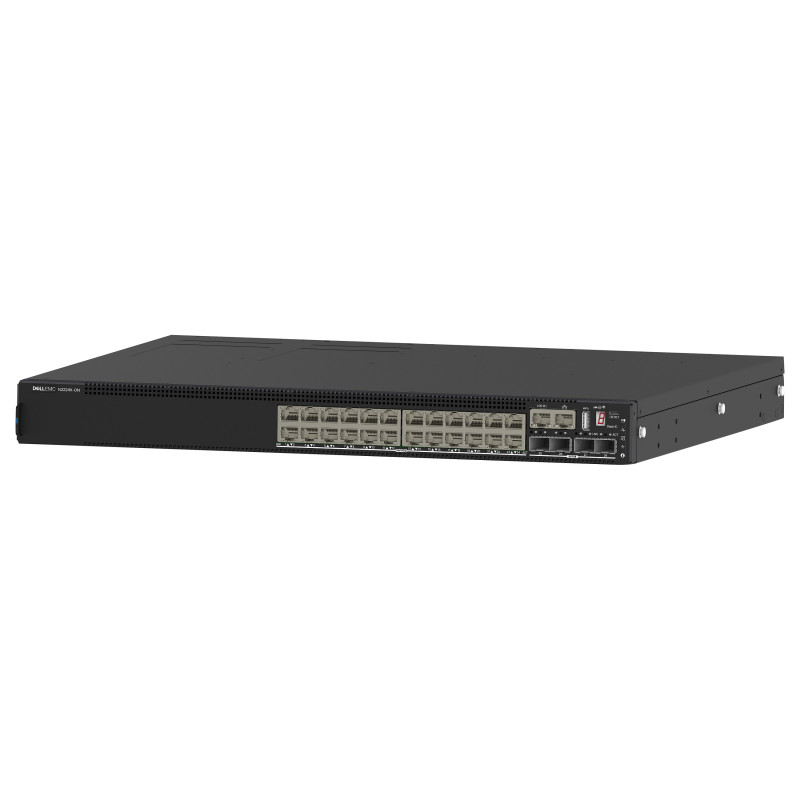

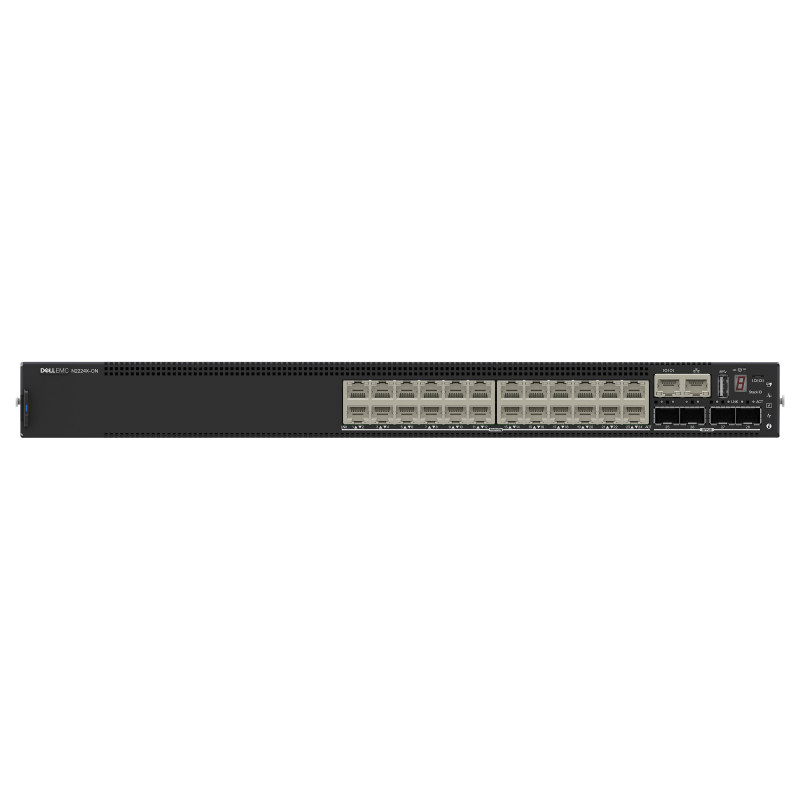

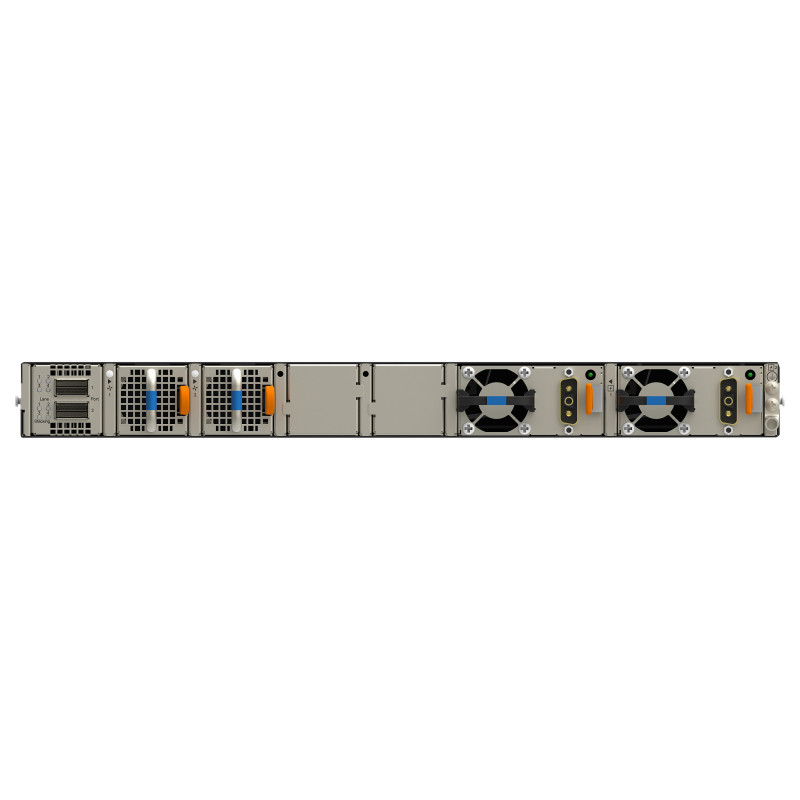

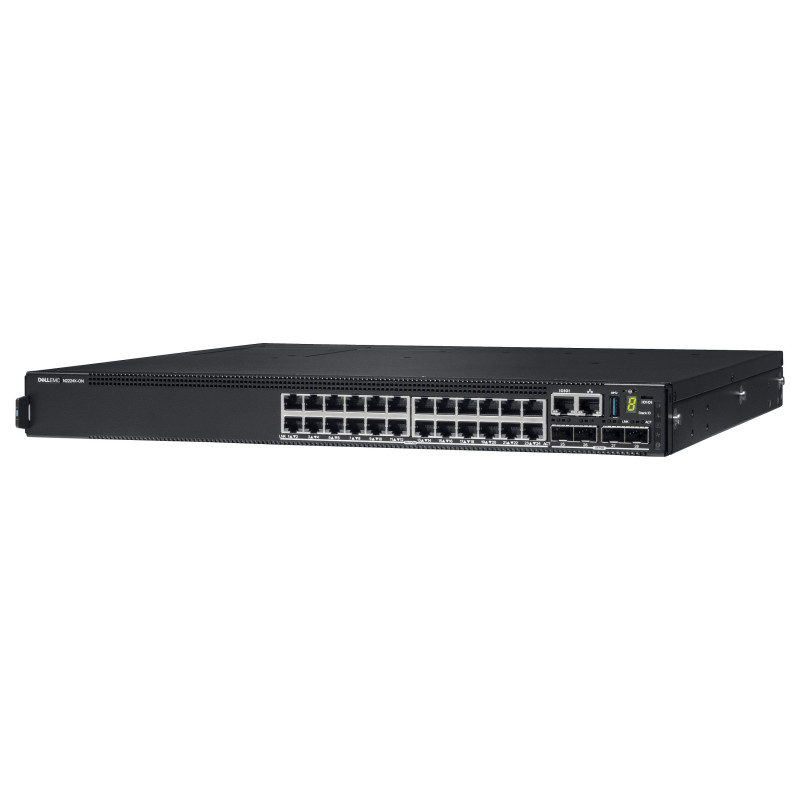

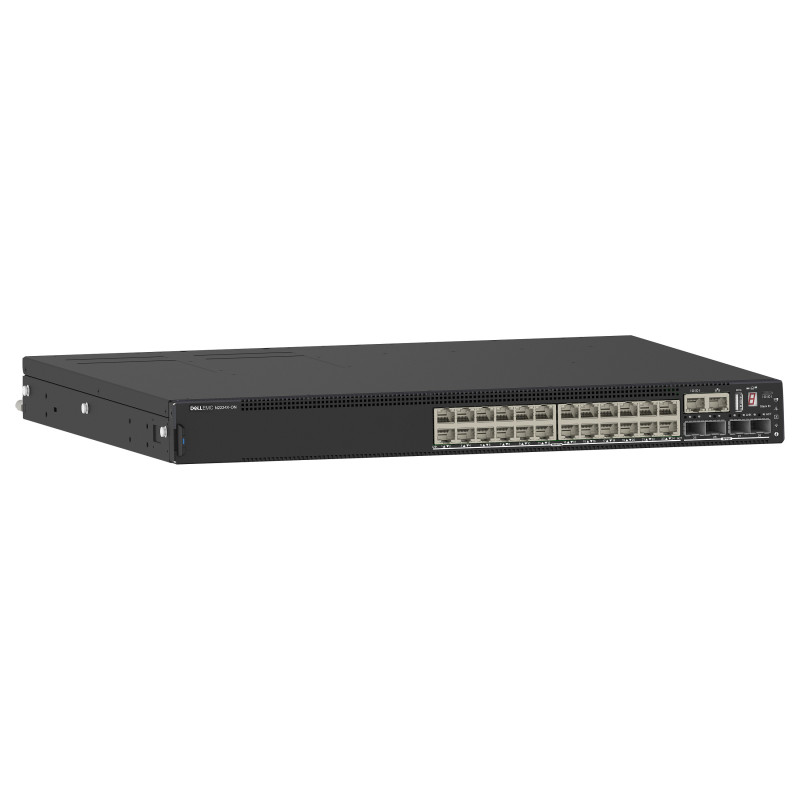

DELL N2224X-ON

DELL N2224X-ON. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Rack mounting, Form factor: 1U

Modernize your campus access network
Purpose-built industry's first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity: 24
QSFP+ module slots quantity: 2
SFP28 ports quantity: 4
USB 2.0 ports quantity: 1

Network

Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: Active link detection
Feature: VLAN support
Number of VLANs: 4096

Data transmission

Switching capacity: 160 Gbit/s
Forwarding rate: 667 Mpps
MAC address table: 32000 entries
Packet buffer memory: 4 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication type: RADIUS

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black

Power

Feature: Power supply included
Power consumption (typical): 550 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 85%
Heat dissipation: 812 BTU/h

Weight & dimensions

Width: 434.1 mm
Depth: 400.1 mm
Height: 43.4 mm
Weight: 6.49 kg

Logistics data

Harmonized System (HS) code: 85176990
