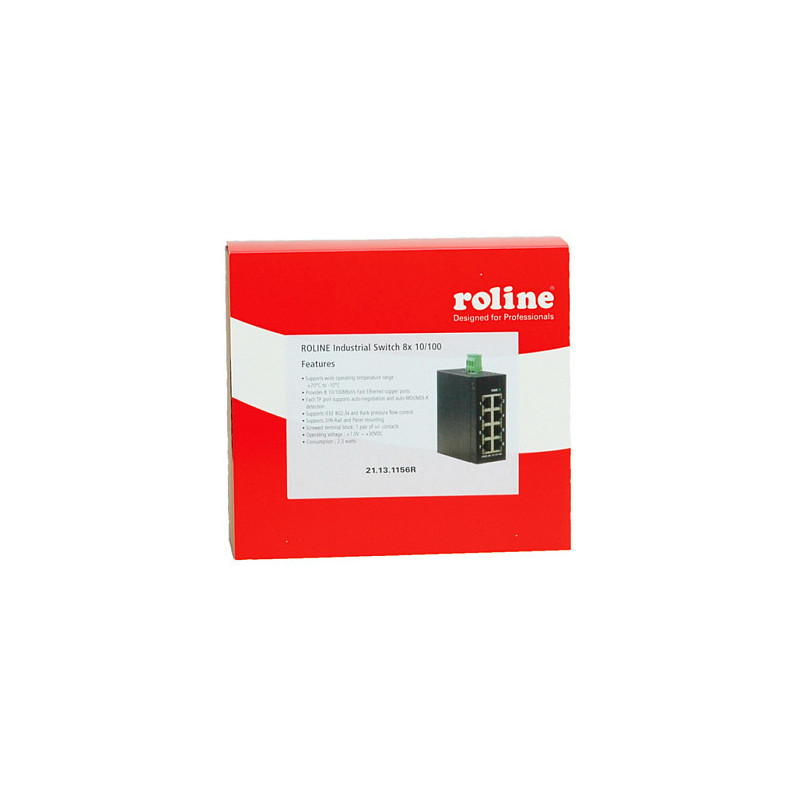

ROLINE Industrial Switch, 8x RJ-45, unmanaged

ROLINE Industrial Switch, 8x RJ-45, unmanaged. Full duplex. MAC address table: 1000 entries

• Fast Ethernet switch with 8 shielded 10/100 Base-T copper ports
• Wide operating temperature range for temperature critical environment
• Auto MDI/MDI-X crossover function
• Supports IEEE 802.3x flow control for full-duplex operation
• Supports Back-pressure flow control for half-duplex operation
• Supports DIN-rail mounting
• Power: Input: 5 - 30V DC, Consumption: 2.3W (max.)
• Operating Temperature: - 10 ºC - +70 ºC
• DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
• Dimensions: 40 x 80 x 95 mm (WxDxH)
• As according power supply we recommend 21.13.1226

• Contents: Switch

.

Network

Feature: Full duplex
Feature: Auto-negotiation

Data transmission

MAC address table: 1000 entries

Other features

Dimensions (WxDxH): 95 x 40 x 80 mm
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 8
