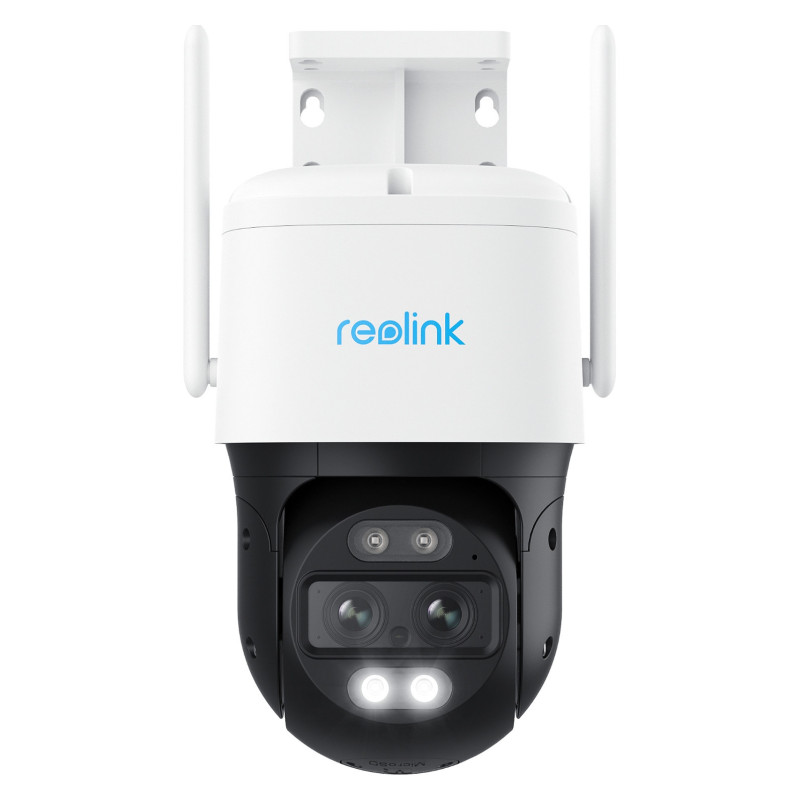

Reolink TrackMix Series W760

Reolink TrackMix Series W760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, 2.4/5Ghz Wi-Fi, Color Night Vision. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Wall, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 38 - 104°, Lens viewing angle, vertical: 21 - 60°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 2.8 mm

Experience a whole new way of tracking with Reolink TrackMix Series W760. With pan, tilt, and 6X hybrid zoom, it can automatically track the detected target and zoom it for more details. With a wide-angle lens and a telephoto lens, it shows both full-view and close-up images of the same event on one screen. Go beyond Full HD and experience never-before-seen details with this 4K camera.

Dual Lens
Wide-angle & telephoto lenses for full-view and close-up images.

Auto-Zoom Tracking
Pan 355° and tilt 90° to tack and zoom in on a moving target automatically.

6X Hybrid Zoom
Retain more details by seamlessly blending optical and digital zoom.

Always Connected, Never Offline
Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.

Unleash 4K 8MP Visual Brilliance
Dive into 4K 8MP unparalleled clarity and experience breathtakingly vivid footage without missing a single detail.

Illuminate the Night in Vivid Color
Experience enhanced nighttime with vibrant colors and rich details, even in low-light conditions

Smart Detection Tailored to Your Needs
Experience customized security with Person/Vehicle/Motion Detection feature, offering precise alerts and notifications tailored to your specific security requirements.

Talk Anytime, from Anywhere
Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.

Flexible Storage Choices
Enjoy the flexibility of multiple storage options with support for up to 256GB mircoSD cards, NVR systems, and FTP servers to suit your specific needs and preferences.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wireless
Feature: Auto-tracking
Virtual assistant: Google Assistant
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Antenna type: External
Antennas quantity: 2

Design

Form factor: Turret
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP65

Camera

Feature: Camera pan control
Feature: Camera tilt control
Lens viewing angle, horizontal: 38 - 104°
Lens viewing angle, vertical: 21 - 60°
Tilt angle range: 0 - 90°
Tilt speed: 1.5 °/sec
Pan range: 0 - 355°
Pan speed: 90 °/sec

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR/White
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.265
Video compression formats: H.264, H.265
Supported graphics resolutions: 3840 x 2160
Supported video modes: 2160p
Feature: Video recording
Frame rate: 25 fps
Feature: Video streaming
Bit rate: 128Kbps - 8192Kbps

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols: HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, ONVIF, NTP, DHCP, DNS, DDNS, P2P
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users: 20 user(s)
User access level: Administrator, User
Feature: Live view

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Video motion detection
Security algorithms: WPA-PSK, WPA2-PSK
Feature: Human and vehicle targets classification

Management features

Feature: Reset button

Power

Power source type: DC
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS

Weight & dimensions

Width: 147 mm
Depth: 228 mm
Height: 129 mm
Weight: 1.21 kg

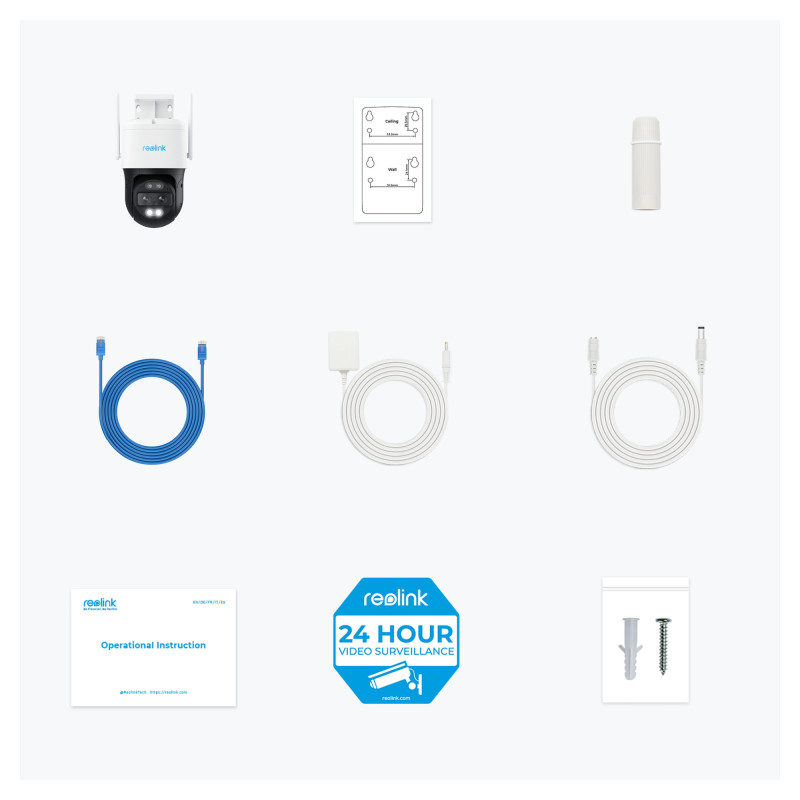

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Screws included
Feature: Manual
