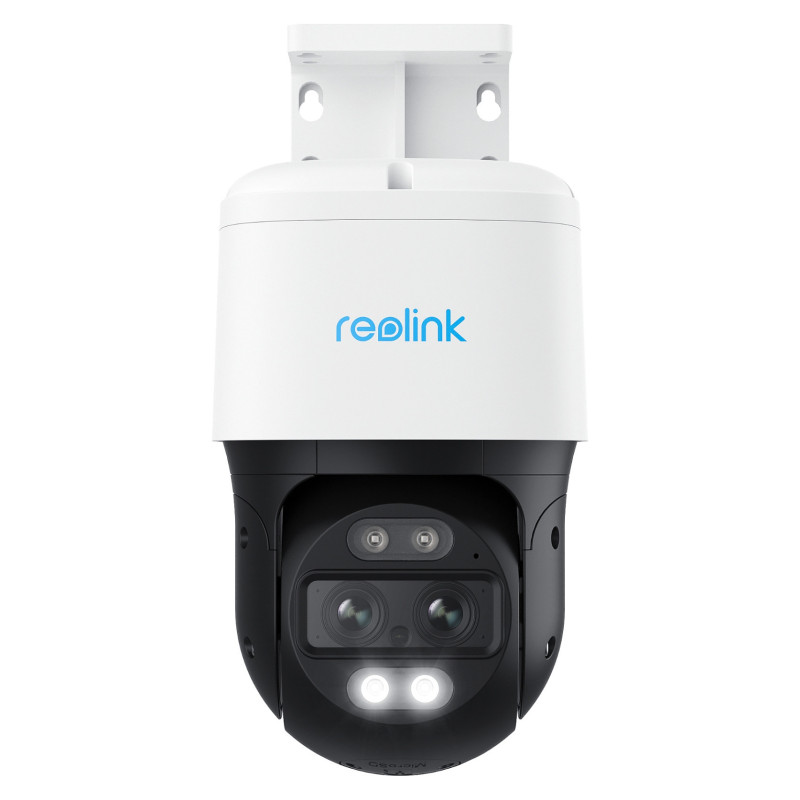

Reolink TrackMix Series P760

Reolink TrackMix Series P760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, PoE Connection, Color Night Vision. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Black, Form factor: Dome. Tilt angle range: 0 - 90°, Tilt speed: 60 °/sec, Pan range: 0 - 355°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 30 m, LED type: IR, Infra-red wavelength: 850 nm

Experience a whole new way of tracking with Reolink TrackMix Series P760. With pan, tilt, and 6X hybrid zoom, it can automatically track the detected target and zoom it for more details. With a wide-angle lens and a telephoto lens, it shows both full-view and close-up images of the same event on one screen. Go beyond Full HD and experience never-before-seen details with this 4K camera.

Dual Lens

Wide-angle & telephoto lenses for full-view and close-up images.

Auto-Zoom Tracking

Pan 355° and tilt 90° to tack and zoom in on a moving target automatically.

6X Hybrid Zoom

Retain more details by seamlessly blending optical and digital zoom.

Fast, Easy & Lower-Cost PoE Installation

Setting up this camera is effortless, even for beginners.Thanks to the power over Ethernet technology, a single cable manages both data and a stable power supply.

Unleash 4K 8MP Visual Brilliance

Dive into 4K 8MP unparalleled clarity and experience breathtakingly vivid footage without missing a single detail.

Illuminate the Night in Vivid Color

Experience enhanced nighttime with vibrant colors and rich details, even in low-light conditions

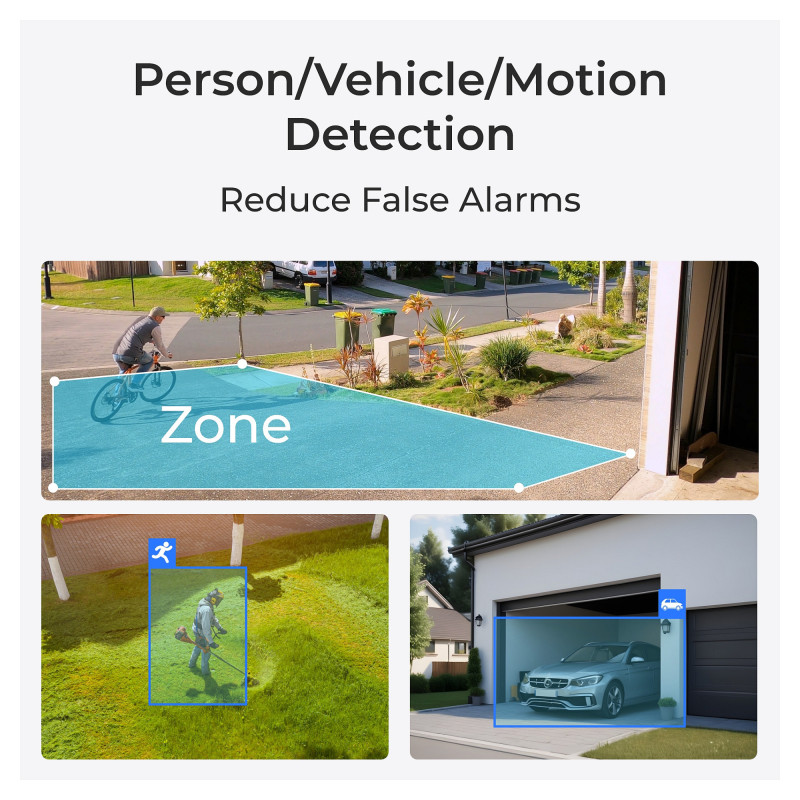

Smart Detection Tailored to Your Needs

Experience customized security with Person/Vehicle/Motion Detection feature, offering precise alerts and notifications tailored to your specific security requirements.

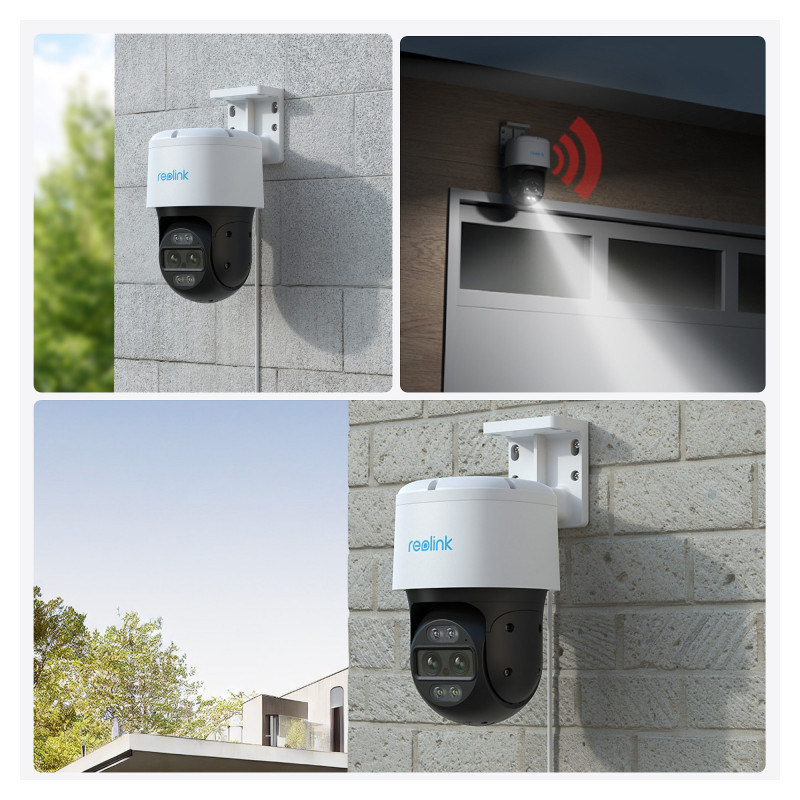

Double Warning for the Unwelcome

Enhance your security with double warning method. With siren and spotlights both activated, this camera can deter intruders and other threats effectively.

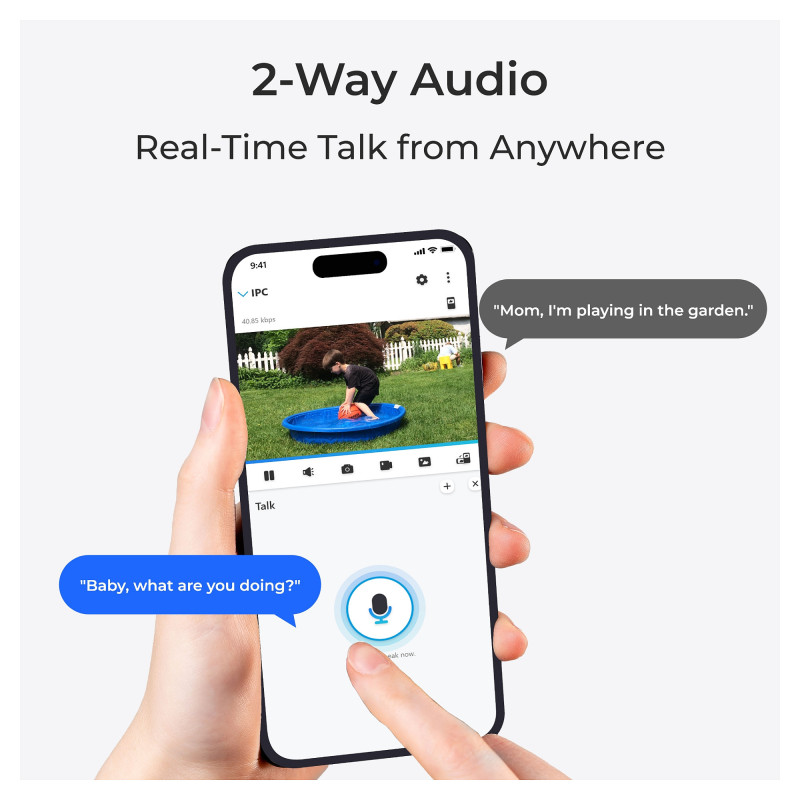

Talk Anytime, from Anywhere

Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.

Flexible Storage Choices

Enjoy the flexibility of multiple storage options with support for up to 256GB SD cards, NVR systems, and FTP servers to suit your specific needs and preferences.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Day/night mode
Feature: Built-in light
Luminous flux: 450 lm
Colour temperature: 6500 K

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White, Black
Protection features: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Tilt angle range: 0 - 90°
Tilt speed: 60 °/sec
Pan range: 0 - 355°
Pan speed: 90 °/sec

Image sensor

Number of sensors: 2
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265
Supported graphics resolutions: 3840 x 2160
Supported video modes: 2160p
Feature: Video recording
Frame rate: 25 fps

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1af
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Number of users: 20 user(s)
User access level: Administrator, User

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (max): 12 W
DC output voltage: 12, 48
DC output current: 2 A

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS

Weight & dimensions

Width: 228.2 mm
Depth: 147 mm
Height: 129 mm
Weight: 1.21 kg

Packaging data

Package width: 205 mm
Package depth: 270 mm
Package height: 190 mm
Package weight: 1.76 kg

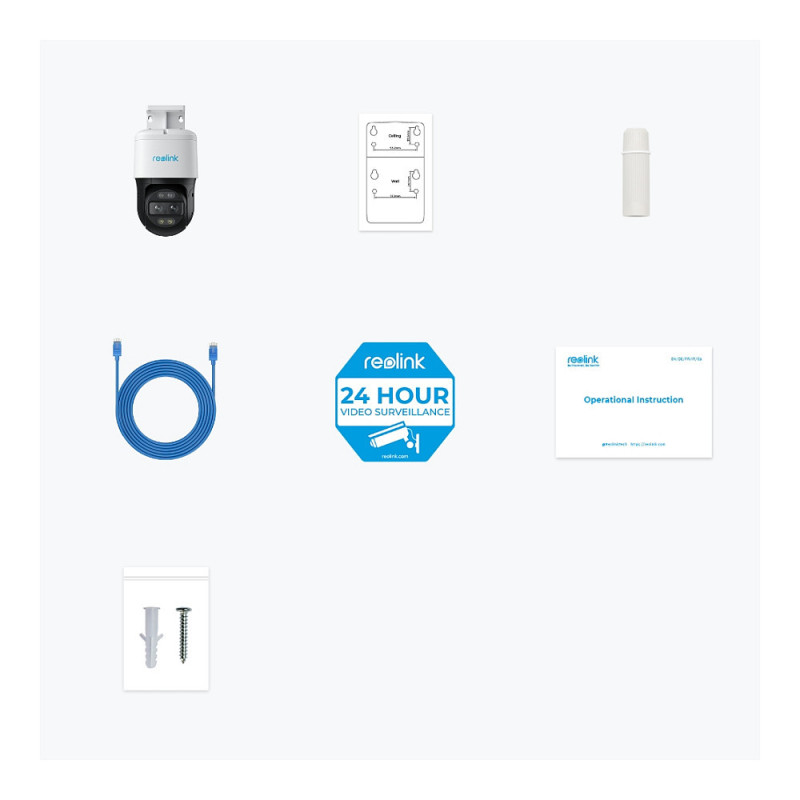

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Screws included
