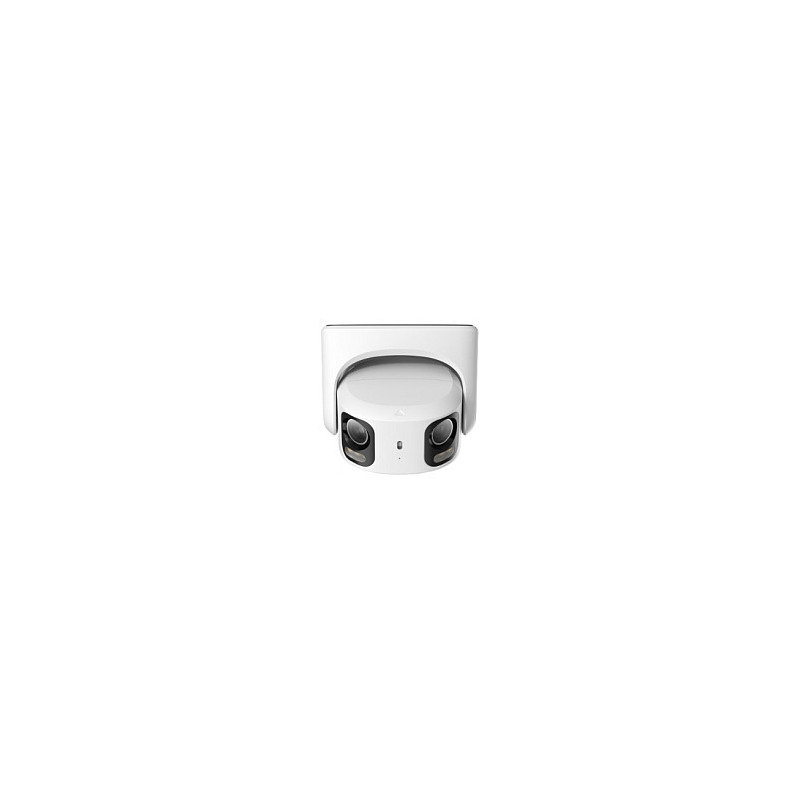

Reolink RP-PCT16MD security camera

Reolink RP-PCT16MD. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 53.8°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm

One Camera, Multiple Technologies

The RP-PC16MD features 16MP UHD clarity, 180° ultra-wide view, and Motion Track. Better safeguard your properties with a clearer and larger view. The camera is a super yet affordable guardian for your shop, courtyard, garage, and warehouse.

AI Video Search

Input descriptive keywords (e.g., "delivery person", "yellow dog") to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.

Perimeter Protection

Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

Smart Event Detection

Send instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.

Secure Storage for Every Need

Ensure trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Virtual assistant: Google Assistant
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Luminous flux: 400 lm
Colour temperature: 4000 K

Design

Form factor: Turret
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP67
Feature: Weatherproof

Camera

Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 53.8°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Number of lenses: 2
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m

Video

Maximum resolution: 7680 x 2160 pixels
Total megapixels: 16 MP
Video formats supported: H.265, H.264
Frame rate: 25 fps
Feature: Video streaming

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet, Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF
Number of users: 20 user(s)
User access level: Administrator, User
Feature: Live view

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Reset button

Power

Power source type: DC, PoC
DC output voltage: 12
DC output current: 2 A

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 132 mm
Depth: 131 mm
Height: 72 mm
Weight: 775 g

Packaging content

Number of cameras: 1
