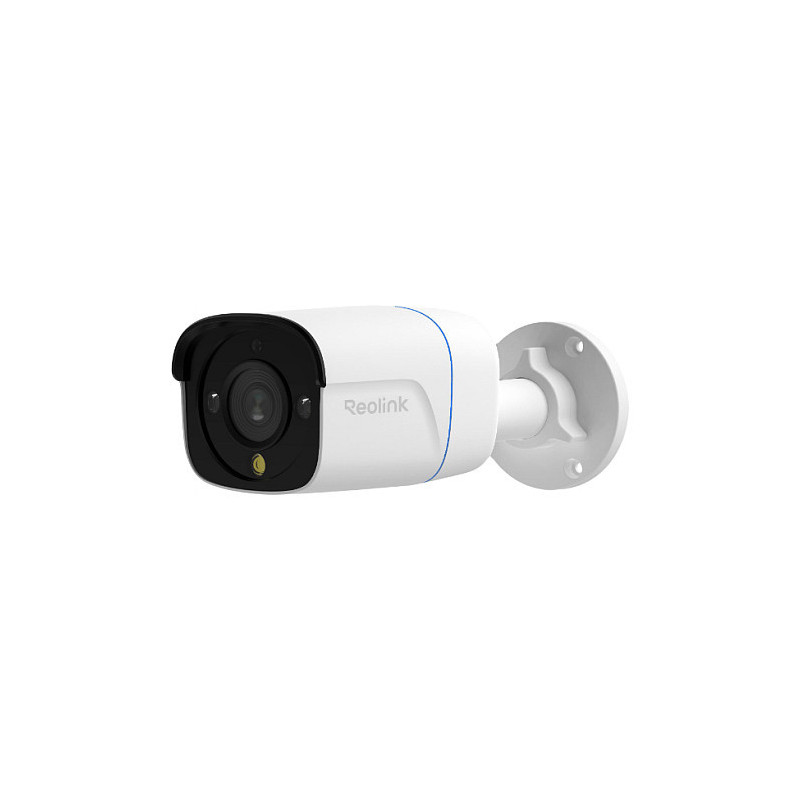

Reolink RP-PCB8M security camera

Reolink RP-PCB8M. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Field of view (FOV) angle: 125°, Lens viewing angle, horizontal: 105°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.8 mm

Precision Imaging with 4K Clarity

Capture ultra-high definition video at 25 FPS for smooth, reliable monitoring. With multiple lighting modes and F1.6 large aperture, enjoy optimised visibility in color night vision even in low light environments.

Perimeter Protection

Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.

Smart Event Detection(Beta)

Send instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention.

Surveillance Solution for All Applications

With flexible installation options, this camera ensures durable and high-performance surveillance across a wide range of applications, from residential spaces to commercial sites.

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Virtual assistant: Google Assistant
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Luminous flux: 700 lm
Colour temperature: 6500 K

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP67
Feature: Weatherproof

Camera

Field of view (FOV) angle: 125°
Lens viewing angle, horizontal: 105°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 125°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Number of lenses: 1
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.265, H.264
Frame rate: 25 fps

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF
Number of users: 20 user(s)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Reset button

Power

Power source type: DC, PoC
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 68 mm
Depth: 63 mm
Height: 188 mm
Weight: 452.4 g

Packaging content

Number of cameras: 1
