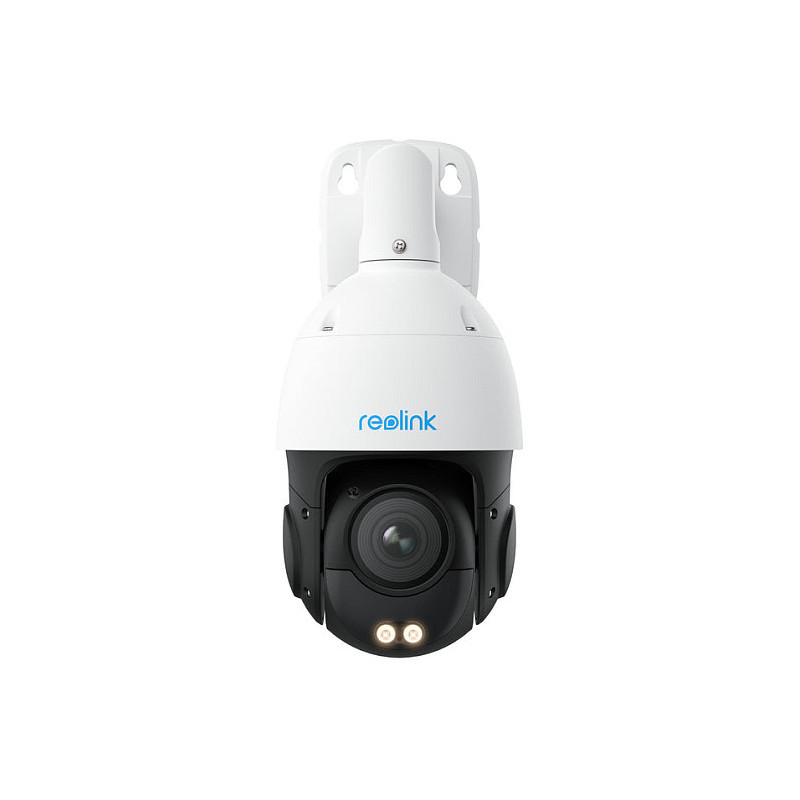

Reolink P840 PoE Cam

Reolink P840 PoE Cam. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 100 - 31°, Lens viewing angle, vertical: 55 - 17°, Lens viewing angle, diagonal: 123 - 39°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x

360° Coverage. Dead-Zone Free.
Let the camera be your eye in the sky to cover every inch. With high-speed 360° pan and 90° tilt capabilities, P840 provides all-around coverage within only 4 seconds and ensures that no corner goes unseen, be it your yard, driveway, or even the block.

Immersive 4K, Day and Night.
Capture stunning detailed footage that's four times sharper than HD, whether it's the bright daylight or the darkness of night. As night descends, select the ideal night vision mode that suits your preferences: the color night vision powered by spotlights or the black & white night vision powered by IR LEDs.

Drag to Zoom in at 5X
Unleash the smoothness of 5X optical zoom with the advanced 3D zoom technology. Whether you're zeroing in to see the finer points of scenes from afar, or expanding your view to cover a larger area, P840 lets you see more with just a swipe of your finger.

Make Installation a Breeze
Thanks to Power over Ethernet (PoE) technology, this camera only requires one network cable to transmit both data and power, making installation quick and hassle-free.

Flexible Options, Secured Storage
Keep your memories safe and secure on a microSD card (up to 256GB) for convenient standalone access, or opt for the expanded storage of a Reolink NVR. With local storage, your footage is always within reach, ensuring easy accessibility and protection. And for added backup, the FTP server support has you covered.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Auto-tracking
Feature: Plug and Play

Design

Form factor: Bullet
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66
Feature: Weatherproof

Camera

Lens viewing angle, horizontal: 100 - 31°
Lens viewing angle, vertical: 55 - 17°
Lens viewing angle, diagonal: 123 - 39°
Tilt angle range: 0 - 90°
Tilt speed: 56 °/sec
Pan range: 0 - 360°
Pan speed: 90 °/sec

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 5x
Number of lenses: 1

Night vision

Feature: Night vision
Night vision distance: 60 m
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265
Feature: Video recording

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3at
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in

Security

Feature: Video motion detection

Management features

Feature: Reset button

Power

Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 24 W
DC output current: 2 A

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 373 mm
Depth: 177 mm
Height: 140 mm
Weight: 2.34 kg

Packaging content

Number of cameras: 1

Other features

Warranty period: 2 year(s)
