Reolink NVS8-8MB4 video surveillance kit

Reolink NVS8-8MB4 - 4K UHD Security System, 8-Channel NVR, 100 ft Crisp Night Vision, 24/7 Recording, Smart Detection. Connectivity technology: Wired, Surveillance camera form factor: Bullet, Camera interface: RJ-45. Channels quantity: 8 channels, Storage media type: HDD, Number of simultaneously playbacked channels: 4 channels. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Power source type: DC, PoE, DC output current: 1 A, DC output voltage range: 48 - 53 V. Mobile operating systems supported: Android, iOS, Browser supported: IE, Edge, Chrome, Firefox, Safari, Number of users: 20 user(s)

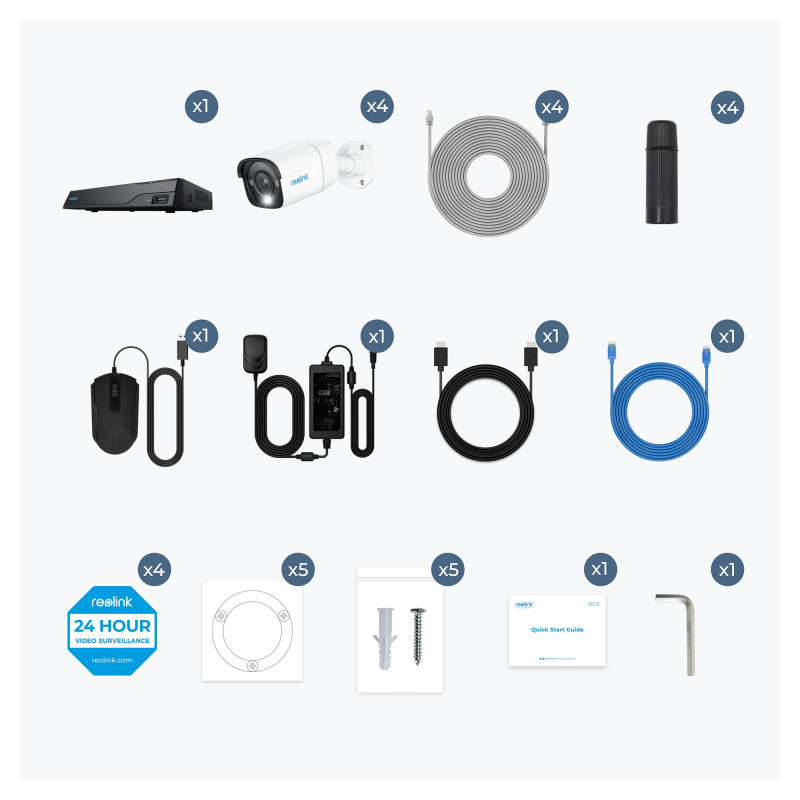

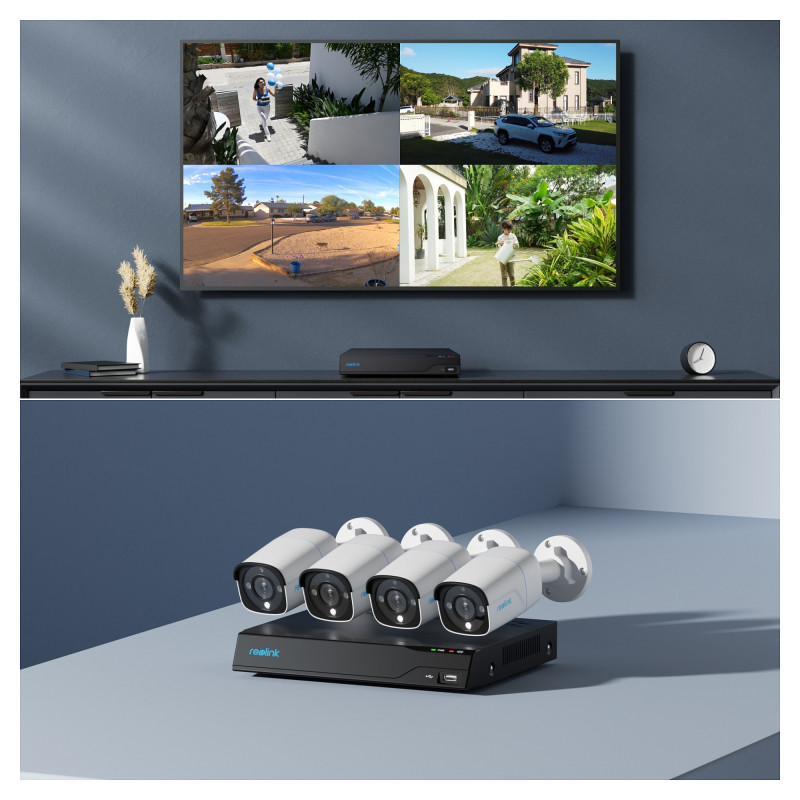

The security camera system includes an 8-channel NVR with a built-in 2TB HDD for continuous storage of important moments. It also comes with four 4K 8MP PoE IP cameras that support person/vehicle/animal detection for more accurate and reliable alarms, high-quality night vision, audio recording, and more. You can add up to four additional cameras to the NVR and manage all cameras centrally.

24/7 Recording
Continuous recordings directly to your hard drive with expandable storage.

Unleash 4K 8MP Visual Brilliance
Dive into 4K 8MP unparalleled clarity and experience breathtakingly vivid footage without missing a single detail.

Illuminate the Night in Vivid Color
Experience enhanced nighttime with vibrant colors and rich details, even in low-light conditions

Send Alerts When It Matters
With advanced algorithms, it accurately distinguishes between humans,vehicles and pets, providing tailored alerts and notifications to keep you informed about events that matter.

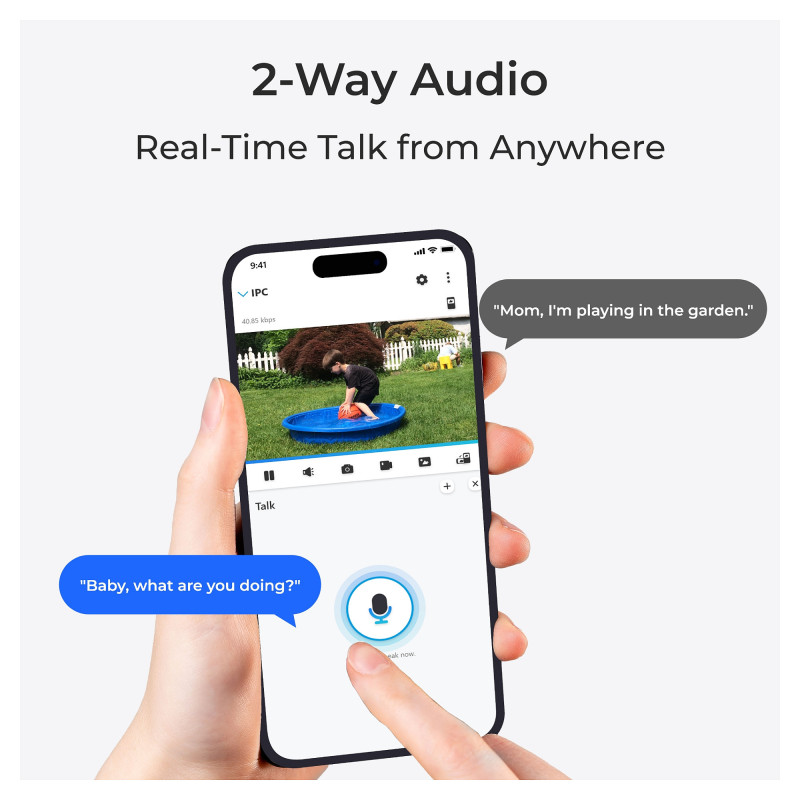

Talk Anytime, from Anywhere
Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.

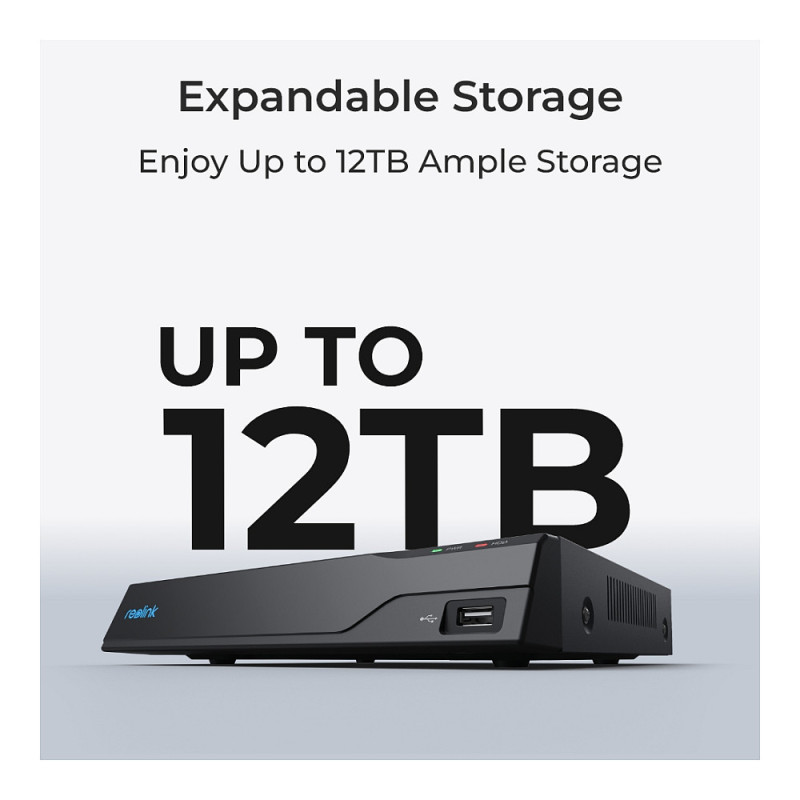

Up to 12TB Storage Capacity
Store videos locally on a pre-installed 2TB HDD (upgradable to 12TB).

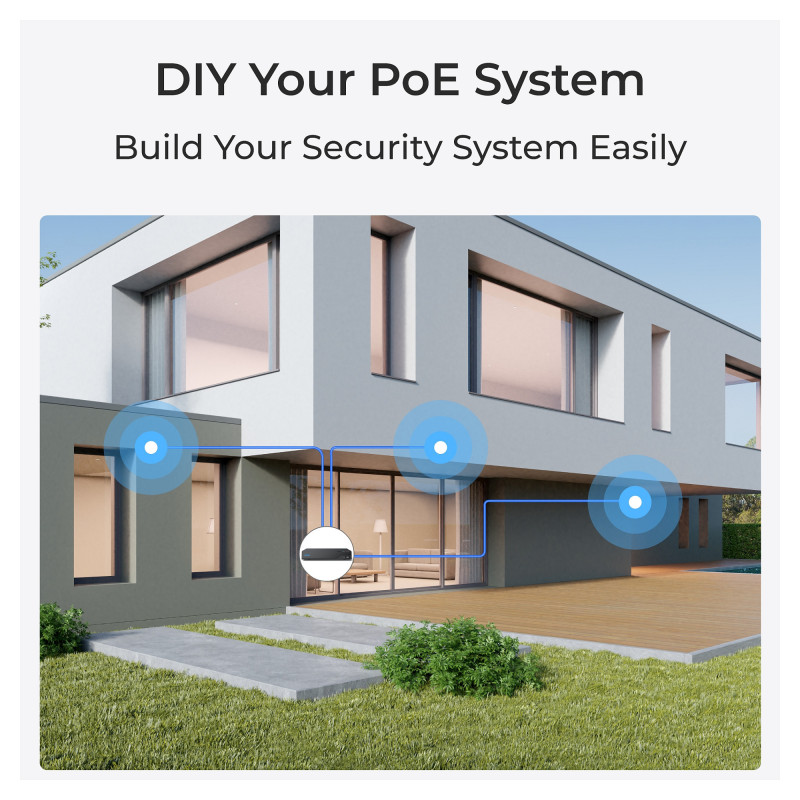

Installation Made Easy

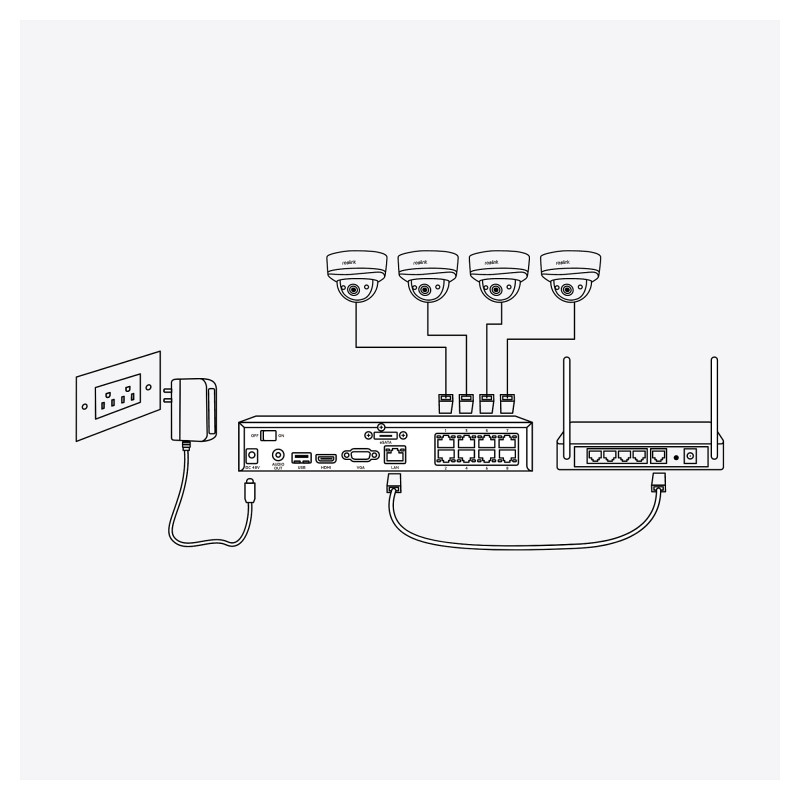

The PoE technology can transmit both data and power via only one Ethernet cable, streamlining setup.

Your Security, Your Way
This 4K home security camera system can be expanded up to 8-camera kit with Reolink IP cameras to meet your specific needs.

Stay Connected via Your Phone/PC
Know what's happening on your property anytime, anywhere via your Reolink App and Client, whether you're at home or on the go. No monthly fees.

Camera

Connectivity technology: Wired
Feature: Camera included
Surveillance camera form factor: Bullet
Camera interface: RJ-45
Feature: Built-in light
Luminous flux: 700 lm
Colour temperature: 6500 K
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Infra-red wavelength: 850 nm
Feature: Night mode
Placement supported: Indoor/outdoor
Feature: Camera card reader integrated
Camera maximum memory card size: 256 GB
Camera compatible memory cards: MicroSD (TransFlash)
Fixed focal length: 2.8 mm
Maximum aperture number: 2
Viewing angle, horizontal: 105°
Viewing angle, vertical: 56°
Night vision distance: 30 m
Number of illumination LEDs: 2
Sensor type: CMOS
Optical sensor size: 25.4 / 2.49 mm (1 / 2.49")
LED type: IR
Camera resolution: 3840 x 2160 pixels
Megapixel (approx.): 8 MP
International Protection (IP) code: IP66
Protection features: Waterproof
Feature: Video motion detection

Recorder

Feature: Recorder included
Channels quantity: 8 channels
Number of simultaneously playbacked channels: 4 channels
Storage media type: HDD
Maximum storage capacity: 12 TB
Video recording modes: 720p, 1080p
VGA (D-Sub) ports quantity: 1
eSATA ports quantity: 1
USB 2.0 ports quantity: 2
HDD interface: SATA
Number of HDDs supported: 2
Number of HDDs installed: 1
HDD capacity: 2 TB
Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
Line outputs (RCA): 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 9
Playback resolutions supported: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Feature: Motion sensor
Feature: External HDD support
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE) power per port: 25 W

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af, IEEE 802.3at
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Feature: Ethernet WAN

Power

Power source type: DC, PoE
DC output voltage: 12
DC output current: 1 A
DC output voltage range: 48 - 53 V
Camera power consumption (typical): 12 W
Recorder power consumption (typical): 10 W
Feature: Power over Ethernet (PoE)

Audio

Feature: Built-in microphone
Feature: Built-in speaker(s)

System requirements

Feature: Mac compatibility
Mobile operating systems supported: Android, iOS
Windows operating systems supported: Yes
Browser supported: IE, Edge, Chrome, Firefox, Safari
Number of users: 20 user(s)

Operational conditions

Camera operating temperature (T-T): -10 - 55 °C
Camera operating relative humidity (H-H): 10 - 90%
Recorder operating temperature (T-T): -10 - 45 °C
Recorder operating relative humidity (H-H): 10 - 90%

Technical details

Video compression formats: H.264, H.265
Feature: Reset button

Weight & dimensions

Camera width: 6.8 cm
Camera depth: 18.8 cm
Camera height: 6.3 cm
Camera weight: 452 g
Recorder width: 26 cm
Recorder depth: 23 cm
Recorder height: 4.1 cm
Recorder weight: 1.4 kg

Features

Virtual assistant: Google Assistant
