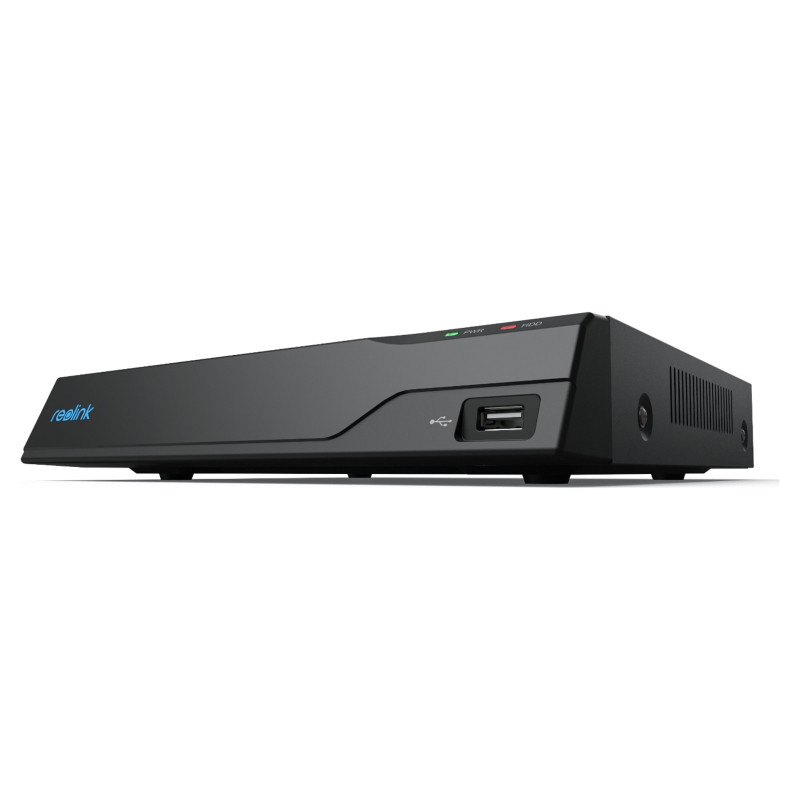

Reolink NVS8

Reolink NVS8 - 8-Channel PoE NVR for 24/7 Recording, Support up to 16MP, 2TB HDD Built-in, Up to 12TB Storage Capacity. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. HDD capacity: 2 TB, Maximum storage capacity: 12 TB, HDD interface: SATA, eSATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP. Product colour: Black. Power consumption (typical): 10 W, Output voltage: 48 - 53 V, Power over Ethernet (PoE) power per port: 25 W

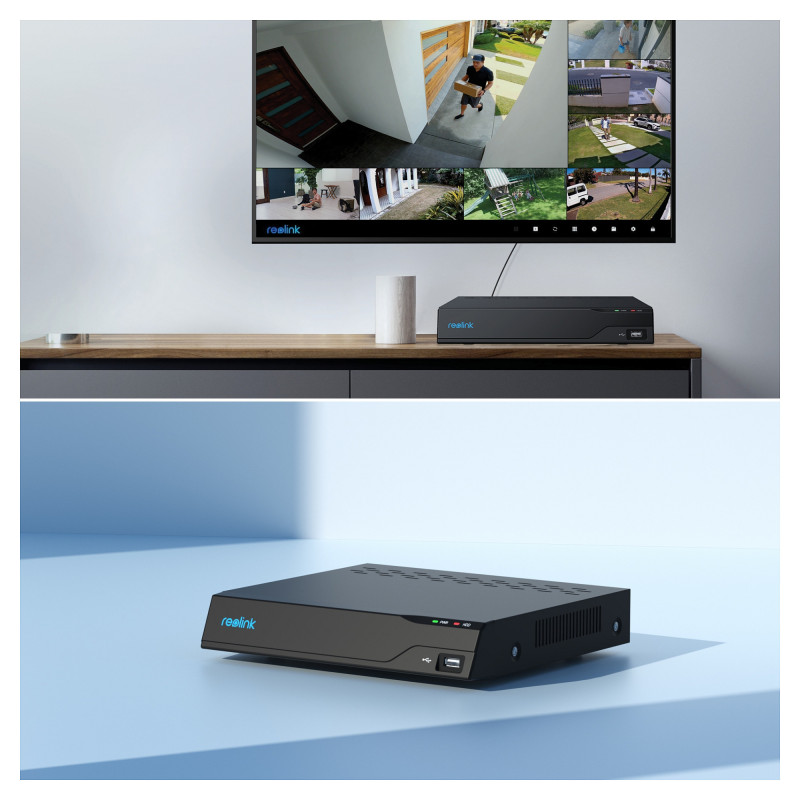

This 8-channel NVR offers complete protection to cover more places. Supporting up to 16MP resolution and coming with 24/7 continuous recording and 2TB HDD built-in, you just feel free to capture every moment with stunning clarity and save the videos locally. With remote and local access, you can easily check the live feeds where you are via your mobile or offline via NVR.

8 Channels, Up to 16MP
Supports up to 8 channels of IPC access; each channel up to 16MP input.

24/7 Recording
Continuous recordings directly to your hard drive with expandable storage.

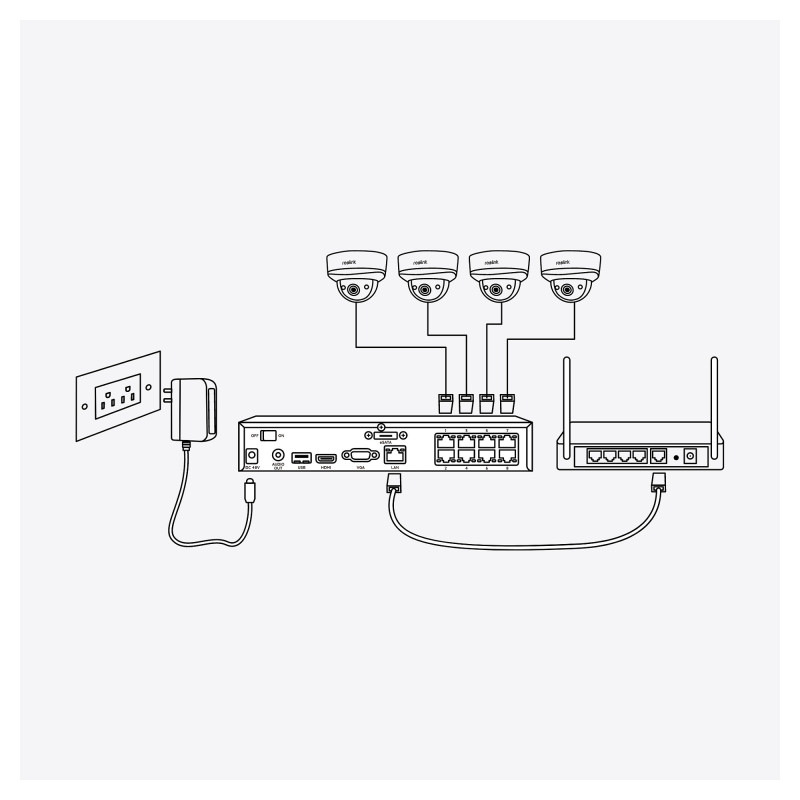

Installation Made Easy
The PoE technology can transmit both data and power via only one Ethernet cable, streamlining setup.

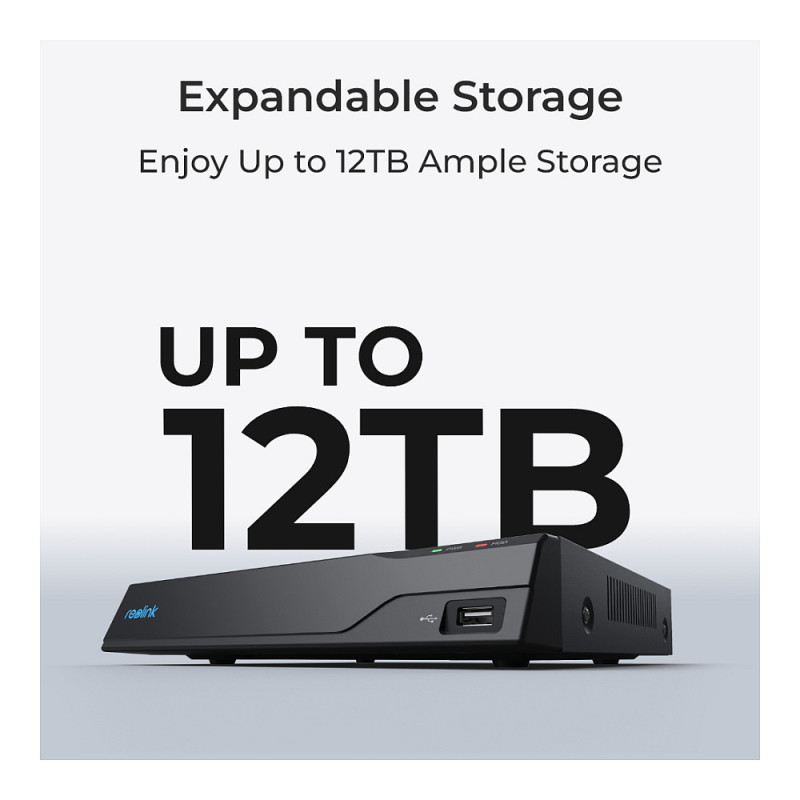

Up to 12TB Storage Capacity
Store videos locally on a pre-installed 2TB HDD (upgradable to 12TB).

Your Security, Your Way
Easily build your own security center with the NVR that can be expanded with up to 8 Reolink cameras.

Stay Connected via Your Phone/PC
Know what's happening on your property anytime, anywhere via your Reolink App and Client, whether you're at home or on the go. No monthly fees.

Find the Clip Needed Quickly
Effortlessly navigate through your video footage with time and event filters to quickly find the exact clip you need, saving you time and hassle.

Performance

Video input channels: 8 channels
Number of simultaneously playbacked channels: 4 channels
Video recording modes: 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Number of users: 20 user(s)
Feature: Video motion detection
Video formats supported: H.264, H.265

Hard drive

Number of HDDs installed: 1
HDD capacity: 2 TB
Number of HDDs supported: 2
Total installed storage capacity: 2 TB
Maximum storage capacity: 12 TB
HDD interface: SATA, eSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 9
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity: 8
Feature: Ethernet WAN
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
Audio RCA outputs: 1
Feature: eSATA
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP

Features

Product colour: Black

Power

Power consumption (typical): 10 W
Output voltage: 48 - 53 V
Power over Ethernet (PoE) power per port: 25 W

System requirements

Windows operating systems supported: Yes
Feature: Mac compatibility
Mobile operating systems supported: Android, iOS
Browser supported: Edge, Firefox, Chrome, Safari

Operational conditions

Operating temperature (T-T): -10 - 45 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 260 mm
Depth: 230 mm
Height: 41 mm
Weight: 1.4 kg

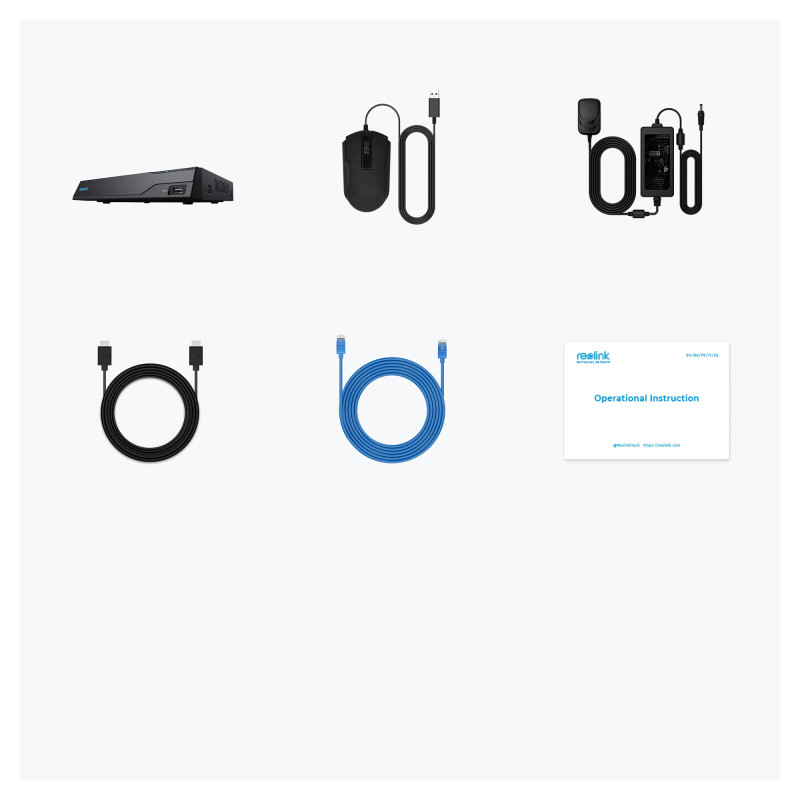

Packaging content

Packaging content: 1 - NVS81 - NVR Power Adapter1 - HDMI Cable1 - USB Mouse1 - 1m Network Cable1 - Quick Start Guide
