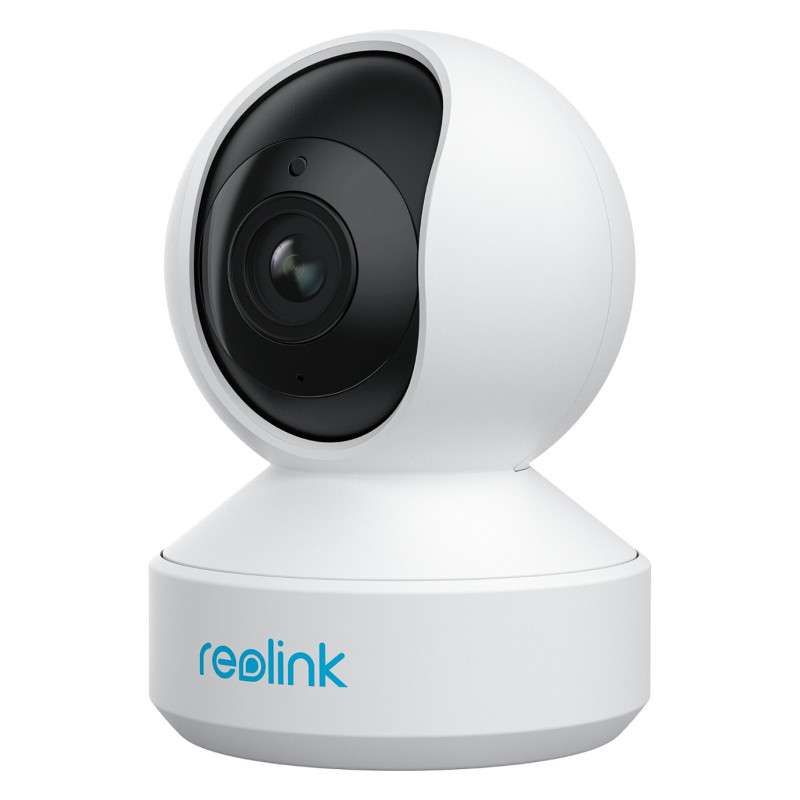

Reolink E Series E340

Reolink E Series E340 - 5MP Indoor Wi-Fi Camera, Pan Tilt, 3X Optical Zoom, Person/Pet Detection, Auto Tracking. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired Wireless. Mounting type: Desk, Product colour: White, Form factor: Spherical. Lens viewing angle, horizontal: 48 - 98°, Lens viewing angle, vertical: 37 - 75°, Tilt angle range: 0 - 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 4 mm
Meet a new generation of Reolink E Series. Advanced features - 5MP Super HD 3X optical zoom are added into this compact camera. With the built-in microphone and speaker, you can communicate with your kids from anywhere, keep an eye on your naughty pets, or take care of the elderly when you are away. This PTZ camera can automatically track the target objects so you won't lose track of them. It distinguishes people and pets from non-relevant objects and sends more accurate alerts.
Pan-Tilt Auto Tracking
Pan 355° and tilt 51° to automatically track the detected person or pet, so you won't miss anything important.
3X Optical Zoom
See details in greater clarity even at a distance.
More stable and faster WiFi connection
Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.
2K+ 5MP Enhanced Definition
Elevate your viewing experience with 2K+ 5MP Super HD resolution, offering high image quality for precise monitoring and surveillance.
Enhanced Nighttime Surveillance
Stay vigilant around the clock with infrared LEDs, providing clear and crisp images at night, ensuring reliable monitoring and security.
Send Alerts When It Matters
With advanced algorithms, it accurately distinguishes between humans and pets, providing tailored alerts and notifications to keep you informed about events that matter to you.
Talk Anytime, from Anywhere
Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.
Flexible Storage Choices
With support for up to 256GB SD cards, NVR compatibility, and cloud storage options, ensuring maximum flexibility and security for your recordings.
Control Your Cameras, Hands-Free
With Google Voice Control, you can effortlessly access your camera using simple voice commands, making monitoring your home a breeze.
Stay Connected via Your Phone/PC
Know what's happening on your property anytime, anywhere via your Reolink App and Client, whether you're at home or on the go. No monthly fees.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired Wireless
PTZ control: Yes
Auto-tracking: Yes
Virtual assistant: Google Assistant
Day/night mode: Yes
Antenna type: Internal
Operating frequency: 2400 - 5000 MHz

Design

Form factor: Spherical
Mounting type: Desk
Product colour: White
LED indicators: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0 lx
Lens viewing angle, horizontal: 48 - 98°
Lens viewing angle, vertical: 37 - 75°
Tilt angle range: 0 - 50°
Pan range: 0 - 355°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.8 - 4 mm
Maximum aperture number: 2

Night vision

Night vision: Yes
Night vision distance: 12 m
LED type: IR
Number of illumination LEDs: 10
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1920 pixels
Total megapixels: 5 MP
Video compression formats: H.264
Video recording: Yes
Frame rate: 25 fps

Audio

Built-in speaker(s): Yes
Audio system: 2-way
Built-in microphone: Yes
Bit rate range: 1025 - 4096 Kbit/s

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth: No
Number of users: 20 user(s)
User access level: Administrator, User

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Security

Security algorithms: WPA-PSK, WPA2-PSK

Management features

Reset button: Yes

Power

Power source type: DC
DC output voltage: 5
DC output current: 2 A

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 20 - 85%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS

Weight dimensions

Height: 118 mm
Diameter: 8.4 cm
Weight: 275 g

Packaging data

Package width: 95 mm
Package depth: 95 mm
Package height: 173 mm
Package weight: 510 g

Packaging content

Number of cameras: 1
Mounting kit: Yes
Screws included: Yes
