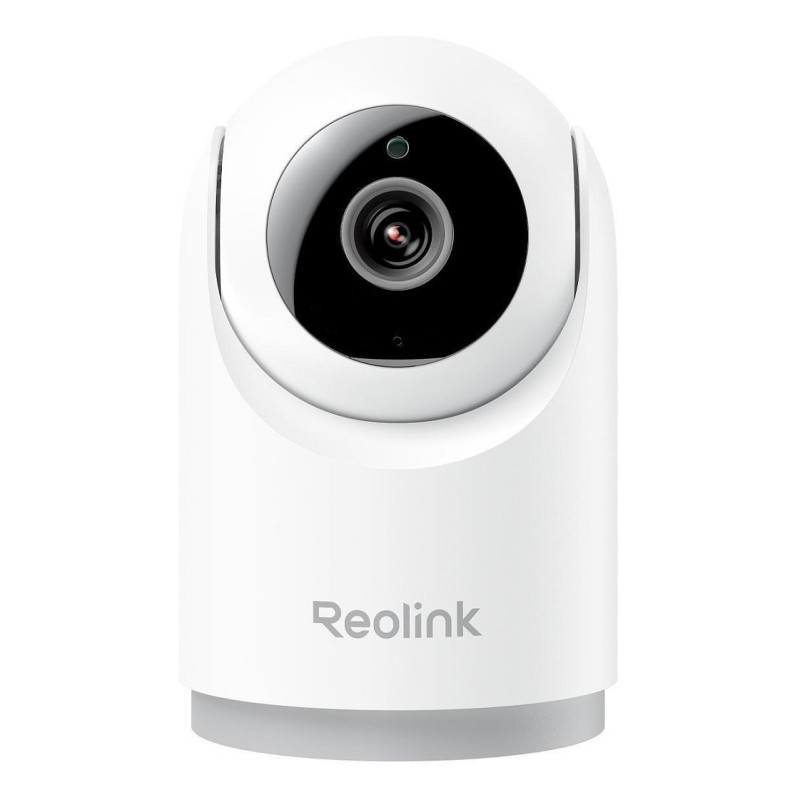

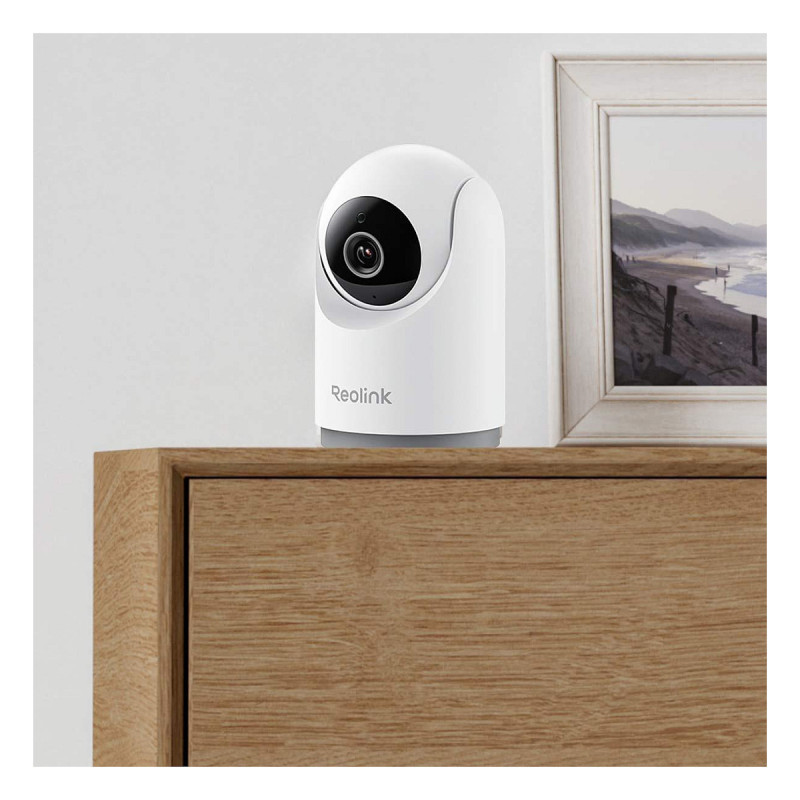

Reolink E Series E321

Reolink E Series E321. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Dome. Tilt angle range: 0 - 50°, Pan range: 0 - 355°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 4 mm

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wireless

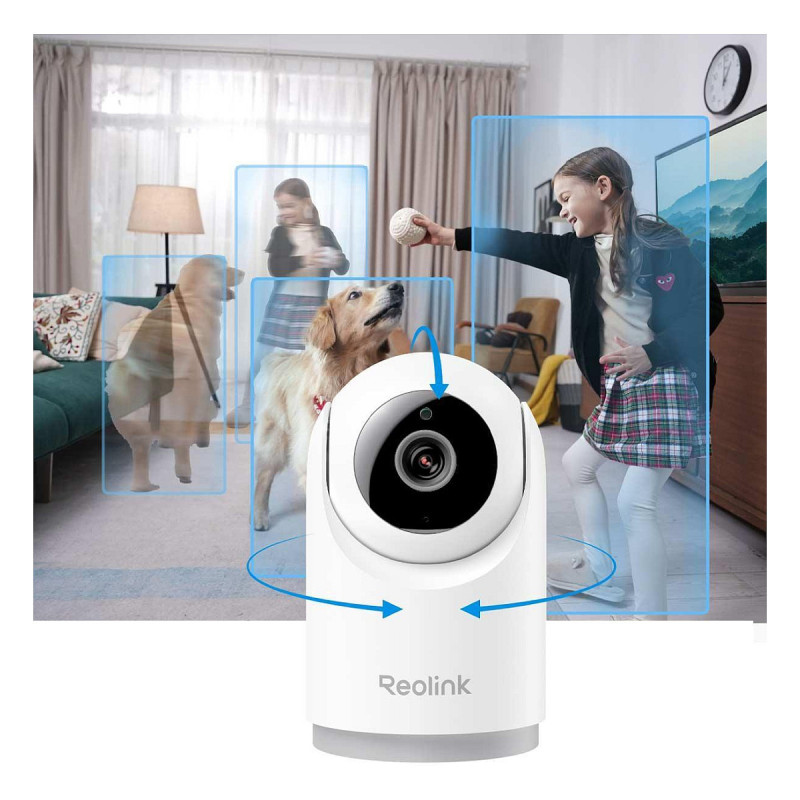

Feature: Auto-tracking
Feature: Day/night mode
Operating frequency: 2400 MHz
Feature: Plug and Play

Design

Form factor: Dome
Mounting type: Ceiling/Wall/Desk
Product colour: White

Camera

Feature: Camera pan control
Feature: Camera tilt control
Tilt angle range: 0 - 50°
Pan range: 0 - 355°

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Maximum aperture number: 2
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 12 m
LED type: IR
Number of illumination LEDs: 8
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2304 x 1296 pixels
Total megapixels: 3 MP
Video formats supported: H.264
Frame rate: 15 fps
Bit rate: Mainstream: 1024-4096 Kbit/s (default 2560 Kbit/s), Substream: 64-512 Kbit/s (default 256 Kbit/s)

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Number of users: 20 user(s)
Feature: Works with the Google Assistant
Feature: Works with Amazon Alexa

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces

Feature: USB port

Security

Feature: Video motion detection
Security algorithms: WPA, WPA2, WPA3
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Human detection, Pet detection

Management features

Feature: Reset button

Power

Power source type: USB
DC output voltage: 5
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 20 - 85%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS

Weight & dimensions

Height: 114 mm
Diameter: 7.3 cm
Weight: 167 g

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: AC adapter included
Feature: Quick start guide
