Reolink D340W

Reolink D340W - 5MP Video Doorbell with Chime, 2.4/5 GHz Wi-Fi, Person Detection, Two-Way Audio, Works with NVRs. Product colour: Black, White, International Protection (IP) code: IP65, Mounting type: Wall. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 256 GB, Video formats supported: H.264. Megapixel (approx.): 5 MP, Maximum video resolution: 2560 x 1920 pixels, Maximum frame rate: 20 fps. Connectivity technology: Wired & Wireless, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Security algorithms: WPA-PSK, WPA2-PSK. Power source type: DC, Input voltage: 12 - 24 V, AC input frequency: 50/60 Hz

Reolink D340W stands out offering industry-leading 5MP clarity for your front door. It works on both 2.4GHz and 5GHz WiFi bands for a more stable connection. The 3:4 aspect ratio enables a head-to-toe view, so you never miss a detail. Advanced person detection technology alerts you to any person approaching your door, whether it's a visitor or intruder. With up to 256GB microSD card support, store ample footage locally for easy access and peace of mind.

More stable and faster WiFi connection

Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.


Precise Alerts Covering Your Every Need

The cutting-edge detection technology alerts you to the presence of people, packages, and visitors, ensuring you stay informed about every activity around your property.

180° Diagonal

Cover a wide range of monitoring for more extra surrounding details.

2K+ 5MP Enhanced Definition

Elevate your viewing experience with 2K+ 5MP Super HD resolution, offering high image quality for precise monitoring and surveillance.

Preset Voice Message

Have the doorbell speak for you with preset voice messages.

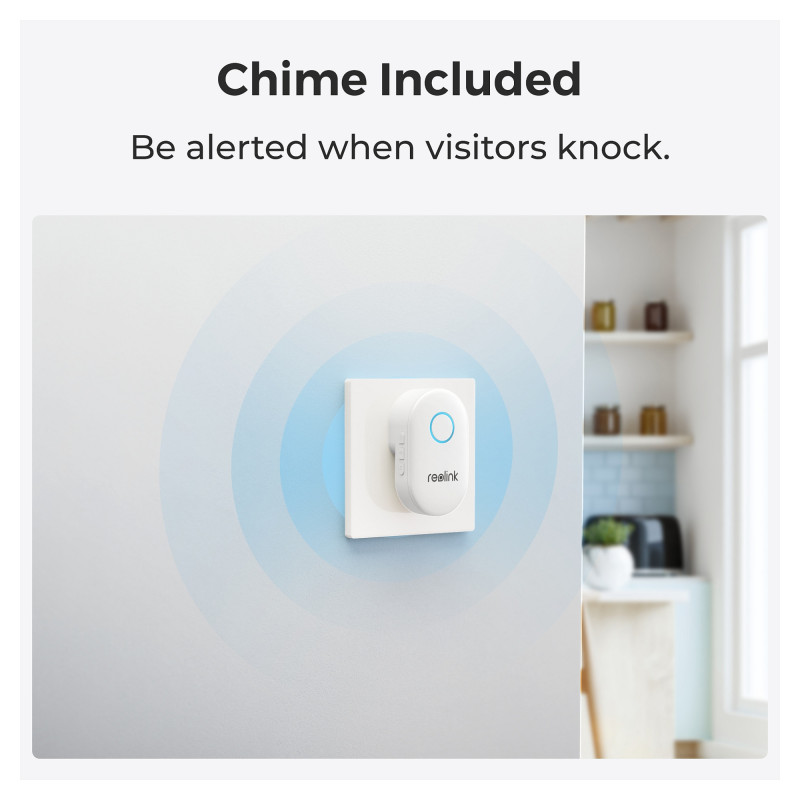

Chime Included

Plug it into the outlet at any room and be confidently alerted.

Flexible Storage Choices

With support for up to 256GB SD cards, NVR compatibility, and cloud storage options, ensuring maximum flexibility and security for your recordings.

Stay Connected via Your Phone/PC

Know what's happening on your property anytime, anywhere via your Reolink App and Client, whether you're at home or on the go. No monthly fees.

DIY Your Wi-Fi Security System Easily

Take control of your security system centrally with Reolink Wi-Fi NVR, allowing you to customize and build your Wi-Fi security system with ease and confidence.

Features

Feature: Illuminated push button

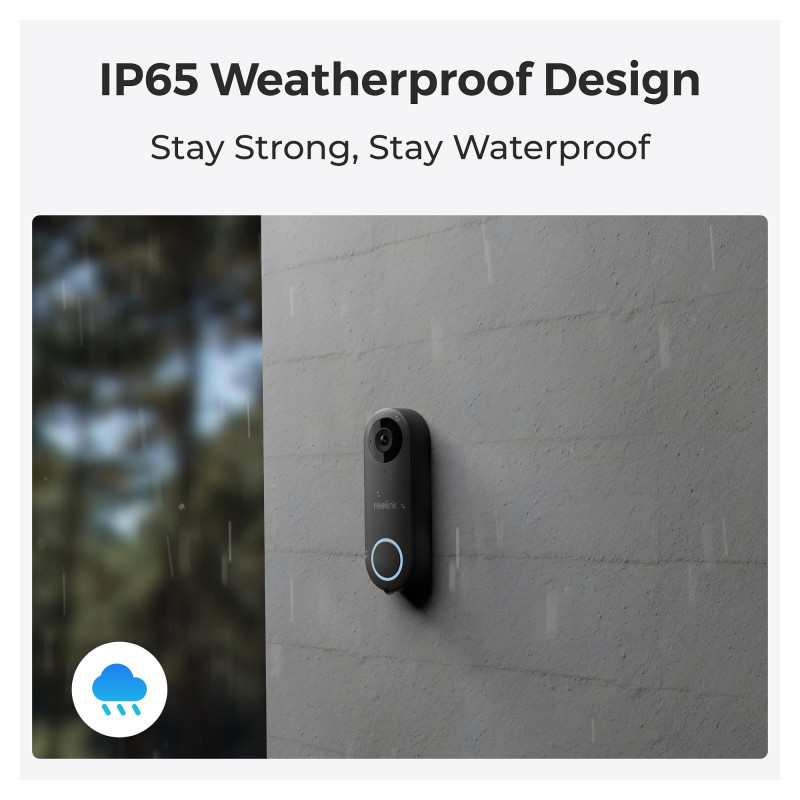

International Protection (IP) code: IP65
Feature: Waterproof
Feature: Motion detection supported
Feature: Package detection
Feature: Human detection
Product colour: Black, White

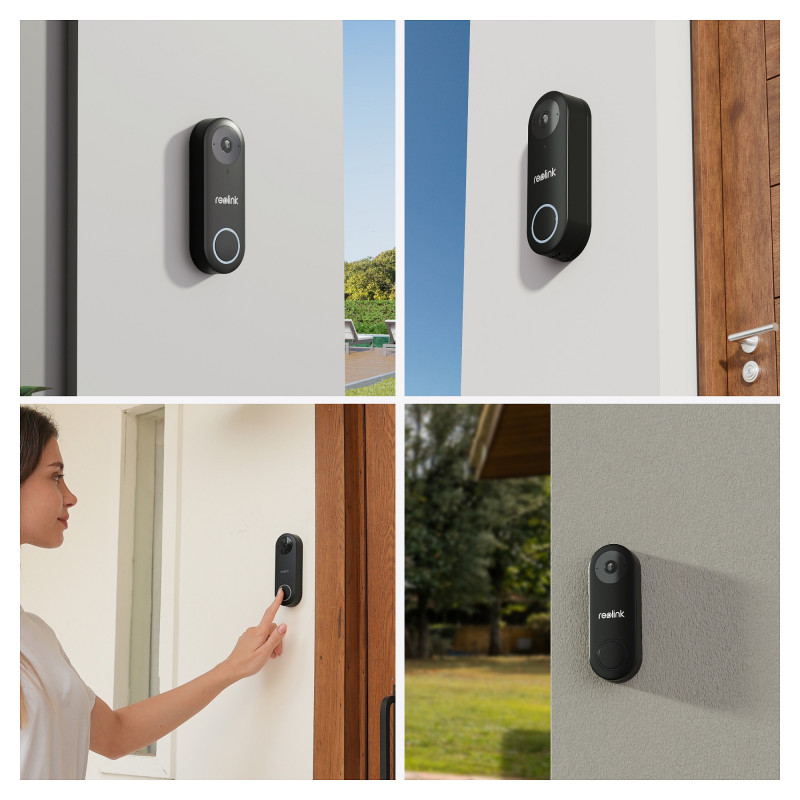

Mounting type: Wall
Audio system: 2-way
Feature: Noise reduction
Number of ringer volume levels: 5
Feature: Waterproof button
Feature: Smartphone/tablet remote support
Feature: Works with the Google Assistant

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Feature: Built-in microphone
Feature: Built-in speaker(s)
Feature: Echo cancellation
Video formats supported: H.264
Feature: Reset button

Camera

Megapixel (approx.): 5 MP
Maximum video resolution: 2560 x 1920 pixels
Maximum frame rate: 20 fps
Image sensor size: 1/2.7"
Sensor type: CMOS
Fixed focal length: 2.26 mm
Maximum aperture number: 2
Horizontal field of view: 134°
Vertical field of view: 97°
Diagonal field of view: 180°
Feature: Built-in camera

Ports & interfaces

Feature: Wi-Fi

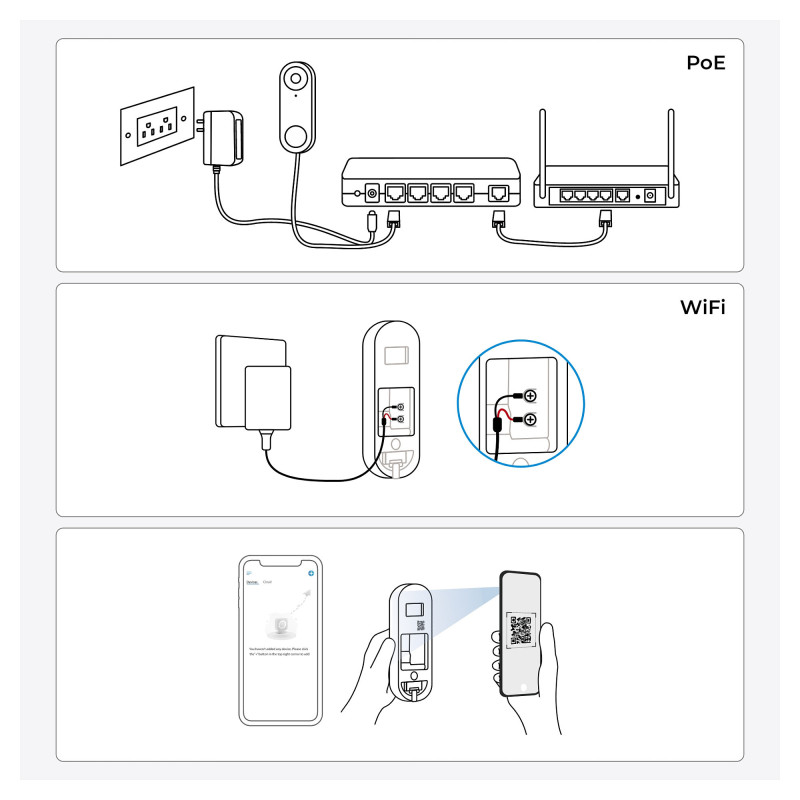

Connectivity technology: Wired & Wireless
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms: WPA-PSK, WPA2-PSK
Mobile operating systems supported: Android, iOS
Supported network protocols: HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
RJ-45 ports quantity: 1
Ethernet interface type: Fast Ethernet

Power

Power source type: DC
Input voltage: 12 - 24 V
AC input frequency: 50/60 Hz
DC input voltage: 24 V

Weight & dimensions

Width: 48 mm
Depth: 23 mm
Height: 133 mm
Weight: 96 g
Bell width: 2.9 cm
Bell depth: 6.6 cm
Bell height: 8.65 cm
Package weight: 677 g
Package depth: 167 mm
Package width: 104 mm
Package height: 160 mm

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 90%

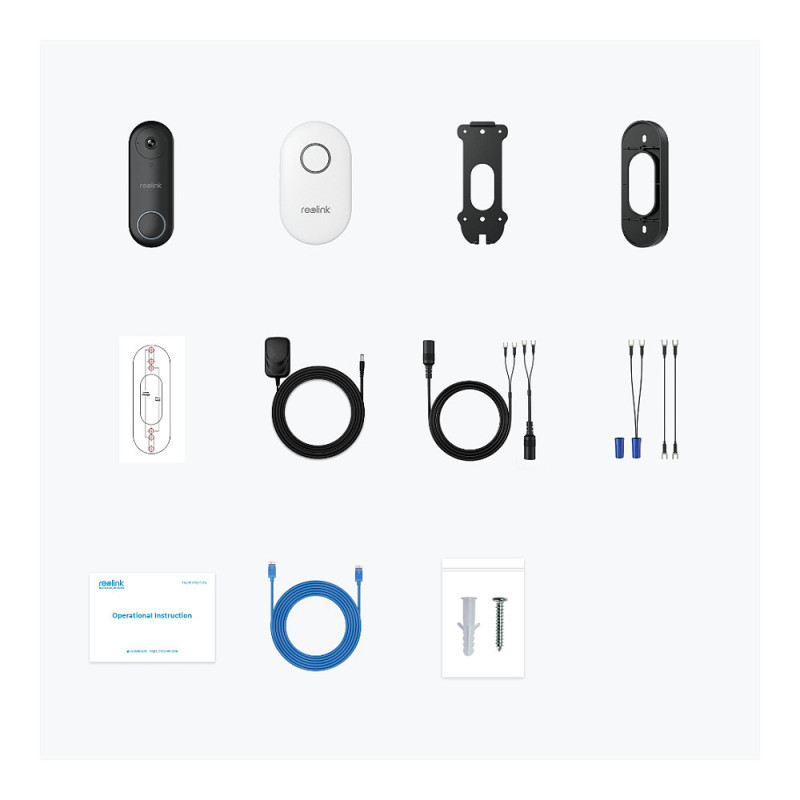

Packaging content

Cables included: LAN (RJ-45)
Feature: Mounting bracket(s) included
Feature: Screws included
Feature: Quick start guide
