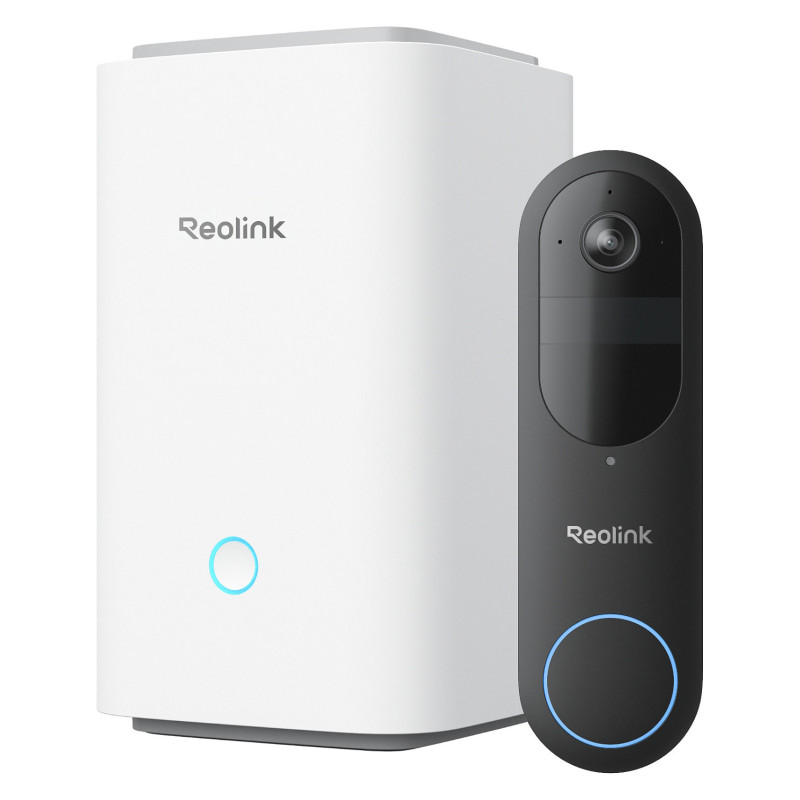

Reolink D340B + Hub 1

Reolink D340B with Hub 1. Type: Base unit, Placement supported: Indoor, Brand compatibility: Reolink. Image sensor size: 1/3.11", Sensor type: CMOS, Megapixel (approx.): 4 MP. Connectivity technology: Wired & Wireless, Ethernet LAN data rates: 10,100,1000 Mbit/s. Output voltage: 12 V, Output current: 1 A. Width: 95 mm, Depth: 95 mm, Height: 161.8 mm

Stay connected, secure, and powered with Reolink D340B with Hub 1, a wireless battery doorbell camera system for your front door. Featuring 1:1 aspect ratio, it provides a head-to-toe view for wider coverage. With smart detection for people, vehicles, and package, you can receive more accurate alerts. 2.4/5GHz dual-band Wi-Fi ensures more stable network connection, keeping you connceted from anywhere.

DIY Your Own Camera System

Supporting up to 8 Reolink cameras (except 4G cameras), this hub is ideal as a storage, alarm, and management center for your DIY camera system.

No-Cost Local Storage Solution

Enjoy encrypted local storage with additional fees. Start with an included 128GB microSD card and expand up to 2×512GB with two card slots for all your needs.

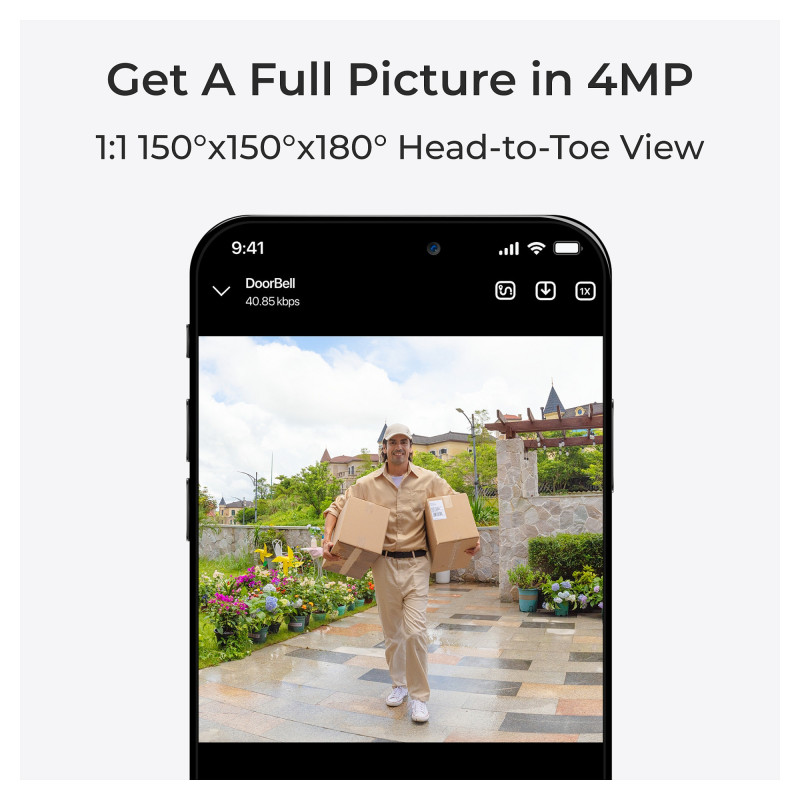

1:1 Aspect Ratio + 4MP HD

Experience 2K HD with a unique 1:1 aspect ratio, delivering a 150°x150°x180° head-to-toe view for exceptional front door visibility.

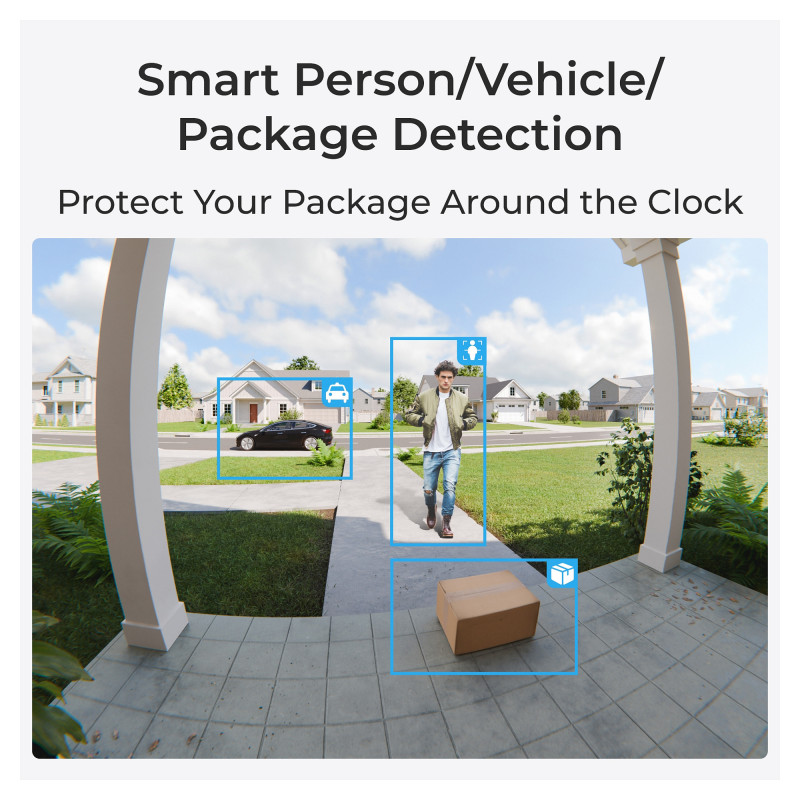

Smart Detection + Instant Alerts

When people, vehicles, or packages are detected, you will be notified by the real-time notification. Fear no more porch pirates, your packages are always under monitoring.

Rechargeable Battery + Hardwire

Flexible power options. Use the rechargeable battery or hardwire to existing wiring. The hardwire option supports mechanical chimes. (Power source: 8~24V, 5VA-40VA).

Dual-Band Wi-Fi Network

Supports both 5GHz and 2.4GHz Wi-Fi., meeting your diverse connectivity needs. 2.4GHz band offers extensive coverage, while 5GHz frequency delivers rapid network speeds.

Visitor Notification

Receive instant push notifications and even a video call when a visitor presses the doorbell. See their faces on the screen without having to open the door.

Weekly Summary of Detection Events

Track events from all cams by date range, device, and event type. Stay informed with weekly summaries of statistics, including daily alarms, types, and involved devices.

Alarm Center for Reolink Battery Cameras

When any of the IP cameras connected to the hub triggers an alarm, it can also activate the hub's siren with 11 selectable ringtones and 5 custom sounds.

Multi-User Account Sharing

The hub supports 1 admin account and 11 user accounts, allowing you to share access with family and friends. Keep everyone connected and secure, enhancing peace of mind.

Features

Type: Base unit
Placement supported: Indoor
Brand compatibility: Reolink
Product colour: White
Maximum number of cameras supported: 8
LED indicators: Yes
Number of users: 11 user(s)
Feature: Reset button
Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Image sensor

Image sensor size: 1/3.11"
Sensor type: CMOS
Megapixel (approx.): 4 MP
Resolution: 2048 x 2048 pixels
Viewing angle, diagonal: 180°
Viewing angle, horizontal: 150°
Viewing angle, vertical: 150°
Feature: Day/night mode

Ports & interfaces

Connectivity technology: Wired & Wireless
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Feature: DC-in jack

Power

Output voltage: 12 V
Output current: 1 A

Weight & dimensions

Width: 95 mm
Depth: 95 mm
Height: 161.8 mm
Weight: 441 g

Packaging content

Feature: AC adapter included

Operational conditions

Operating temperature (T-T): -10 - 45 °C
Operating relative humidity (H-H): 10 - 90%
