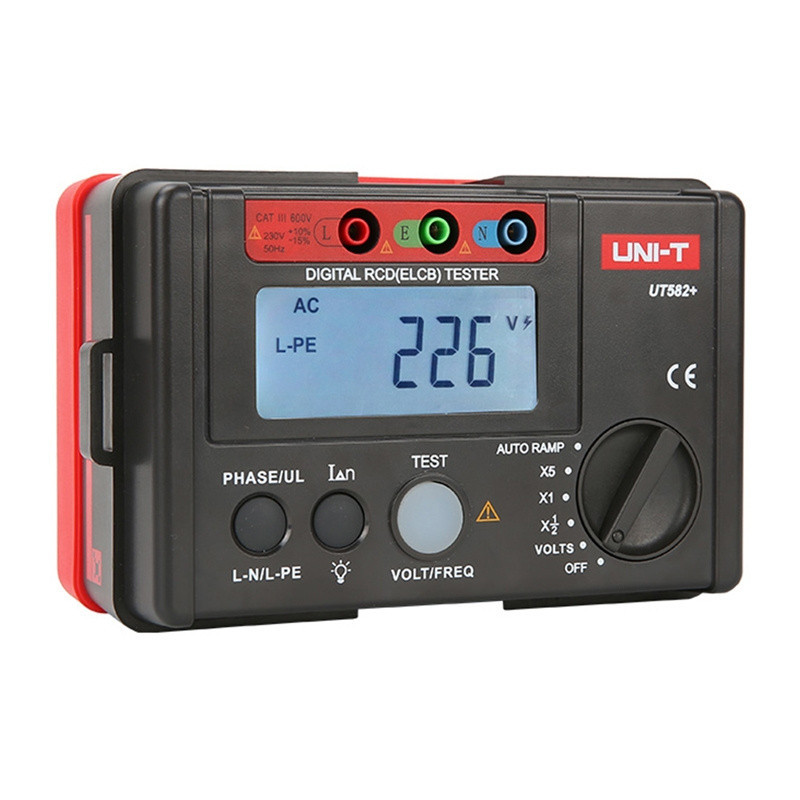

UNI-T RCD UT582+
Uni-T UT582+ is a residual current device (RCD) tester designed to check the functionality of RCDs in single-phase electrical systems. It features automatic trip threshold checking, voltage measurement up to 600V and a backlit display for ease of use.
- Checks the operation of residual current devices (RCDs) in single-phase electrical installations.
- There is an AUTO RAMP function to automatically check trip thresholds and measure trip time and current.
- Equipped with a backlit display, audible signals and safety features such as fuse protection and connection indicators.
- The kit includes test leads, a carrying case, and a user manual for convenience and portability.
Features | |
|---|---|
| Product type | Residual Current Device (RCD) Tester |
| Brand | Uni-T |
| Model | UT582+ |
Specifications | |
| Working voltage | 195V ~ 253V |
| Voltage range | 30V ~ 600V ±(3%+3) |
| Frequency | 45Hz ~ 65Hz |
| Testing currents | 10mA / 20mA / 30mA / 100mA / 300mA / 500mA |
| Shutdown time | 40ms ~ 2000ms |
| Time accuracy | ±(2%+2) |
| Maximum reading | 999 |
| Features | AUTO RAMP, Data hold, LCD backlight, audible signal, connection check, automatic shutdown, low battery indicator |
| Power source | 6x 1.5V battery (LR6) |
| Screen size | 71 x 34 mm |
| Dimensions | 160 x 100 x 71 mm |
| Weight | 400g |
| Certificates | CE, UKCA |
Safety warning | |
| Use the product only for its intended purpose - testing leakage current devices in electrical installations. | |
| Height | 100mm |
| Length | 250mm |
| Weight | 600g |
| Width | 150mm |
