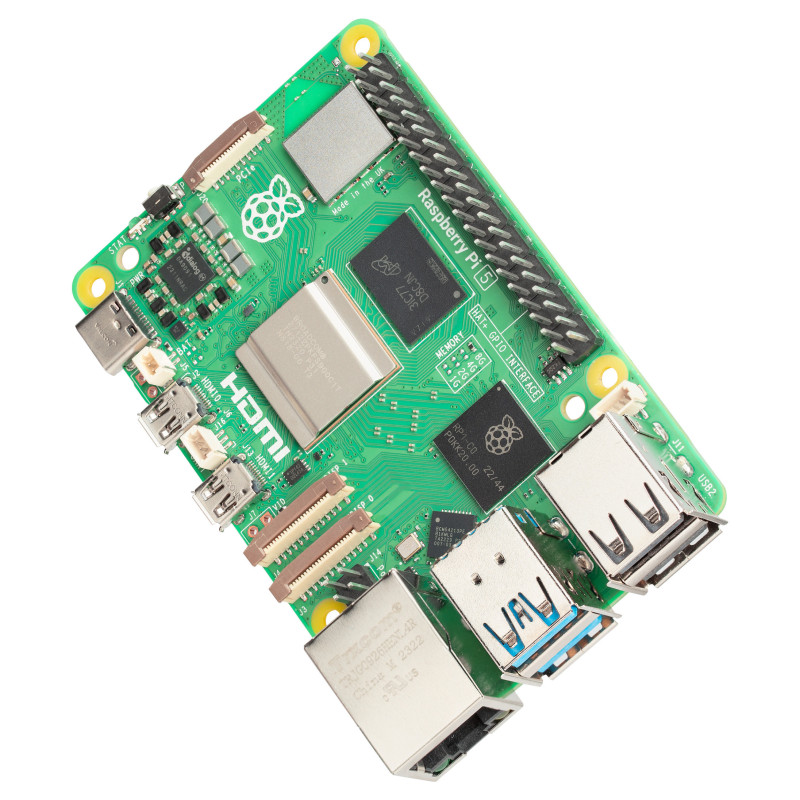

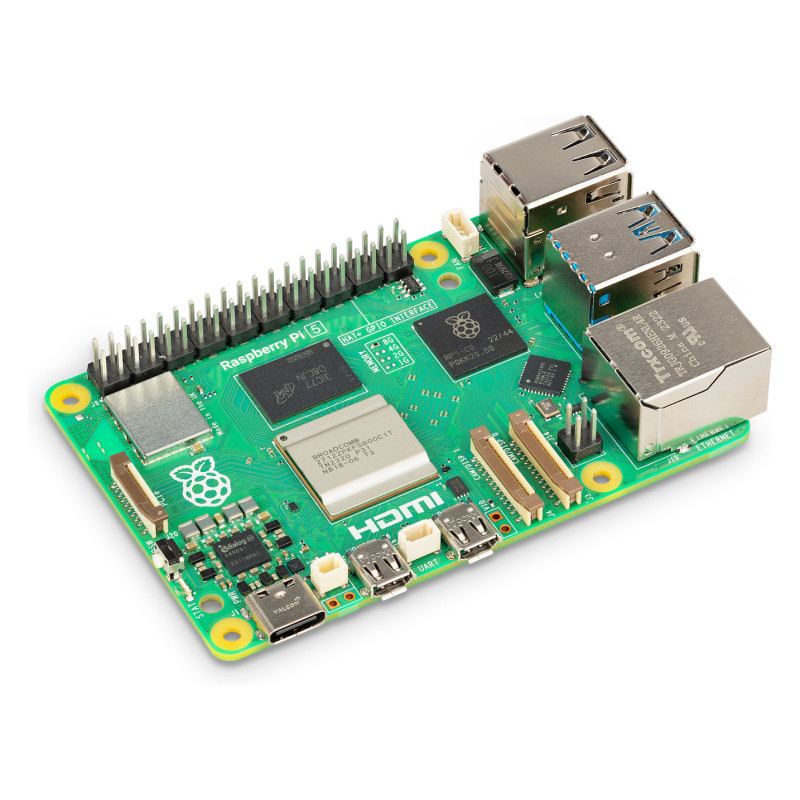

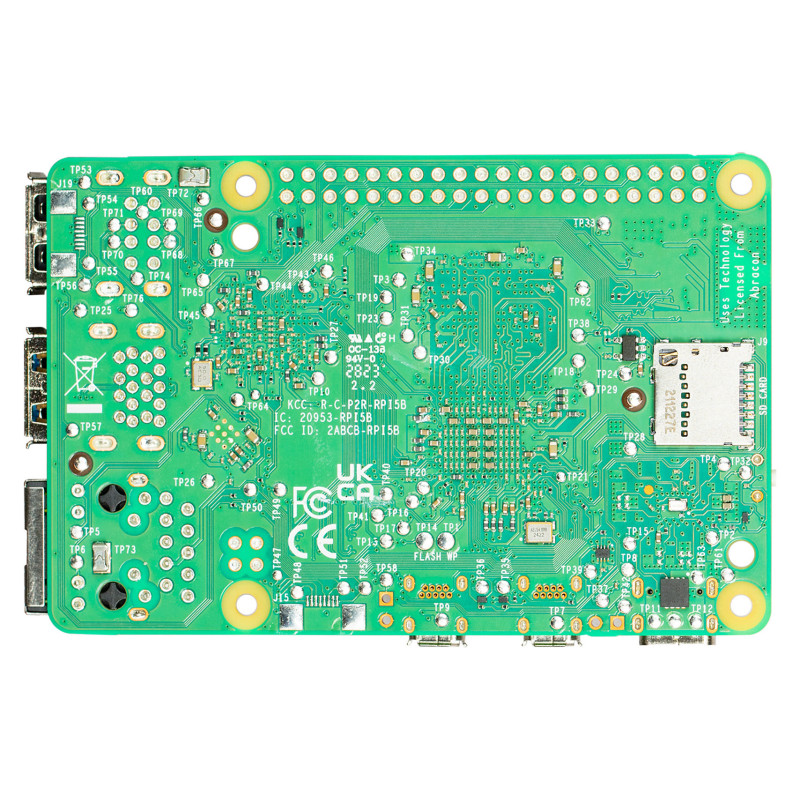

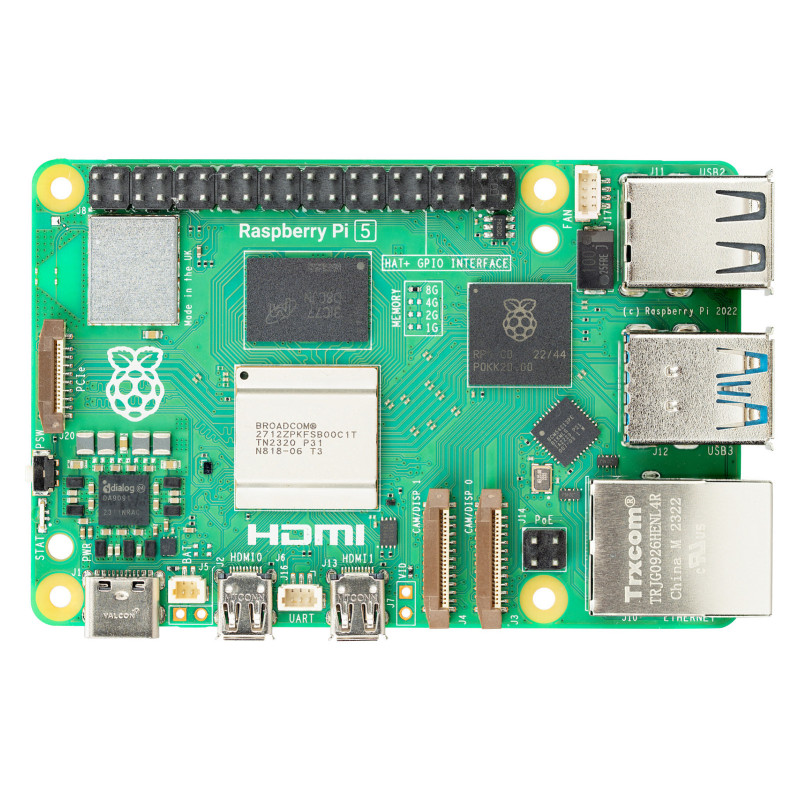

Raspberry Pi 5 development board

Raspberry Pi 5. Processor manufacturer: ARM, Processor model: Arm Cortex-A76, Processor frequency: 2400 MHz. Maximum internal memory: 16 GB, Internal memory type: LPDDR4x-SDRAM, Compatible memory cards: MicroSD (TransFlash). USB version: 2.0/3.2 Gen 1 (3.1 Gen 1), Wi-Fi standards: Wi-Fi 5 (802.11ac). PCI Express interface data lanes: x1. DC input voltage: 5 V, Input current: 5 A

The everything computer. Optimised.
With 2-3× the speed of the previous generation, and featuring silicon designed in‑house for the best possible performance, we've redefined the Raspberry Pi experience.

Raspberry Pi 5 16GB
For power users and professional applications.

Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.

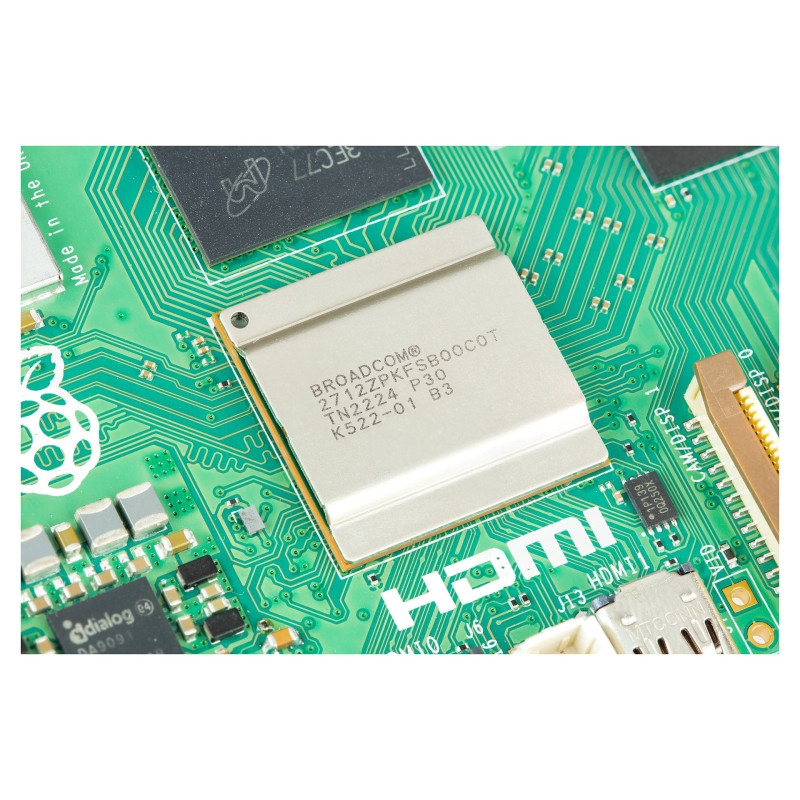

Processor

Processor manufacturer: ARM
Processor model: Arm Cortex-A76
Processor frequency: 2400 MHz
Processor cache: 512 KB
Processor cores: 4
Feature: 64-bit computing

Memory

Maximum internal memory: 16 GB
Internal memory type: LPDDR4x-SDRAM

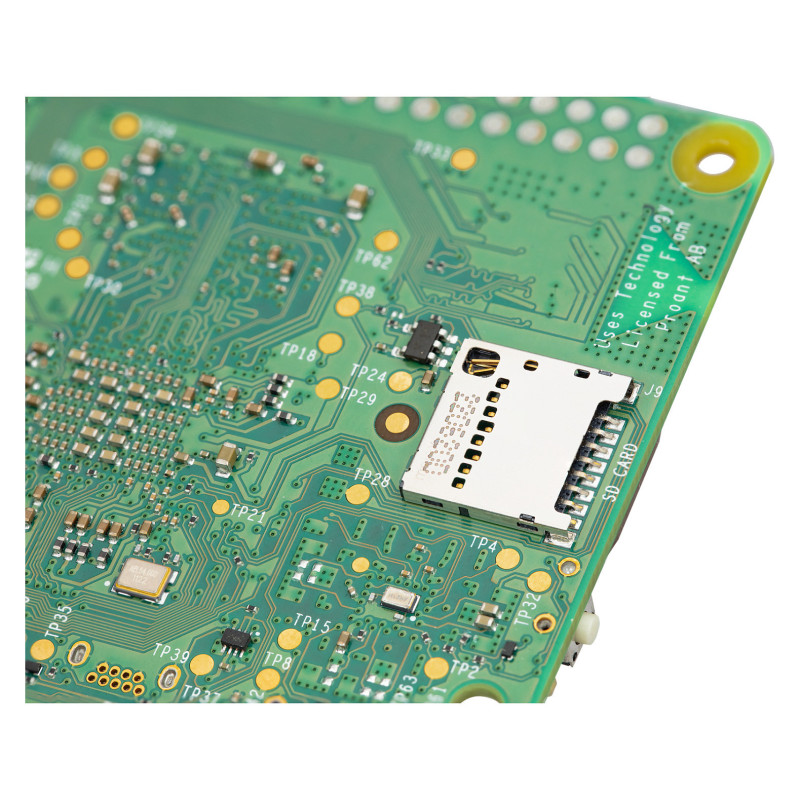

Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces

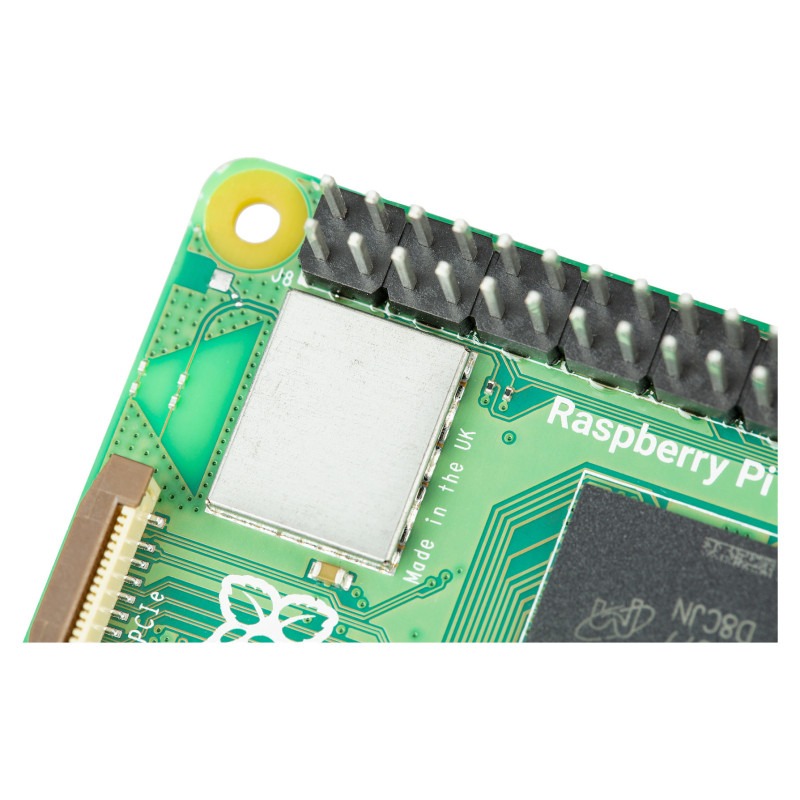

Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Feature: Ethernet LAN

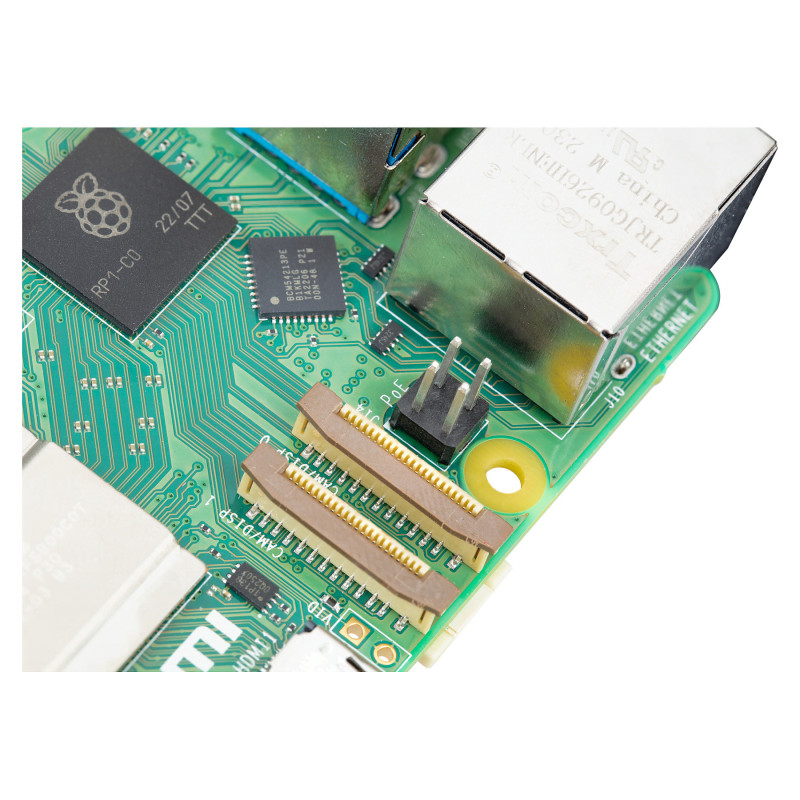

Feature: Power over Ethernet (PoE)

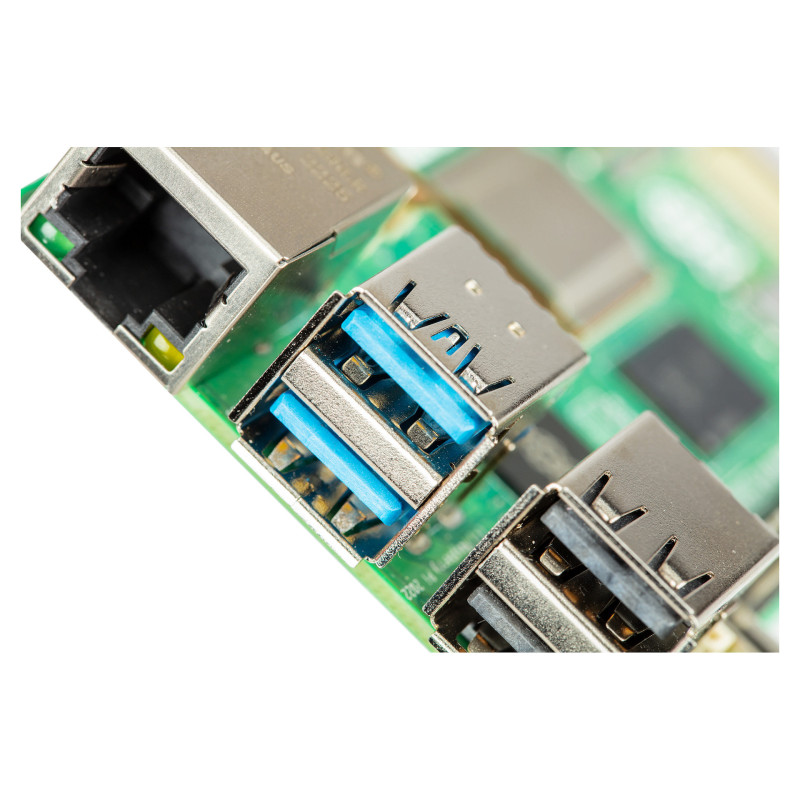

USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 2
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Bluetooth Low Energy (BLE)

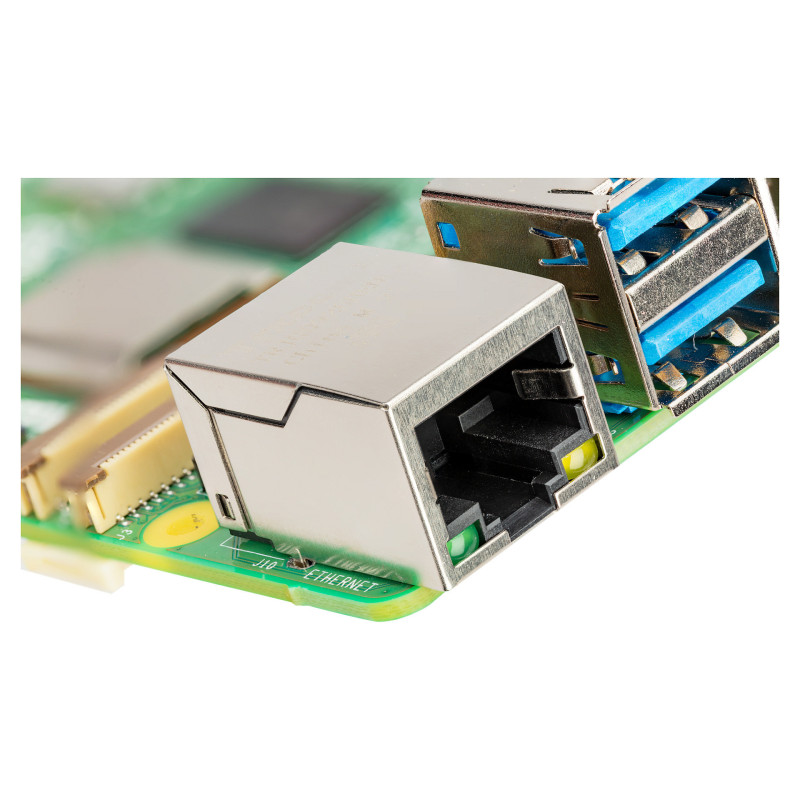

Ethernet LAN (RJ-45) ports: 1

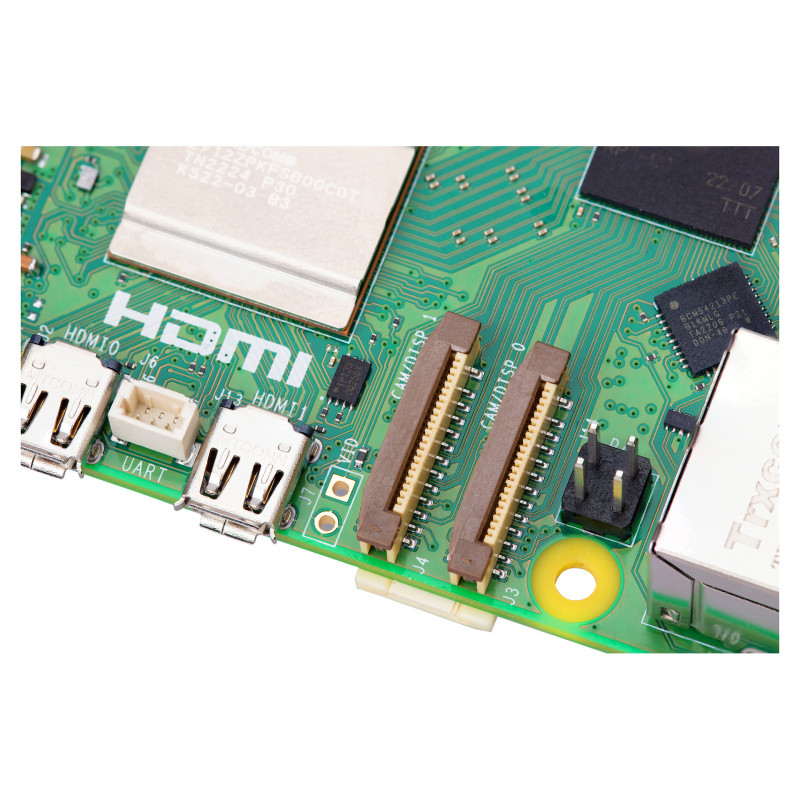

Feature: MPI DSI interface
Feature: MPI CSI interface
Feature: Integrated LAN

Expansion slots

PCI version: 2.0
PCI Express interface data lanes: x1

Features

Feature: Real-time clock (RTC)

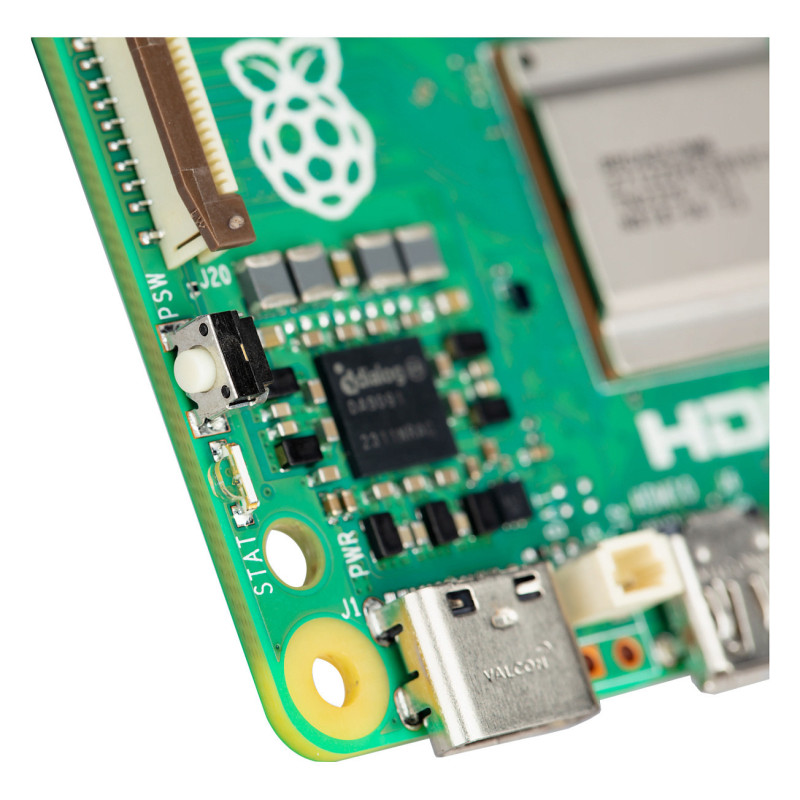

Feature: On/off button

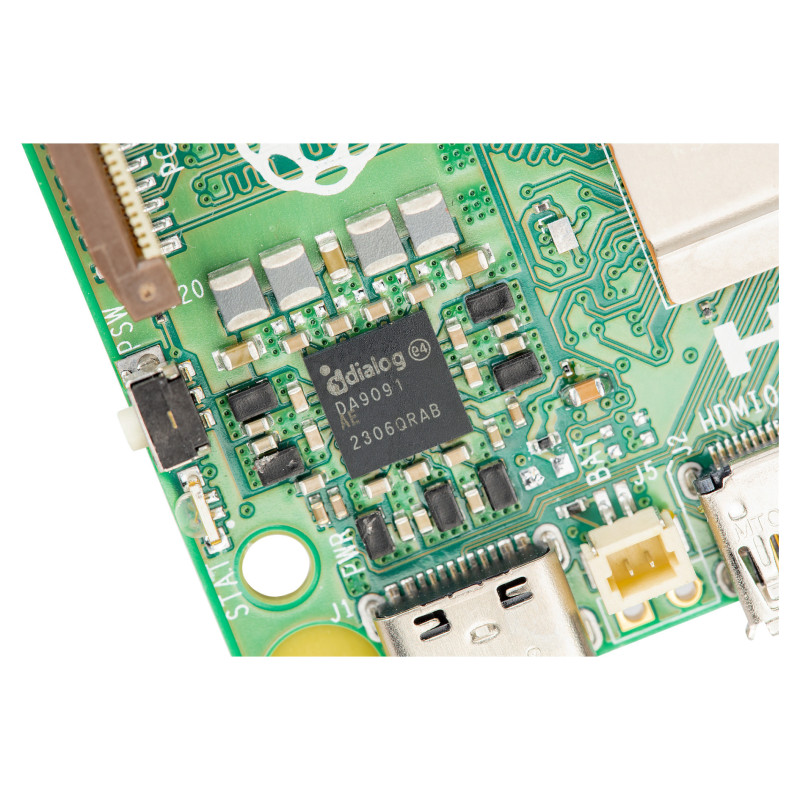

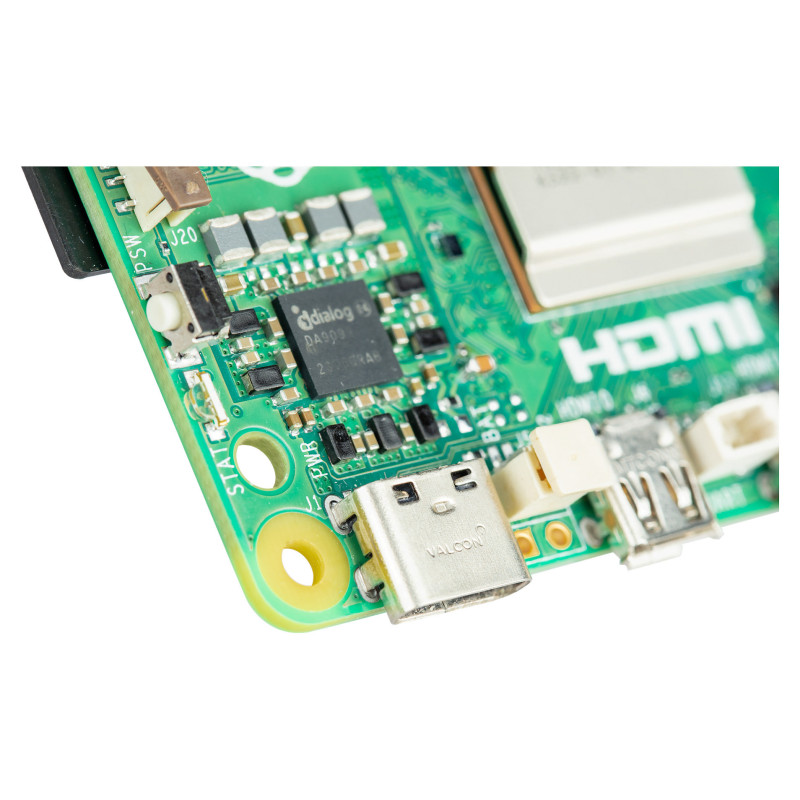

Power

DC input voltage: 5 V
Input current: 5 A
Feature: USB powered

Weight & dimensions

Board dimensions: 85 x 49 mm
Width: 85 mm
Depth: 49 mm
