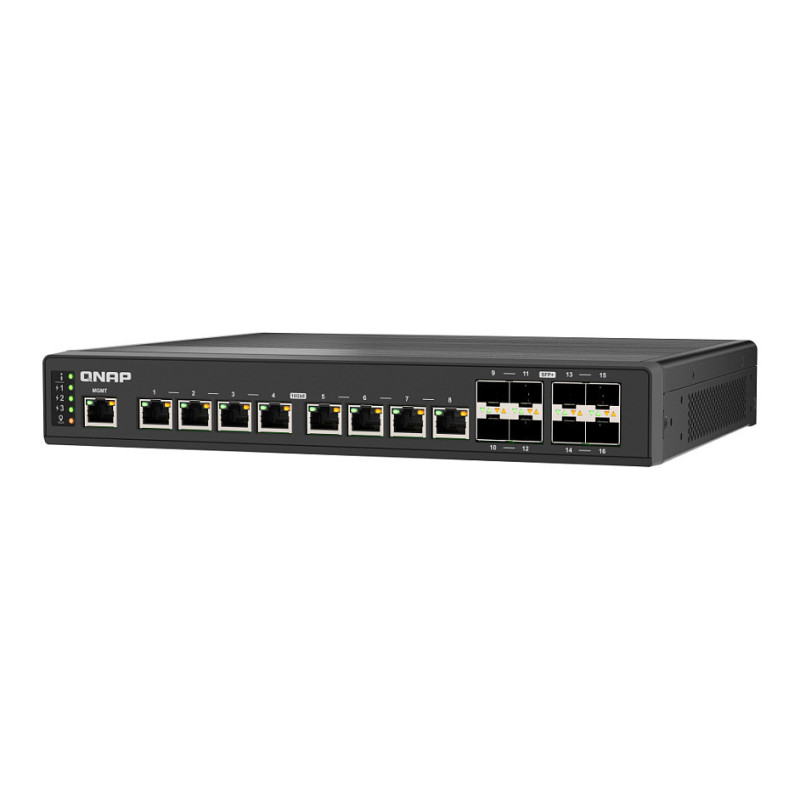

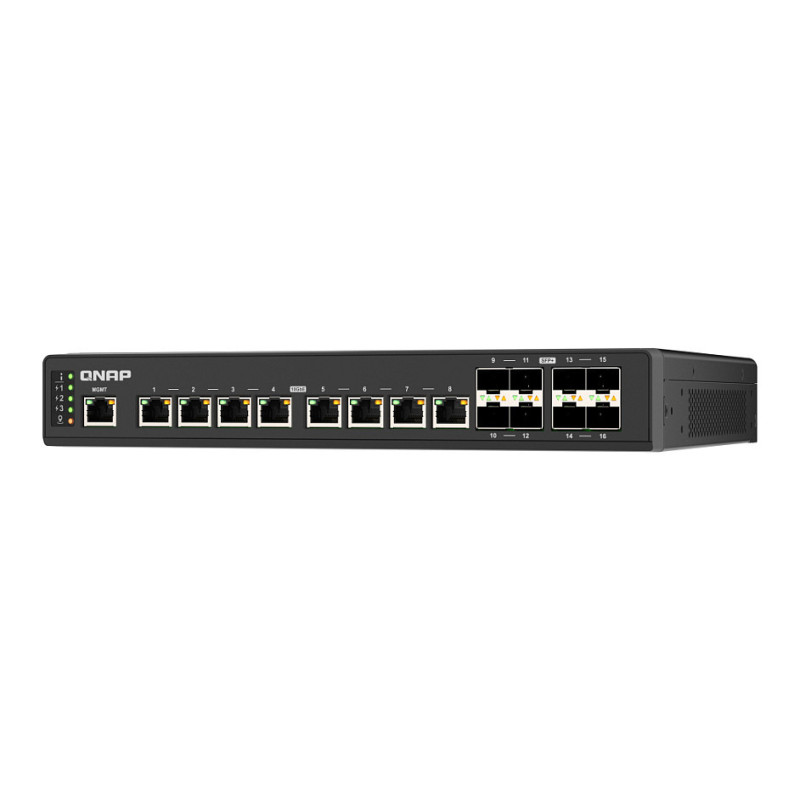

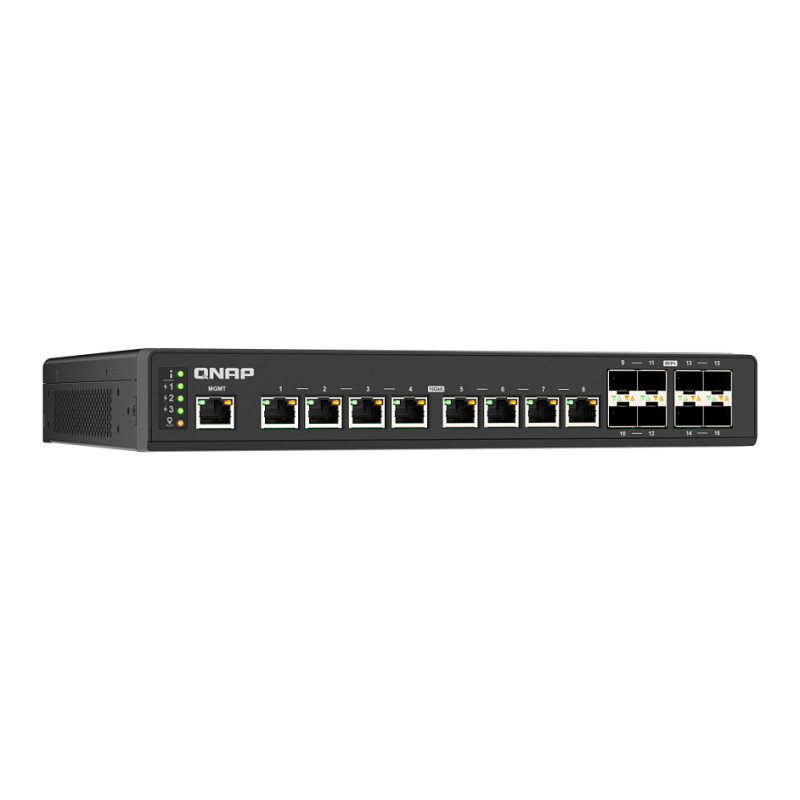

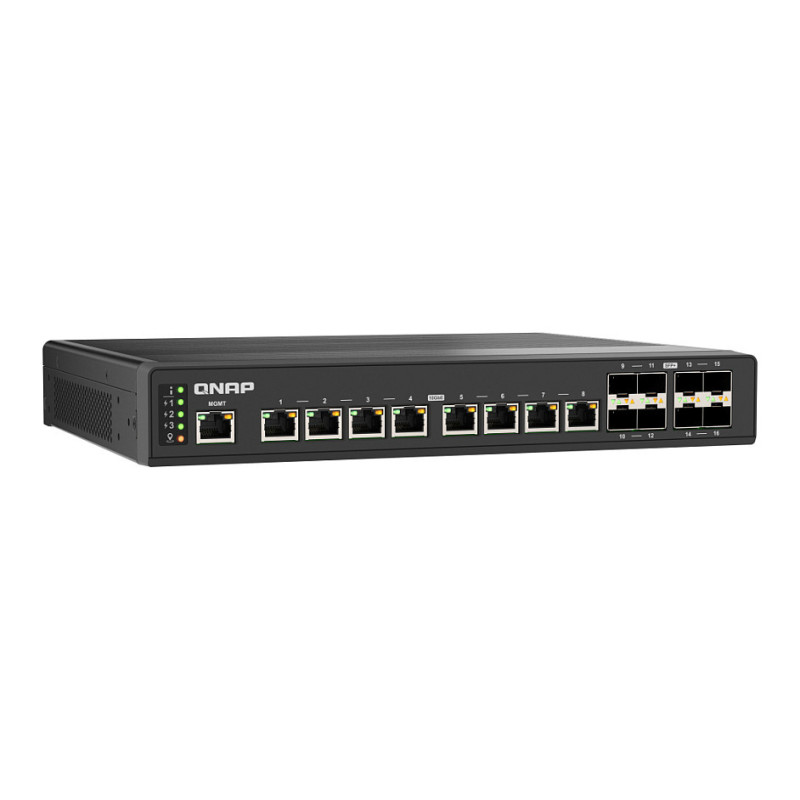

QNAP QSW-IM3216-8S8T network switch

QNAP QSW-IM3216-8S8T. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae,.... Power connector: Terminal block (6-pin). Rack mounting

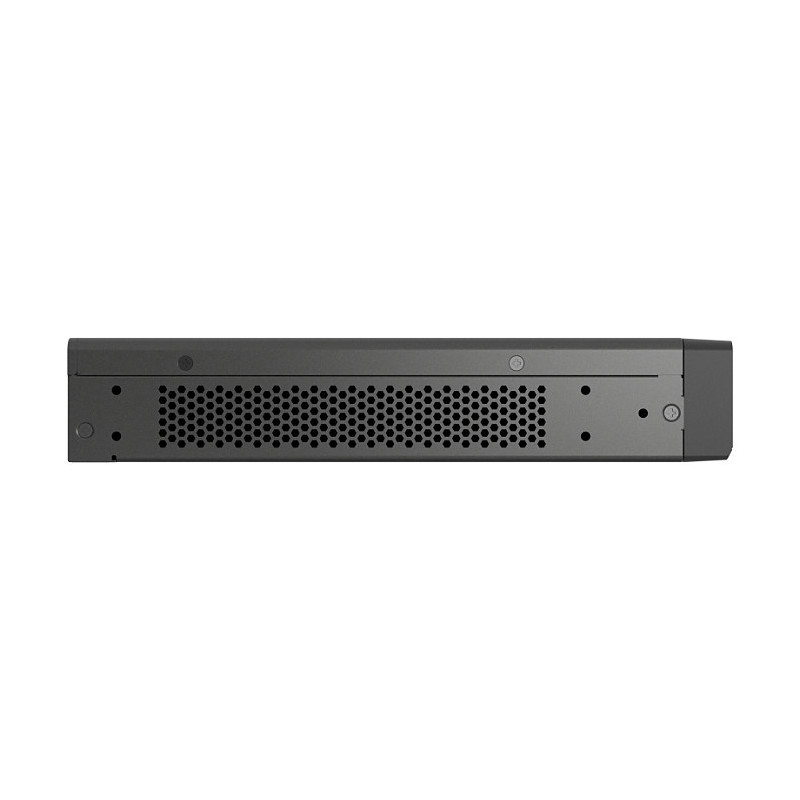

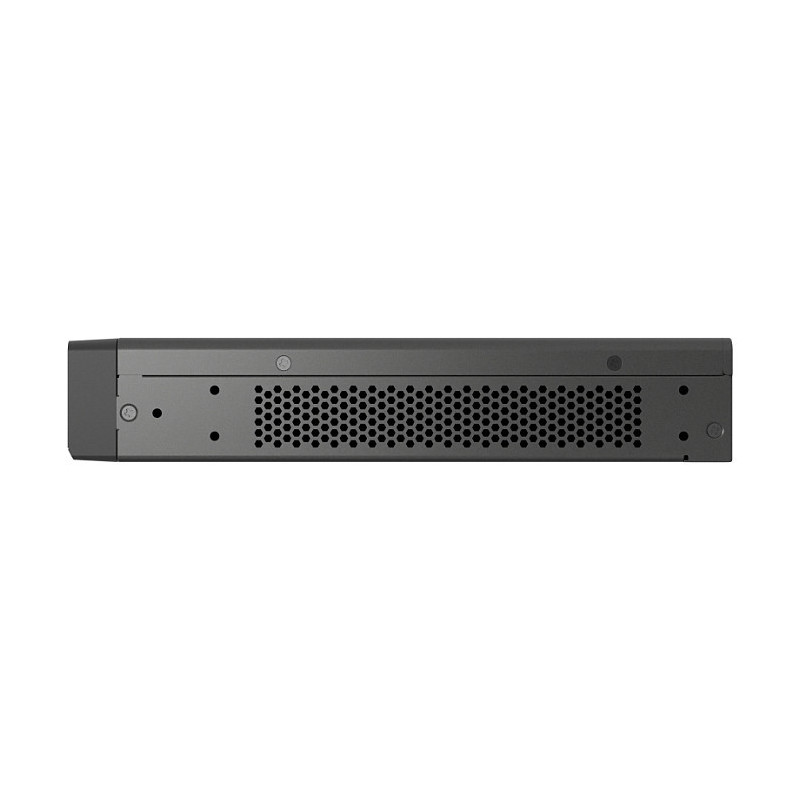

Designed for harsh industrial environments, the QSW-IM3216-8S8T high-speed switch features a fanless IP20-rated enclosure with a redundant DC 9-54V power supply. It provides sixteen 10GbE ports, practical L2 management functions, and can be mounted in a rack, placed on a desktop, or wall mounted. This range of installation options makes it an economical and efficient high-speed networking solution for factory automation, AI smart manufacturing, smart cities, automotive industry, traffic monitoring, and other applications. The QSW-IM3216-8S8T was designed and manufactured in Taiwan, offering high-quality and reliable networking solutions.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 8
Console port: RJ-45

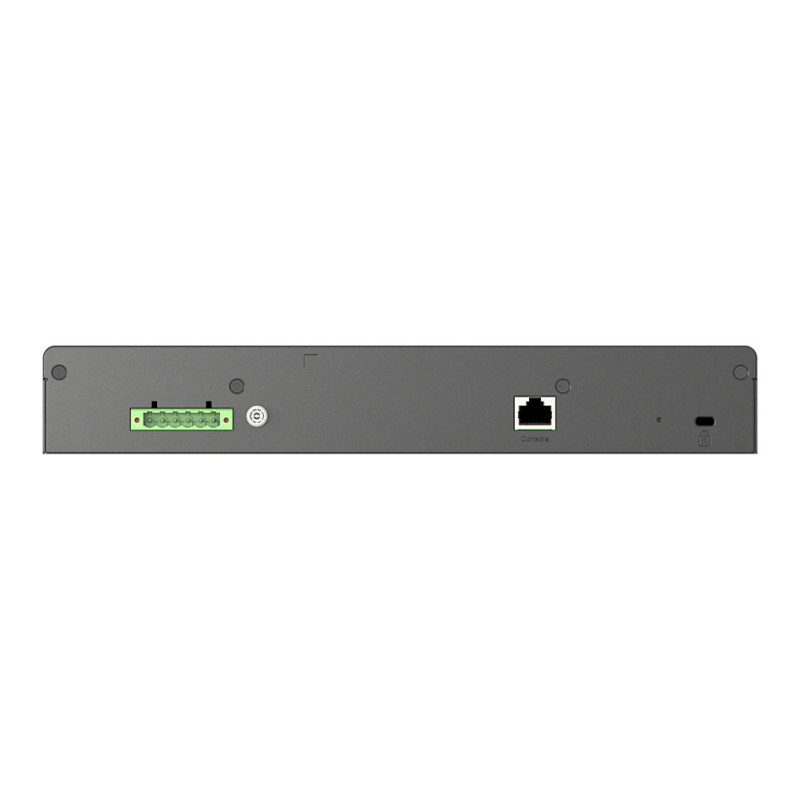

Power connector: Terminal block (6-pin)

Network

Feature: 10G support
Feature: Port mirroring
Feature: Auto-negotiation
Feature: VLAN support

Data transmission

Switching capacity: 320 Gbit/s
Throughput: 160 Gbit/s
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000

Security

DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Loop protection

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Yes

Performance

Feature: Firmware upgradeable

Power

Power source: DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 48.632 W

Other features

Warranty period: 2 year(s)

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 285 mm
Depth: 231.5 mm
Height: 43.5 mm
Weight: 4.26 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 452 mm
Package depth: 317 mm
Package height: 104 mm
Package weight: 5.72 kg

Certificates

Certification: CE, FCC, VCCI, BSMI

Logistics data

Country of origin: Taiwan
Products per master (outer) case: 5 pc(s)
