Process Calibration Device - Uni-T UT701, ±0.05% Accuracy, Voltage, Resistance, Temperature
Product reference:
14-6935750570173
Uni-T UT701 Process Calibrator is designed for calibration and testing of temperature measuring instruments, supporting thermocouples and RTD sensors. It features high output accuracy up to ±0.05% and includes functions for generating voltage, resistance and temperature signals.
Process Calibration Device - Uni-T UT701, ±0.05% Accuracy, Voltage, Resistance, Temperature
Product reference:
14-6935750570173
Uni-T UT701 Process Calibrator is designed for calibration and testing of temperature measuring instruments, supporting thermocouples and RTD sensors. It features high output accuracy up to ±0.05% and includes functions for generating voltage, resistance and temperature signals.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

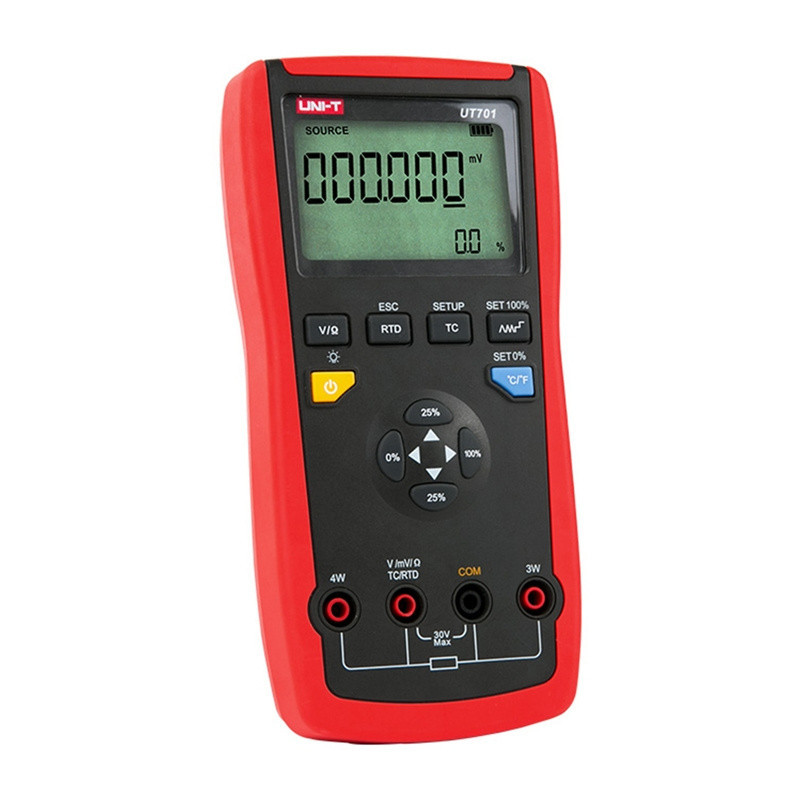

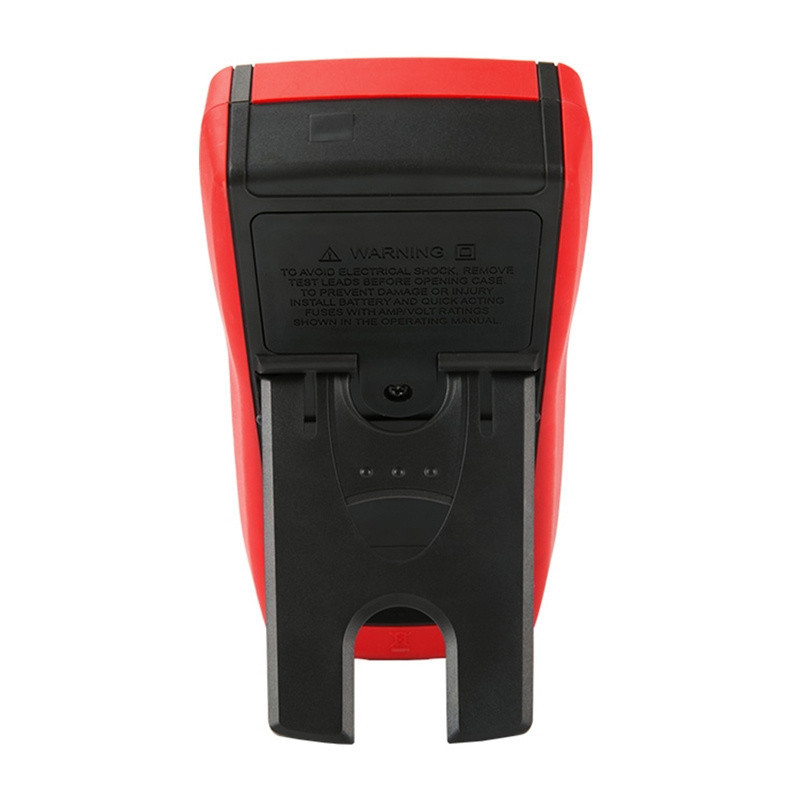

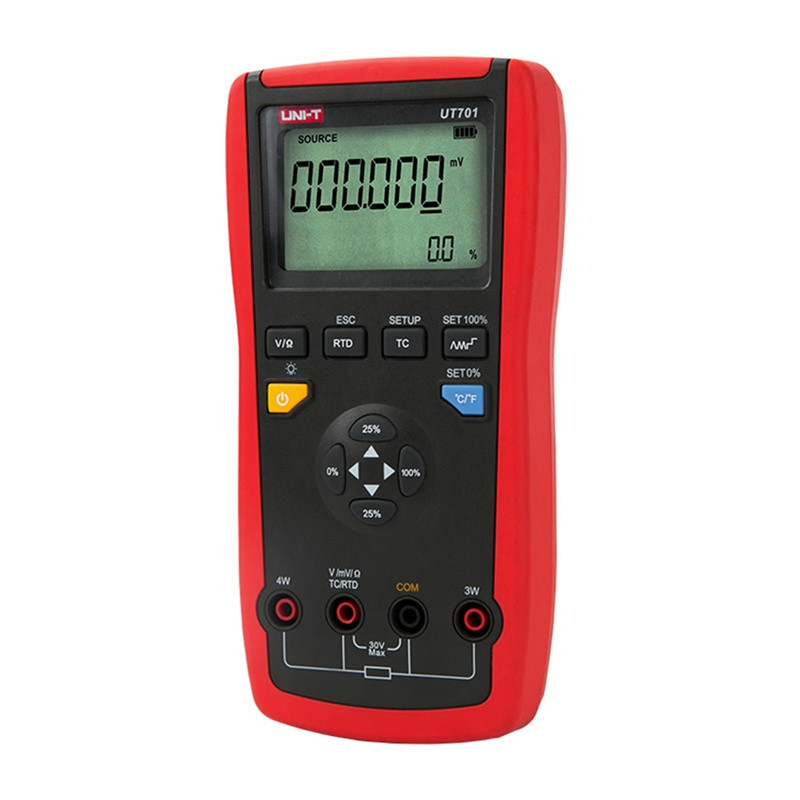

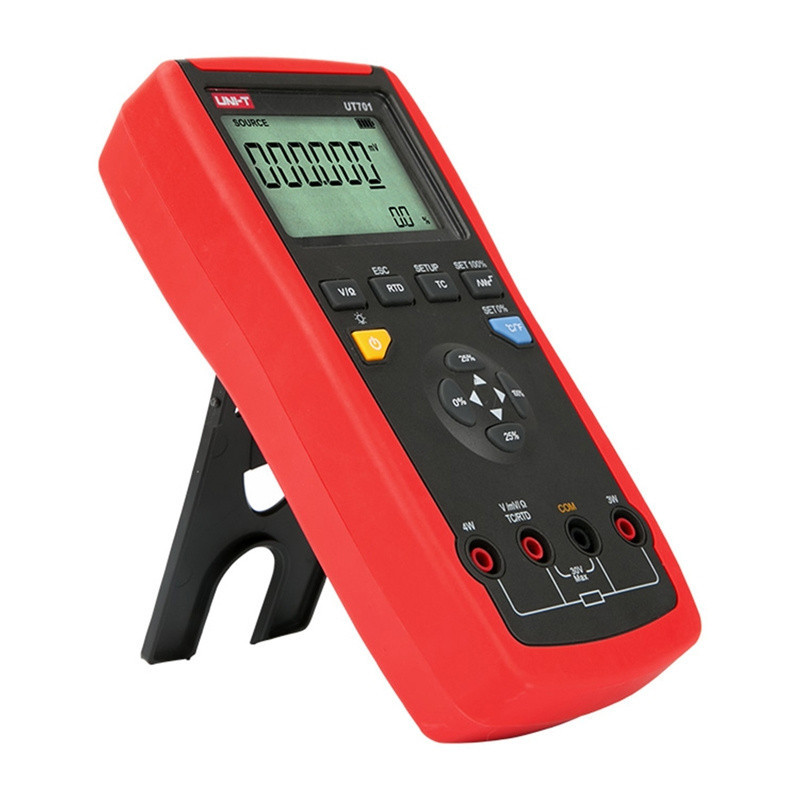

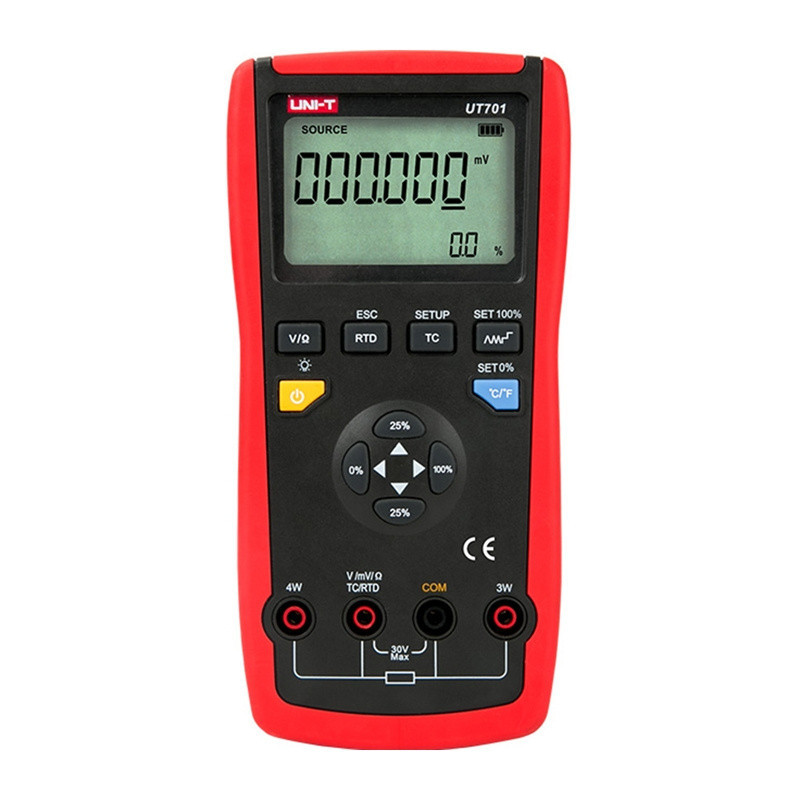

Uni-T UT701 Process Calibrator
Uni-T UT701 Process Calibrator is designed for calibration and testing of temperature measuring instruments, supporting thermocouples and RTD sensors. It features high output accuracy up to ±0.05% and includes functions for generating voltage, resistance and temperature signals.
- Calibrates and tests temperature measurement devices, supporting both thermocouple and RTD sensors.
- High output accuracy of up to ±0.05% ensures reliable calibration results.
- User-friendly design with a clear backlit display and intuitive controls for ease of use.
- There is automatic cold junction compensation and functions for ramp and step testing.
Features | |
|---|---|
| Product Type | Process Temperature Calibrator |
| Product Brand | Uni-T |
| Model | UT701 |
Specifications | |
| Output Accuracy | Up to ±0.05% |
| Screen Type | 6-digit backlit LCD display |
| Screen Dimensions | 63 × 40 mm |
| Signal Source Outputs | DC voltage, resistance, thermocouples, RTD |
| Supported Thermocouples | J, K, T, E, R, S, B, N, WRe3-25, WRe5-26 |
| Supported RTD Types | Pt10, Pt100, Cu50, Cu100 |
| DC Voltage Output Range | Up to 1000 mV |
| Impedance Output Range | Up to 5000 Ω |
| Features | Ramp, step, settings storage, cold junction compensation |
| Power supply | 9V battery (6F22) |
| Measurements | 96 × 193 × 47mm |
| Weight | 410g |
| Certificates | CE, UKCA |
| Height | 100mm |
| Length | 200mm |
| Weight | 600g |
| Width | 250mm |
