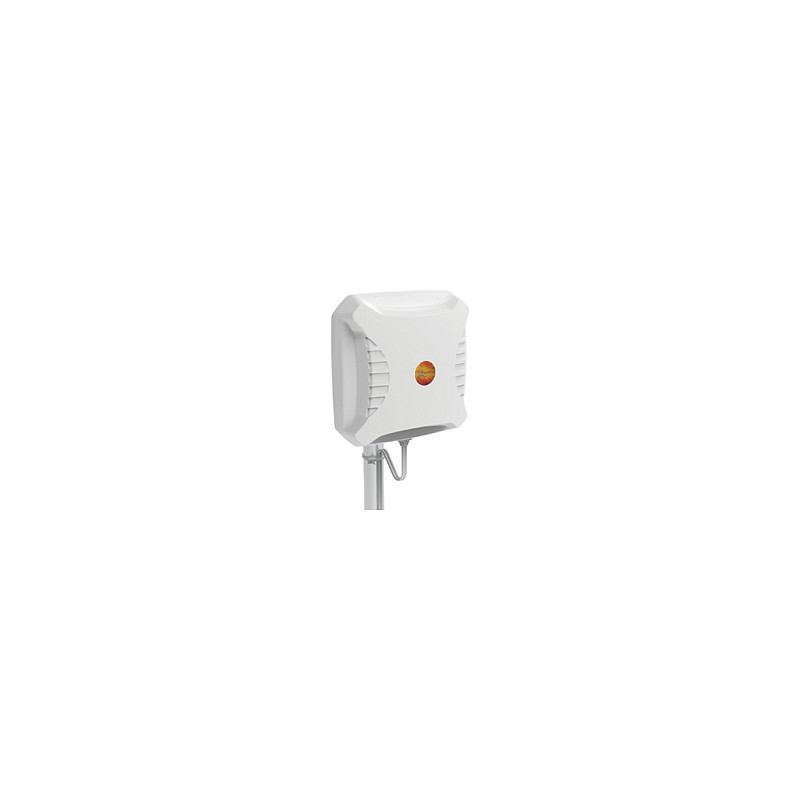

Poynting XPOL-2-5G network antenna

Poynting XPOL-2-5G. Antenna gain level (max): 11 dBi, Gain: 10 / 11 dBi, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: SMA, Product colour: White. Compliance certificates: CE, RoHS. Width: 265 mm, Depth: 265 mm, Height: 90 mm

The XPOL-2-5G is Poynting's third generation "V3" of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation "V2" but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The XPOL-2-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 - 960MHz, 1700 - 2170MHz, 2300 - 2700MHz & 3400 - 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the "V2" over the same frequency bands! Our "V2" antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.

So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet - it may look the same, but just wait until you turn the ignition on!

Performance

Gain: 10 / 11 dBi
Impedance: 50 Ω
Antenna gain level (max): 11 dBi

Features

Antenna type: Directional antenna
Antenna connector type: SMA
Voltage Standing Wave Ratio (VSWR): 1.5.1
Product colour: White
Housing material: Acrylonitrile styrene acrylate (ASA)
International Protection (IP) code: IP65
Survival wind speed: 250 km/h

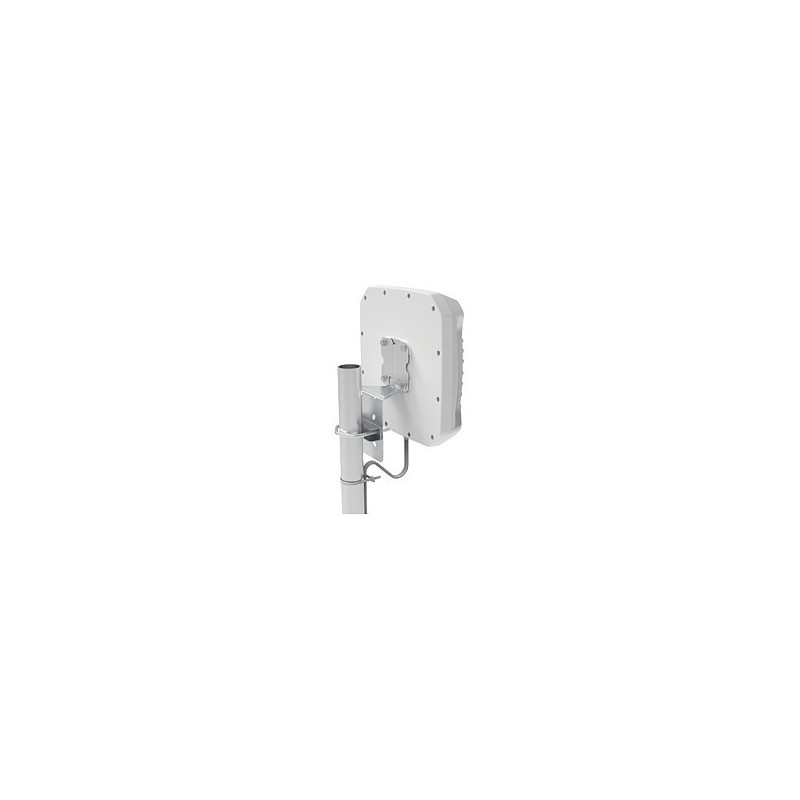

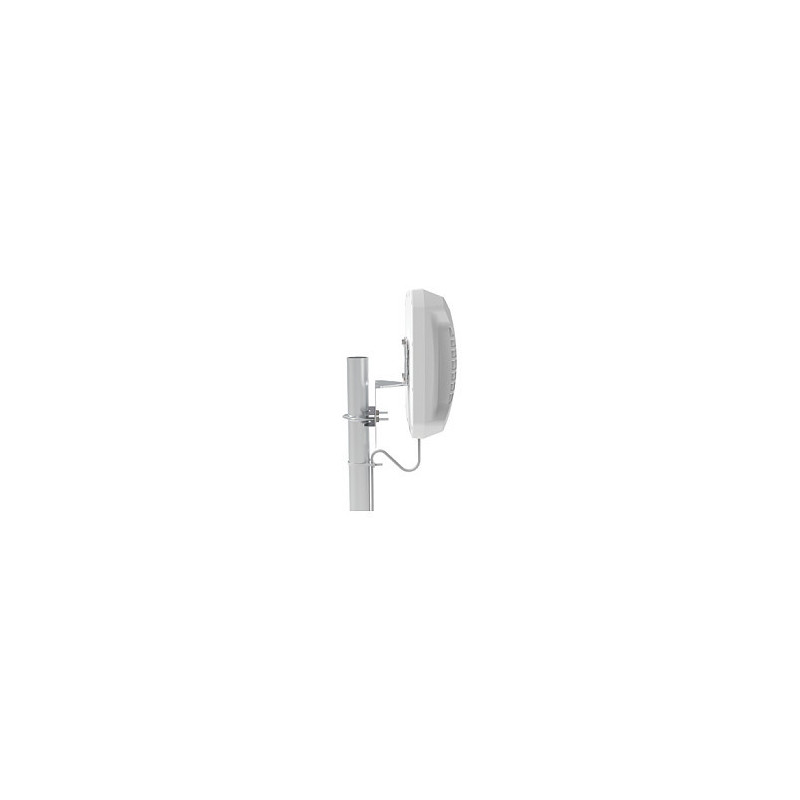

Mounting: Wall/Pole

Certificates

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 0 - 98%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 265 mm
Depth: 265 mm
Height: 90 mm

Packaging content

Feature: Mounting kit
