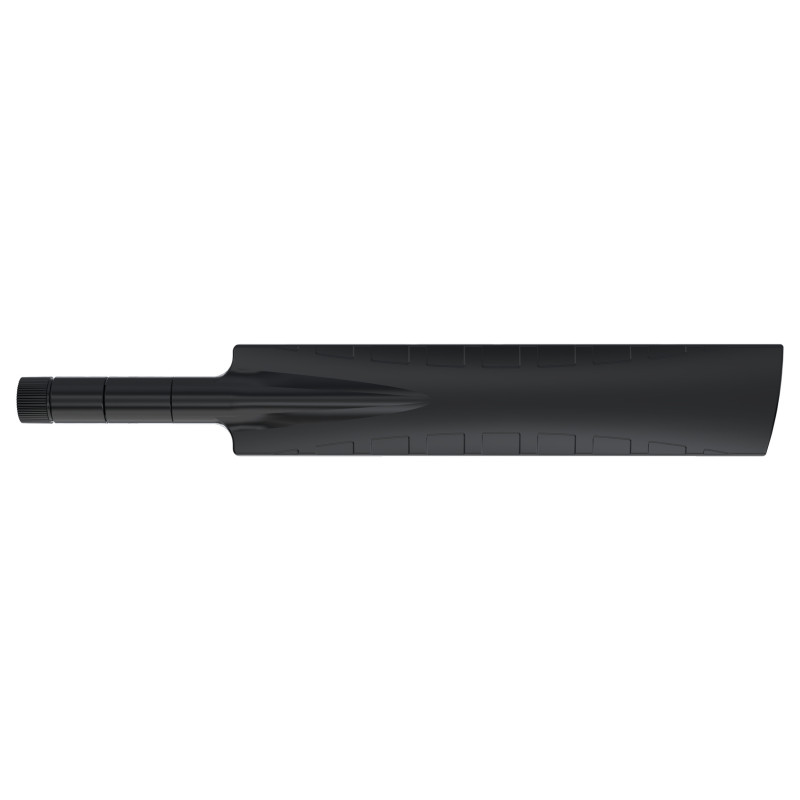

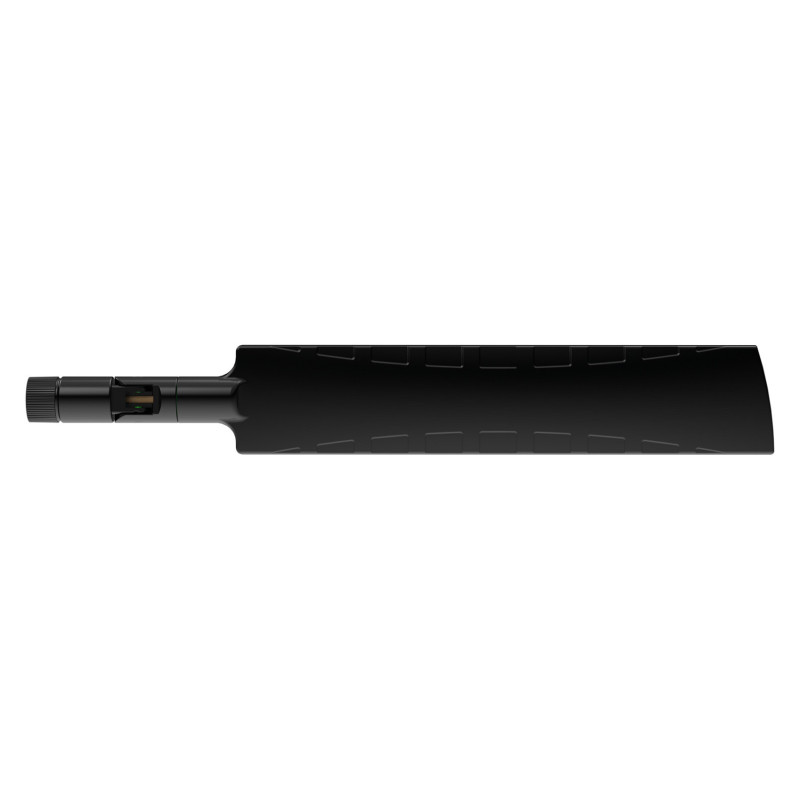

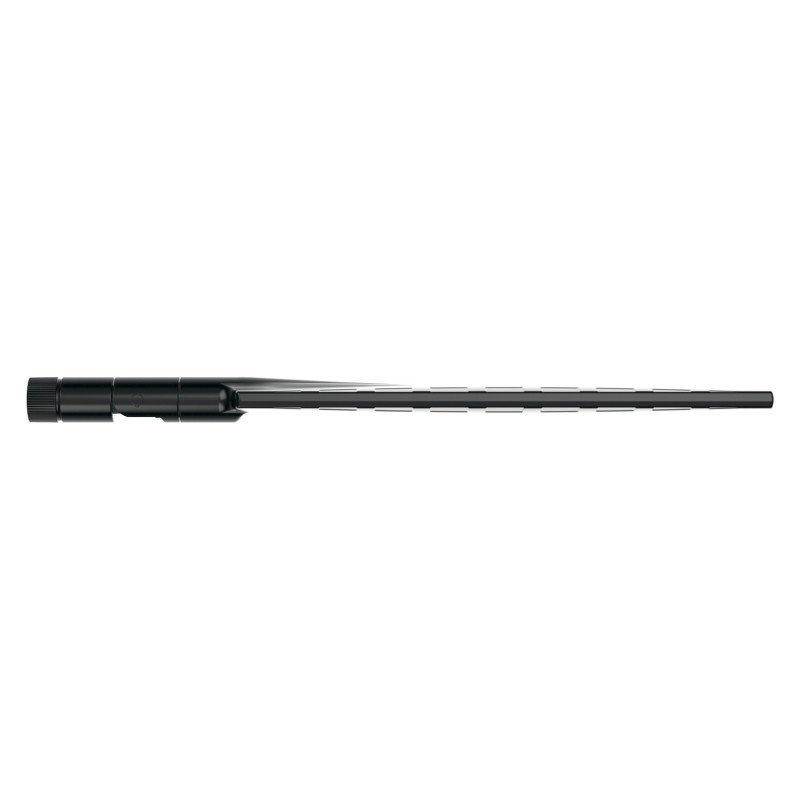

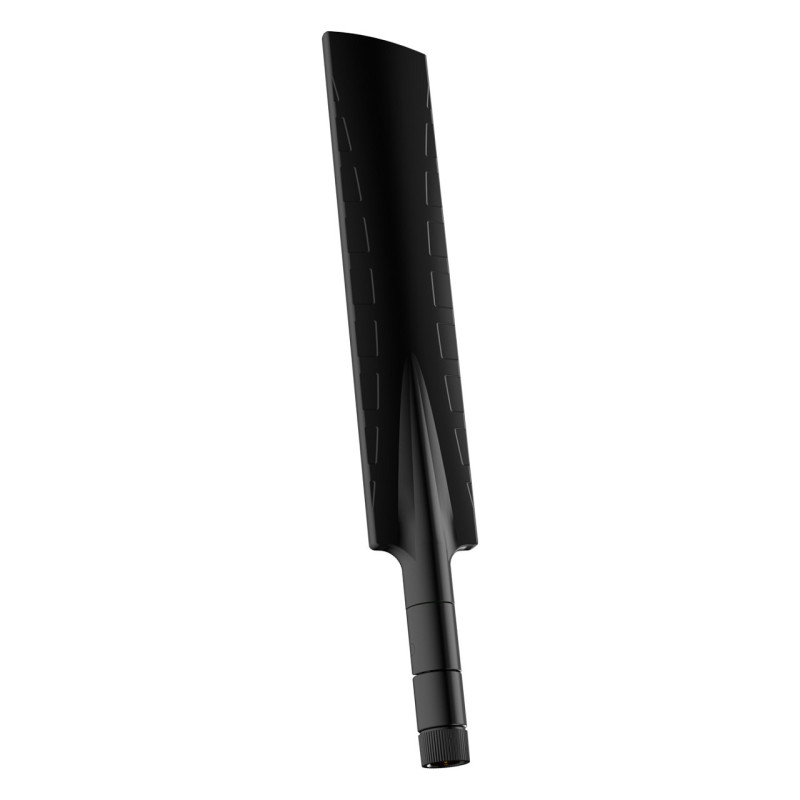

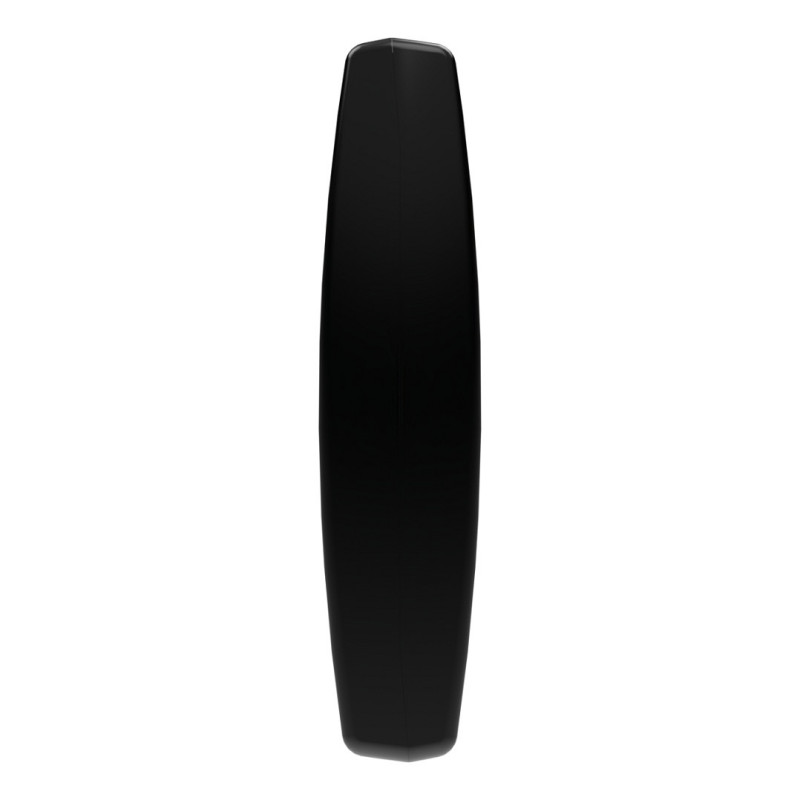

Poynting OMNI-785 network antenna

Poynting OMNI-785. Antenna gain level (max): 4 dBi, Frequency band: 2.4 - 2.5 / 5 - 7.2 GHz, Antenna gain (2.4 GHz): 2 dBi. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Connector gender: Male. Certification: MIL-STD 810G/ASTM B117. Depth: 31 mm, Height: 209 mm, Diameter: 3.1 cm. Package width: 250 mm, Package depth: 45 mm, Package height: 16 mm

The OMNI-785 is a versatile omni-directional Wi-Fi antenna designed to enhance connectivity and improve transfer speeds for routers and modems. Covering the 2.4 GHz and 5 - 7.2 GHz Wi-Fi bands, this antenna ensures reliable performance for both older and modern dual-band Wi-Fi technologies.

Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz and 5 - 7.2 GHz bands, ensuring strong and stable connections.
Peak Gain of 4 dBi: Provides enhanced signal strength and improved throughput across Wi-Fi networks.
Omni-Directional Design: Offers 360° coverage for optimal signal distribution and reduced dead zones.
Ground Plane Independent: Can be directly mounted on any equipment with an RP-SMA connector.
Flexible Deployment: Knuckle base allows multiple angle adjustments to accommodate various equipment orientations.
Universal Compatibility: Works with both older Wi-Fi technologies and dual-band Wi-Fi access points.
The OMNI-785 is an excellent solution for resolving channel saturation and optimising Wi-Fi performance, making it a reliable choice for high-speed, flexible wireless connectivity.

Ideal Applications
- On-the-go: Highly portable
- Poor data signal reception (indoor or outdoor)
- Slow or unstable data transmission connection
- Increase system transmission reliability
- M2M and IoT applications

Performance

Frequency band: 2.4 - 2.5 / 5 - 7.2 GHz
Antenna gain (2.4 GHz): 2 dBi
Antenna gain (5 GHz): 4 dBi
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Features

Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Connector gender: Male
Polarization: Linear, vertical
Voltage Standing Wave Ratio (VSWR): <2.5:1
Product colour: Grey
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP55
Purpose: Indoor

Certificates

Certification: MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Depth: 31 mm
Height: 209 mm
Diameter: 3.1 cm
Weight: 40 g

Packaging data

Package width: 250 mm
Package depth: 45 mm
Package height: 16 mm

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting brackets included
