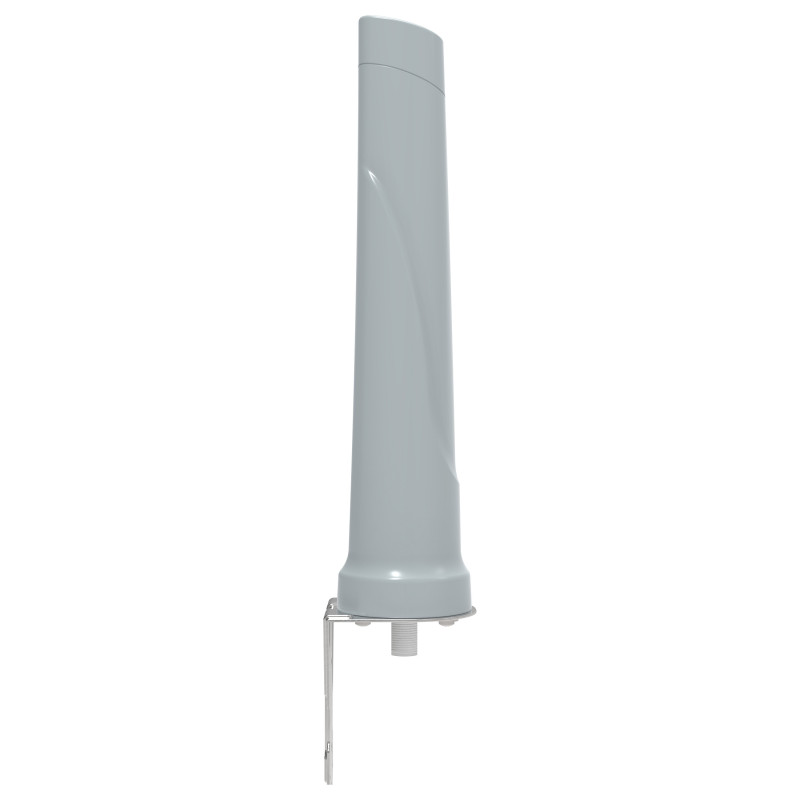

Poynting OMNI-707 network antenna

Poynting OMNI-707. Antenna gain level (max): 5.5 dBi, Frequency band: 2.4 - 2.5 / 5 - 6 GHz, Antenna gain (2.4 GHz): 5 dBi. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Certification: MIL-STD 810G/ASTM B117. Height: 306 mm, Diameter: 7 cm, Weight: 340 g. Package width: 386 mm, Package depth: 80 mm, Package height: 96 mm

The OMNI-707 is a high-performance omni-directional Wi-Fi antenna developed by Poynting Antennas as part of the new "Rhyno" antenna range. Designed for harsh environments, this antenna ensures reliable and stable Wi-Fi connectivity across both 2.4 GHz and 5 - 6 GHz bands. Its rugged enclosure and superior pattern control make it an excellent choice for demanding applications.

Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz and 5 - 6 GHz Wi-Fi bands for improved performance and flexibility.
High-Gain Performance: Delivers 5.5 dBi peak gain, ensuring strong and reliable wireless connections.
Omni-Directional Design: Provides 360° signal coverage for optimal distribution and minimal dead zones.
Superior Pattern Control: Ensures balanced performance across all frequency bands for enhanced stability.
Rugged & Weatherproof Design: Features an IP69K and IK10-rated enclosure for extreme durability in harsh environmental conditions.
Versatile Deployment: Ideal for resolving Wi-Fi channel saturation, supporting dual-band Wi-Fi technology, and operating in RF-noisy environments.
Flexible Connectivity Options: Equipped with two 0.3 m pigtail N-Type female connectors, allowing for custom cable configurations.
The OMNI-707 is a robust and future-ready Wi-Fi antenna, designed to deliver exceptional wireless performance in industrial, commercial, and outdoor applications.

Ideal Applications
- Smart Utilities: Smart Power Metering, Gas & Water Metering
- Smart Buildings: Climate control, access control, security, irrigation
- Smart Environmental & Water Systems
- Industrial factory automation and M2M systems

Performance

Frequency band: 2.4 - 2.5 / 5 - 6 GHz
Antenna gain (2.4 GHz): 5 dBi
Antenna gain (5 GHz): 5.5 dBi
Impedance: 50 Ω
Antenna gain level (max): 5.5 dBi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Features

Antenna type: Omni-directional antenna
Antenna connector type: N-type
Connector gender: Female
Polarization: Linear, vertical
Voltage Standing Wave Ratio (VSWR): <1.5:1
Product colour: Grey
Housing material: Acrylonitrile styrene acrylate (ASA)
International Protection (IP) code: IP69K
Feature: Ultraviolet (UV) resistant
Survival wind speed: 190 km/h
Cable length: 0.3 m

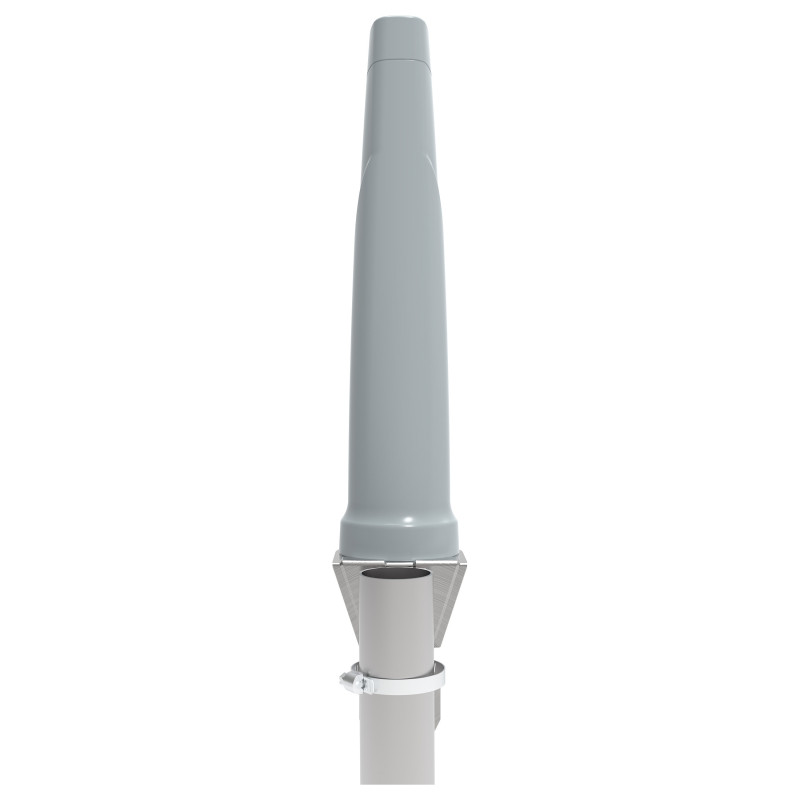

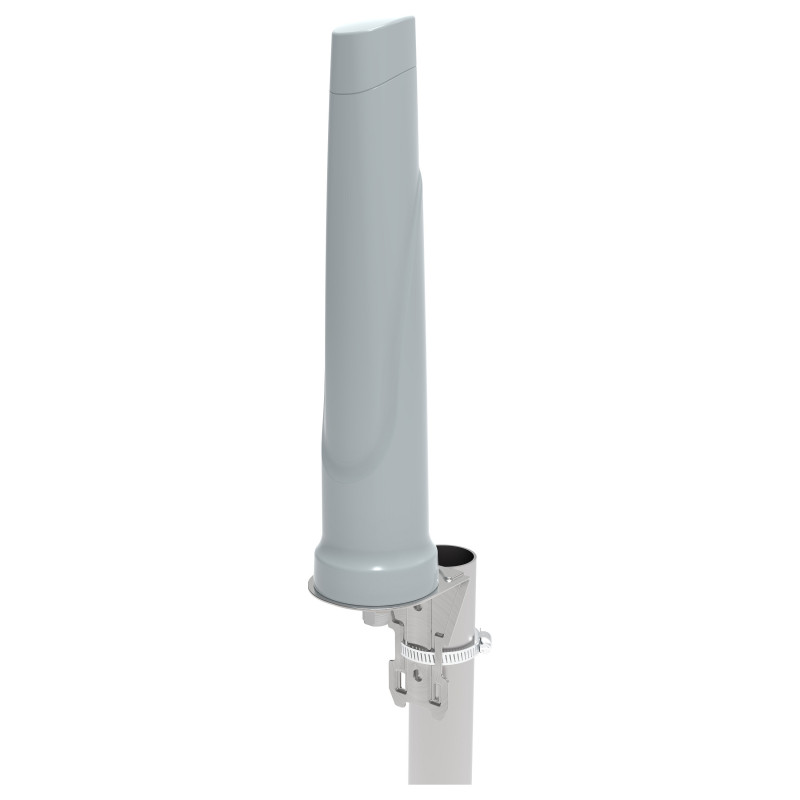

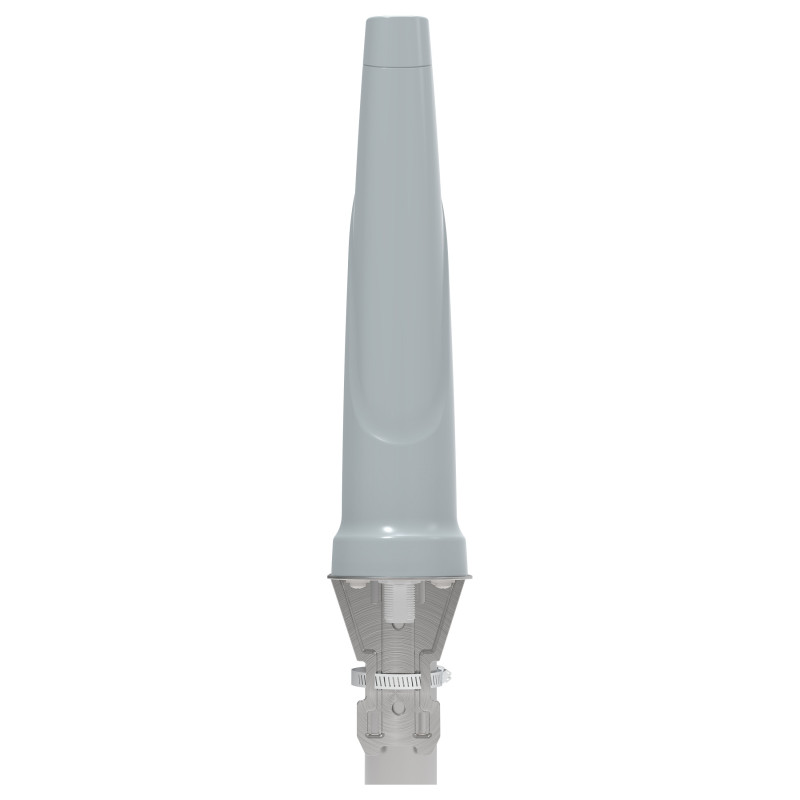

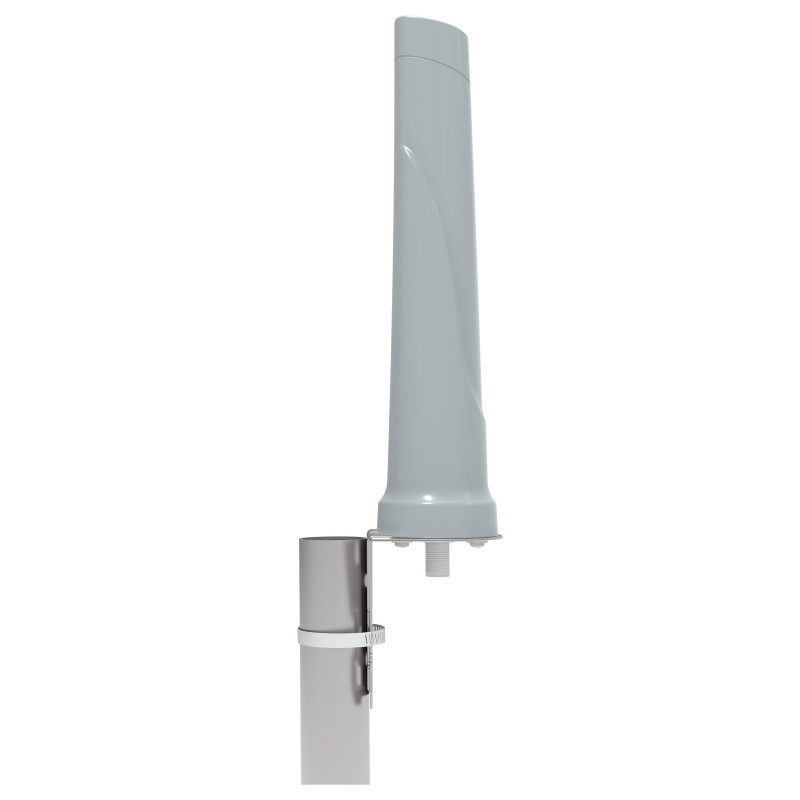

Mounting: Pole
Purpose: Indoor & outdoor

Certificates

Certification: MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 306 mm
Diameter: 7 cm
Weight: 340 g

Packaging data

Package width: 386 mm
Package depth: 80 mm
Package height: 96 mm
Package weight: 625 g

Packaging content

Quantity per pack: 1 pc(s)

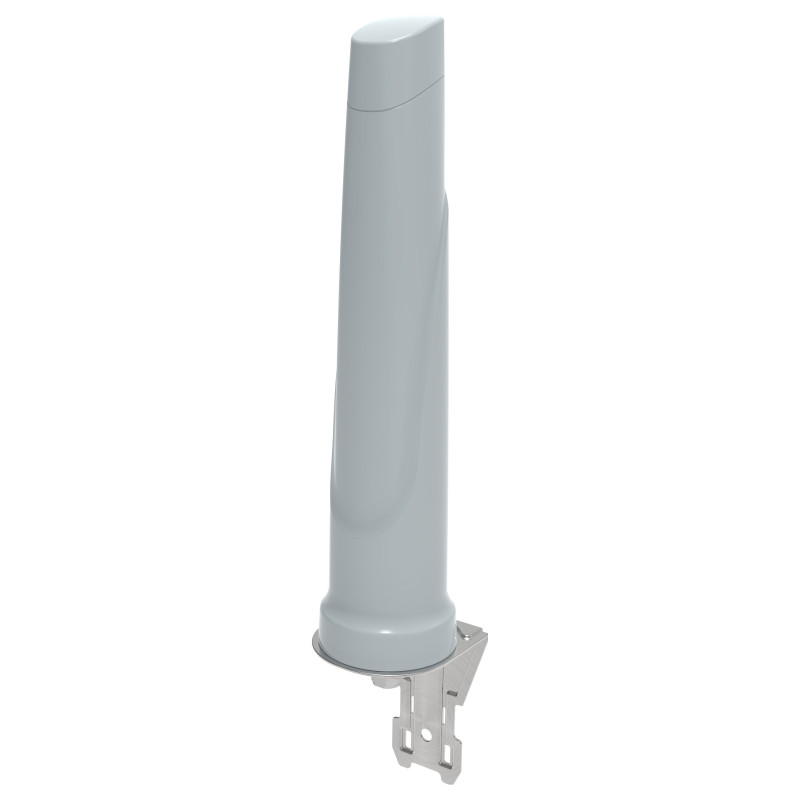

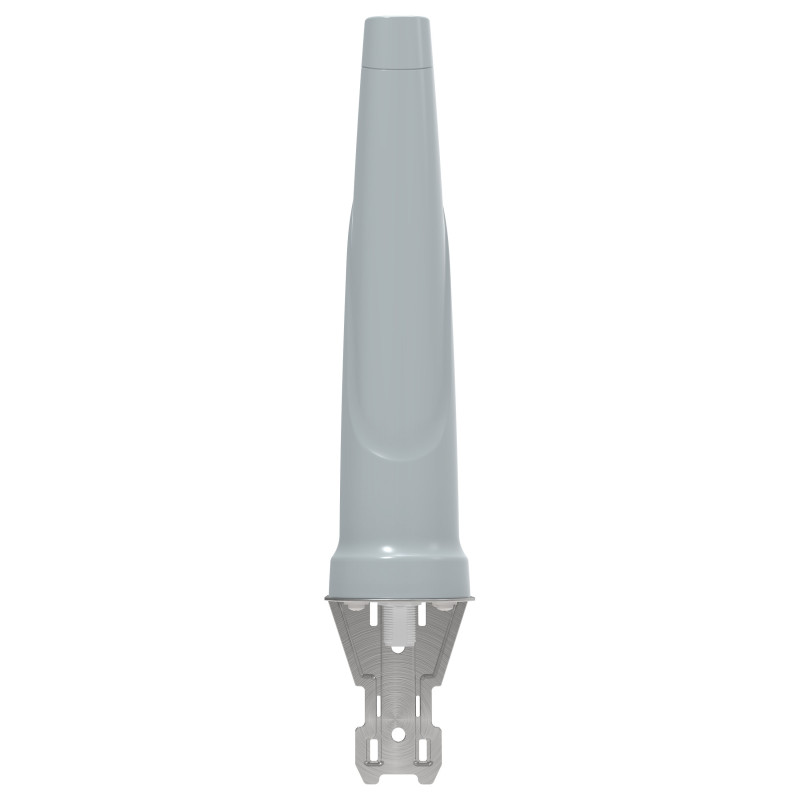

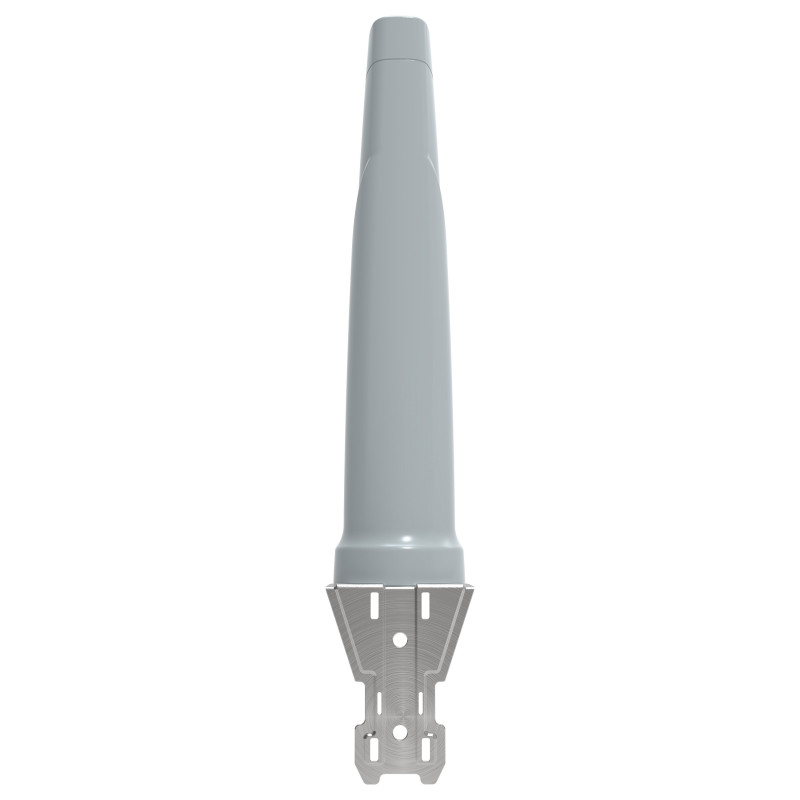

Feature: Mounting brackets included
