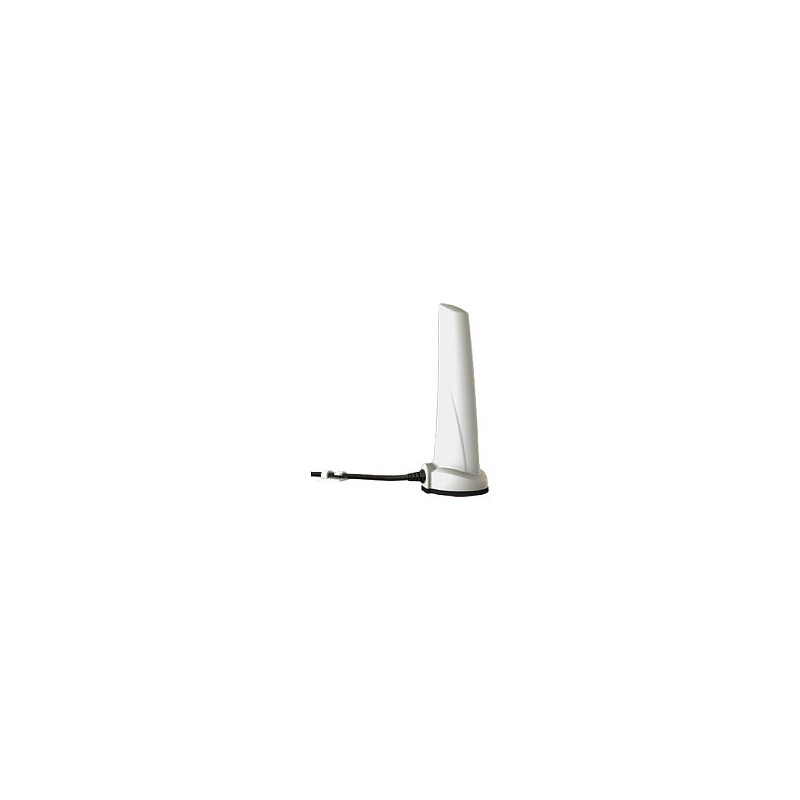

Poynting OMNI-280 network antenna

Poynting OMNI-280. Antenna gain level (max): 3 dBi, Frequency band: 0.617-4.2 GHz. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Female. Width: 61 mm, Depth: 44 mm, Height: 157 mm. Package width: 150 mm, Package depth: 50 mm, Package height: 250 mm. 4G standard: LTE, 3G standards: HSPA

The OMNI-280 is an innovative omni-directional antenna designed to enhance 4G, 3G, and 2G network signals. This single-polarized, full LTE band antenna features an ultra-wideband element housed in a compact design, offering magnetic, wall, or pole mounting options. The OMNI-280 is a cost-effective solution for improving signal reception, increasing data throughput, and ensuring a stable, high-quality connection.

Wideband LTE Coverage: Supports 4G, 3G, and 2G networks, covering LTE/HSPA/3G/EDGE/GPRS bands.
Enhanced Signal Stability: Improves signal reliability and data throughput, ensuring a seamless user experience.
Versatile Mounting Options: Can be magnetically, wall, or pole-mounted, allowing for flexible installations.
Compact and Efficient Design: Integrates an ultra-wideband element into a single housing for consistent performance.
Optimized for GSM Networks: Ensures stable and improved connectivity across all LTE, HSPA, and 3G network applications.
Cost-Effective Performance: Provides an affordable solution for signal enhancement and network reliability.
The OMNI-280 is an ideal choice for users seeking improved LTE signal reception, offering stable connectivity, flexible installation, and enhanced network performance across a wide range of applications.

Performance

Frequency band: 0.617-4.2 GHz
Antenna gain level (max): 3 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Linear polarization
Product colour: White
International Protection (IP) code: IP65
Cable type: RG 58

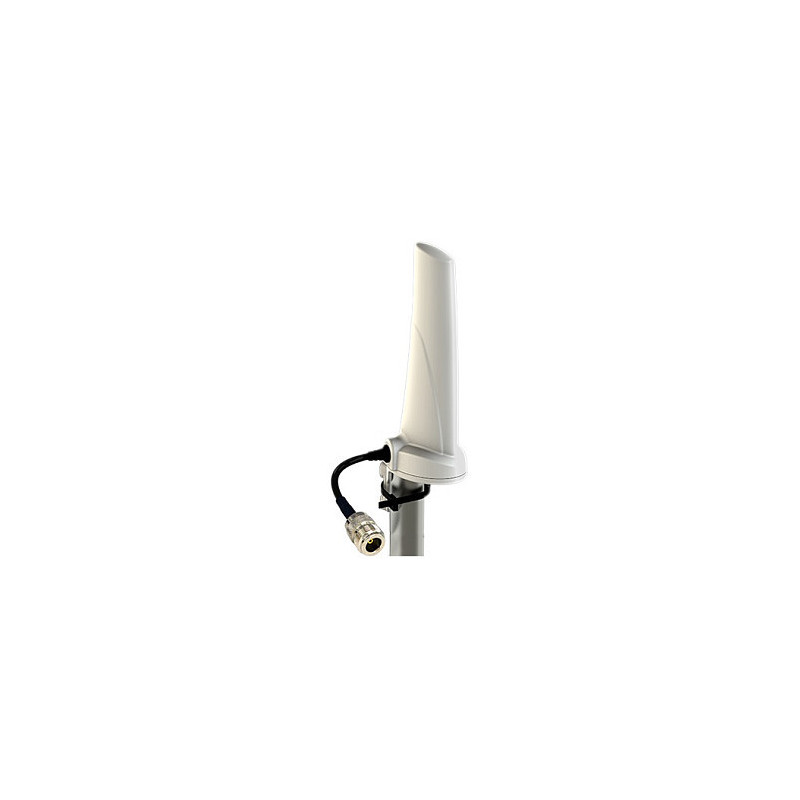

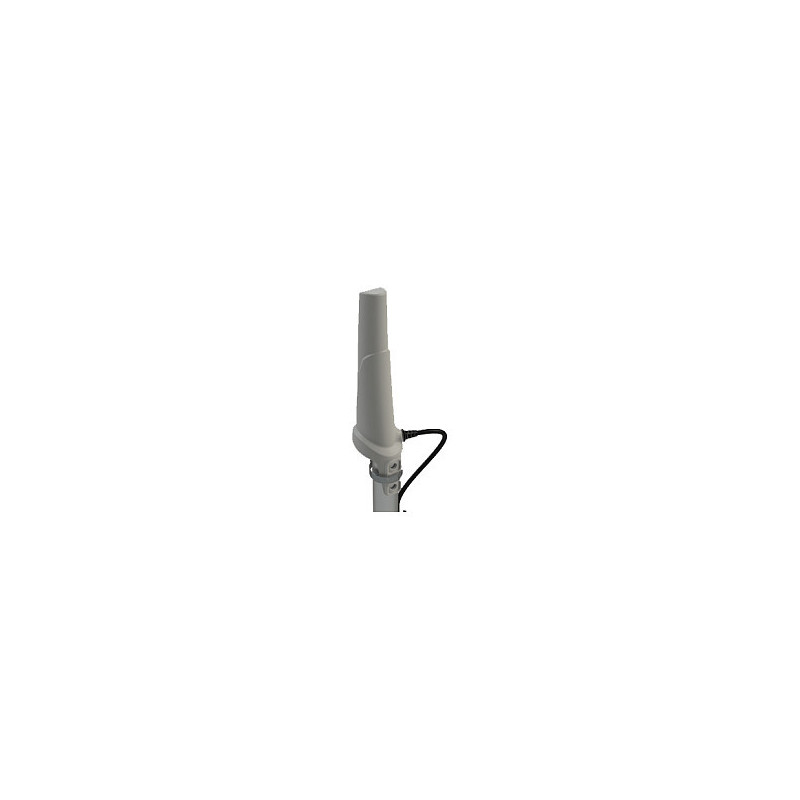

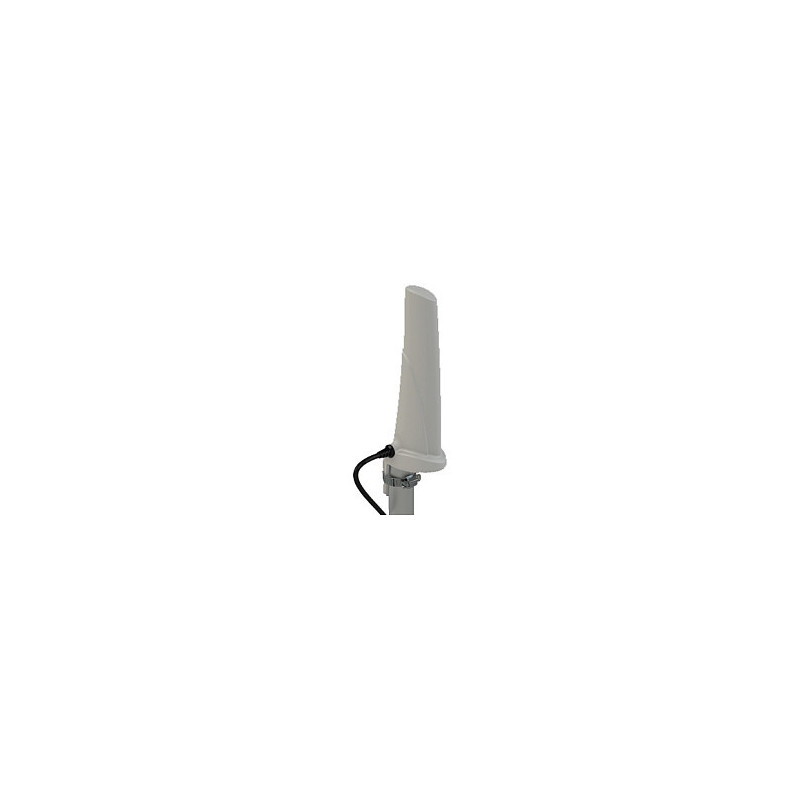

Mounting: Wall/Pole
Purpose: Indoor & outdoor

Operational conditions

Operating temperature (T-T): -40 - 80 °C

Weight & dimensions

Width: 61 mm
Depth: 44 mm
Height: 157 mm
Weight: 175 g

Packaging data

Package width: 150 mm
Package depth: 50 mm
Package height: 250 mm
Package weight: 180 g

Mobile network

4G standard: LTE
3G standards: HSPA
