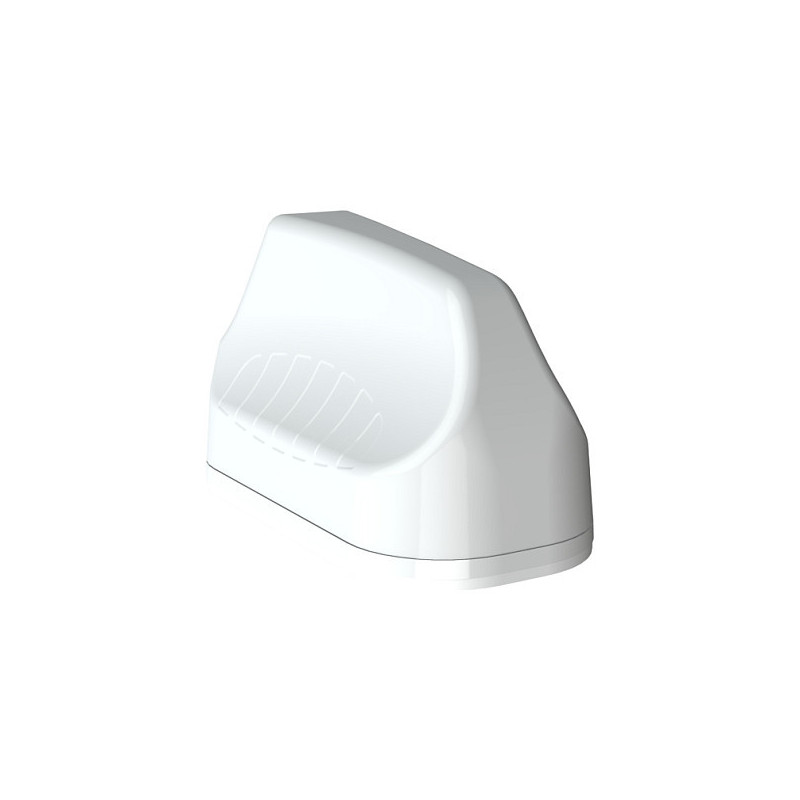

Poynting MIMO-0003-V2-15 network antenna

Poynting MIMO-0003-V2-15. Antenna gain level (max): 5.8 dBi, Frequency band: 2.4 - 2.5/ 5 - 6 GHz, Gain: 21 dBi. Antenna type: MIMO directional antenna, Antenna connector type: SMB, Connector gender: Male. Power consumption (max): 50 W, Input voltage: 2.7 - 3.3 V. Compliance certificates: RoHS, Certification: CE, EN, CSA,IEC. Width: 253 mm, Depth: 128 mm, Height: 144 mm

The MIMO-3-V2-15 consists of a 5-in-1 antenna system within a single housing, providing 2x Cellular, 2x Wi-Fi and a GPS/GLONASS. This antenna is specifically designed for the transportation and marine industry. The 2x Cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. This antenna, due to its wide band capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz.

The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40 degrees. The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is important for this type of antenna, especially for the transportation and marine market. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band offered by this antenna.

Performance

Frequency band: 2.4 - 2.5/ 5 - 6 GHz
Gain: 21 dBi
Impedance: 50 Ω
Antenna gain level (max): 5.8 dBi

Features

Antenna type: MIMO directional antenna
Antenna connector type: SMB
Connector gender: Male
Product colour: White
Housing material: Acrylonitrile styrene acrylate (ASA), Styrene Acrylonitrile (SAN)
International Protection (IP) code: IP68
Power handling: 10 W
Cable length: 0.04 m
Cable type: Micro Cable 1.13

Power

Power consumption (max): 50 W
Input voltage: 2.7 - 3.3 V

Certificates

Compliance certificates: RoHS
Certification: CE, EN, CSA,IEC

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 253 mm
Depth: 128 mm
Height: 144 mm
Weight: 1.36 kg

Packaging data

Package width: 265 mm
Package depth: 211 mm
Package height: 204 mm
Package weight: 1.46 kg
