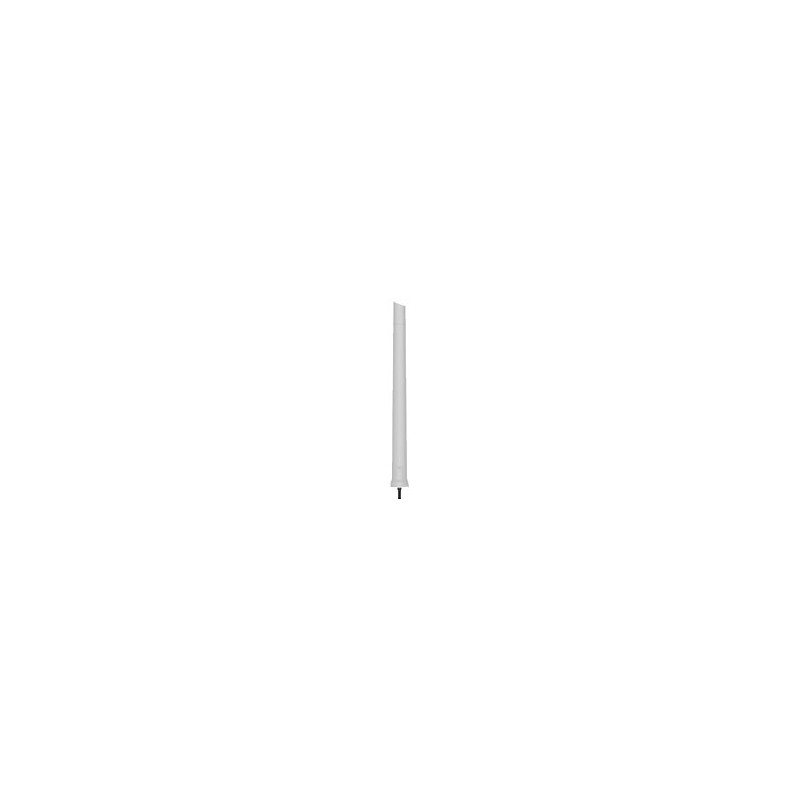

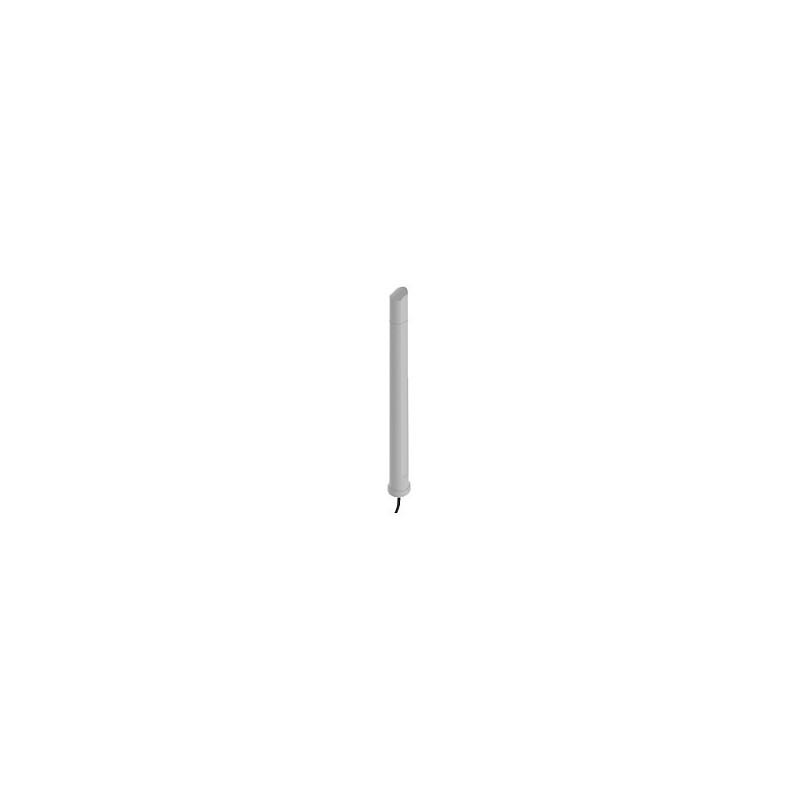

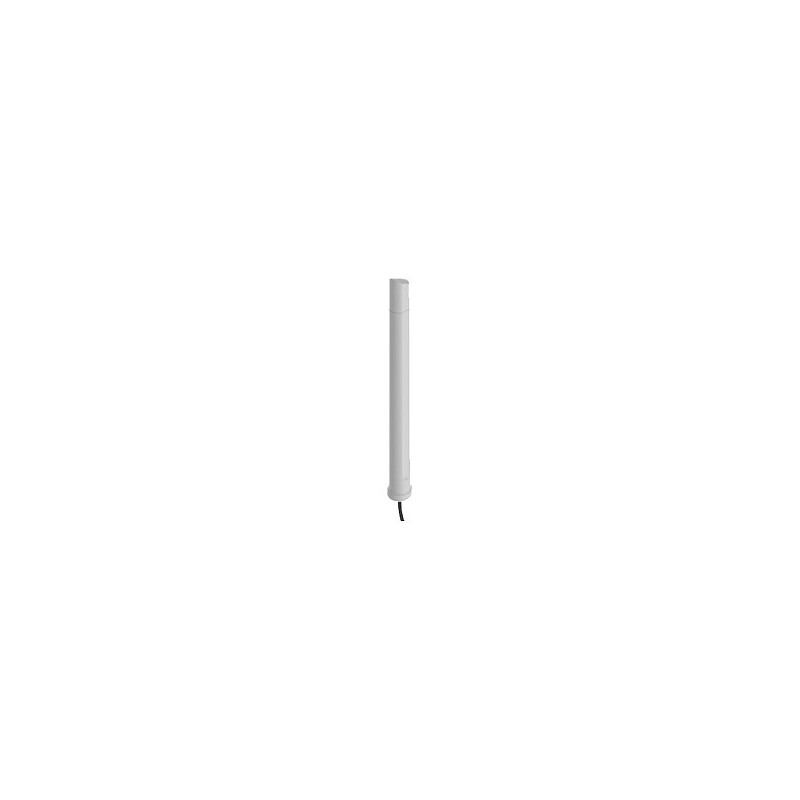

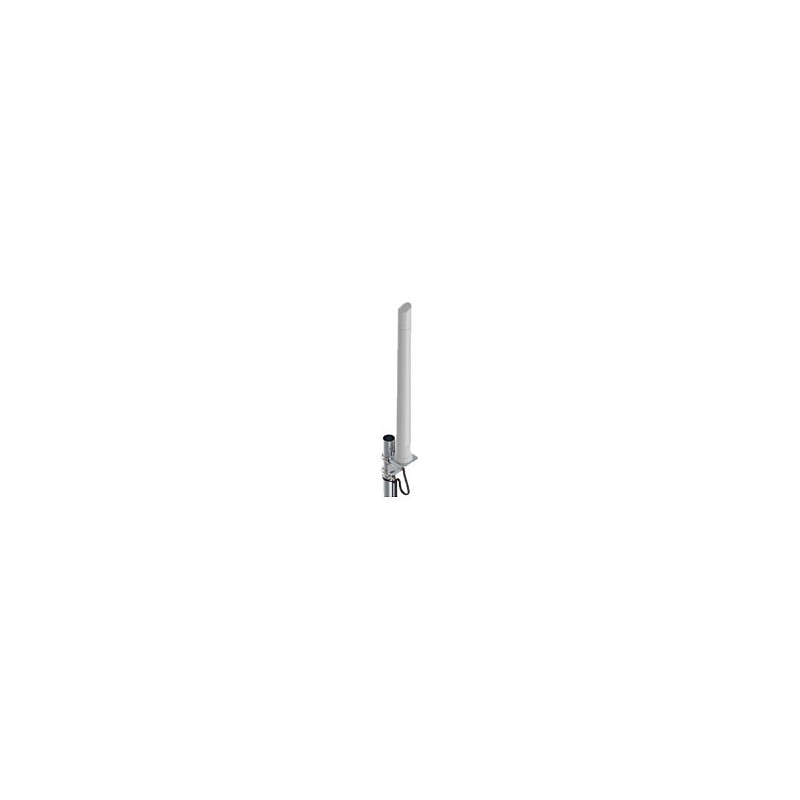

Poynting OMNI-600-5G network antenna

Poynting OMNI-600-5G. Antenna gain level (max): 6 dBi, Frequency band: 0.41 - 4.2 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Product colour: White. Height: 646 mm, Diameter: 7.1 cm, Weight: 800 g. Package width: 700 mm, Package depth: 100 mm, Package height: 150 mm

High-Performance 2x2 MIMO 5G & 4G Omni-Directional Antenna
The OMNI-600-5G is an advanced antenna designed to meet the demands of modern 5G and 4G technologies. Covering a wide frequency range from 410 to 4200 MHz, this antenna ensures seamless connectivity across various bands, offering a peak gain of 6 dBi for enhanced signal strength and reception. Its 2x2 MIMO configuration, achieved through vertically separated elements, maximizes data throughput and network efficiency while providing superior pattern control over the entire frequency spectrum.

Ultra-Wideband Frequency Coverage: Supports 410 to 4200 MHz, ensuring optimal connectivity across 5G and 4G bands.
High-Gain Performance: Delivers a peak gain of 6 dBi, providing enhanced signal strength and reception.
2x2 MIMO Capability: Utilizes vertically separated elements to maximize data throughput and network efficiency.
Superior Pattern Control: Ensures stable and balanced signal distribution across the entire frequency range.
Carrier Aggregation (CA) Compatibility: Optimizes reception and throughput across multiple frequency bands simultaneously.
Long-Range Connectivity: Extends coverage to the lower 450 MHz band, making it ideal for remote and long-distance applications.
Versatile Deployment: Designed for use in urban, suburban, and rural environments, ensuring reliable connectivity in various conditions.
The OMNI-600-5G is a high-performance antenna tailored to the specific requirements of 5G and 4G networks. With its ultra-wideband coverage, 2x2 MIMO capability, and superior pattern control, it ensures consistent and reliable connectivity in diverse operating conditions. Whether deployed in densely populated areas or remote regions, this antenna delivers unmatched performance, reliability, and throughput, making it an ideal solution for various applications requiring high-speed and long-range connectivity.

Ideal Applications
Improve data transmission connection reliability & stability
High-end industrial-grade router applications
Areas with poor data signal reception
2.4 GHz Wi-Fi applications
3.3 to 4.2 GHz CBRS applications
Mobile offices

Performance

Frequency band: 0.41 - 4.2 GHz
Impedance: 50 Ω
Antenna gain level (max): 6 dBi
Wi-Fi standards: 802.11g

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Product colour: White
International Protection (IP) code: IP65
Purpose: Indoor & outdoor

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 646 mm
Diameter: 7.1 cm
Weight: 800 g

Packaging data

Package width: 700 mm
Package depth: 100 mm
Package height: 150 mm
Package weight: 1.64 kg
