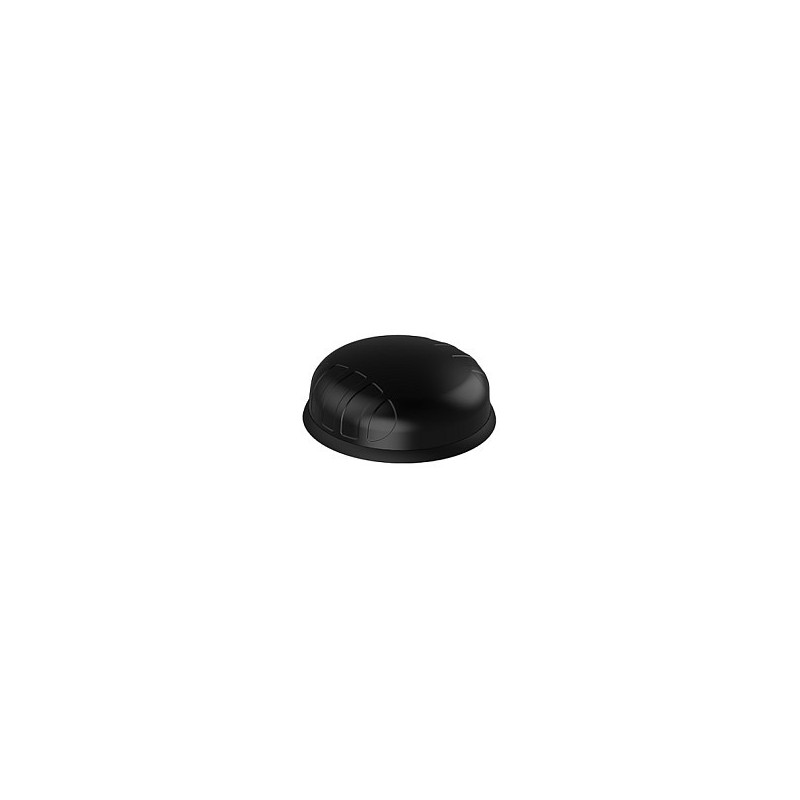

Poynting A-PUCK-0005-V2-01 network antenna

Poynting A-PUCK-0005-V2-01. Networking standards: IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g. Antenna type: Omni-directional antenna, Product colour: Black, Protection features: Weatherproof. Operating frequency: 617 - 6000

Poynting's PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-5 is a 5-in-1 antenna system within a single enclosure, offering reliable and future-proof connectivity for 5G, LTE, Wi-Fi, and GPS applications.

Wideband Cellular Coverage: Features 2x Cellular MIMO antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band 2x2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-5 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.

Performance

Networking standards: IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g

Features

Antenna type: Omni-directional antenna
Product colour: Black
Protection features: Weatherproof
International Protection (IP) code: IP69K

Operational conditions

Operating temperature (T-T): -40 - 80 °C

Mobile network

Operating frequency: 617 - 6000
