Phase Sequence Detector - UNI-T UT262E Non-Contact Phase Sequence Detector
Product reference:
14-6935750526255
The Uni-T UT262E is a non-contact phase tracking detector designed to safely detect the presence, sequence and loss of phases in three-phase electrical systems. It features inductive clamps for working with live wires and visual and audible signals for easy identification.
Phase Sequence Detector - UNI-T UT262E Non-Contact Phase Sequence Detector
Product reference:
14-6935750526255
The Uni-T UT262E is a non-contact phase tracking detector designed to safely detect the presence, sequence and loss of phases in three-phase electrical systems. It features inductive clamps for working with live wires and visual and audible signals for easy identification.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

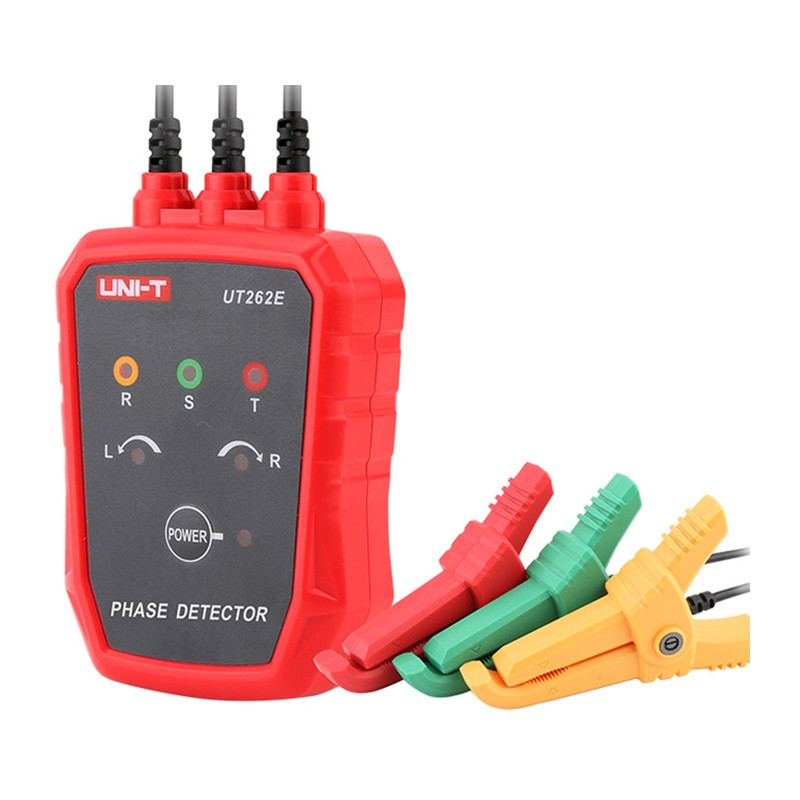

Uni-T UT262E Non-contact phase sequence detector
Uni-T UT262E is a non-contact phase sequence detector designed to safely detect the presence, sequence and loss of phases in three-phase electrical systems. It features inductive clamps allowing work with live wires, with visual and audible signals for easy detection.
- Non-contact design for safe operation on three-phase systems, reducing the risk of electric shock.
- Quickly confirms the presence of phases, determines phase sequence and detects phase loss.
- Uses audible and visual signals for easy detection and localization of wire breaks.
- Ideal for service, engine installation and electrical system maintenance.
Features | |
|---|---|
| Product type | Non-contact phase sequence detector |
| Brand | Uni-T |
| Model | UT262E |
Specifications | |
| Measurement methodology | Non-contact (inductive clamps) |
| Voltage range | 70~1000V AC |
| Working frequency | 45~66Hz |
| Cable diameter | Ø2~40 mm |
| Cable length | 0.6 m |
| Signaling | LED + alarm |
| Signal sound | 65~70dB |
| Automatic shutdown | After about 5 minutes |
| Operating time | More than 20 hours |
| Safety class | CAT III 1000V / CAT IV 600V |
| Protection class | IP52 |
| Power supply | 2 × AA 1.5V |
| Weight | 237.7 g (with batteries) |
| Dimensions | 88 × 30 × 66mm |
| Certificates of conformity | CE, UKCA |
Safety warning | |
| Use the device only for its intended purpose to ensure safety and efficiency. | |
| Height | 100mm |
| Length | 250mm |
| Weight | 350 g |
| Width | 150mm |
