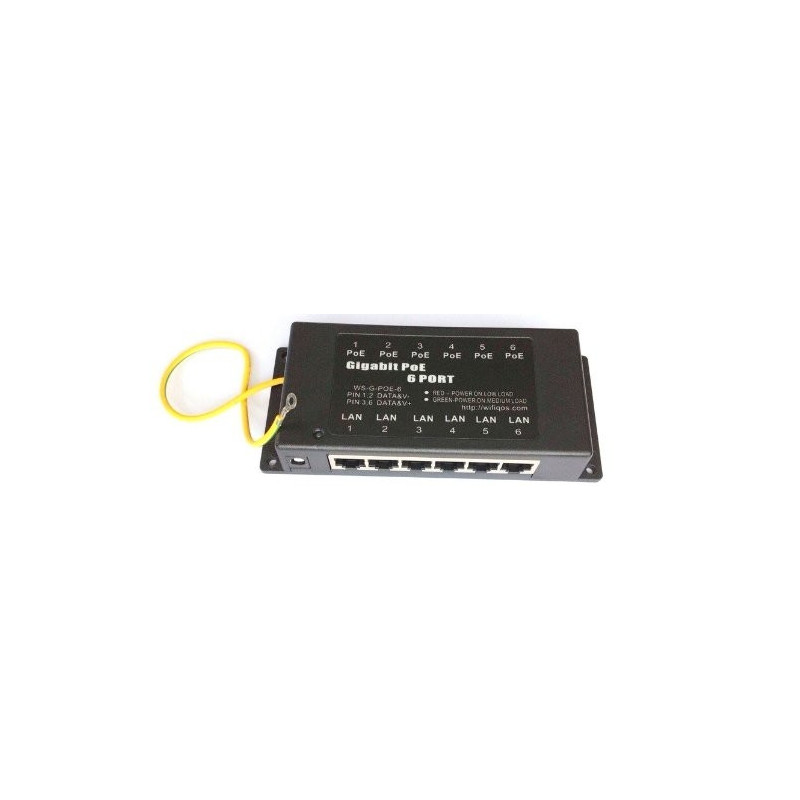

Passive Gigabit PoE Injector / Shielded Panel, 6 ports

The 6 port Gigabit PoE Panel is used 10/100/1000M Ethernet, The upper RJ45 sockets are fo 'LAN/Switch/PC' 1/23/64/57/8 are transmitting data. The RJ45(power+data) socket is to deliver data and power:1/23/64/5 7/8 transmitting data,1/2(-)3/6(+)for power.passive POE iscomposed of 12 set of Rj45 sockets and two 60V DC power jack.Input power requests 90W or more AC TO Dcpower converter.The input dc hole diameter is 2.1mm and the other end OD id 5.5 mm. Each socket provides protection against short overflow (current protection 650mA+15%-15%). The sum total output power must be lower than the MAX input power of AC-DC power converter. If not, it is necessary to consider taking a higher AC-DC power converter. The The configuration size of panel is 150mm(3.4U) L, 65mm(1.5U) W and 26mm(0.6U) T.

Input 100-240V AC 50/60Hz Output 24-48V 90W (Max) Data 1/23/64/57/8 Power 3/6+ 1/2- (48V) or 4/5 + 7/8 - Data In Connects PC/HUB/Switch Weight 6 Port 1.2Kg Dimensions 150mm×65mm×26mm Case of material metal work material Ethernet Cable TIA/EIA 568 Cat. 5 Data rate 10/100/1000Mbps Connector RJ-45 Operating Temperature 0°C ~ 40°C Storage Temperature -40°C~+70°C Operating Humidity 10%~80%RH Storage Humidity 5%~90%RH Certification CE
