Outdoor 12 Fiber Optic Cable / 1.0kN / Unitube / Dielectric / SM / Diameter 5.5mm / Span 40m

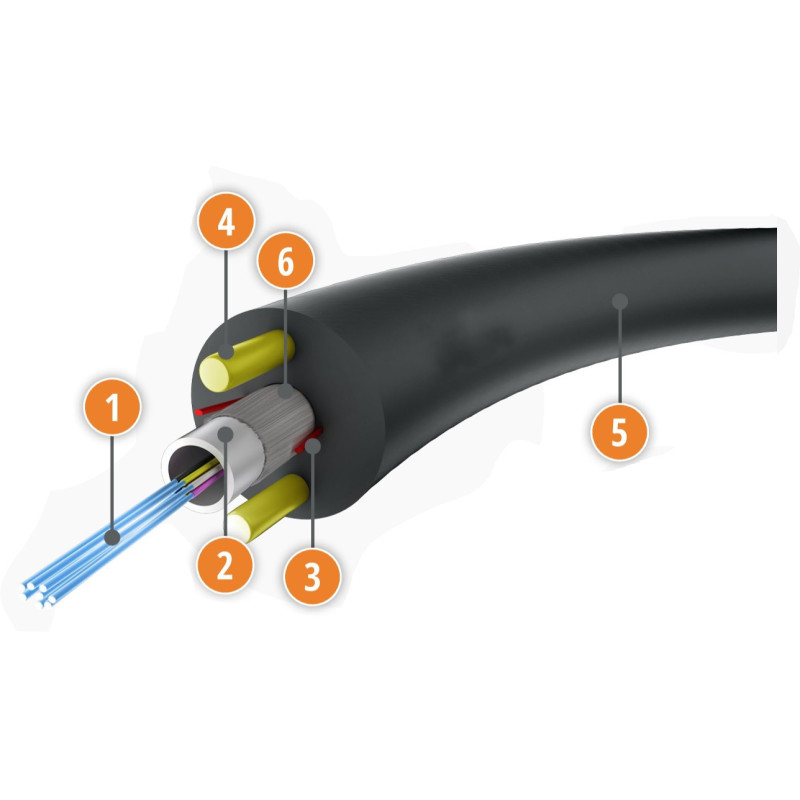

Universal fiber optic cables are single-tube construction cables. They were reinforced with glass fibers and two FRP (Fiber Reinforced Polymer) rods embedded in the outer layer. In addition, a double cord was used to facilitate the removal of the outer sheath of the cable. The tube with optical fibers contains a hydrophobic gel that protects them from moisture and vibration. The cable is completely dielectric, with good tensile strength and pressure. The outer sheath is made of high-density polyethylene (HDPE, black) with high resistance to chemicals and substances.
- fiber type: G.652D
- number of fibers: 12
- number of pipes: 1
- Lose Tube: 2 mm
- outer diameter: 6.0 mm
- Min. re-bending: 20D
- Max. Tensile load: 1200 N
- Impact resistance / 10 cm: 500 N
- Weight: 28 kg/km
- Outer sheath: HDPE - black
- Operating temperature: -40 [°C] - +70 [°C]
- Installation temperature: -30 [°C] - +60 [°C]
