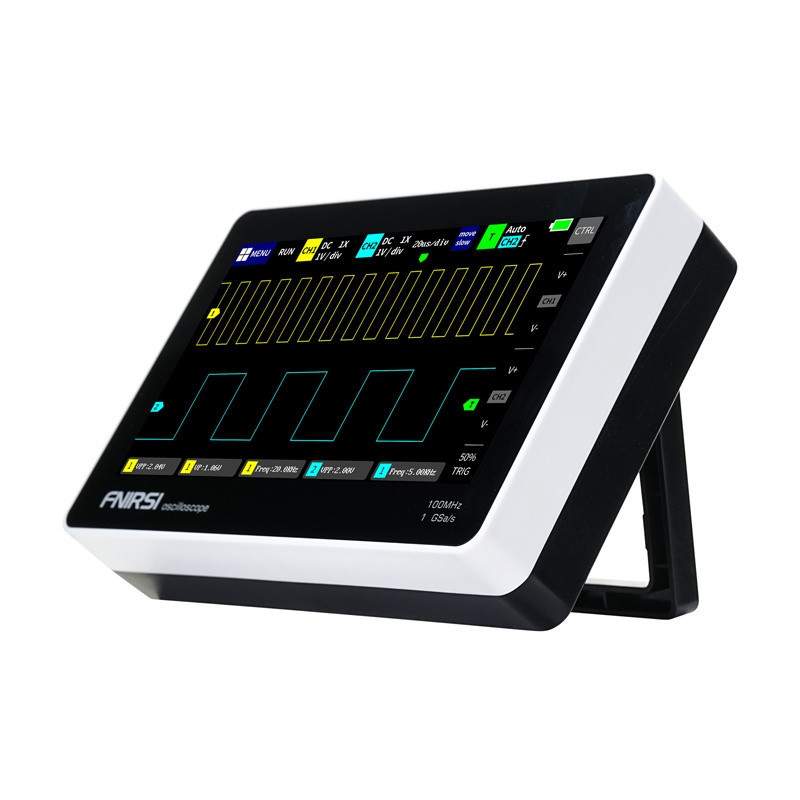

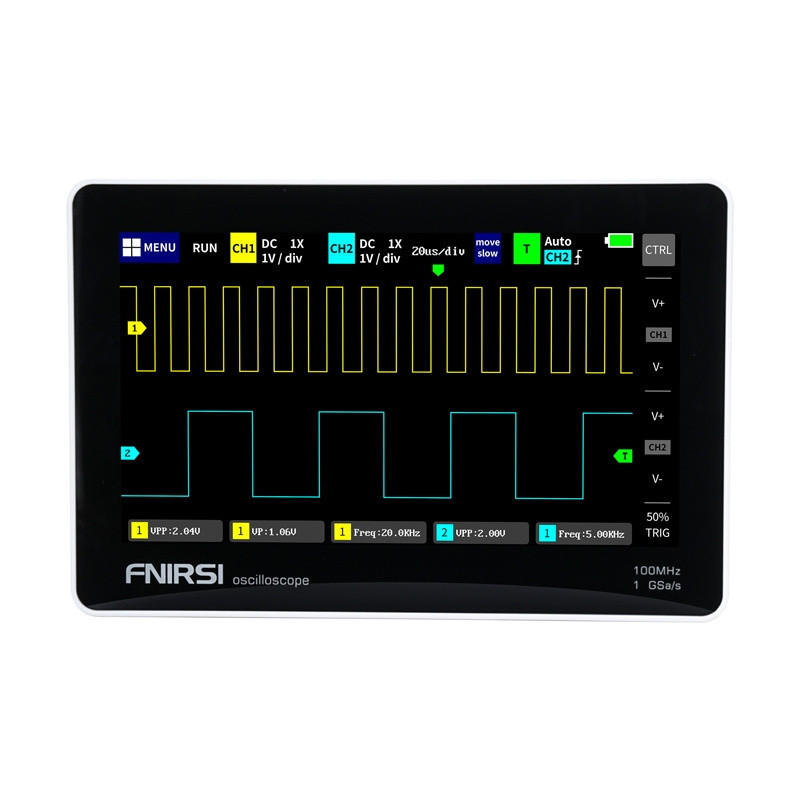

Oscilloscope - FNIRSI 1013D 100MHz 1GSa / s 7" Touchscreen Portable
Product reference:
14-5907085527086
FNIRSI 1013D is a portable oscilloscope with a 7-inch touch screen, offering 100 MHz bandwidth and 1 GSa/s sampling rate. It features two measurement channels, automatic signal adjustment, and internal memory for storing waveforms and images.
Oscilloscope - FNIRSI 1013D 100MHz 1GSa / s 7" Touchscreen Portable
Product reference:
14-5907085527086
FNIRSI 1013D is a portable oscilloscope with a 7-inch touch screen, offering 100 MHz bandwidth and 1 GSa/s sampling rate. It features two measurement channels, automatic signal adjustment, and internal memory for storing waveforms and images.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
FNIRSI 1013D 7" Portable Oscilloscope
FNIRSI 1013D is a portable oscilloscope with a 7" touch screen, offering 100 MHz bandwidth and 1 GSa/s sampling rate. It has two measurement channels, automatic signal adjustment, and internal memory for storing waveforms and images.
- Portable 7" touch screen oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate for precise signal analysis.
- Two measurement channels allow simultaneous signal analysis, improving comparison and diagnostics.
- Automatic one-button signal adjustment for fast and efficient setup, saving time during measurements.
- The built-in 6,000 mAh battery provides up to 4 hours of battery life, making it perfect for use on the go.
Features | |
|---|---|
| Product type | Portable oscilloscope |
| Brand | FNIRSI |
| Model | 1013D |
Specifications | |
| LCD screen size | 7 inches |
| LCD resolution | 800x480 |
| Bandwidth | 100MHz |
| Sampling frequency | 1 GSa/s |
| Input impedance | 1 MΩ |
| Maximum test voltage | 1X: 40V, 10X: 400V |
| Battery capacity | 6000mAh |
| Operating time | 4 hours |
| Dimensions | 184 x 124 x 50 mm |
Technical data | |
| Waveform storage | 1000 images + 1000 waveforms |
| Trigger mode | Single / Normal / Automatic |
| Triggering edge | Rising / Falling |
| Time base | 50s ~ 10ns |
| Connection | AC / DC |
| Memory depth | 240 Kbps |
| Voltage accuracy | ± 2% |
| Takeoff time | < 3 ns |
| Frequency accuracy | ±0.01% |
| Charging | USB-C 5V 2A/3A/4A |
| Height | 100mm |
| Length | 300mm |
| Weight | 900g |
| Width | 200mm |
