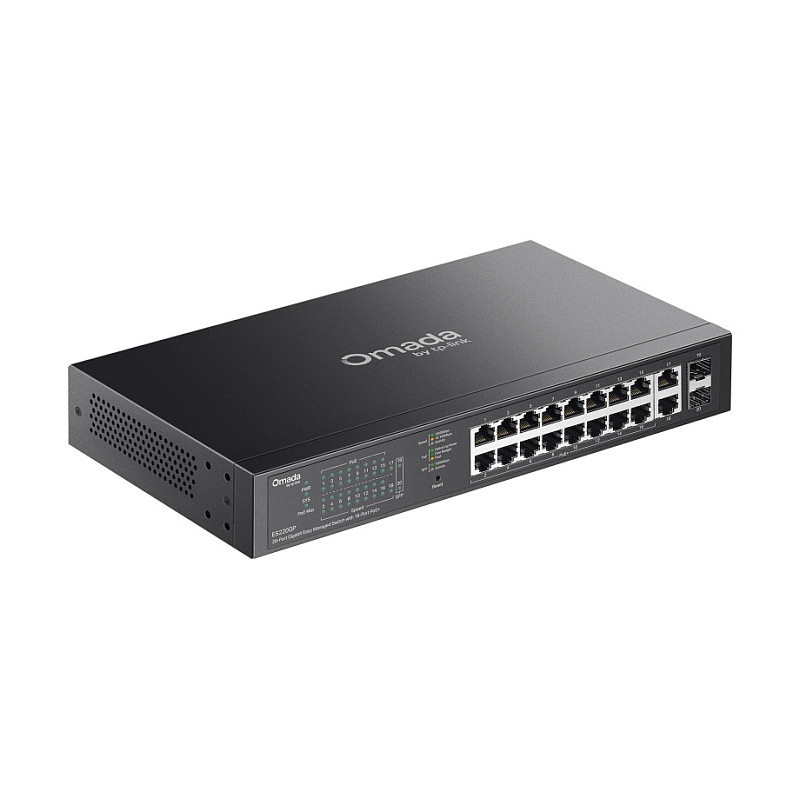

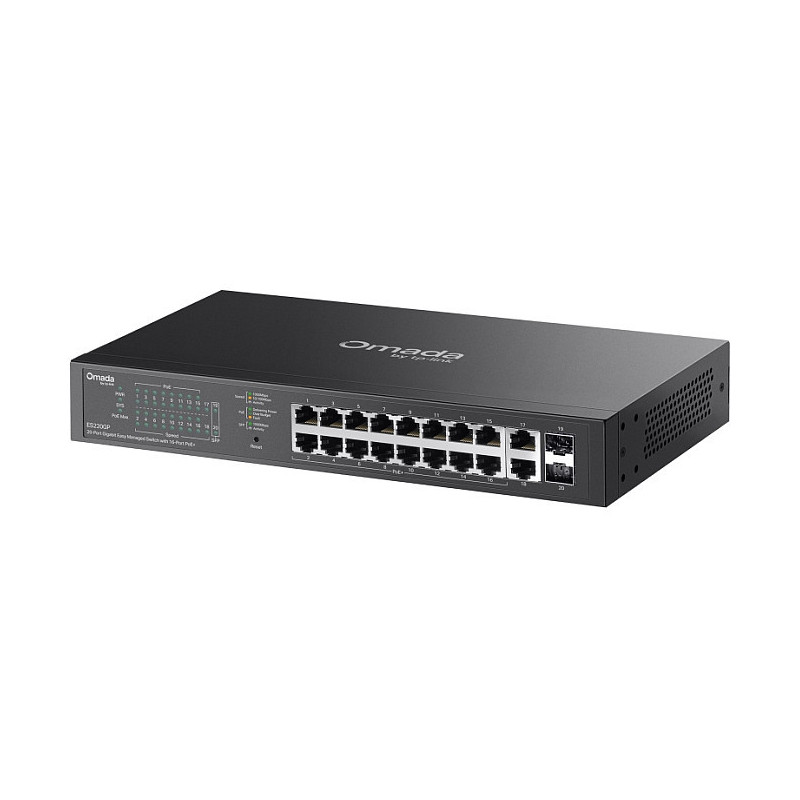

OMADA ES220GP network switch

OMADA ES220GP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Multiple Application Scenarios
Surveillance
Works with IP Cameras

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
SFP module slots quantity: 2

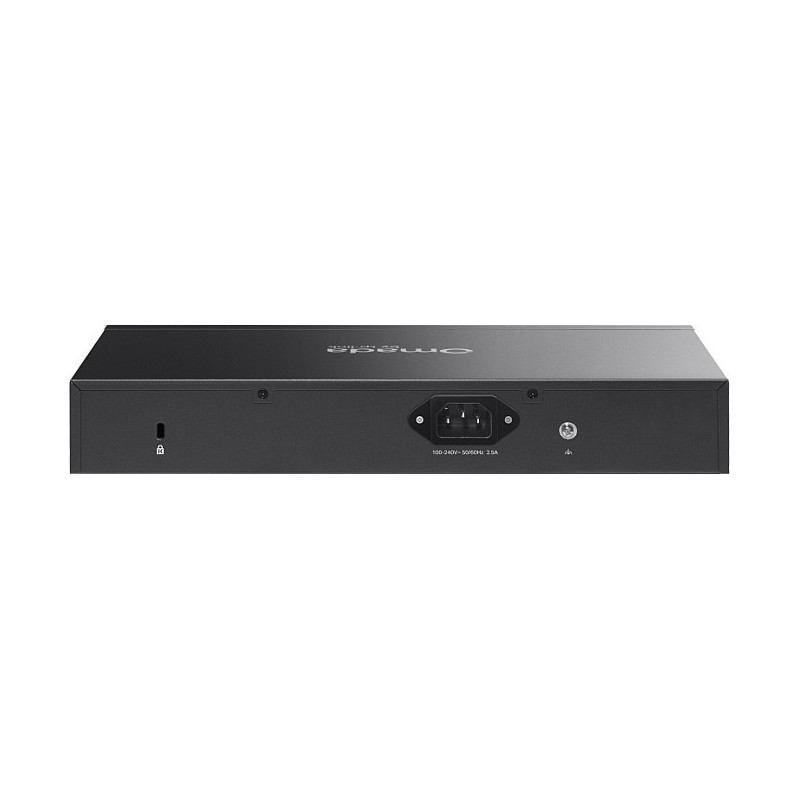

Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Jumbo frames support
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal

Performance

Noise level: 20.1 dB
Feature: Fanless
Mean time between failures (MTBF): 320156 h

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 2.5 A
Power consumption (max): 182.43 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 150 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: User guide

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
