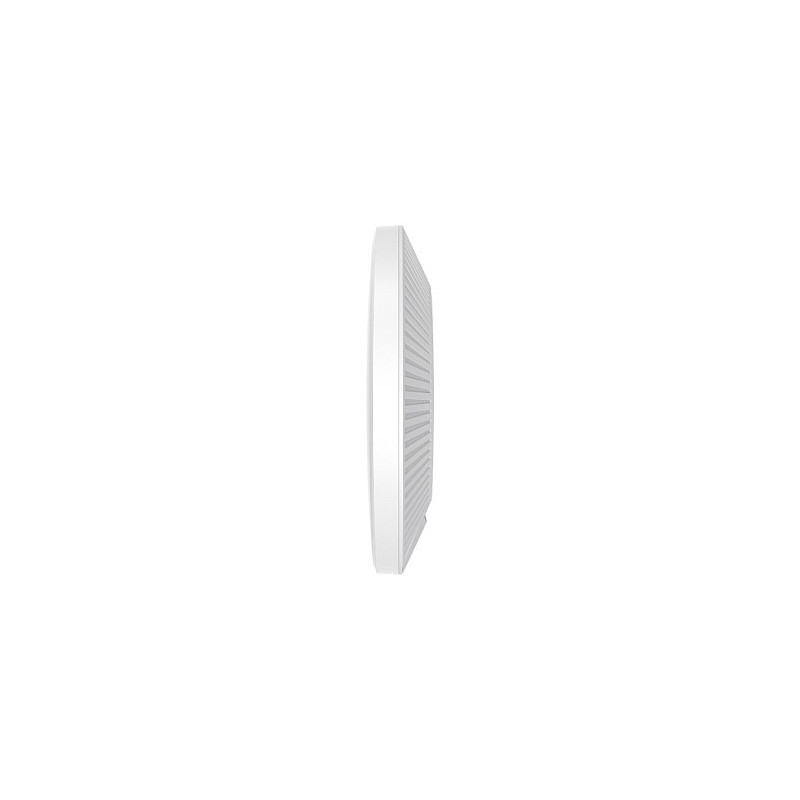

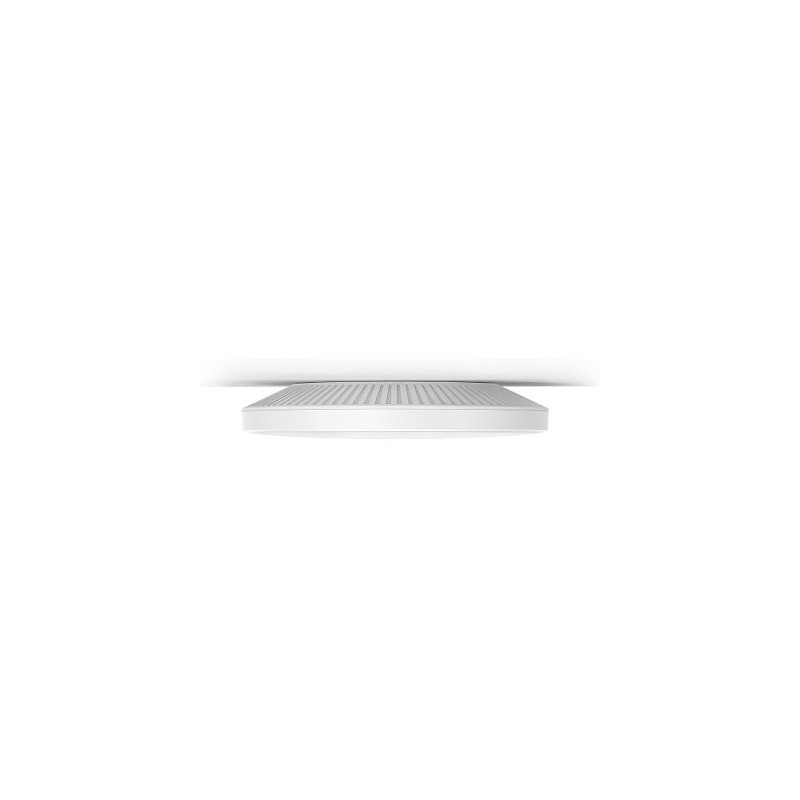

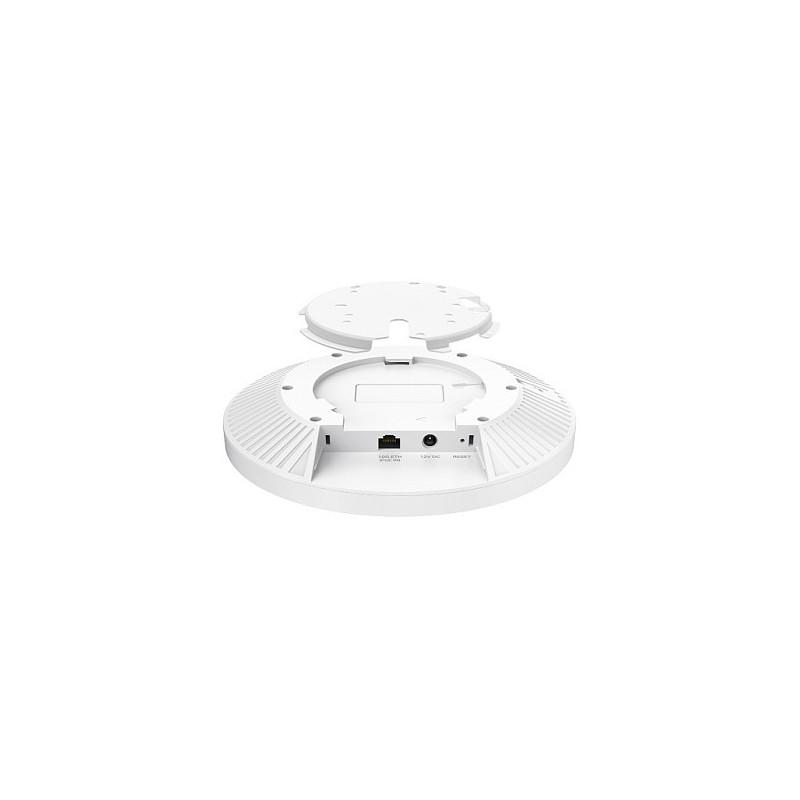

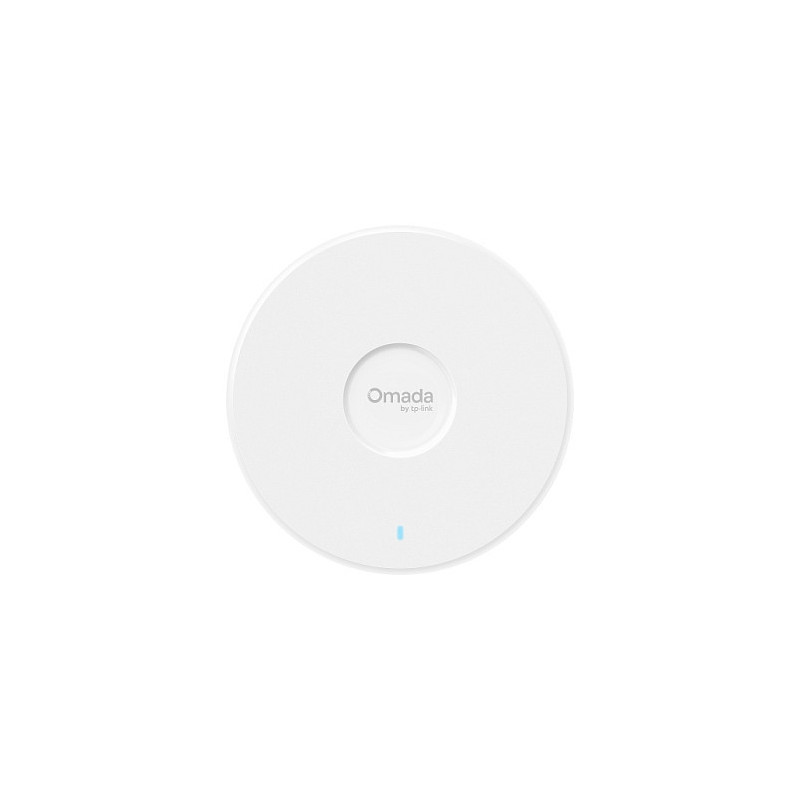

OMADA EAP787 wireless access point

OMADA EAP787. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: WPA, WPA2, WPA3. Power over Ethernet (PoE). Product colour: White

- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity

Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M

Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.

Empowering Businesses
with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 8648 Mbit/s
Maximum data transfer rate (6 GHz): 5765 Mbit/s
Frequency band: 2.4 - 6 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Coverage area: 1750 m²
Number of users: 510 user(s)
Feature: Bluetooth
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Feature: Rate limiting
Feature: Flow control support
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Access Control List (ACL)

Ports & interfaces

Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V
Input current: 2.5 A

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal

Certificates

Certification: CE, FCC, RoHS, IC

Weight & dimensions

Width: 220 mm
Depth: 220 mm
Height: 38.8 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
