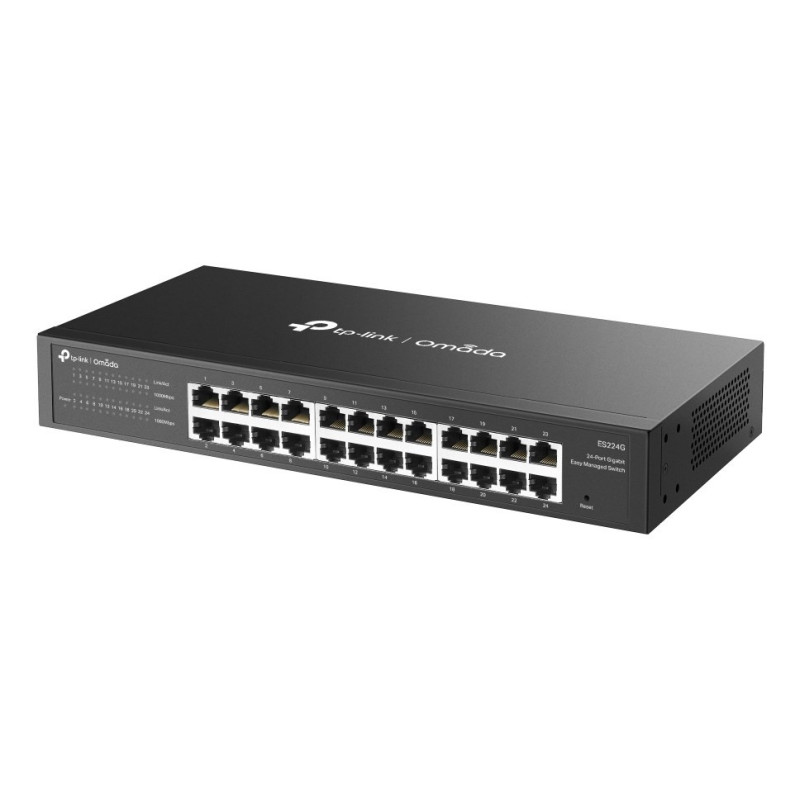

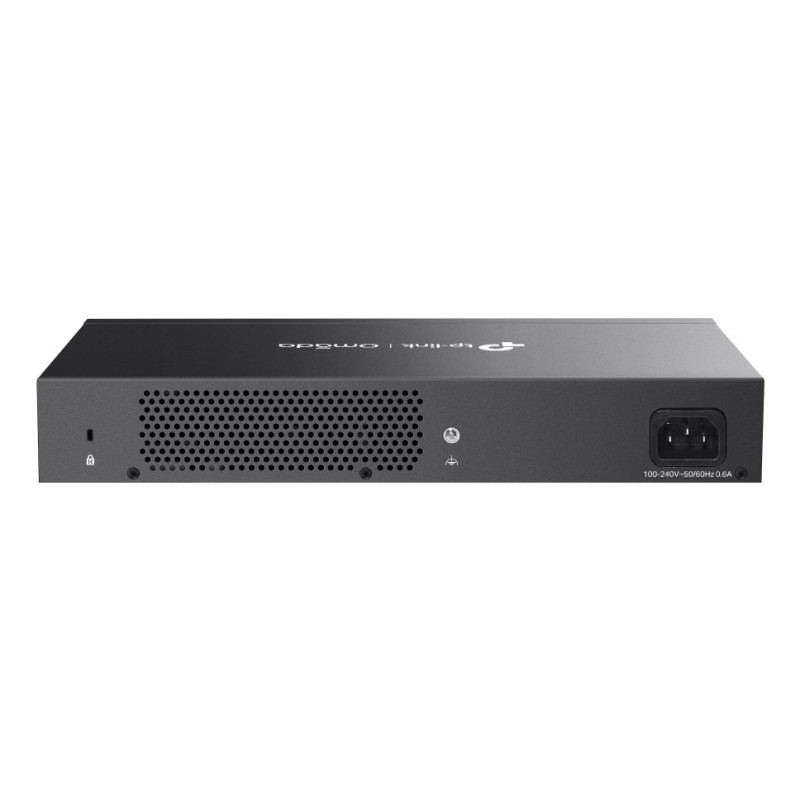

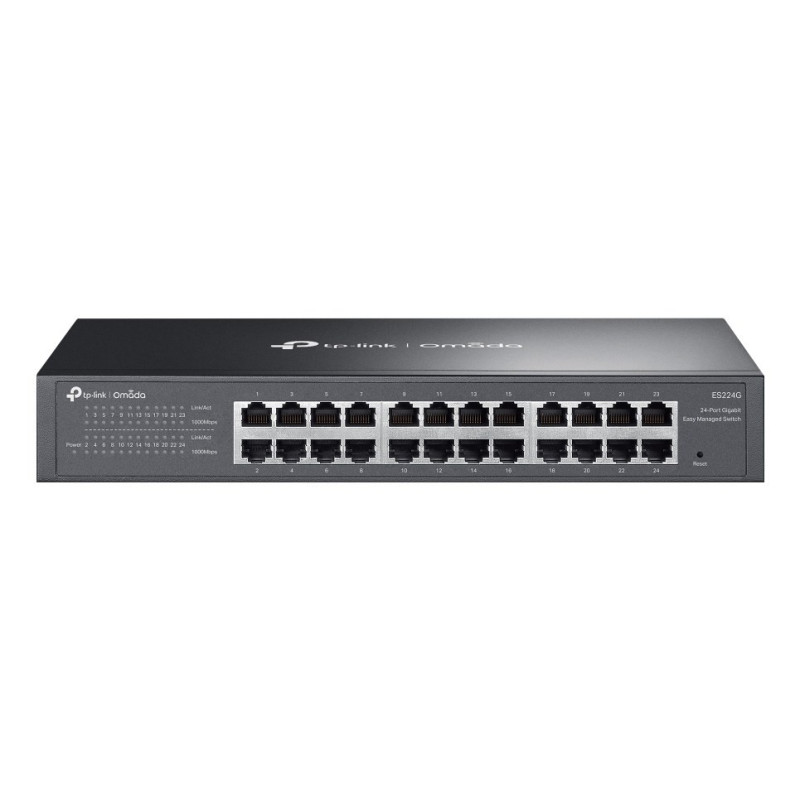

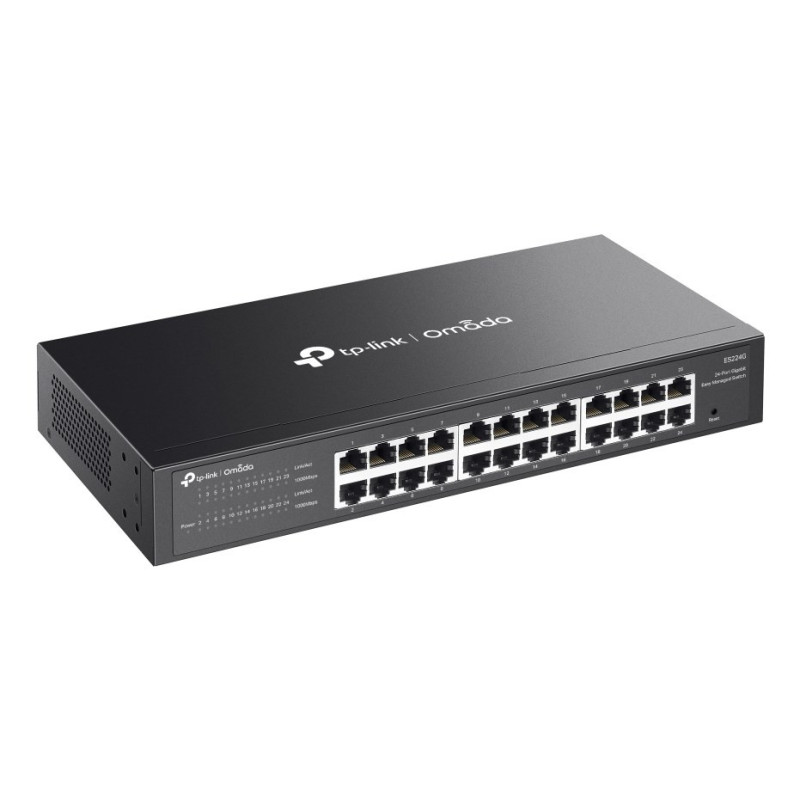

Network Switch - TP-Link Omada ES224G Managed L2 24-Port Gigabit Ethernet
Product reference:
14-1210002600705
Managed L2 Gigabit Ethernet switch with 24 ports and 48 Gbit/s switching capacity. It features VLAN support, web-based management interface, and surge protection.
Network Switch - TP-Link Omada ES224G Managed L2 24-Port Gigabit Ethernet
Product reference:
14-1210002600705
Managed L2 Gigabit Ethernet switch with 24 ports and 48 Gbit/s switching capacity. It features VLAN support, web-based management interface, and surge protection.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
TP-Link Omada ES224G Black
Managed L2 Gigabit Ethernet switch with 24 ports and 48 Gbit/s switching capacity. Features: VLAN support, browser management and surge protection.
- 24 Gigabit Ethernet ports for fast connectivity.
- Managed switch with browser and cloud management capabilities.
- Robust security features including IGMP snooping and DHCP client.
- Fanless design for quiet operation in a variety of environments.
Design | |
|---|---|
| Rack mounting | Yes |
| Product color | Black |
Power | |
| AC input frequency | 50/60Hz |
| AC input voltage | 100 - 240V |
| Surge protection voltage | 6 kV |
Security | |
| Priority scheduling algorithms | Weighted Round Robin (WRR) |
Operating conditions | |
| Operating relative humidity (HH) | 10 - 90% |
| Storage temperature (TT) | -40 - 70 °C |
| Operating temperature (OT) | -5 - 50 °C |
| Storage relative humidity (HH) | 5 - 90% |
Control functions | |
| Unified static configuration | Yes |
| Quality of Service (QoS) support | Yes |
| Switch level | L2 |
Weight and dimensions | |
| Depth | 140mm |
| Height | 44 mm |
| Width | 294 mm |
Network | |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
Operation | |
| Upgradable software | Yes |
| Fanless | Yes |
Certificates | |
| Certificates of conformity | Federal Communications Commission (FCC), RoHS, CE |
Ports and interfaces | |
| Main types of RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Main RJ-45 Ethernet port count | 24 |
Data transfer | |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frame support | Yes |
| Packet buffer memory | 4MB |
| Transmission speed | 35.7 Mpps |
| Jumbo frames | 15000 |
| Height | 100mm |
| Length | 200mm |
| Weight | 1600g |
| Width | 350mm |
