Network Switch - TP-Link Omada ES208G Managed L2 Gigabit 8 Ports
Product reference:
14-1210002600668
Managed L2 Gigabit Ethernet switch with 8 RJ-45 ports. It features web-based management, VLAN support, and 2.7W power consumption.
Network Switch - TP-Link Omada ES208G Managed L2 Gigabit 8 Ports
Product reference:
14-1210002600668
Managed L2 Gigabit Ethernet switch with 8 RJ-45 ports. It features web-based management, VLAN support, and 2.7W power consumption.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

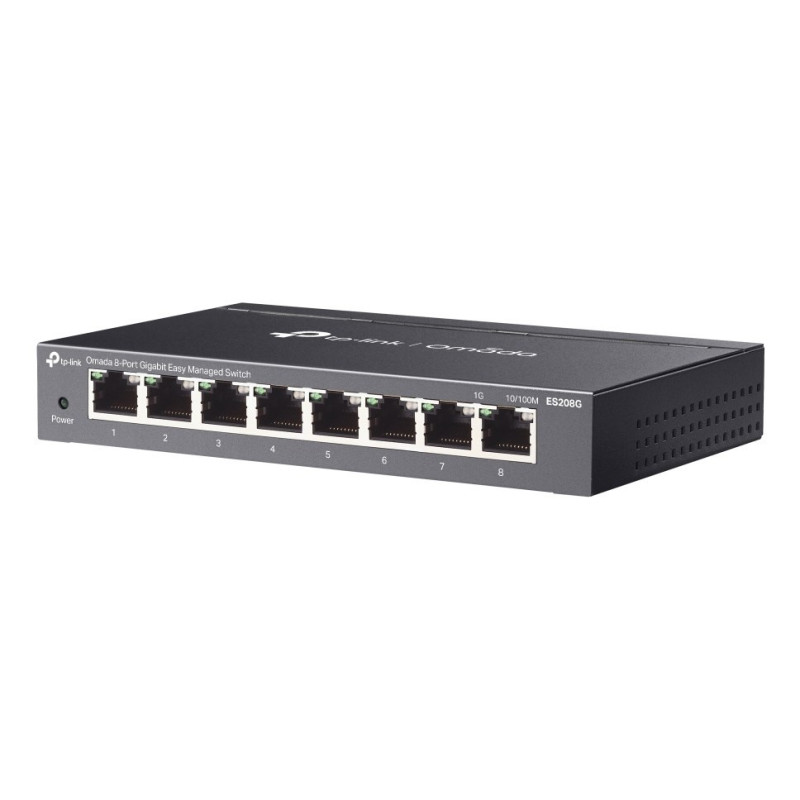

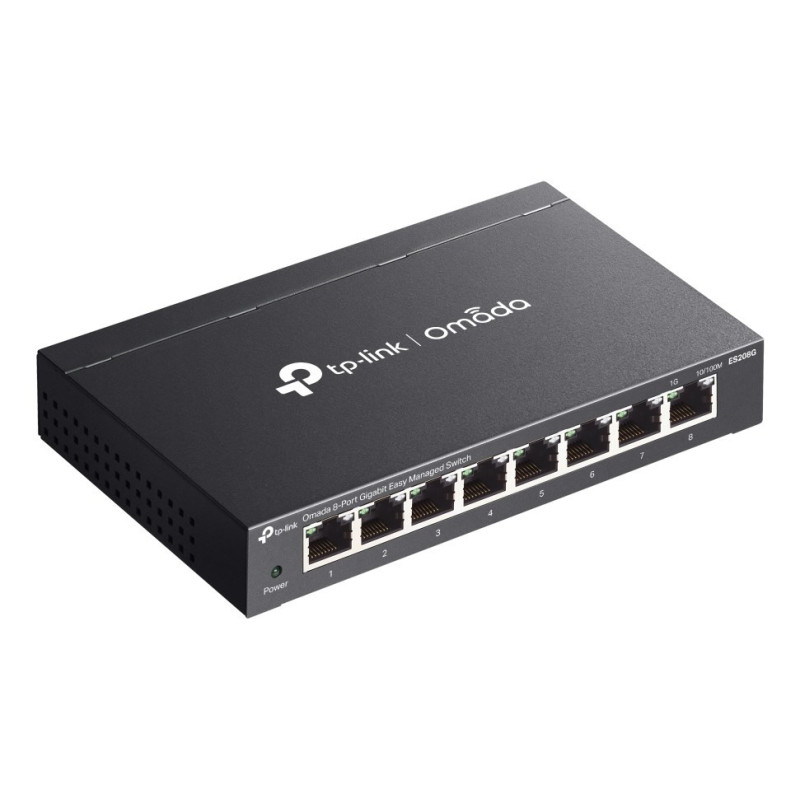

TP-Link Omada ES208G Network Switch Black
Managed L2 Gigabit Ethernet switch with 8 RJ-45 ports. Features: web-based management system, VLAN support and power consumption 2.7 W.

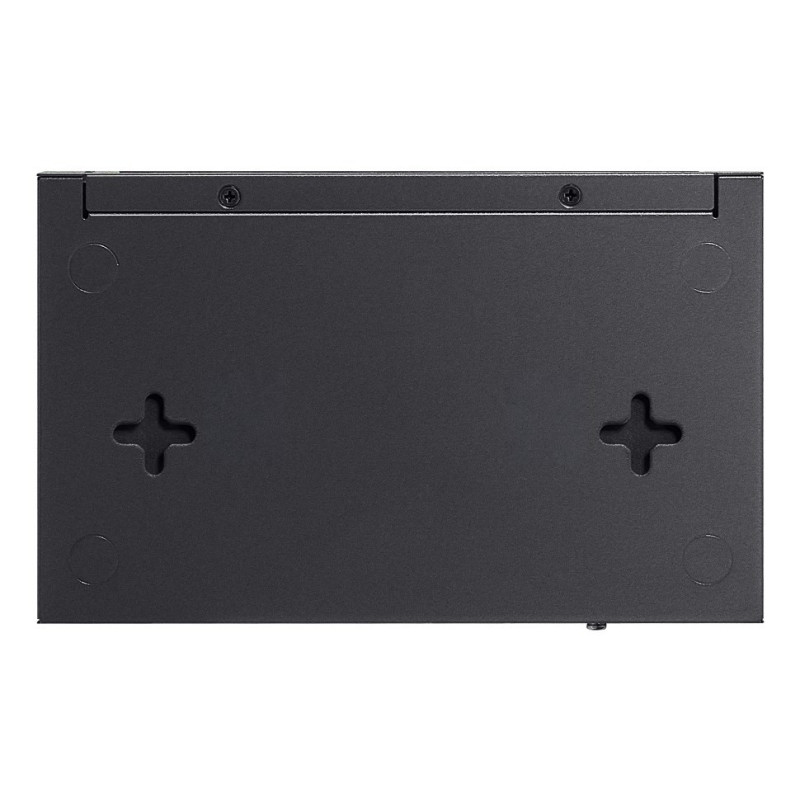

- Compact and wall-mounted design allowing for a variety of mounting options.
- Supports advanced security features such as IGMP snooping and cycle protection.
- Managed in the cloud with an online management system for easy configuration and monitoring.
- High performance with switching capacity of 16 Gbit/s and support for up to 32 VLANs.
Design | |
|---|---|
| LED indicators | Yes |
| Product color | Black |
| Wall mounted | Yes |

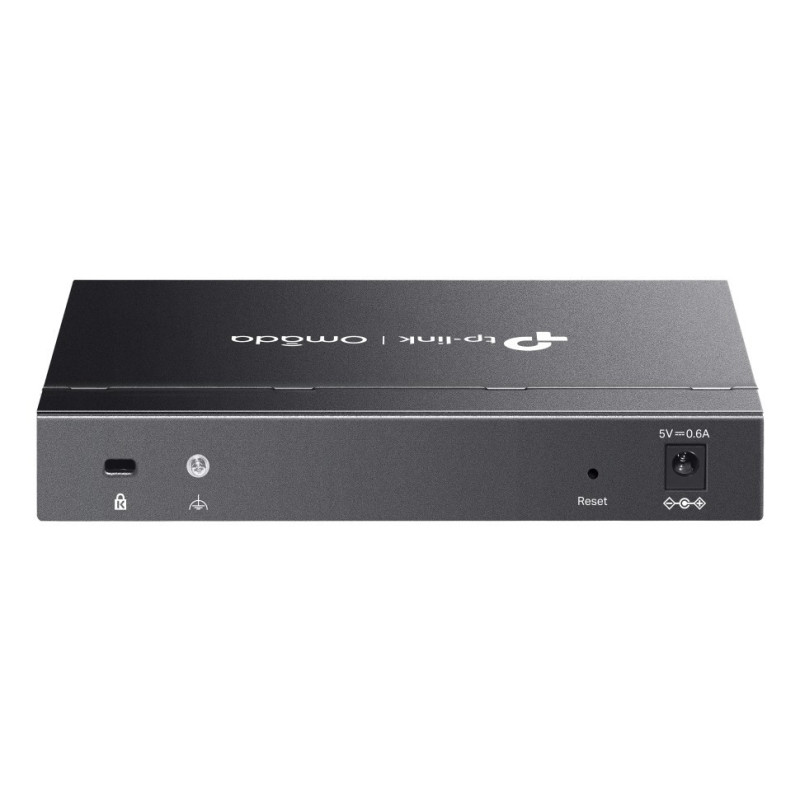

Power | |
| Input current | 0.6A |
| Power source | DC |
| Overload protection voltage | 6 kV |
| DC input voltage | 5V |
Security | |
| Priority scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP functions | DHCP client |
Operating conditions | |
| Storage temperature (TT) | -40 - 70 °C |
| Operating relative humidity (HH) | 10 - 90% |
| Operating temperature (OT) | -5 - 45 °C |
| Storage relative humidity (HH) | 5 - 90% |
| Heat dissipation | 9.09 BTU/h |
Control functions | |
| Unified static configuration | Yes |
| Quality of Service (QoS) support | Yes |
| Switching level | L2 |
| Switching type | Managed |
Weight and dimensions | |
| Height | 25.4 mm |
| Width | 158 mm |
| Depth | 100.7 mm |
Network | |
| Quick exit | Yes |
| Zero Touch Configuration (ZTP) | Yes |
| Network standards | IEEE 802.1ab, IEEE 802.3i, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p |
| Data flow control support | Yes |
| Auto-negotiation mode | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Virtual LAN features | MTU VLAN, Tagged VLAN, Port-based VLAN |
Performance | |
| Mean Time Between Failures (MTBF) | 1141726 hours |
| Flash memory | 64MB |
| Without fan | Yes |
Ports and interfaces | |
| Main types of RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Number of main RJ-45 Ethernet ports | 8 |
| Gigabit Ethernet (copper) ports quantity | 8 |
Data transfer | |
| Transmission speed | 11.9 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 4MB |
| Storage and transfer | Yes |
| Jumbo frame support | Yes |
| Jumbo frames | 15000 |
| Height | 100mm |
| Length | 200mm |
| Weight | 800g |
| Width | 250mm |
