Network Switch - TP-Link 5 Port Gigabit, Black
Product reference:
14-6935364052744
The TP-Link TL-SG105PE network switch provides high 10 Gbit/s switching capacity and supports 4 PoE+ ports, each providing up to 30 W, allowing you to efficiently manage network devices.
Network Switch - TP-Link 5 Port Gigabit, Black
Product reference:
14-6935364052744
The TP-Link TL-SG105PE network switch provides high 10 Gbit/s switching capacity and supports 4 PoE+ ports, each providing up to 30 W, allowing you to efficiently manage network devices.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

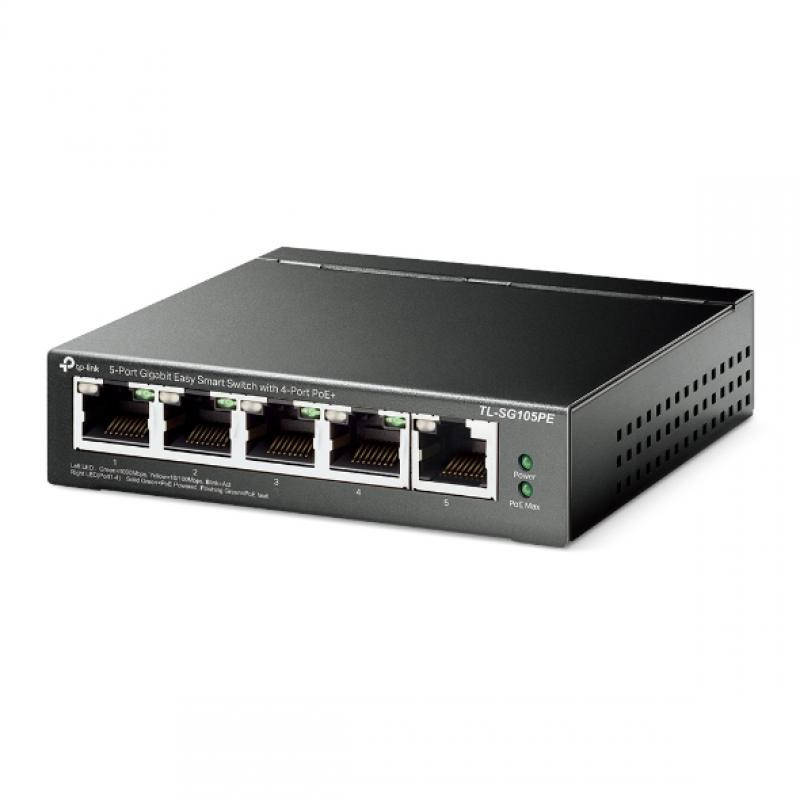

TP-Link TL-SG105PE, Black
TP-Link TL-SG105PE is a 5-port gigabit network switch that supports various copper Ethernet technologies, including 10BASE-T and 1000BASE-T. It integrates port mirroring, auto-negotiation, flow control, and rate limiting.
Main features
- Supports up to 4000 VLANs (Virtual Local Area Networks)
- 5 gigabit Ethernet ports with link aggregation
- 4 Power over Ethernet plus (PoE+) ports, up to 30 W each
Design | |
|---|---|
| LED indicators | PoE, Activity, Status, Connection, Energy, Speed |
| Product color | Black |
| Mounting in the frame | No |
Energy | |
| Voltage source included | Yes |
| Input voltage | 53.5V |
| Maximum power consumption | 75.16 W |
| Input current | 1.31 A |
| Energy source | DC |
Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
Operating conditions | |
| Operating temperature | 0 - 40 °C |
| Storage temperature | -40 - 70 °C |
| Operating relative humidity | 10 - 90% |
Control functions | |
| Web-based management | Yes |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
Weight and dimensions | |
| Depth | 98 mm |
| Height | 25 mm |
| Width | 99.8 mm |
Network | |
| VLAN support | Yes |
| Network standards | IEEE 802.3at, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q |
| Copper Ethernet cable technologies | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Automated negotiation process | Yes |
| Flow control support | Yes |
| Speed limit | Yes |
| Auto MDI/MDI-X | Yes |
Operation | |
| Fanless | Yes |
Packaging details | |
| Package weight | 770g |
| User manual | Yes |
| Package dimensions | 196mm x 131mm x 121mm |
Ports and interfaces | |
| Number of main RJ-45 Ethernet ports | 5 |
| Type of main RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
Data transfer | |
| MAC address table | 2000 entries |
| Packet buffer memory | 1MB |
| Switching capacity | 10 Gbps |
| Store-and-forward | Yes |
| Jumbo frame support | Yes |
| Transmission speed | 7.44 Mpps |
Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power through the port | 30W |
| Total Power over Ethernet (PoE) budget | 65W |
| Power over Ethernet (PoE) | Yes |
| Number of Power over Ethernet plus (PoE+) ports | 4 |
| Height | 150mm |
| Length | 200mm |
| Weight | 1100g |
| Width | 250mm |
