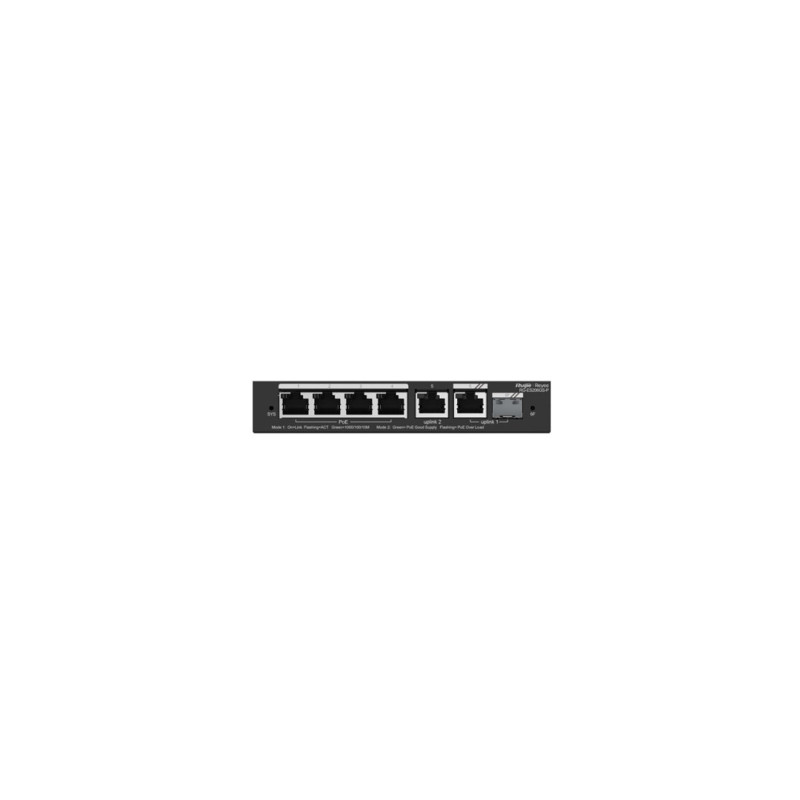

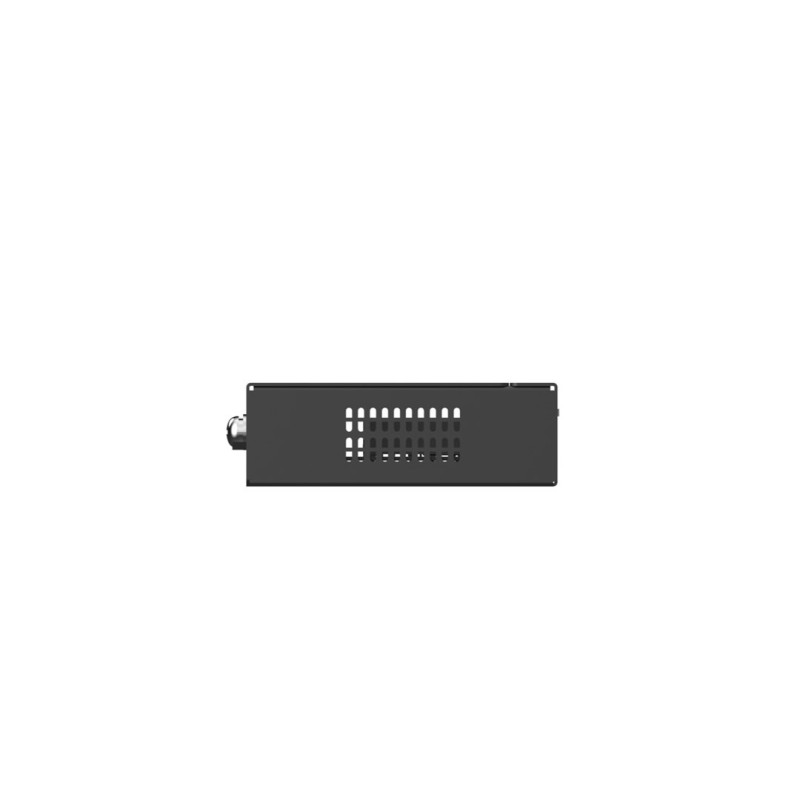

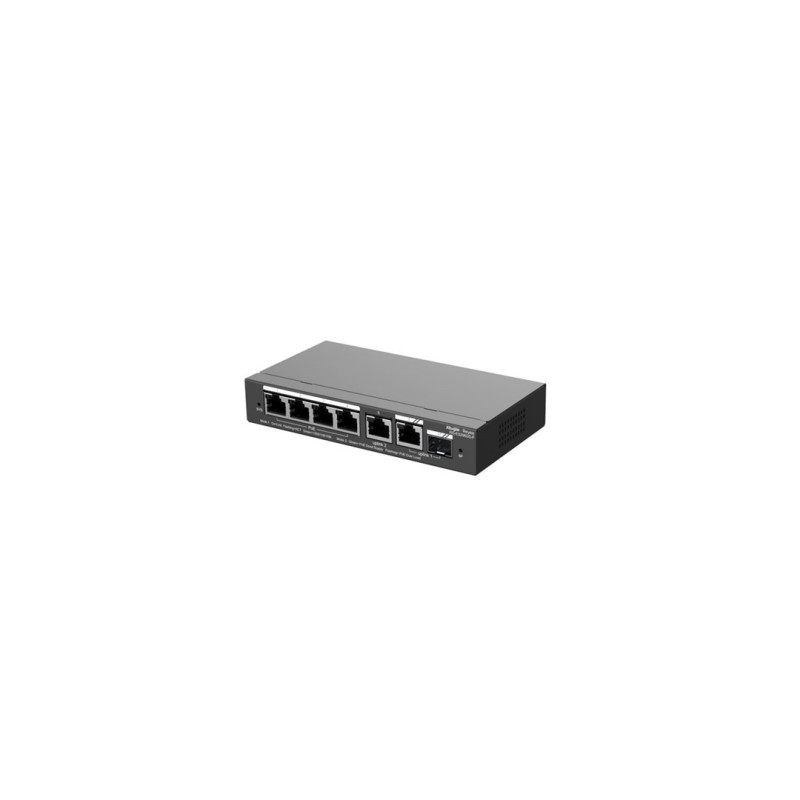

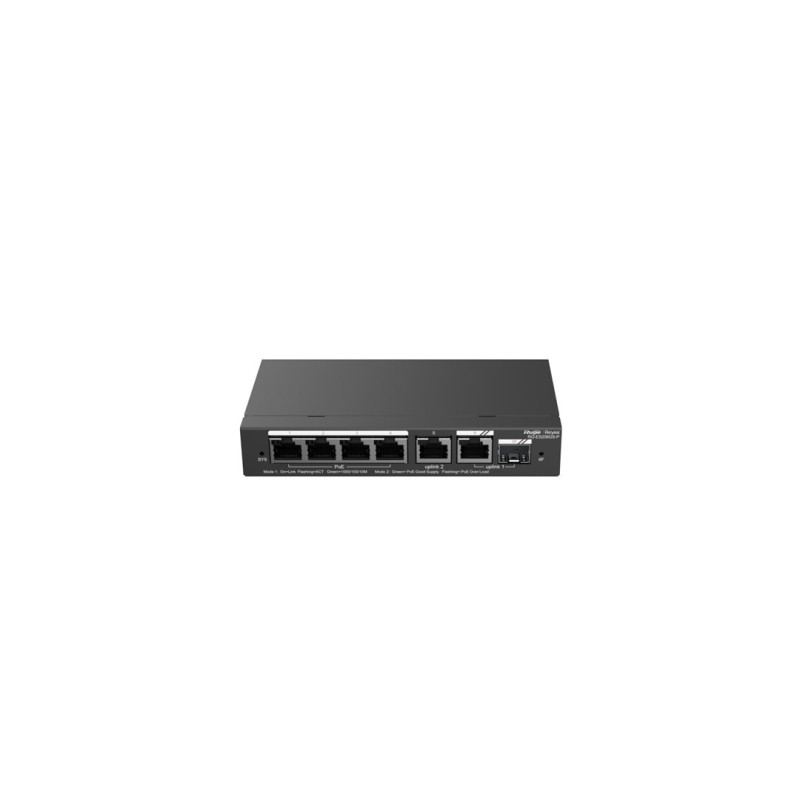

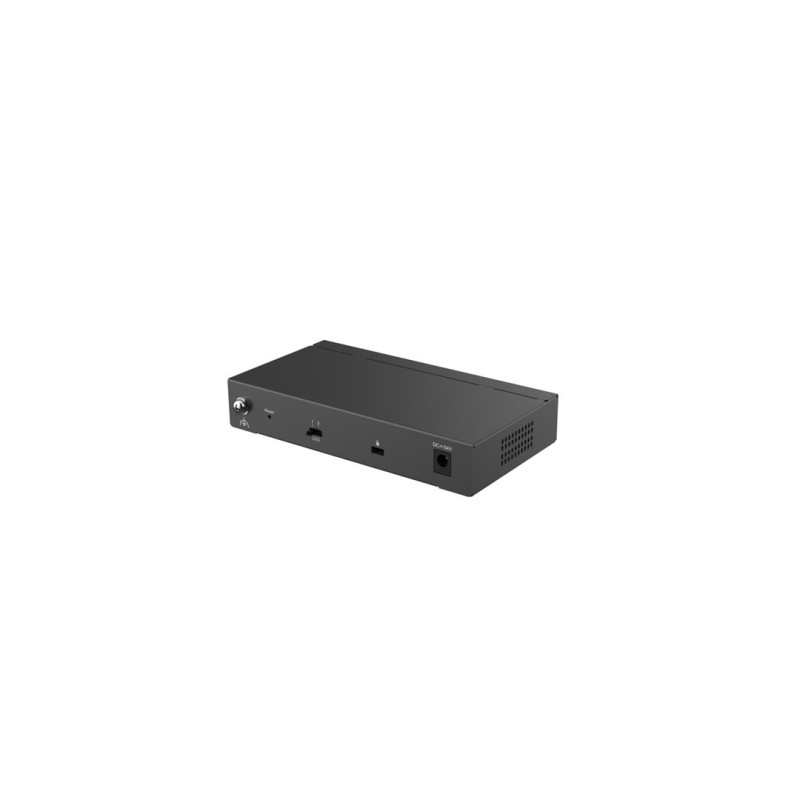

Network Switch - Ruijie RG-ES206GS-P Managed L2 Gigabit PoE 6 Ports
Product reference:
14-6971693275812
Managed L2 Gigabit Ethernet switch with 6 RJ-45 ports and 1 combo SFP port. Supports Power over Ethernet (PoE) with total power up to 54W and offers cloud management and online administration.
Network Switch - Ruijie RG-ES206GS-P Managed L2 Gigabit PoE 6 Ports
Product reference:
14-6971693275812
Managed L2 Gigabit Ethernet switch with 6 RJ-45 ports and 1 combo SFP port. Supports Power over Ethernet (PoE) with total power up to 54W and offers cloud management and online administration.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Ruijie Networks RG-ES206GS-P Black
Managed L2 Gigabit Ethernet switch with 6 RJ-45 ports and 1 combo SFP port. Supports Power over Ethernet (PoE) with a total power of 54 W and has cloud management and online management.
- Reinforced and mounted to a frame, allowing flexible installation.
- Cloud management with online management is easy to configure.
- Supports Power over Ethernet (PoE) with a total power of 54 W.
- High performance with switching capacity of 12 Gbit/s and 4000 MAC address entries.
Design | |
|---|---|
| Strengthened | Yes |
| Product color | Black |
| Mounting in the frame | Yes |
Power | |
| DC voltage input | 54 V |
| Input current | 1.1 A |
| Power source | DC/PoE |
| Power consumption (typical) | 60W |
Security | |
| Loop protection | Yes |
| DHCP functions | DHCP Snooping, DHCP client |
Operating conditions | |
| Operating relative humidity (HH) | 10 - 90% |
| Operating temperature (OT) | 0 - 40 °C |
Weight and dimensions | |
| Weight | 900g |
| Depth | 78 mm |
| Height | 26 mm |
| Width | 148mm |
Network | |
| Full duplex | Yes |
| Network standards | IEEE 802.3at, IEEE 802.3af |
| Automatic tuning | Yes |
| Semi-duplex | Yes |
| 10G support | No |
| Data flow control support | Yes |
Performance | |
| Mean Time Between Failures (MTBF) | 200000 hours |
Certificates | |
| Certificates of conformity | RoHS, CE |
Ports and interfaces | |
| Number of combined SFP ports | 1 |
| Main types of RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Number of main RJ-45 Ethernet ports | 6 |
Data transfer | |
| MAC address table | 4000 entries |
| Switching power | 12 Gbps |
| Packet buffer memory | 12MB |
| Transmission speed | 8.93 Mpps |
Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) power | 54W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Height | 100mm |
| Length | 300mm |
| Weight | 1200g |
| Width | 200mm |
