Schneider Electric AP9614 UPS accessory

Schneider Electric Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts. Product type: Relay card, Rack capacity: 0U. Compliance certificates: RoHS, REACH. Width: 121 mm, Depth: 128 mm, Height: 38 mm. Package width: 165 mm, Package depth: 238 mm, Package height: 51 mm. Battery replacement accessibility: Non-removable

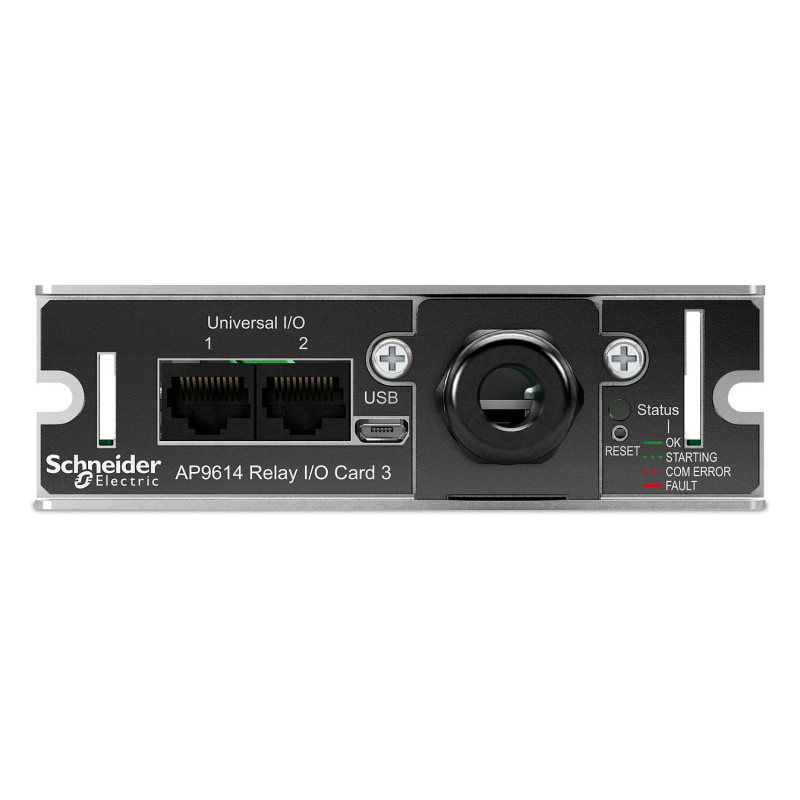

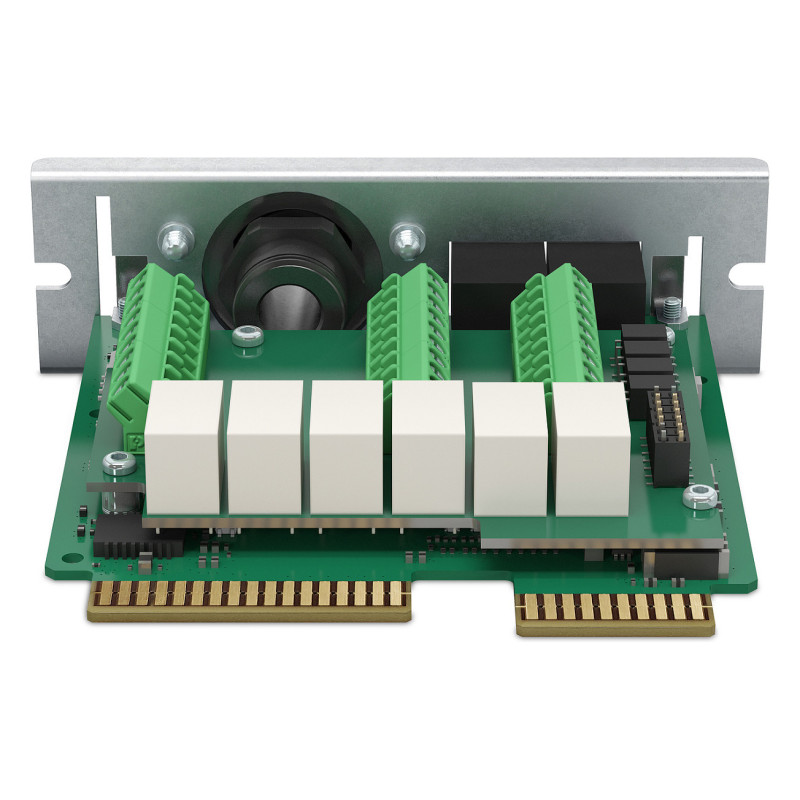

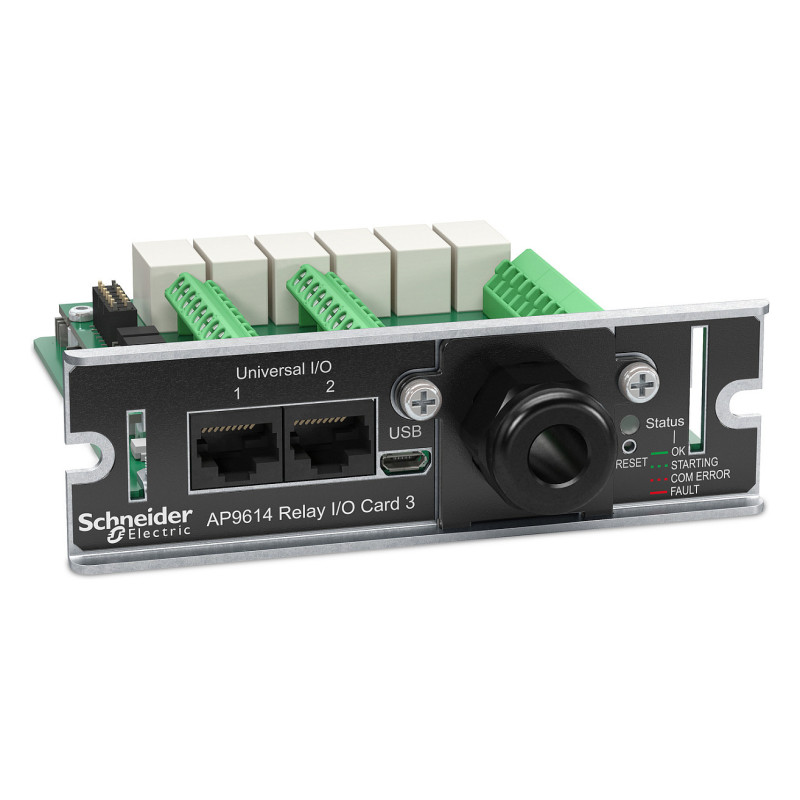

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.

Features

Product type: Relay card
LED indicators: Yes
Rack capacity: 0U

Certificates

Compliance certificates: RoHS, REACH

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 65 °C
Non-operating altitude: 0 - 15240 m

Weight & dimensions

Width: 121 mm
Depth: 128 mm
Height: 38 mm
Weight: 200 g

Packaging data

Package width: 165 mm
Package depth: 238 mm
Package height: 51 mm
Package weight: 440 g

Battery

Battery replacement accessibility: Non-removable

Logistics data

Country of origin: Ireland
Customs product code (TARIC): 8537109899
Total carbon footprint (kg of CO2e): 269.6327893333
