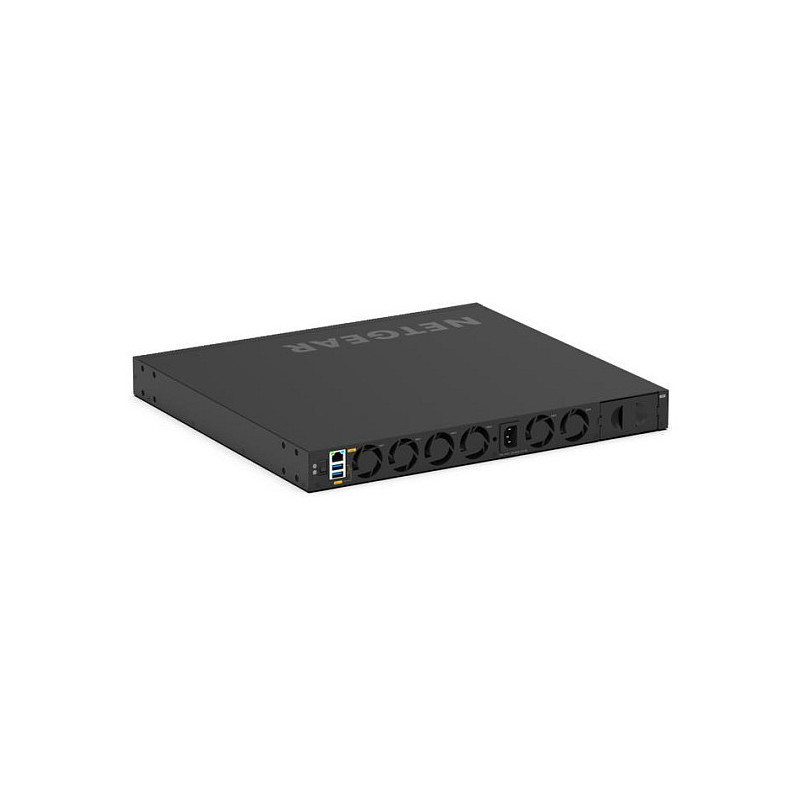

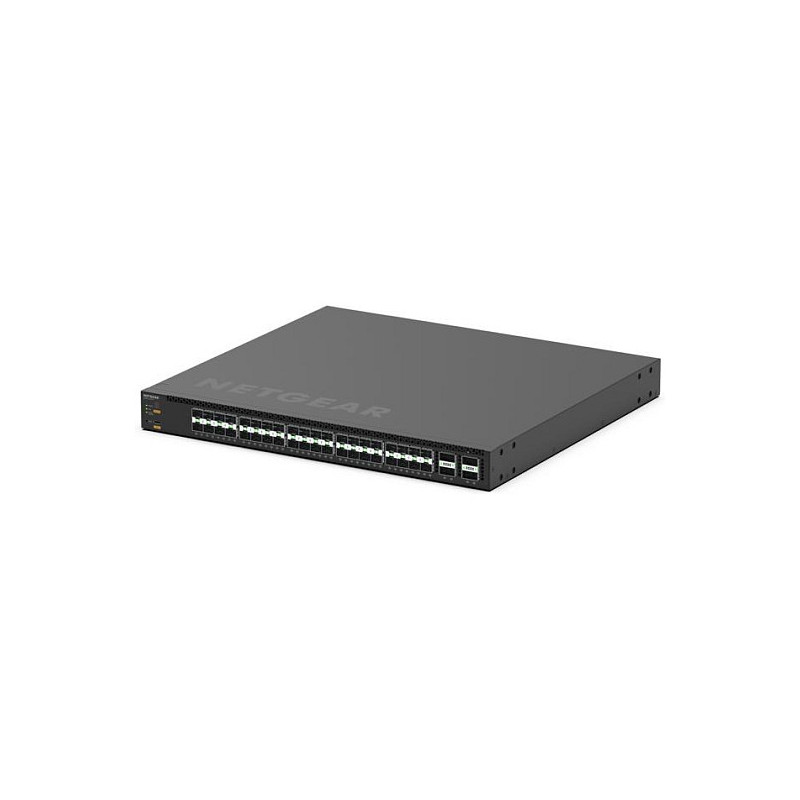

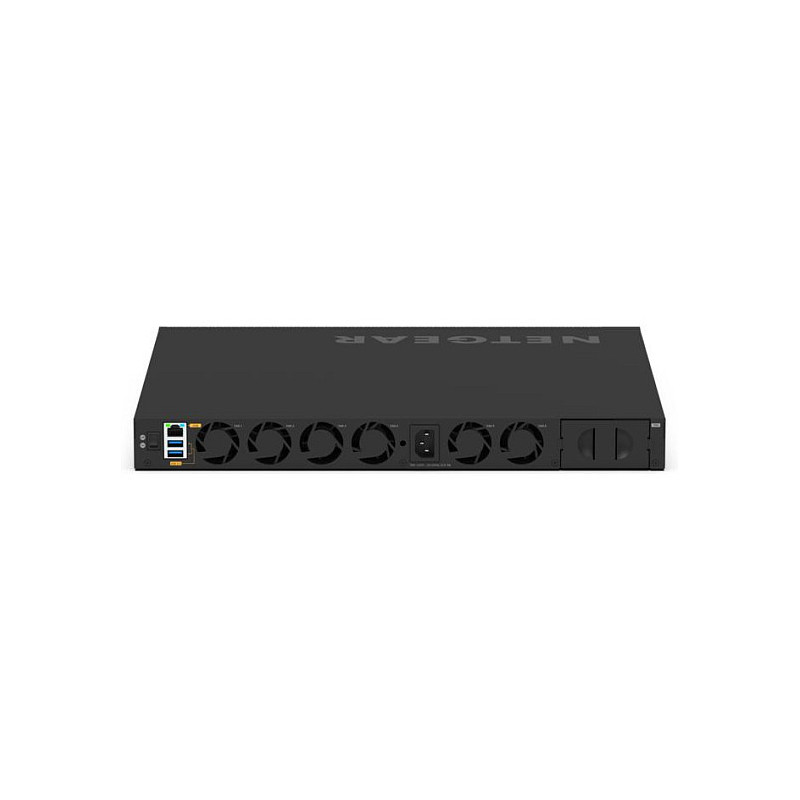

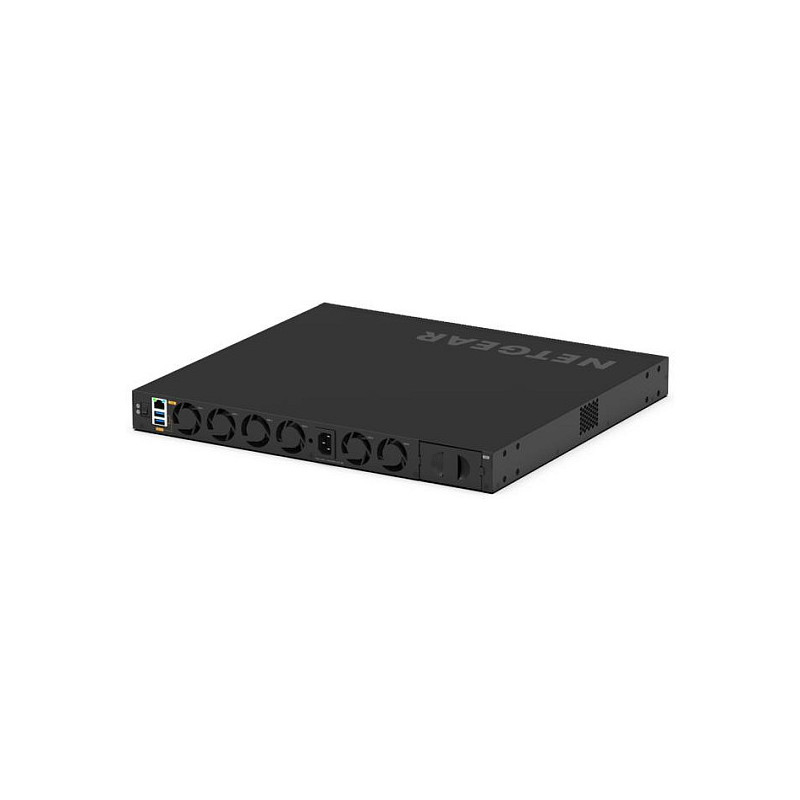

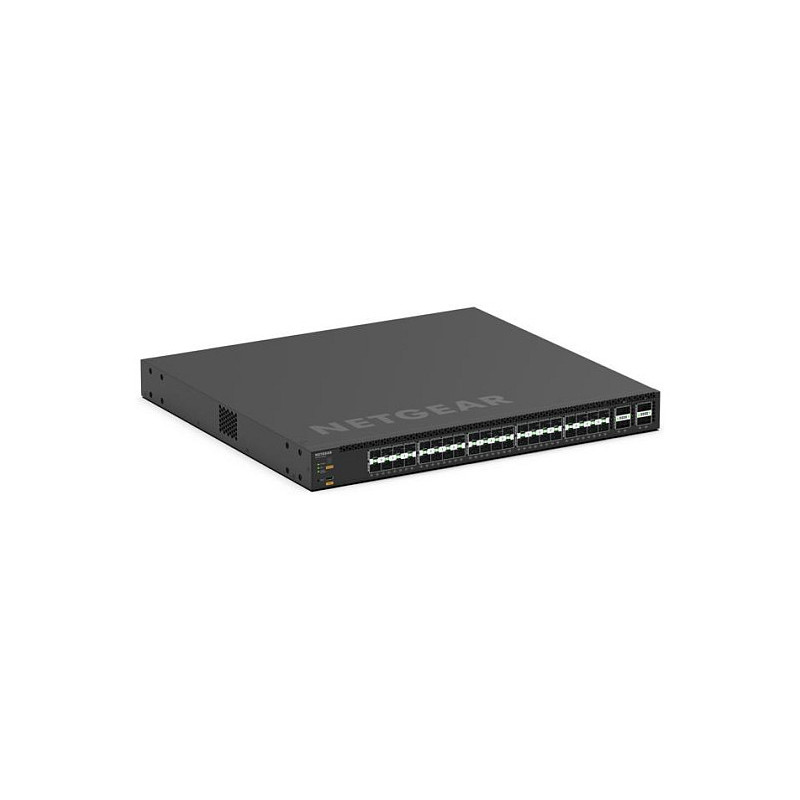

NETGEAR XSM4344FC

NETGEAR XSM4344FC. Switch type: Managed, Switch layer: L3. Installed SFP+ modules quantity: 40, Console port: USB. Switching capacity: 1600 Gbit/s. Rack mounting, Form factor: 1U

POWER AND
THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350

FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

Installed SFP+ modules quantity: 40
Fiber ports quantity: 44
Fiber optic connector: QSFP28, SFP+
Console port: USB
QSFP28 ports quantity: 4

Network

Feature: 10G support

Data transmission

Switching capacity: 1600 Gbit/s
Feature: Jumbo frames support

Security

Feature: IGMP snooping
Feature: IGMP proxy

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black

Performance

Memory type: DDR4-SDRAM
Internal memory: 4000 MB
Noise level: 69.5 dB

Power

Power source: AC
Feature: Power supply included
Power consumption (max): 213.6 W

Operational conditions

Heat dissipation: 728.21 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 400 mm
Height: 43.2 mm
Weight: 7.38 kg

Packaging content

Cables included: AC, USB
Feature: Manual
Feature: Rack mount kit
