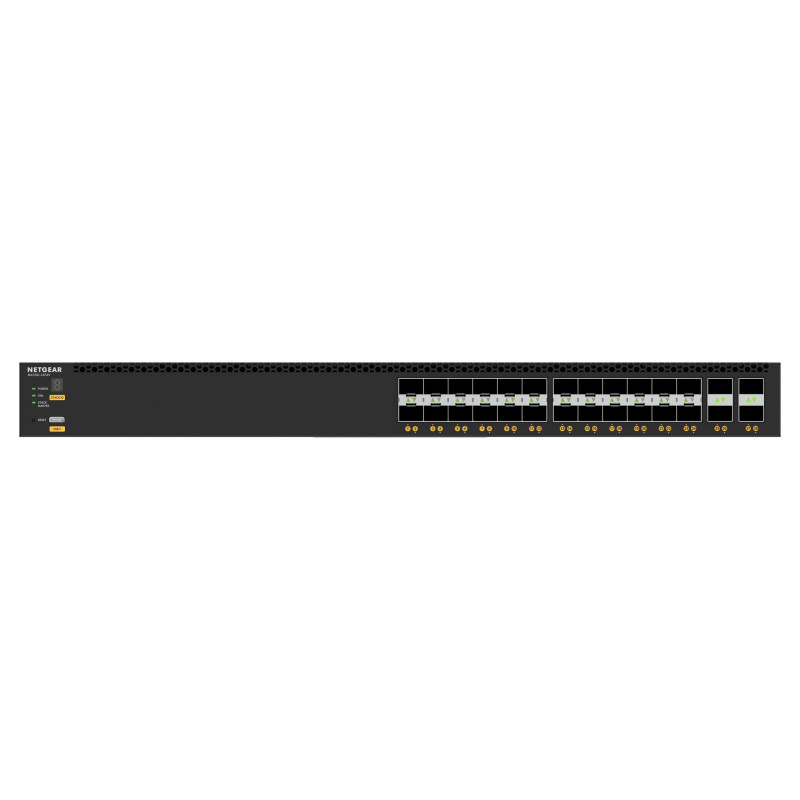

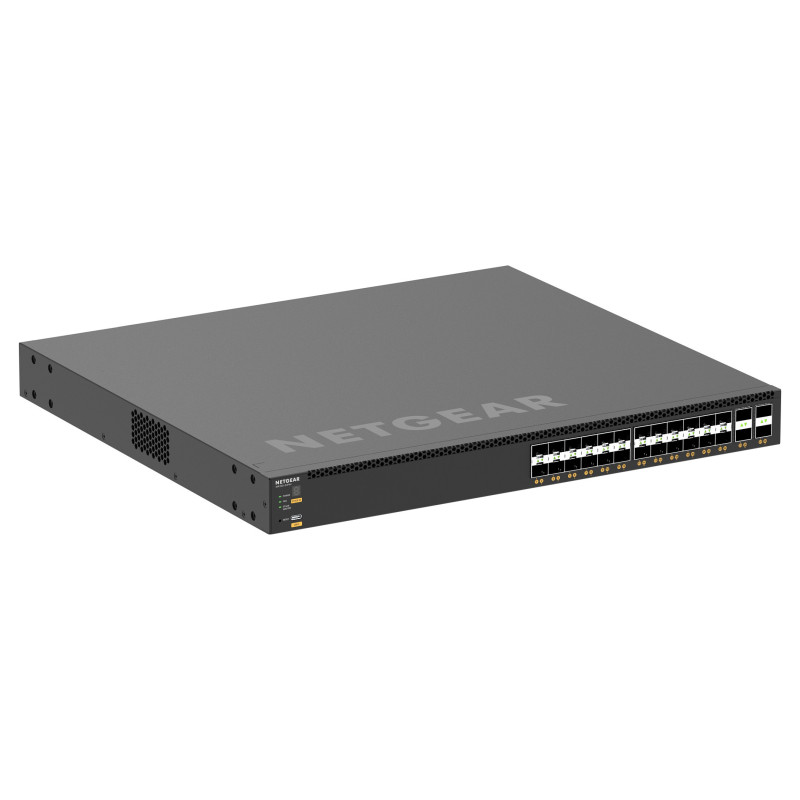

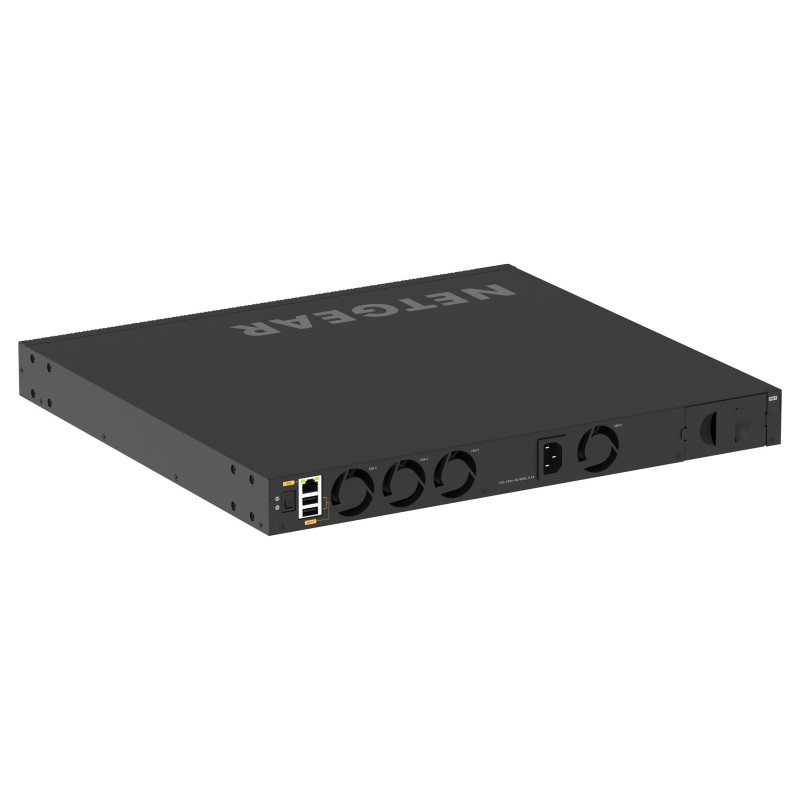

NETGEAR XSM4328FV

NETGEAR XSM4328FV. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP+ module slots quantity: 24
Console port: RJ-45
SFP28 ports quantity: 4
USB 2.0 ports quantity: 2
Power connector: AC-in jack

Network

Feature: 10G support
Feature: Full duplex
Feature: Policy-based routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: 6to4 tunnel
IPv4 routes: 512
IPv6 routes: 256
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs: 4093

Data transmission

Switching capacity: 680 Gbit/s
Throughput: 505.92 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Latency (1 Gbps): 1.06 µs
Latency (10 Gbps): 0.63 µs
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 32 MB

Security

DHCP features: DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) egress: 1023
Access Control List (ACL) ingress: 511
Feature: IGMP snooping
Feature: IGMP proxy
Feature: MAC address filtering
Feature: Static port security
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Guest VLAN, MAC-based authentication
Feature: Root protection
Feature: Password protection
Feature: DoS attack prevention
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Management protocols: SNMP V1, V2, V3
Feature: GARP VLAN Registration Protocol (GVRP)
Routing protocols: OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
LED indicators: Yes
Airflow direction: Front-to-back airflow

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A57
Processor frequency: 1800 MHz
Memory type: DDR4-SDRAM
Internal memory: 2048 MB
Flash memory: 512 MB
Noise level: 61.8 dB
Feature: sFlow
Mean time between failures (MTBF): 778741 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 6.3 A
Power consumption (typical): 119.3 W

Other features

Power supply: 240 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m
Heat dissipation: 374.6 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 400 mm
Height: 43.2 mm
Weight: 6.25 kg

Packaging content

Cables included: AC, USB Type-C
Feature: User guide
Feature: Rack mount kit

Packaging data

Included power plug types: EU, NA, UK

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
