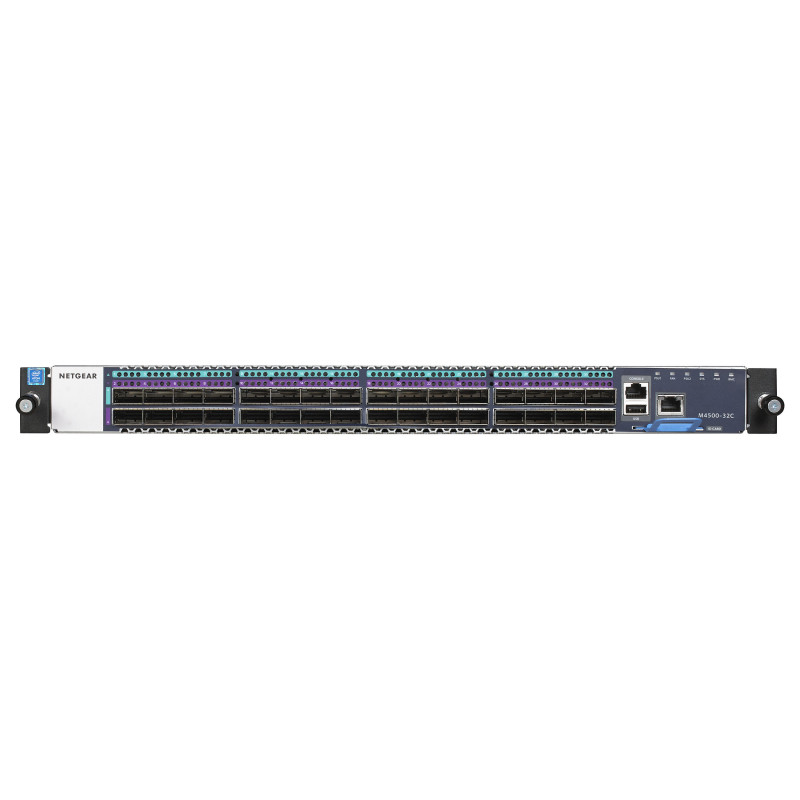

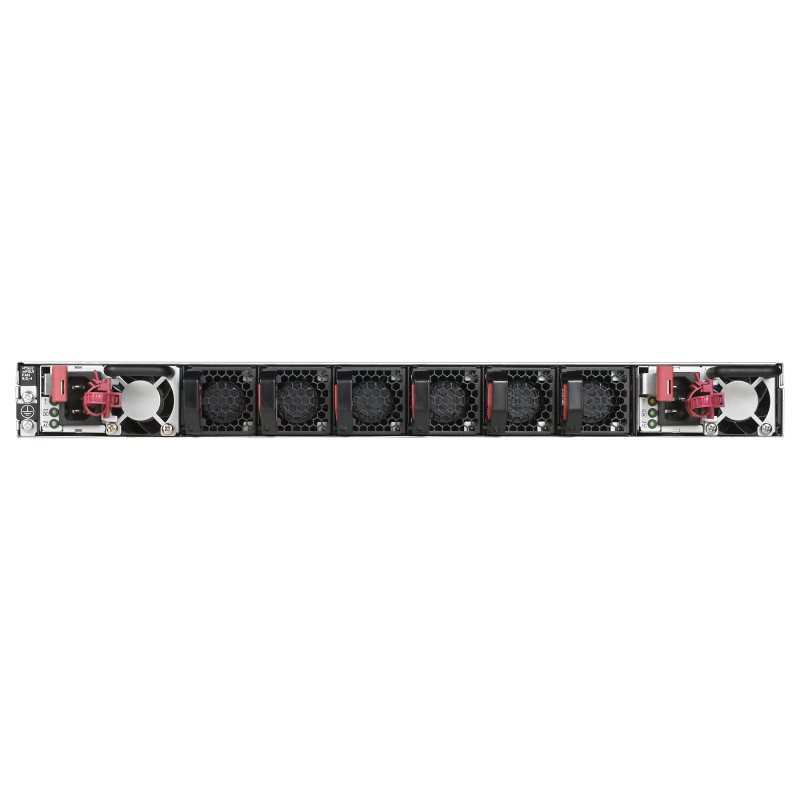

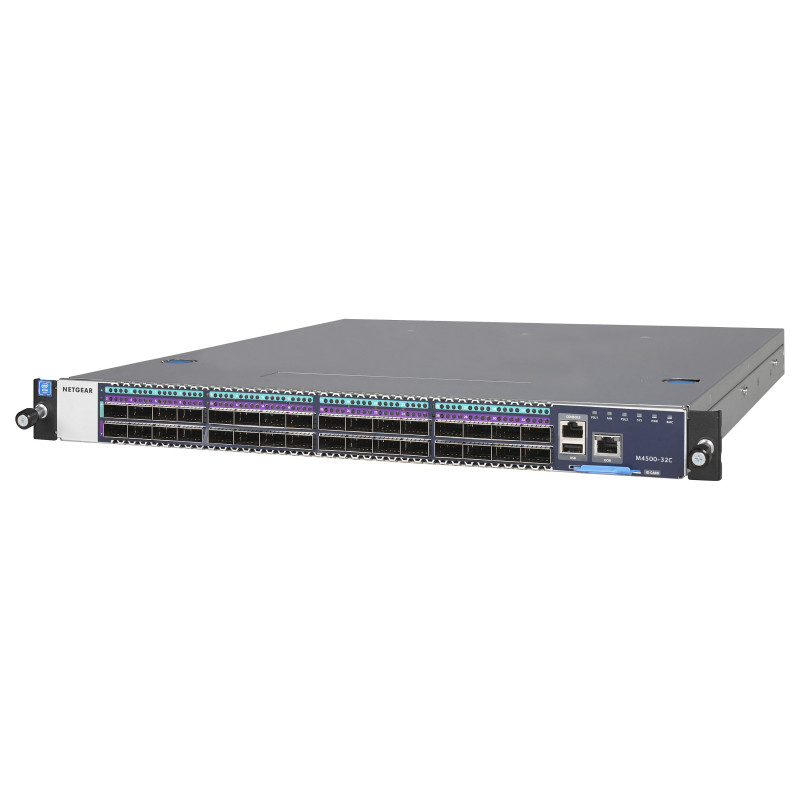

NETGEAR M4500-32C

NETGEAR M4500-32C. Switch type: Managed, Switch layer: L2/L3/L4. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U

The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.

Management features

Switch type: Managed
Switch layer: L2/L3/L4
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Fiber optic connector: QSFP+
Console port: RJ-45
QSFP28 ports quantity: 32
USB 2.0 ports quantity: 1
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1AX, IEEE 802.3ad
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Optical fiber

Fiber ethernet cabling technology: 100BASE-X

Data transmission

Switching capacity: 6400 Gbit/s
MAC address table: 32000 entries

Security

DHCP features: DHCP client, DHCP relay, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SNMP, SSH
Feature: SSH/SSL support
Feature: BPDU filtering/protection

Multicast features

Feature: Multicast support

Protocols

Management protocols: Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
Feature: Reset button
LED indicators: Yes
Electromagnetic compatibility: CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024

Performance

Feature: Built-in processor
Memory type: DDR3-SDRAM
Internal memory: 8000 MB
Flash memory: 256 MB
Noise level: 64 dB

Power

Power consumption (max): 426 W

Weight & dimensions

Weight: 9.78 kg

Packaging content

Feature: User guide
Feature: Manual

Packaging data

Package type: Box
Package width: 593 mm
Package depth: 888 mm
Package height: 186 mm
Package weight: 20.5 kg

Logistics data

Harmonized System (HS) code: 85176990
Products per master (outer) case: 1 pc(s)
