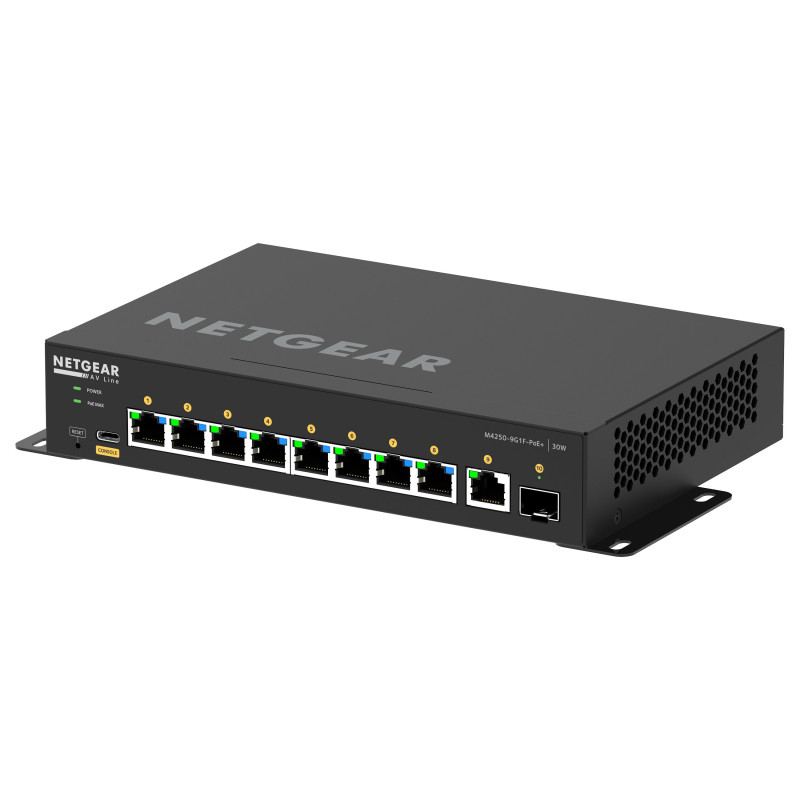

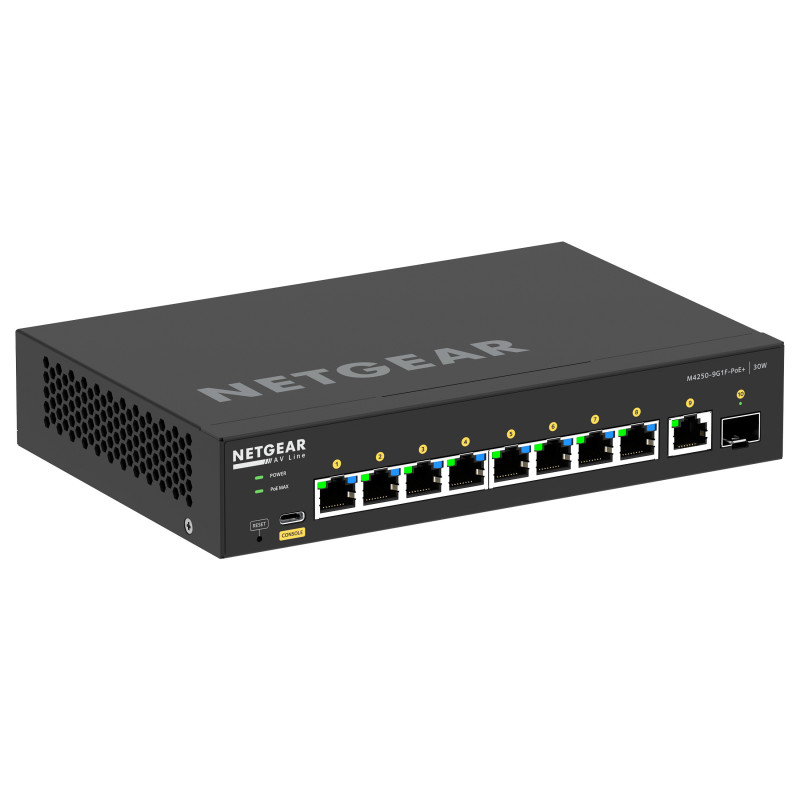

NETGEAR GSM4210PD

NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

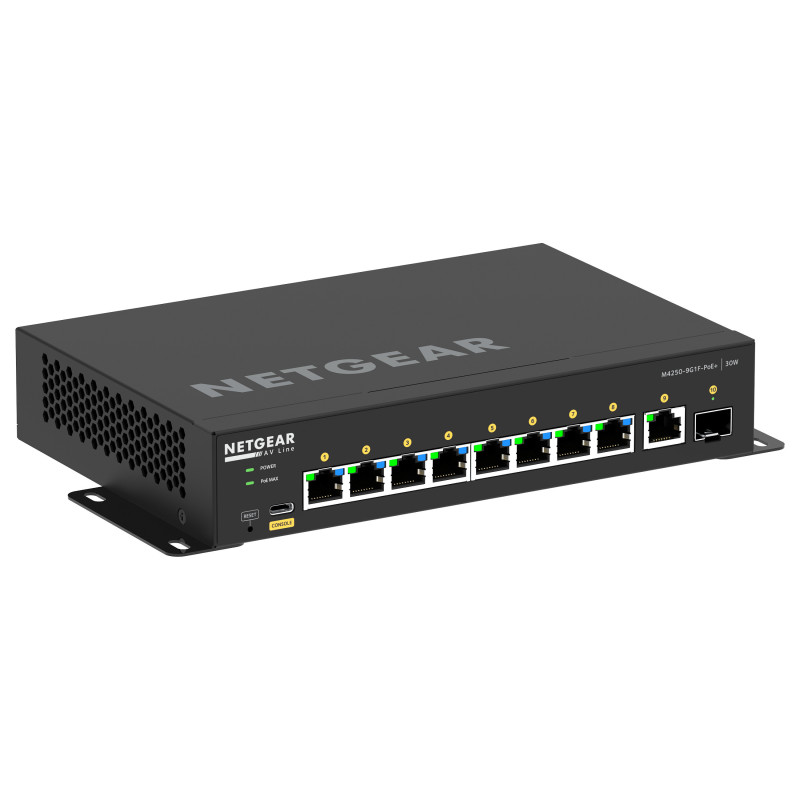

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Feature: Full duplex
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol

Data transmission

Switching capacity: 24 Gbit/s
MAC address table: 16000 entries
Feature: Store-and-forward

Security

DHCP features: DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: MAC-based authentication
Authentication type: RADIUS

Multicast features

Feature: Multicast support
IPv4 multicast entries: 2000

Design

Feature: Rack mounting
Product colour: Black
LED indicators: PoE, Power, Status

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1250 MHz
Internal memory: 2048 MB
Noise level: 30.06 dB

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 110 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m
Heat dissipation: 559.555 BTU/h

Weight & dimensions

Width: 210 mm
Depth: 140 mm
Height: 40 mm
Weight: 967 g

Packaging content

Feature: User guide
Feature: Manual
