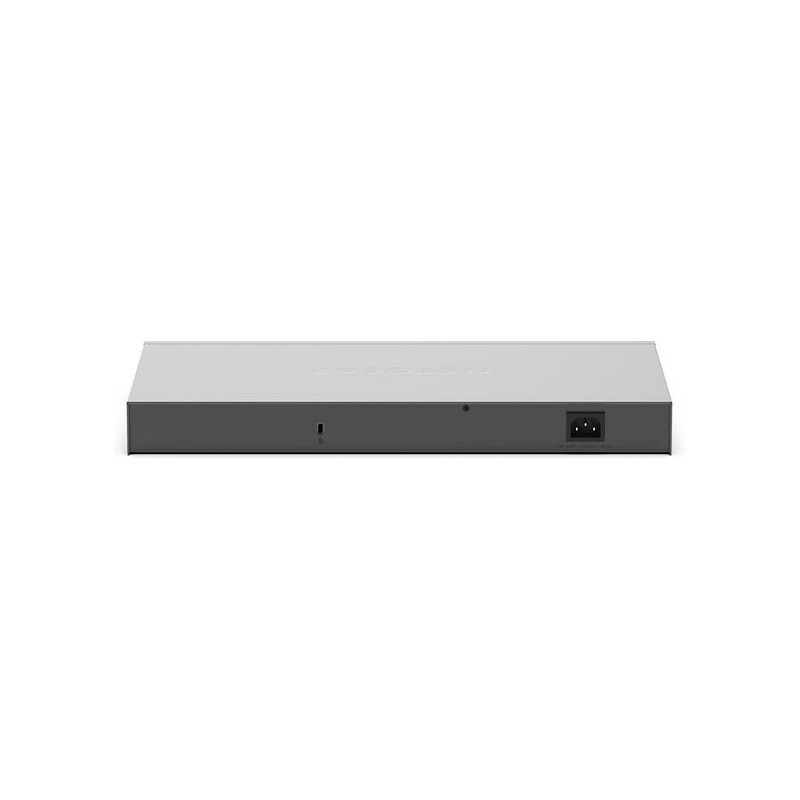

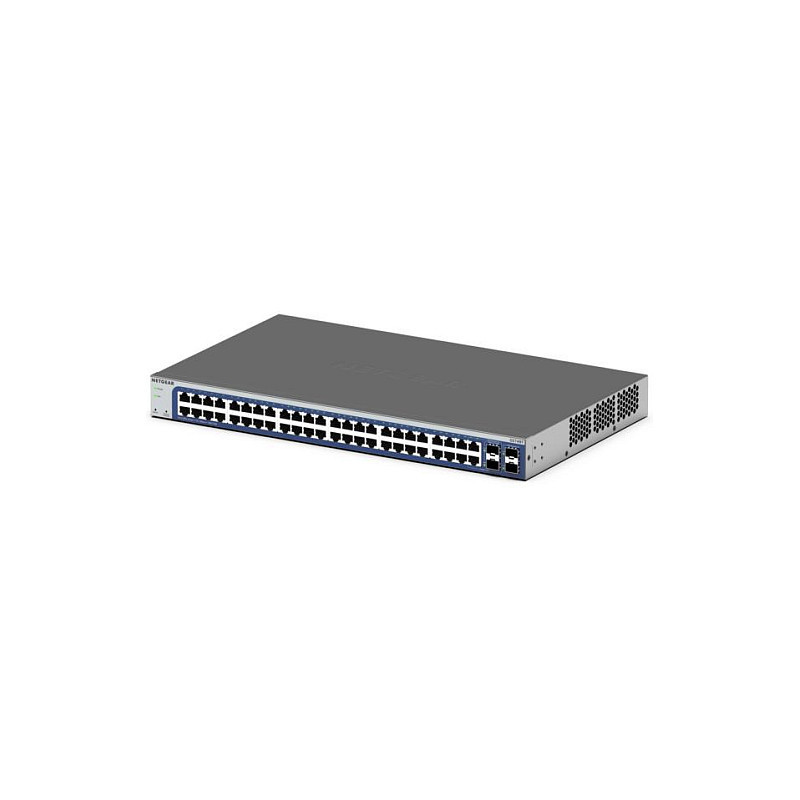

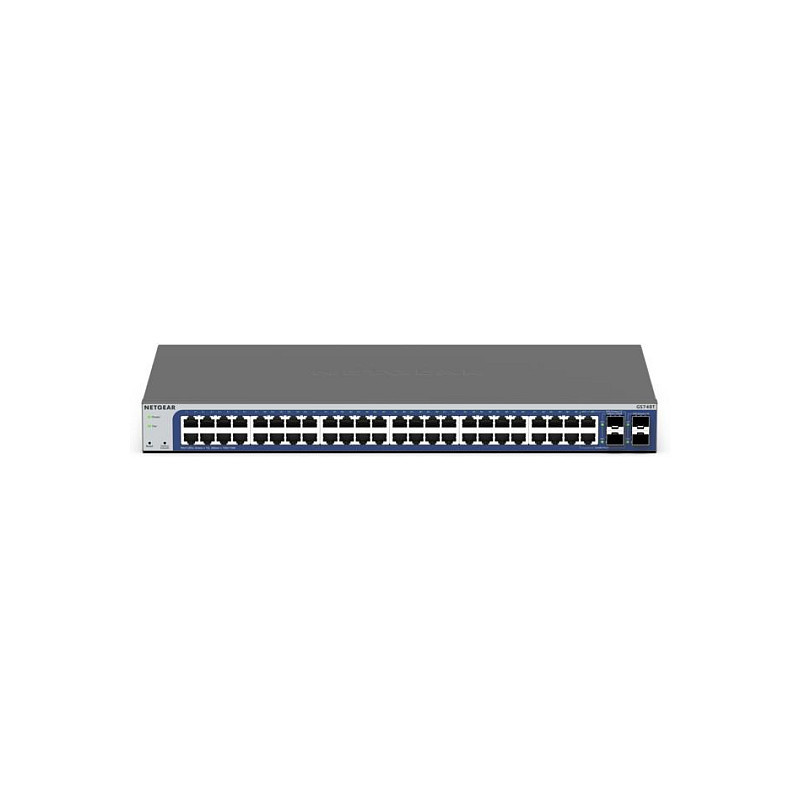

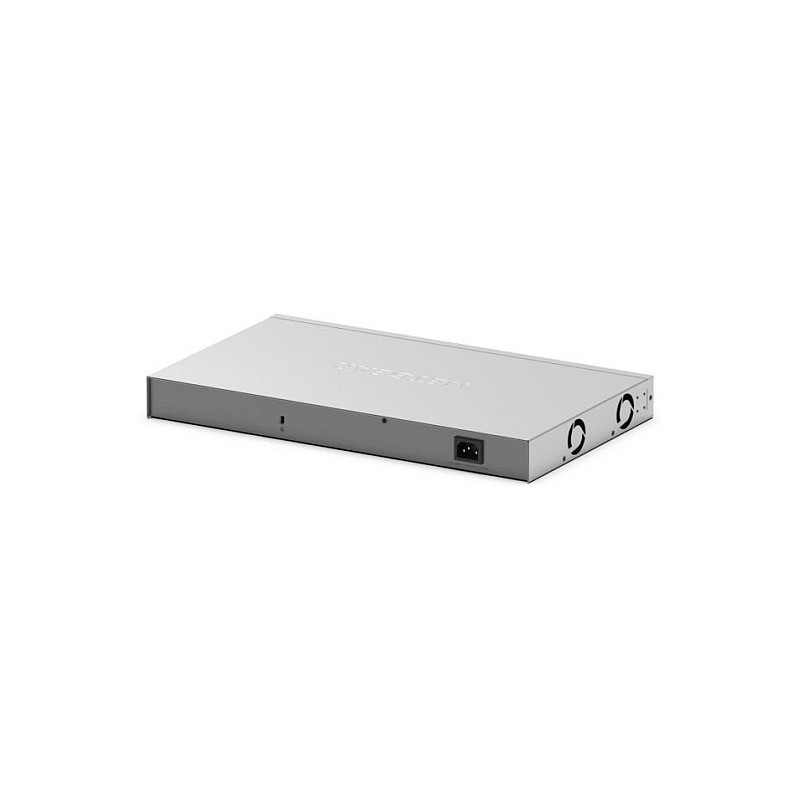

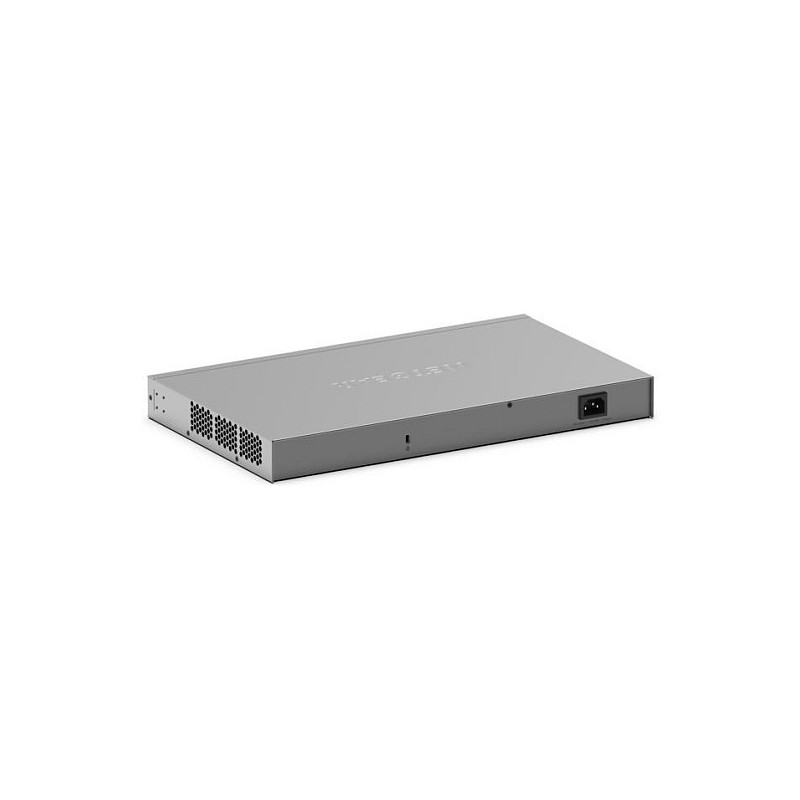

NETGEAR GS748T

NETGEAR GS748T. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Rack mounting

NETGEAR GS748T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management


Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.

Management features

Switch type: Managed
Switch layer: L2/L3/L4
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Flow control support
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 256

Data transmission

Switching capacity: 100 Gbit/s
MAC address table: 16000 entries
Feature: Store-and-forward
Number of queues: 8
Number of static routes: 32
Feature: Jumbo frames support

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS, HTTPS, SSL/TLS
Feature: MAC address filtering
Feature: SSH/SSL support

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 512

Protocols

Management protocols: SNMP v1/v2
Supported network protocols: IP

Design

Feature: Rack mounting
Product colour: Black, Grey
LED indicators: Activity, Link, Power

Performance

Noise level: 37.2 dB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 390728 h

Power

AC input voltage: 100 - 240 V
Power consumption (typical): 41.1 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Weight & dimensions

Width: 440 mm
Depth: 257 mm
Height: 43 mm
Weight: 3.46 kg

Packaging content

Cables included: AC
Feature: Manual

Certificates

Certification: CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
