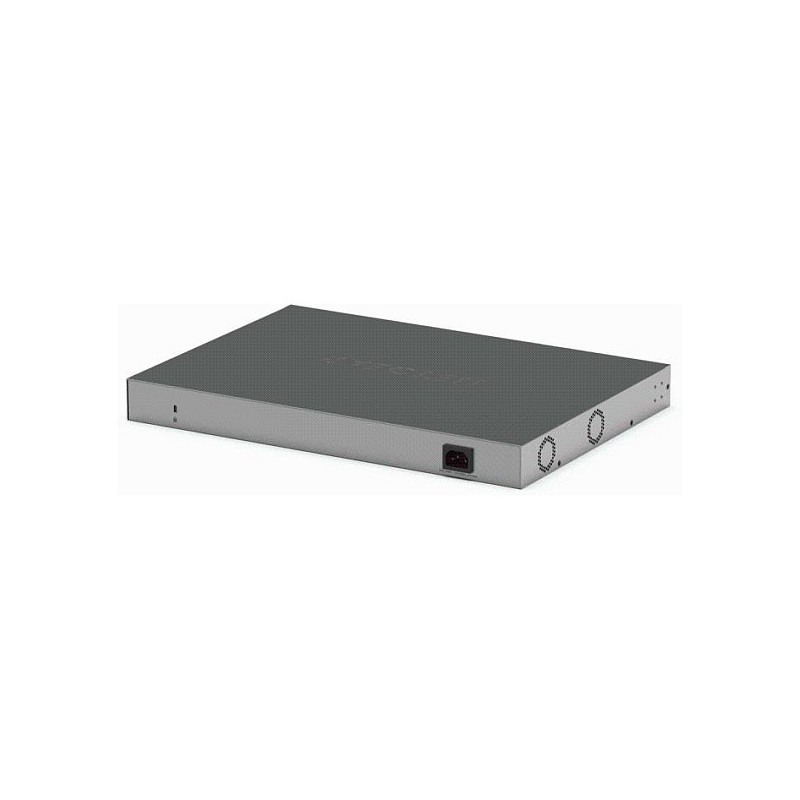

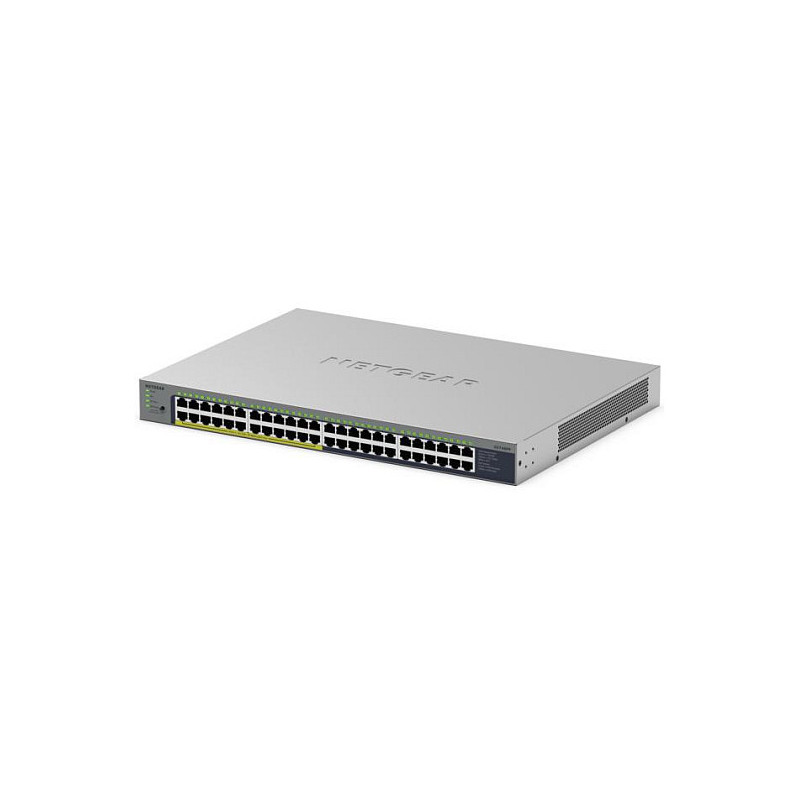

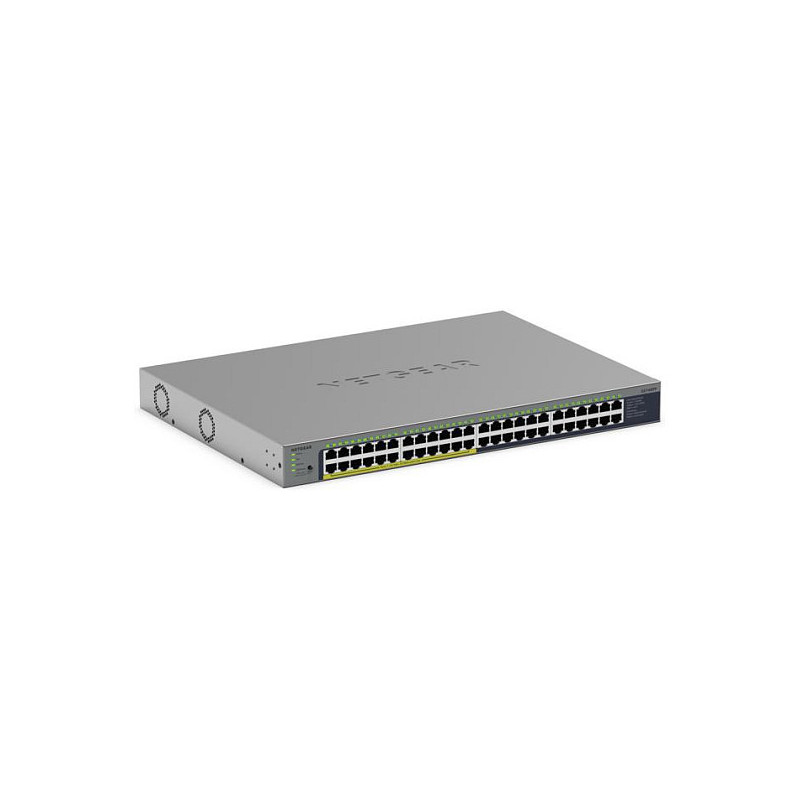

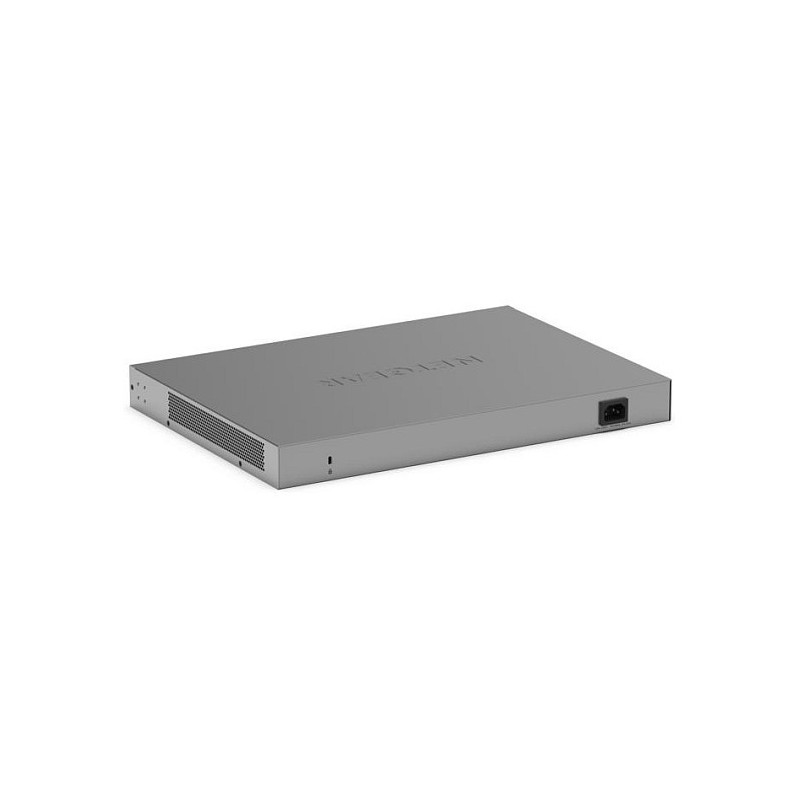

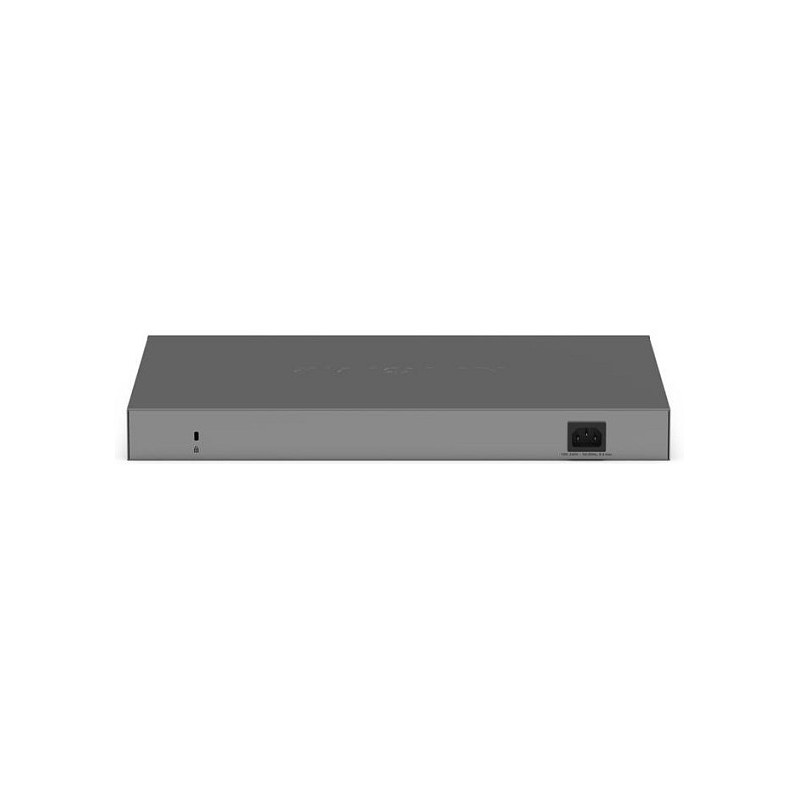

NETGEAR GS748PP

NETGEAR GS748PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1p, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting

POWER-OVER-ETHERNET

24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.

PLUG-AND-PLAY

Simple set up with no software to install or configuration needed

NON-BLOCKING SWITCHING

Non-blocking switching architecture for maximum throughput at wire speed

DYNAMIC FANS

Optimal balance between noise and performance.

VERSATILE MOUNTING OPTIONS

Install your switch on your desktop or mount it to your rack with the hardware provided in the box

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support
MIB support: RFC 1213 MIB II, RFC 1643, RFC 1493

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3az
Copper ethernet cabling technology: 10BASE-T
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Ethernet LAN data rates: 1000 Mbit/s

Data transmission

MAC address table: 8000 entries
Maximum data transfer rate: 1 Gbit/s
Feature: Jumbo frames support
Jumbo frames: 12.288
Packet buffer memory: 1.5 MB

Design

Feature: Rack mounting
Product colour: Grey
Feature: Redundant fans support
Number of fans: 2 fan(s)
Safety: CE mark, cUL IEC950/EN60950

Performance

Mean time between failures (MTBF): 570972 h

Power

Power source: AC/DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 8 A
Power consumption (max): 410 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 380 W

Other features

Latency: 2,900ns
Connectivity technology: Wired
Bandwidth: 96 Gbit/s
I/O ports: 48 x 10/100/1000 Mbps4 x SFP
Electromagnetic emissions: CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick
Authentication method: 802.1x
Warranty period: 2 year(s)

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 34.2 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 310 mm
Height: 43 mm
Weight: 4.6 kg

Certificates

Compliance certificates: CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI
