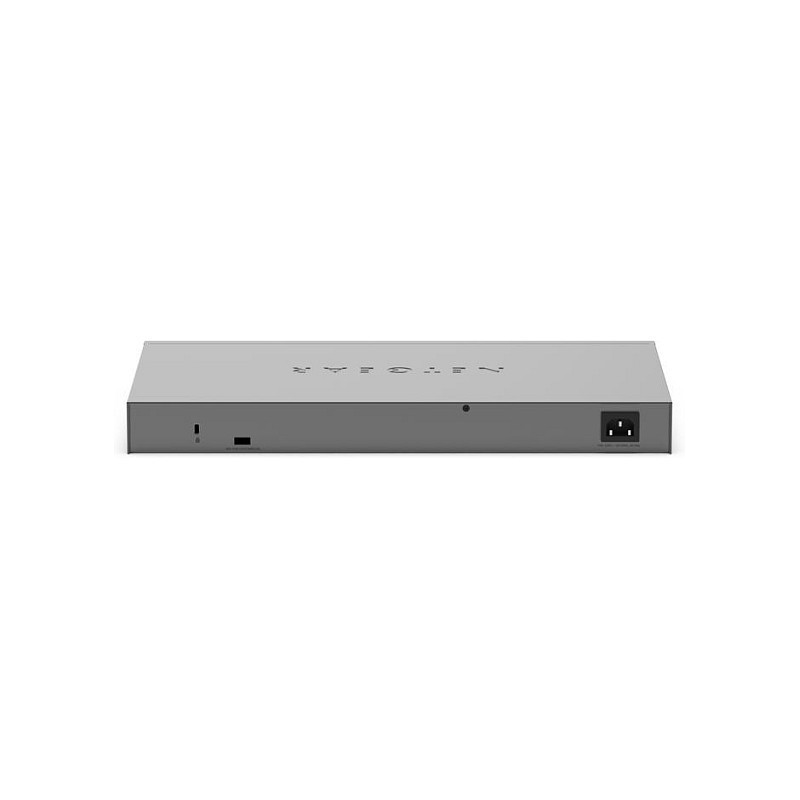

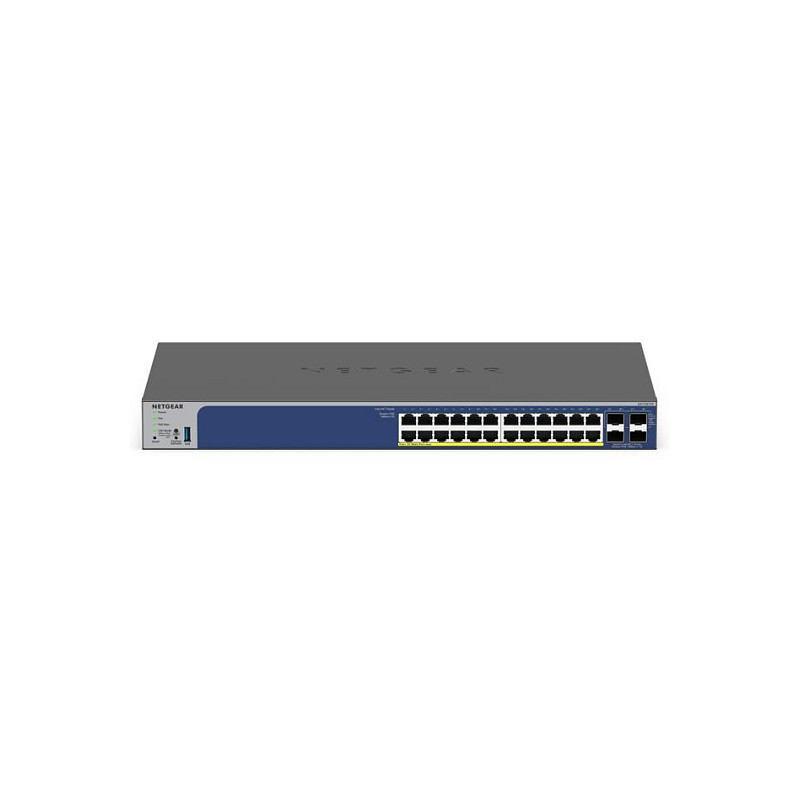

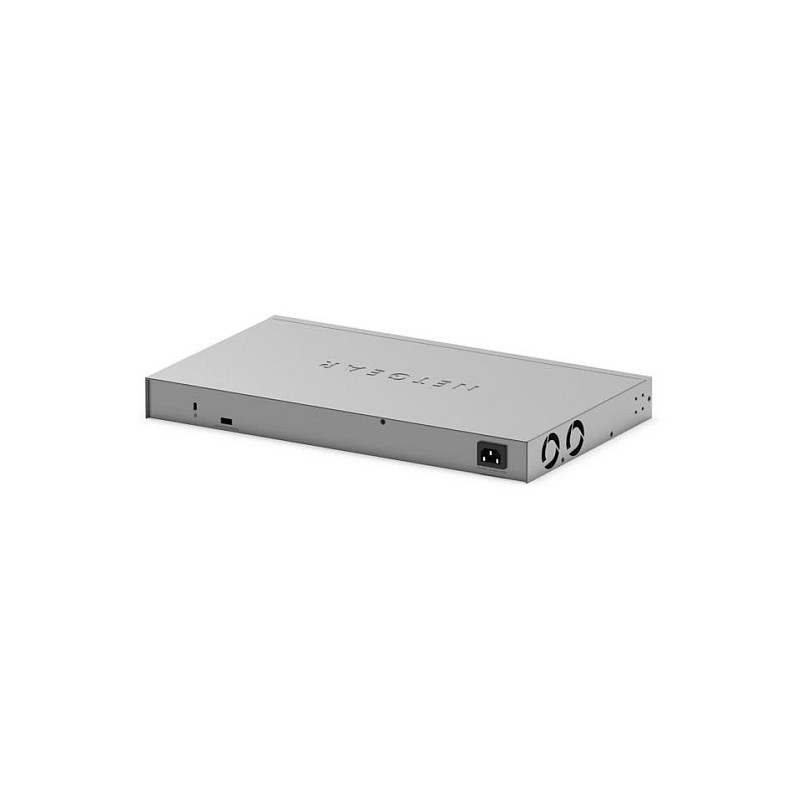

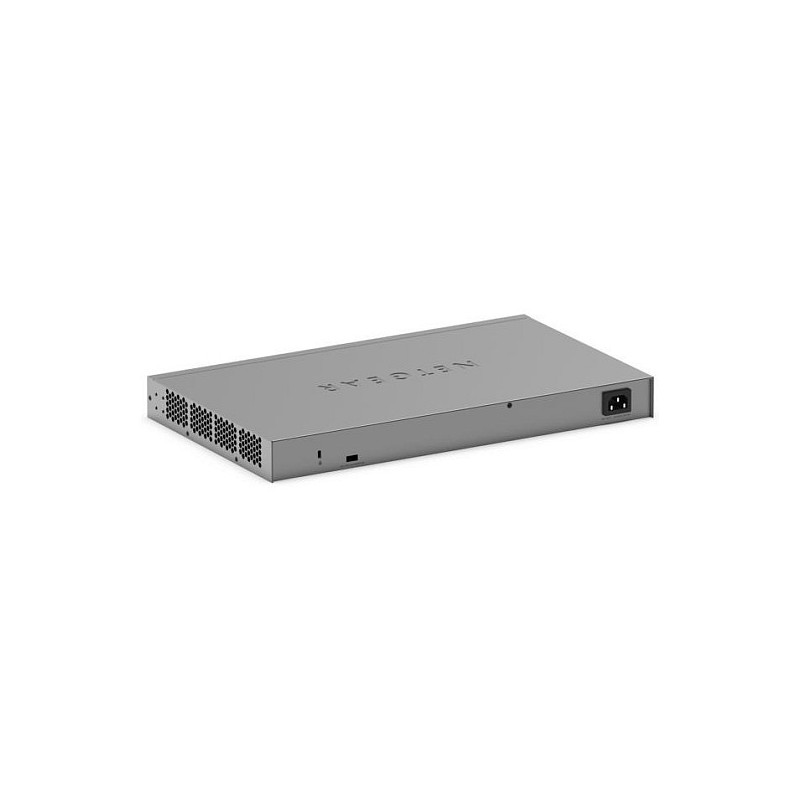

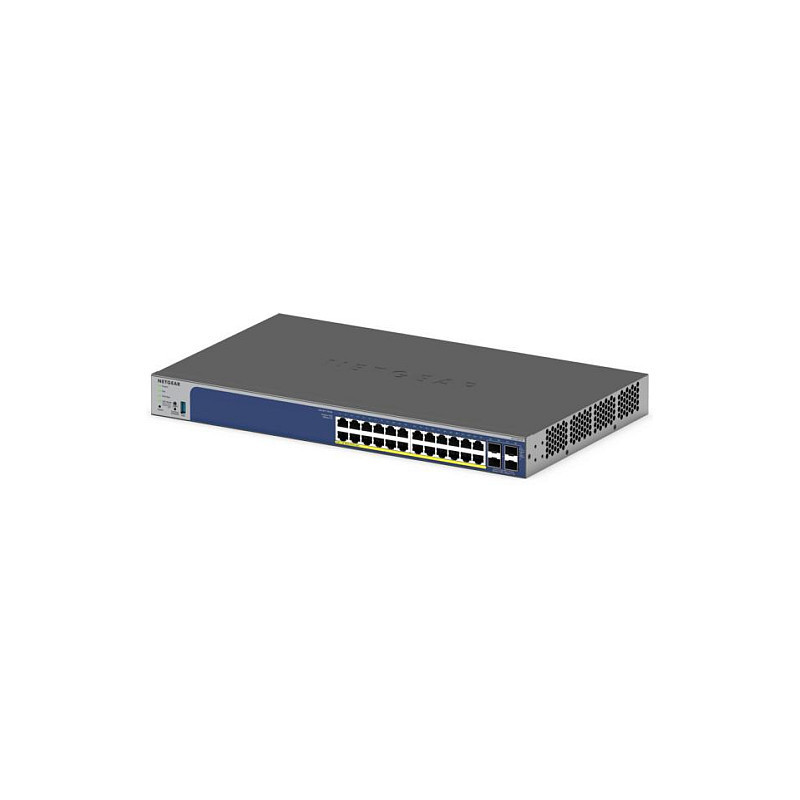

NETGEAR GS728TX

NETGEAR GS728TX. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4. Full duplex. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Rack mounting

NETGEAR provides complimentary technical support for NETGEAR products for 90 days from the original date of purchase.

NETGEAR ProSupport for Home
All-In-One Extended Warranty and Support from NETGEAR certified experts. Protect your NETGEAR purchase and fix issues for your entire home network. Two plans are available for you to choose from.

NETGEAR ProSupport for Business
Get the expert support and extended coverage your business needs. NETGEAR offers a range of ProSupport services designed to supplement your technical support and warranty entitlements, giving you access to specialized expertise when you need it most.

NETGEAR Safety & Security
Protecting your network is essential, and we are committed to maintaining the security of our products to help keep you safe online. We aim to provide transparency by publishing a list of products nearing their End of Service stage, issuing Security Advisories to address identified vulnerabilities, and offering multiple ways to report potential security concerns.

Management features

Switch layer: L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity: 4
SFP+ module slots quantity: 4

Network

Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 256

Data transmission

MAC address table: 16000 entries
Feature: Static route
Number of static routes: 32
Packet buffer memory: 16 MB

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Access Control List (ACL) ingress: 100
Feature: IGMP snooping
Feature: MAC address filtering
Feature: SSH/SSL support

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Flash memory: 64 MB
Noise level: 26.8 dB
Mean time between failures (MTBF): 1252990 h

Power

Power consumption (typical): 748.18 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Weight & dimensions

Width: 440 mm
Depth: 257 mm
Height: 43.2 mm
Weight: 3.8 kg

Packaging content

Cables included: AC
Feature: Manual
