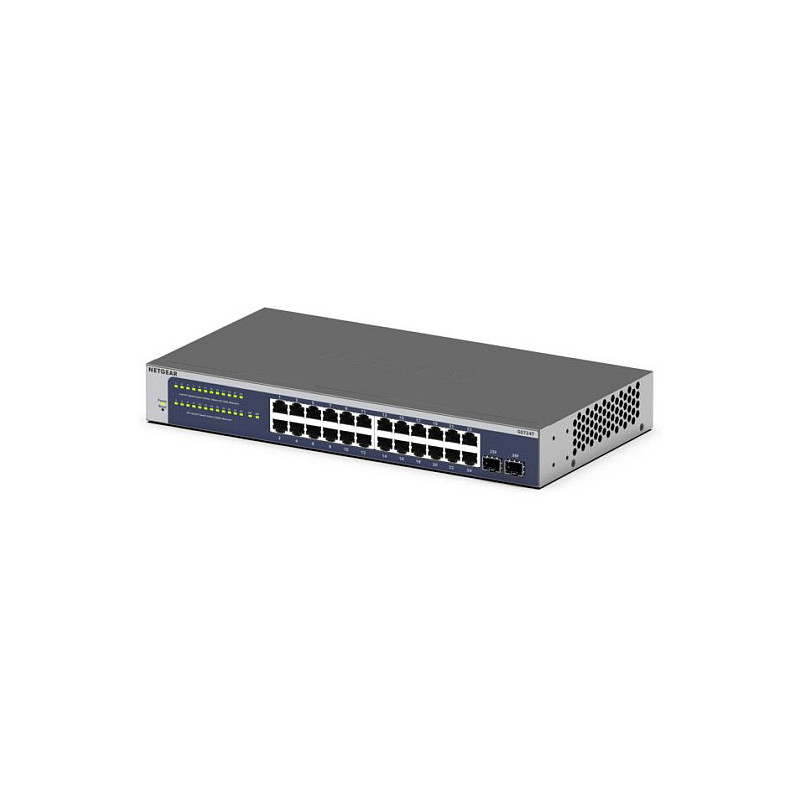

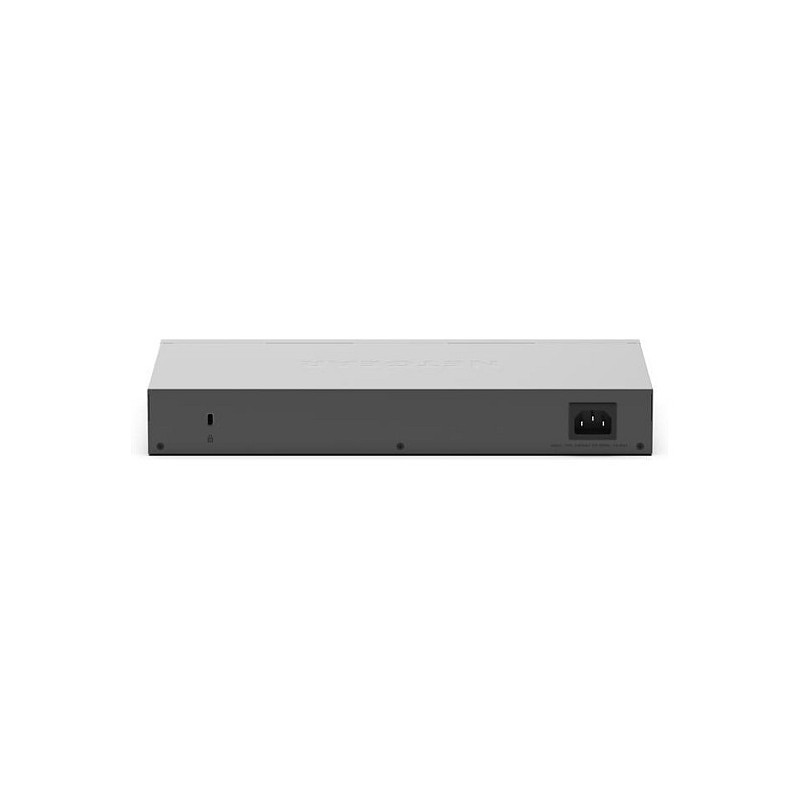

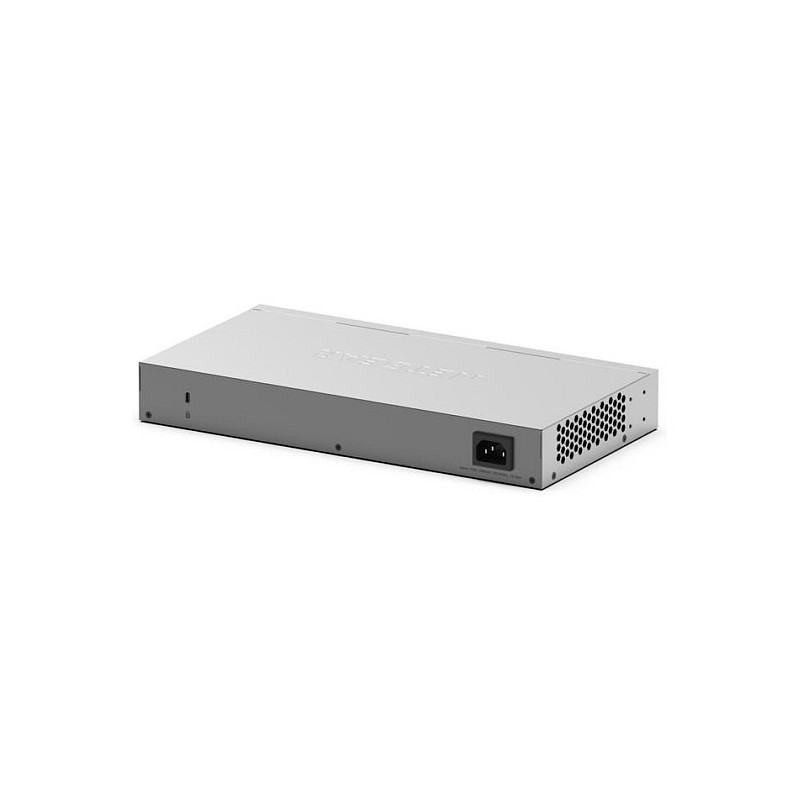

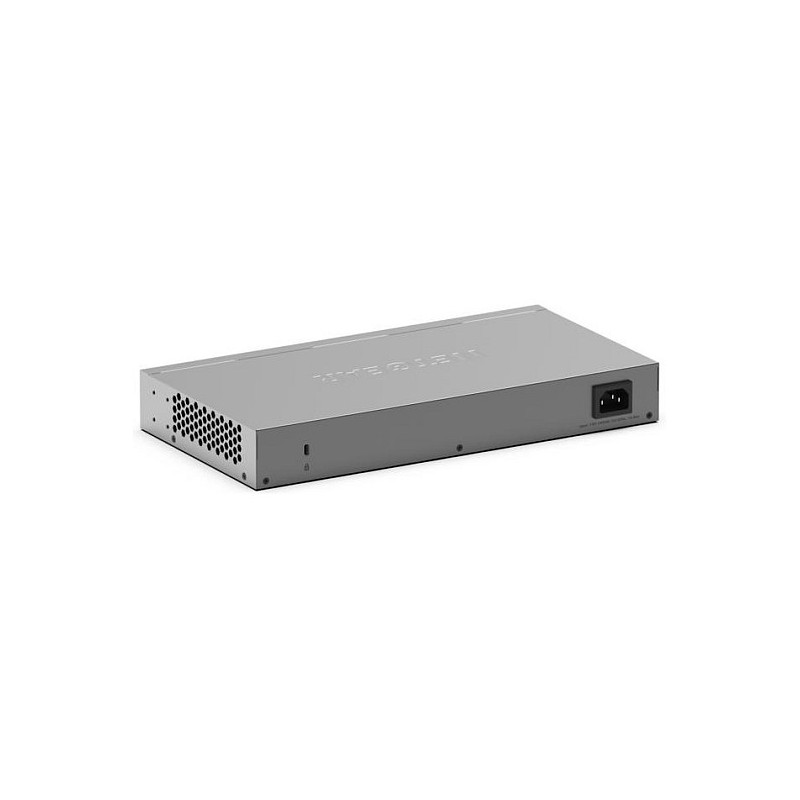

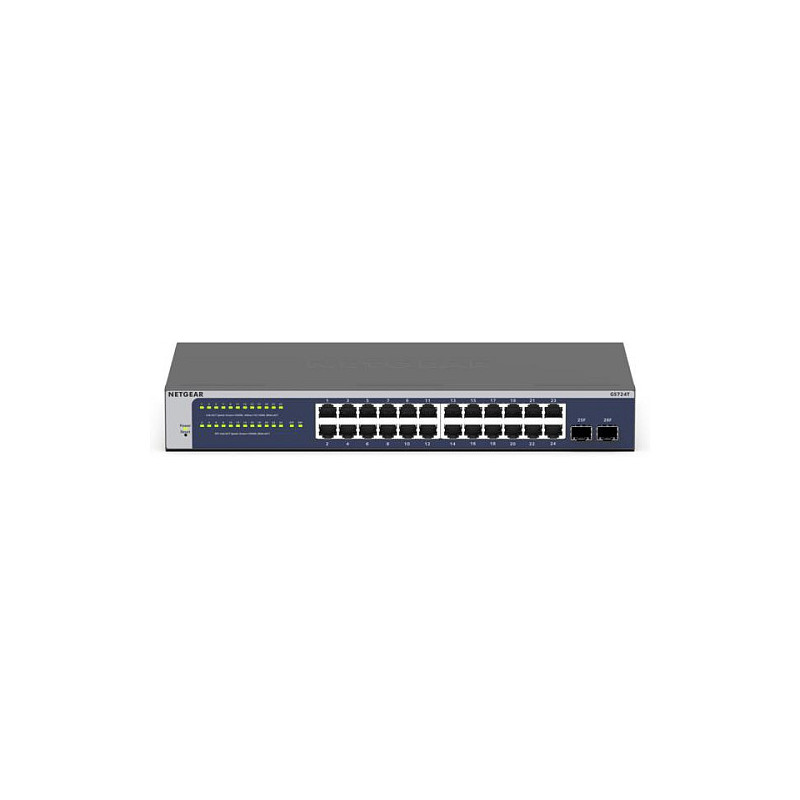

NETGEAR GS724T

NETGEAR GS724T. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U

NETGEAR GS724T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

Management features

Switch type: Managed
Switch layer: L2+/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Flow control support
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 256

Data transmission

Switching capacity: 52 Gbit/s
MAC address table: 16000 entries
Number of queues: 8
Number of static routes: 32
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 2 MB

Security

DHCP features: DHCP client, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SSL/TLS
Feature: MAC address filtering
Feature: SSH/SSL support

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 512

Protocols

Management protocols: SNMP v1/v2

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Blue, Grey
LED indicators: Activity, Link
Number of fans: 0 fan(s)

Performance

Noise level: 0 dB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 1999946 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 13.5 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Weight & dimensions

Width: 328 mm
Depth: 169 mm
Height: 43 mm
Weight: 1.62 kg
