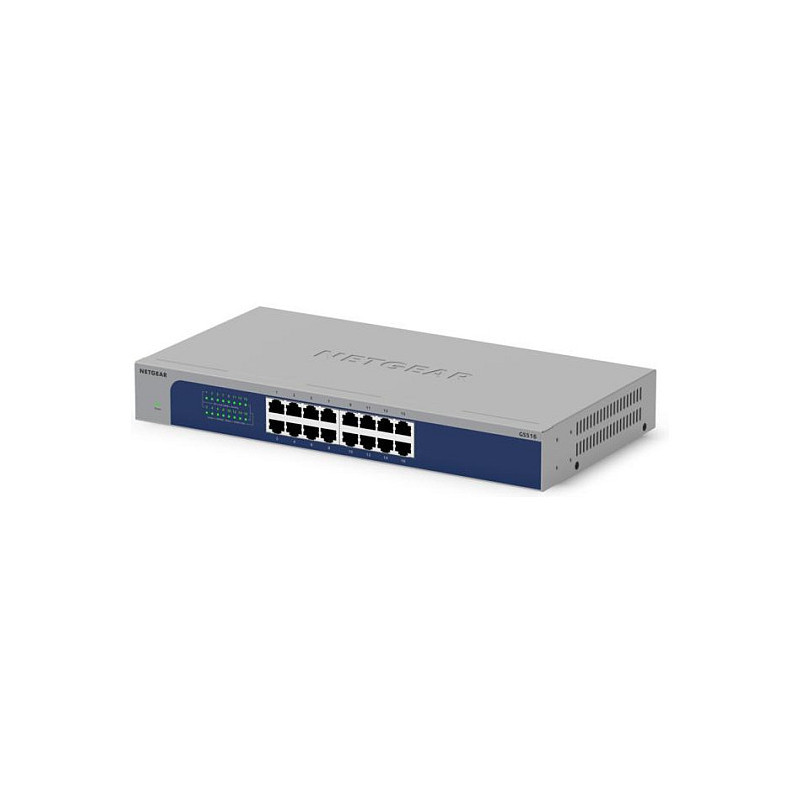

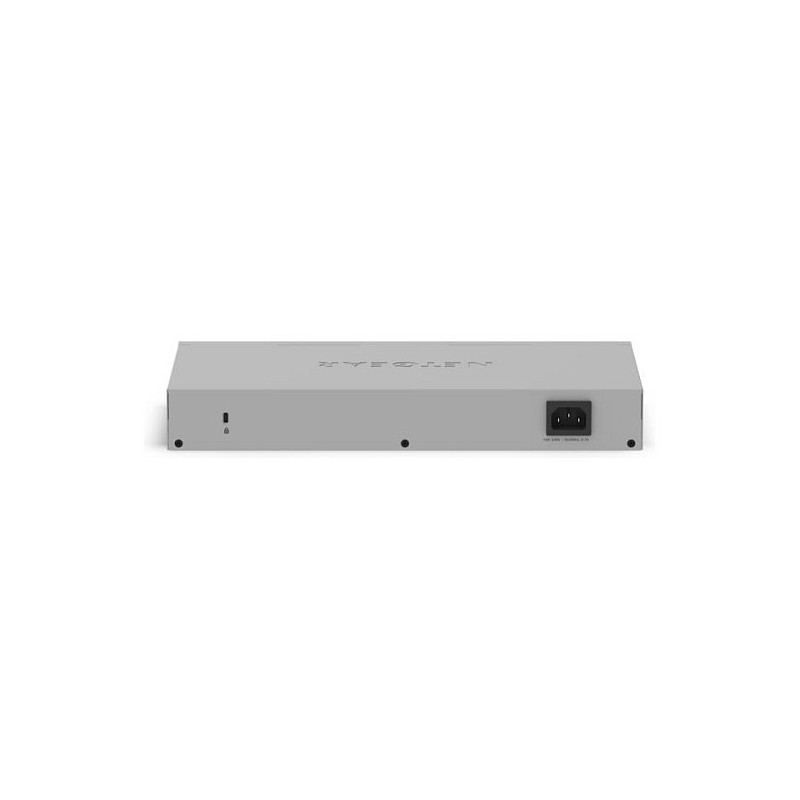

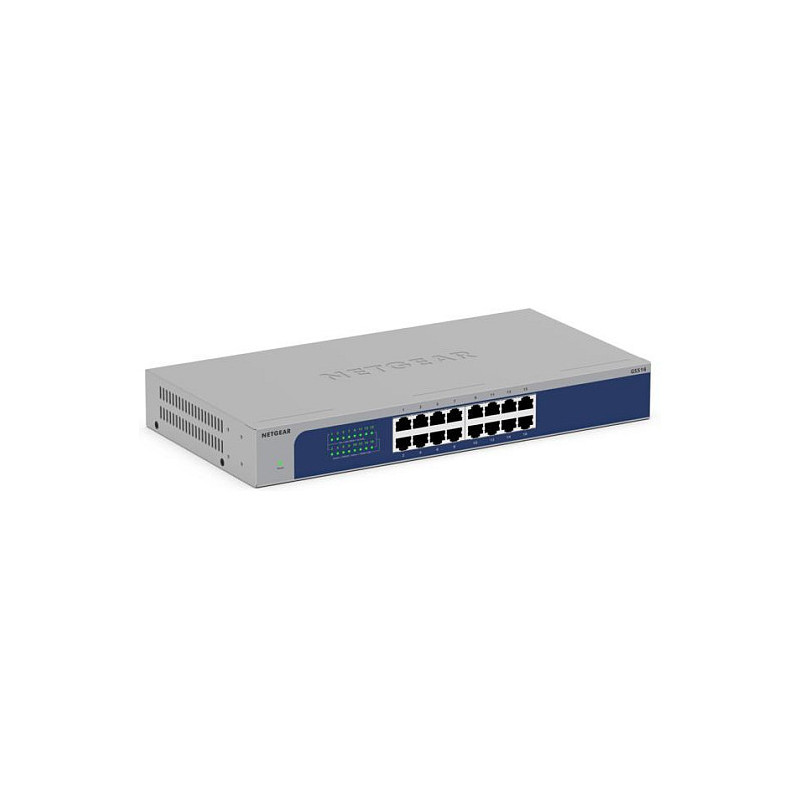

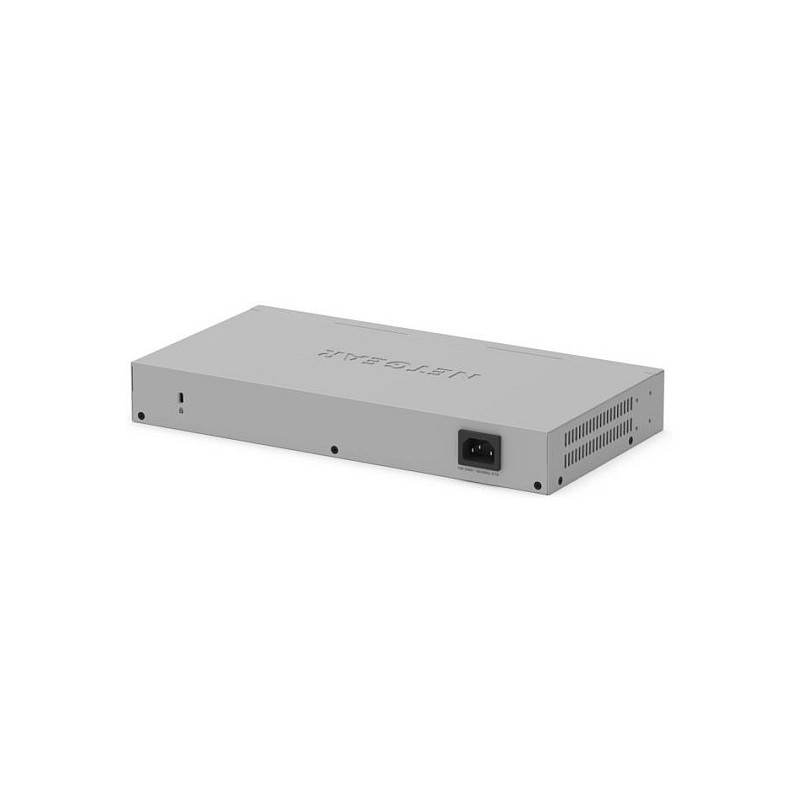

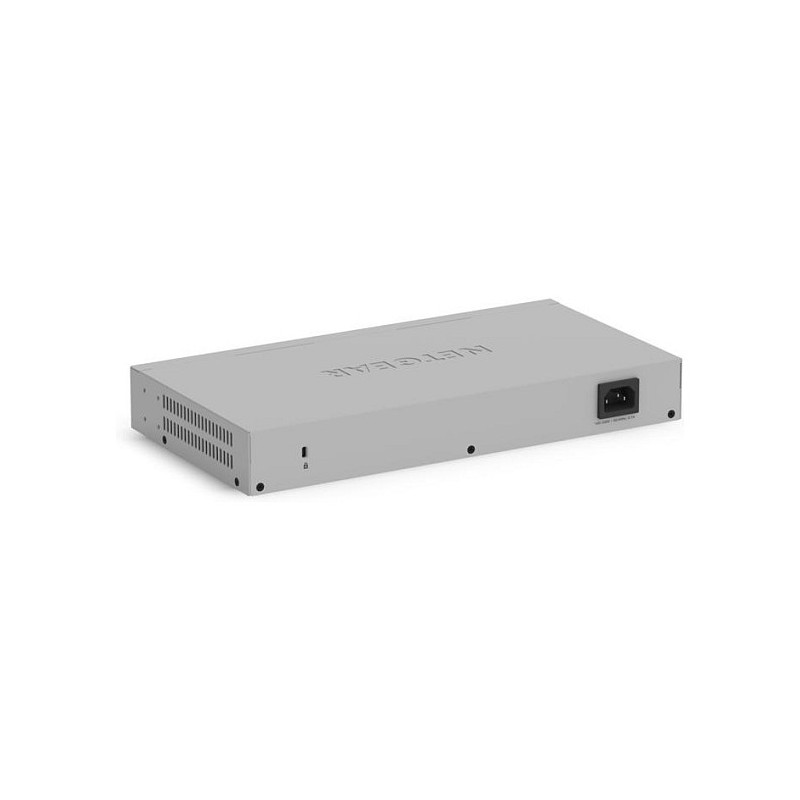

NETGEAR GS516-300EUS network switch

NETGEAR GS516-300EUS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE.... Rack mounting

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box

METAL CASE
Durable and rugged case for long-lasting performance

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Latency (10-100 Mbps): 30 µs
Latency (1 Gbps): 15 µs
Latency (10 Gbps): 35 µs
Feature: Jumbo frames support
Packet forwarding rate (1 Gbps): 1488000 pps

Design

Feature: Rack mounting
Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, Power, Speed

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 10 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 328 mm
Depth: 169 mm
Height: 43 mm
Weight: 1.49 kg

Certificates

Compliance certificates: BSMI, CB, CE, Federal Communications Commission (FCC), ISED, KC, RCM, UKCA, VCCI
