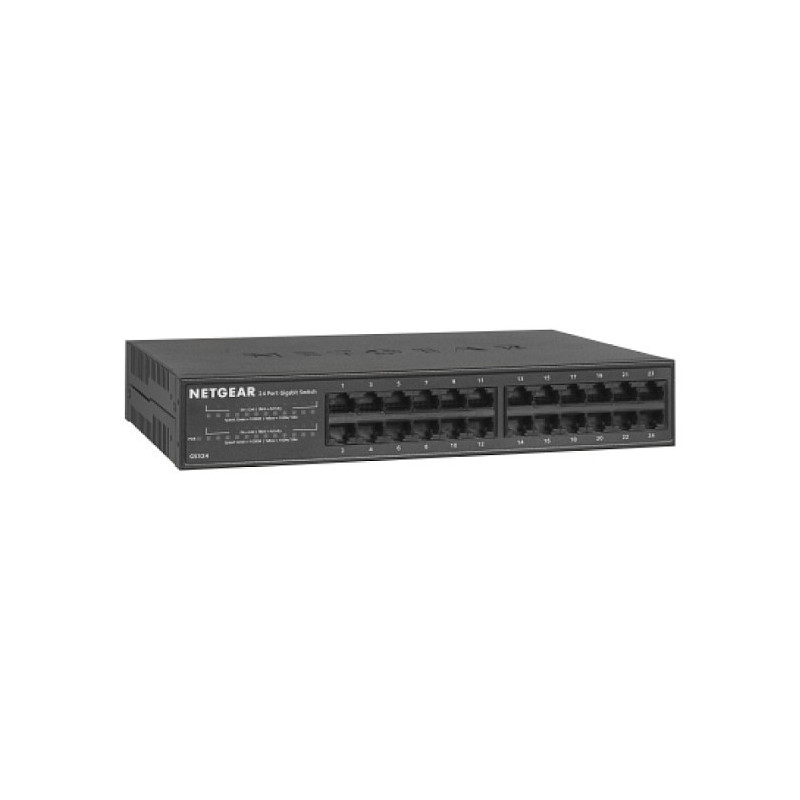

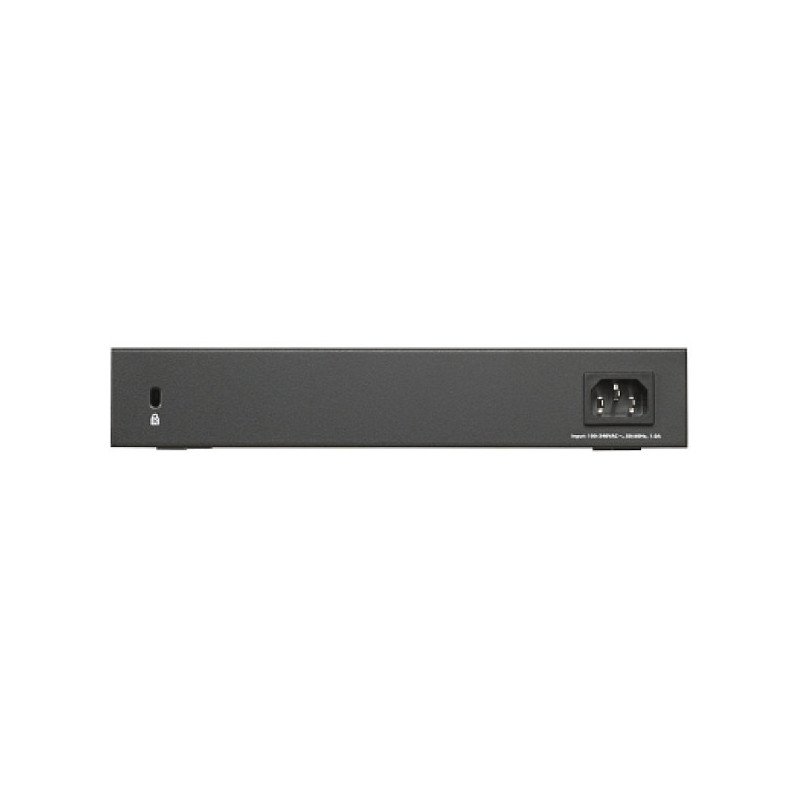

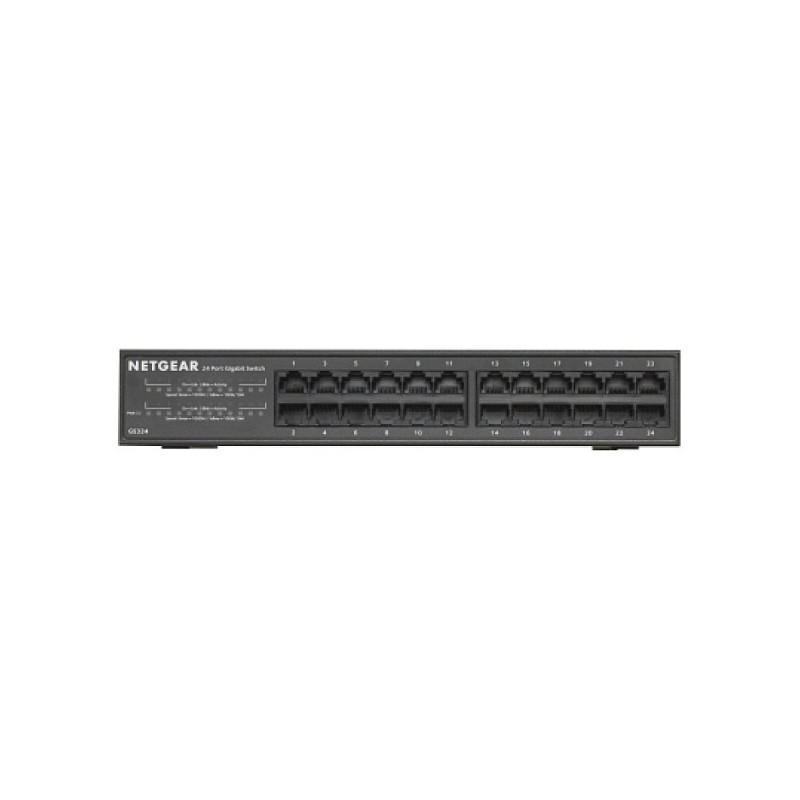

NETGEAR GS324

NETGEAR GS324. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE.... Wall mountable, Rack mounting

Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.

PLUG & PLAY
Simple setup with no software or configuration needed.

FLEXIBLE MOUNTING
Mount on rack, desktop, or wall.

SMALL SIZE, METAL CASE, AND SILENT OPERATION
Durable quality, space saver, and quietness for peace of mind.

STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5
Feature: Auto MDI/MDI-X
Feature: Auto-sensing

Data transmission

Switching capacity: 48 Gbit/s
MAC address table: 8000 entries
Latency (1 Gbps): 4.7 µs
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1448000 pps
Packet buffer memory: 0.512 MB

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power, Speed
Feature: Wall mountable

Performance

Feature: Fanless
Mean time between failures (MTBF): 620798 h

Power

Feature: Power supply included
AC input voltage: 110 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1 A
Power consumption (max): 11.1 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 37.96 BTU/h

Weight & dimensions

Width: 252 mm
Depth: 180 mm
Height: 44 mm
Weight: 1.31 kg

Packaging content

Cables included: AC
Feature: Manual

Certificates

Certification: CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD

Logistics data

Harmonized System (HS) code: 85176990
