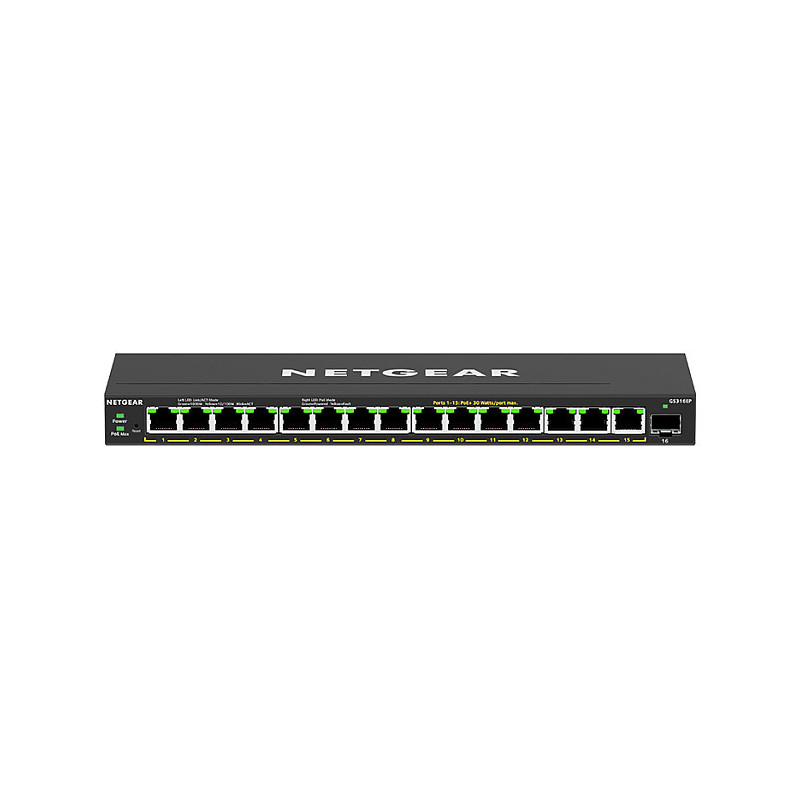

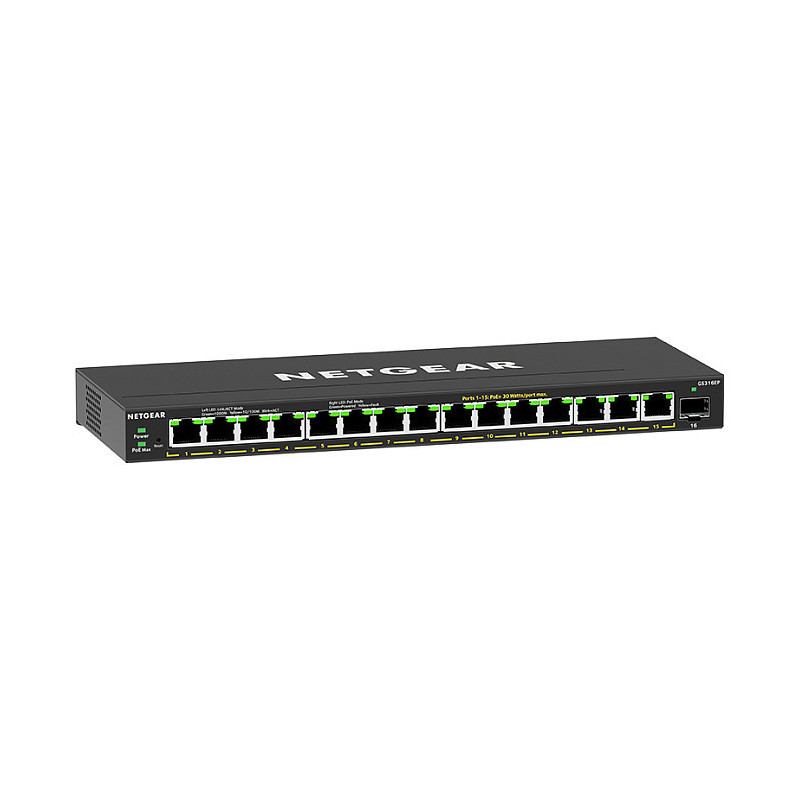

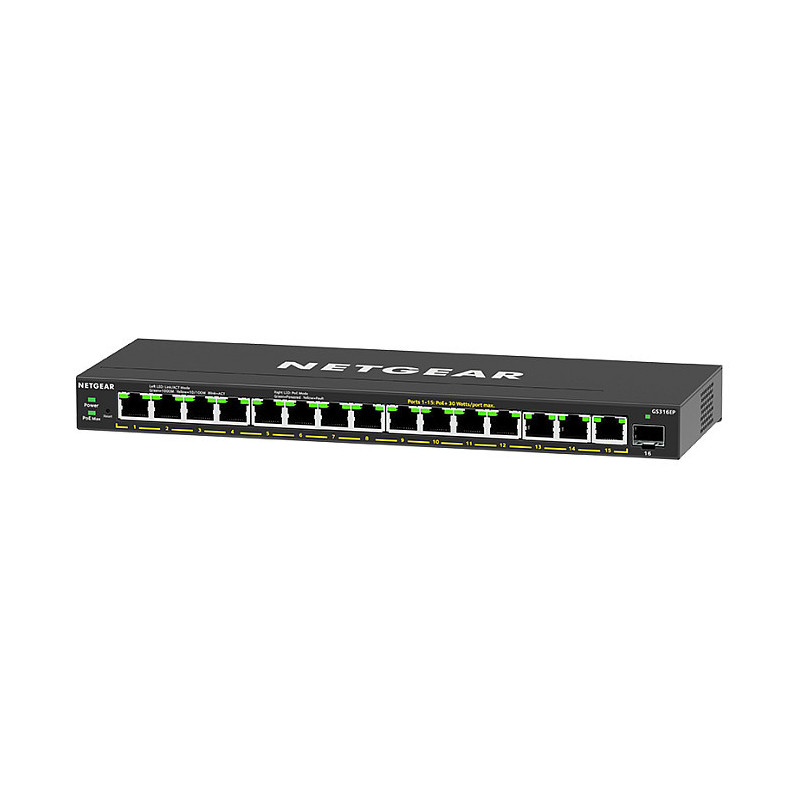

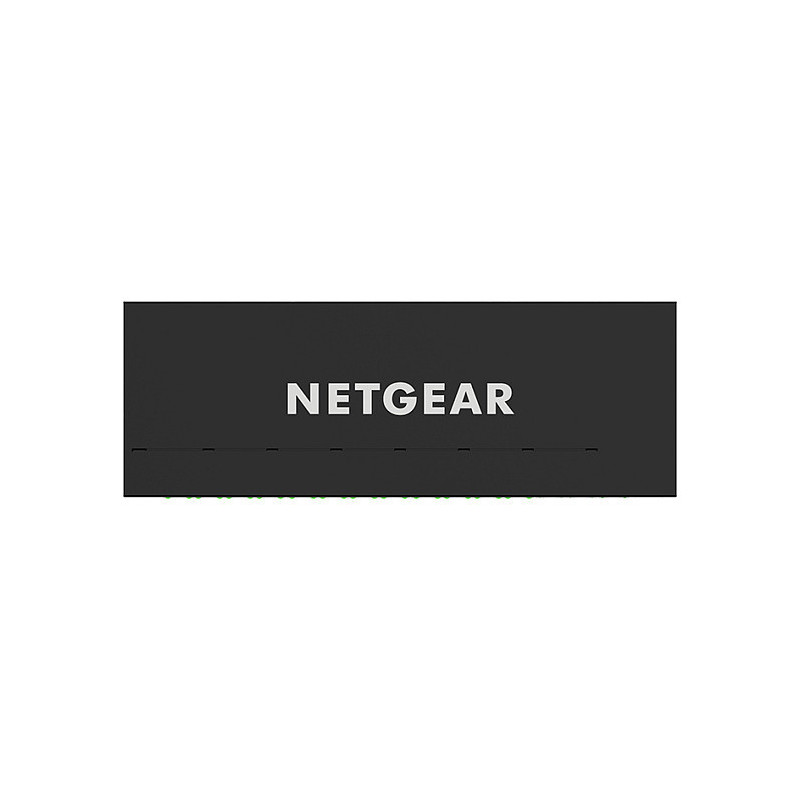

NETGEAR GS316EP

NETGEAR GS316EP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 15. Full duplex. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

The NETGEAR 16-Port PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more.

Gigabit Ethernet
16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each

PoE+ Support
15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire

Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices

Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments

Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 15
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 15
SFP module slots quantity: 1
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: VLAN support

Data transmission

Switching capacity: 32 Gbit/s
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 10000

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)

Multicast features

Feature: Multicast support

Design

Product colour: Black
LED indicators: Yes

Power

Power source: DC
Feature: Power supply included

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 15
Total Power over Ethernet (PoE) budget: 180 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Weight & dimensions

Width: 286 mm
Depth: 102 mm
Height: 27 mm
Weight: 883 g

Packaging content

Cables included: AC

Logistics data

Harmonized System (HS) code: 85176990
